Summary of Contents for BOERPLAY SOLE030.221

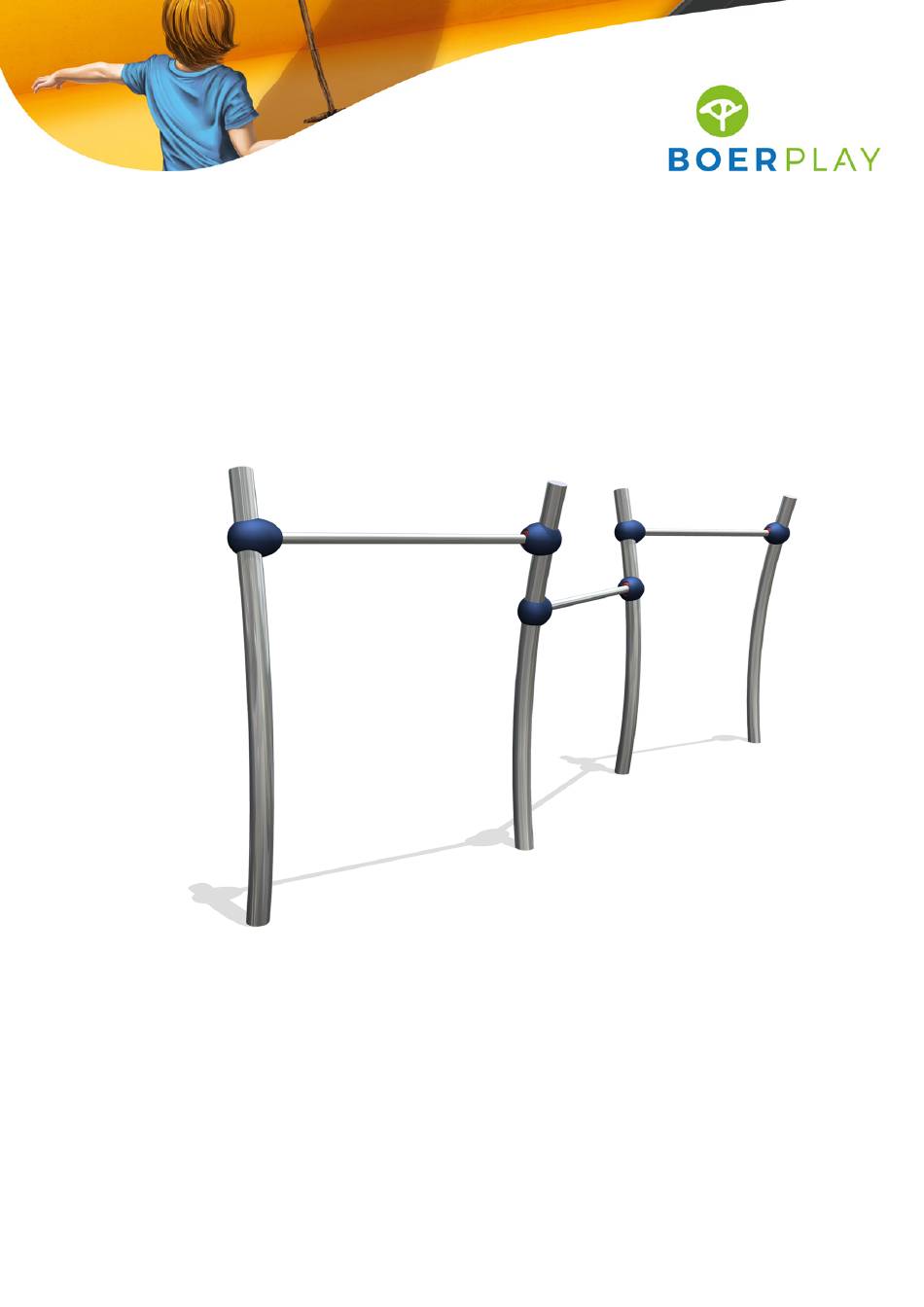

- Page 1 Trio Tumble Bar SOLE030.221...
- Page 2 0,97 m 0,00 m 1,35 m 1,17 m 0,92 m 0,00 m Benaming TOE SOL 030 221 Duikel trio Title Tekening Opmerking Pionier Drawing Comment BOER Datum Afmetingen Dimensions 23-1-2017 Date SPEELTOESTELLEN...
- Page 3 3,70 m 3,00 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE SOL 030 221 Duikel trio Title Tekening Opmerking Pionier Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 23-1-2017 Date SPEELTOESTELLEN...
- Page 4 1,27 m 1,00 m 0,54 m 1,07 m 0,99 m 1,07 m 0,54 m 1,00 m Grondmarkering Ground level marker Benaming TOE SOL 030 221 Duikel trio Title Tekening Opmerking Pionier Drawing Comment BOER Datum Bodemplan Groundplan 23-1-2017 Date SPEELTOESTELLEN...
- Page 5 Supplied modules: Geleverde modules: See table Zie tabel Assembly instruction: Montageinstructie: - The main dimensions indicate the dimensions of the posts and floors - De hoofdmaten geven de maten van de staanders en vloeren aan - The detailed dimensions show the specific dimensions of the connections - De detailtekeningen geven specifiek de maten van de verbindingen aan - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 SOLE030.221 Trio Tumble Bar LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Pioneer Play Product code SOLE030.221 Name of equipment Duikel Trio pionier Maximum height of fall...
-
Page 7: Maintenance
LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear. - Page 9 Grondmarkering Ground level marker 115 cm Duikel frame EI 05 Submodule TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 500 000 Duikelrek Title...
- Page 10 Submodule EI 05 Klimstang PNR 33.7x2 Lengte 1020 cm HOH TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 502 000 Duikelstang 100 cm Title...
