Creating NVMe RAID Configurations

1. Open Advanced > Intel(R) Virtual RAID on CPU > All Intel VMD Controllers >
Create RAID Volume.

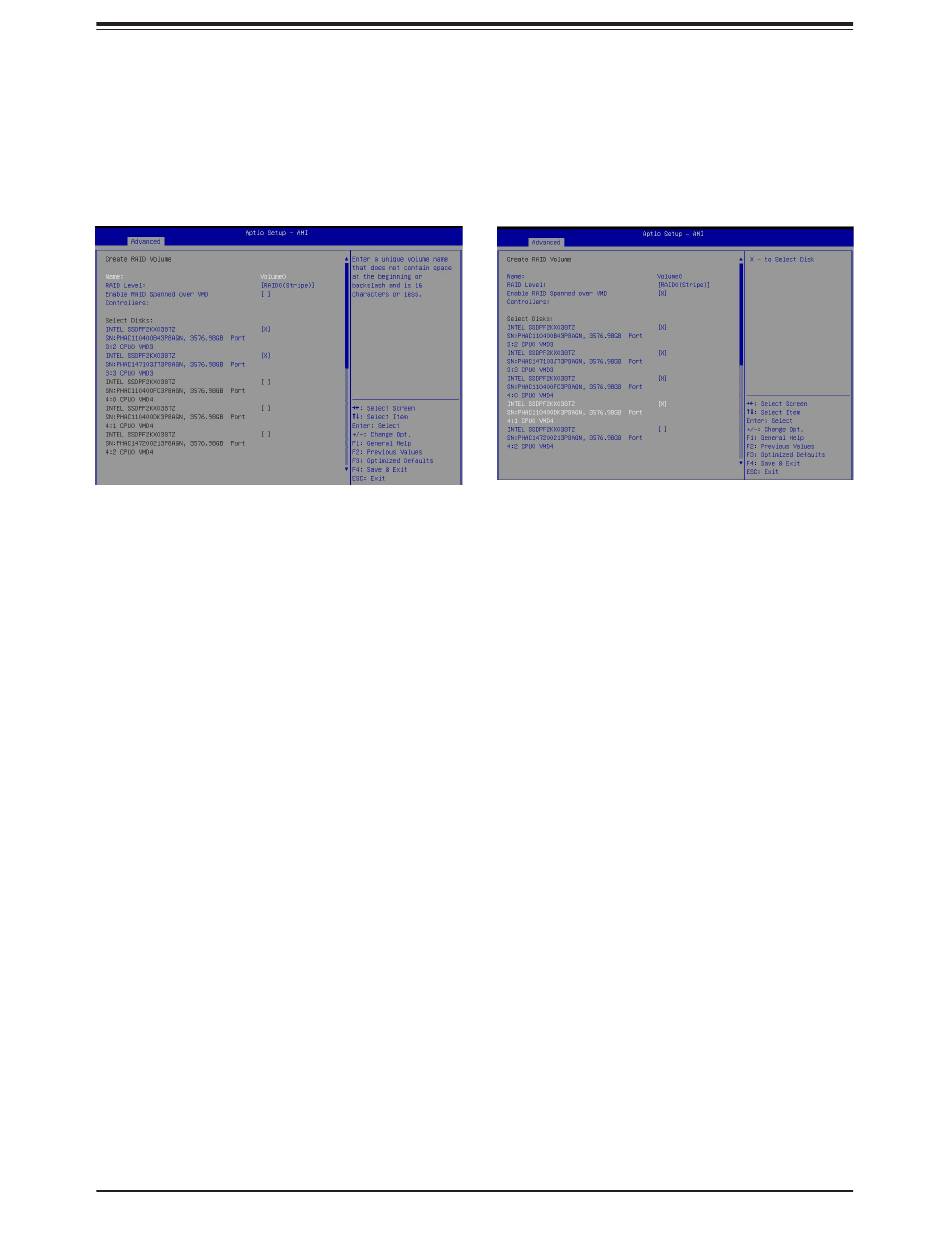

Figure 6-13. Created Volume without
enabling RAID spanned over VMD
controller
2. Set Name.
3. Set RAID Level.
4. If cross-controller RAID is required, select Enable RAID spanned over VMD
Controller.
5. Select specific disks for RAID with an [X].
•
RAID0: Select at least two [2 - 24] disks
•
RAID1: Select only two disks
•
RAID5: Select at least three [3 - 24] disks
•
RAID10: Select only four disks
6. Select Strip Size (Default 64KB).
7. Select Create Volume.
8. If another RAID is needed, start again at step 1.
Chapter 6: Optional Components
Figure 6-14. Created Volume with
enabling RAID spanned over VMD
controller
