Rear View

Power Supplies
Feature Description
Power Supplies Two redundant power supply modules
VGA Port Video port
USB Ports Two USB 3.0 ports
BMC LAN Port Dedicated port to access the BMC; for indicator details, see
COM Port Serial port
UID LED Unit identifier indicator light
Item Description
1 PCIe 5.0 x16 slot: full-height, half-length (CPU1)
2 PCIe 5.0 x16 slot: full-height, half-length (CPU2)
PCIe 5.0 x16 OCP 3.0 AIOM slot (CPU1)
A1
PCIe 5.0 x16 OCP 3.0 AIOM slot (CPU2)
A2

Power Supply Indicator

LED Color and State
Solid Green
Solid Amber
Off
2
A2

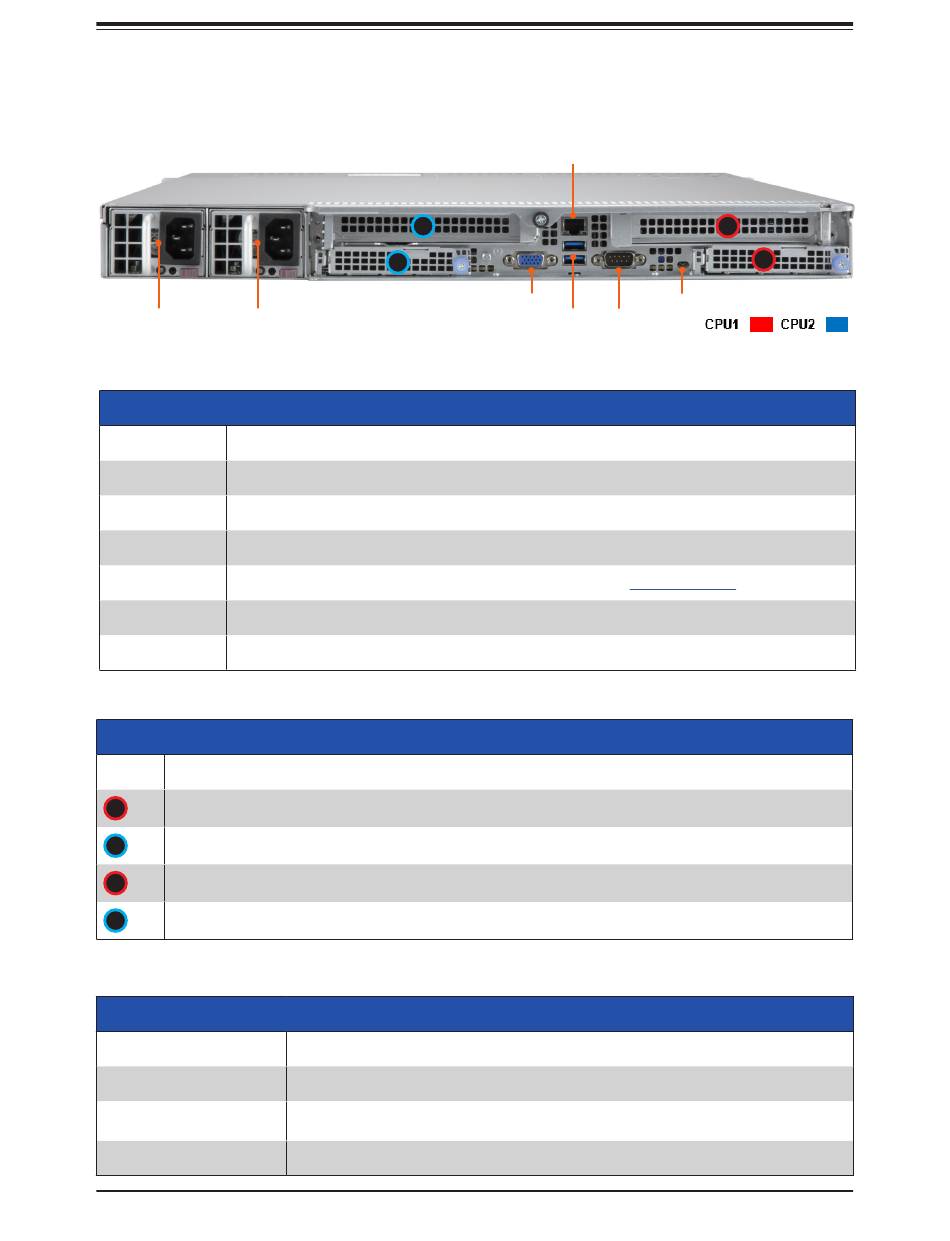

Figure 1-3. System: Rear View
System Features: Rear
Add-on Card Slots
Power Supply Indicator
Power Supply Condition
Indicates that the power supply is on and working
Indicates system is off (in S5 state) or power supply failure has occurred. For the
latter case, the system might need servicing. Contact Supermicro technical support.
No AC power to module
12
BMC LAN Port
VGA Port UID LED
USB Ports COM Port
BMC LAN LEDs
