2.4 Installing the Rails

There are a variety of rack units on the market, which may require a slightly different assembly
procedure. This rail set fits a rack between 25.6" and 33" deep.
The following is a basic guideline for installing the system into a rack with the rack mounting
hardware provided. You should also refer to the installation instructions that came with the
specific rack you are using.
If you are installing into a two-post "telco" rack, skip to that section later in this chapter.

Identifying the Rails

The chassis comes with two sets of rack rails, one set for the right side of the chassis and
one for the left. Each set consists of an inner rail that is
rail that attaches to the rack, and a middle rail that slides forward in the outer rail.
Middle Rail (not shown)--
slides forward from the
outer rail

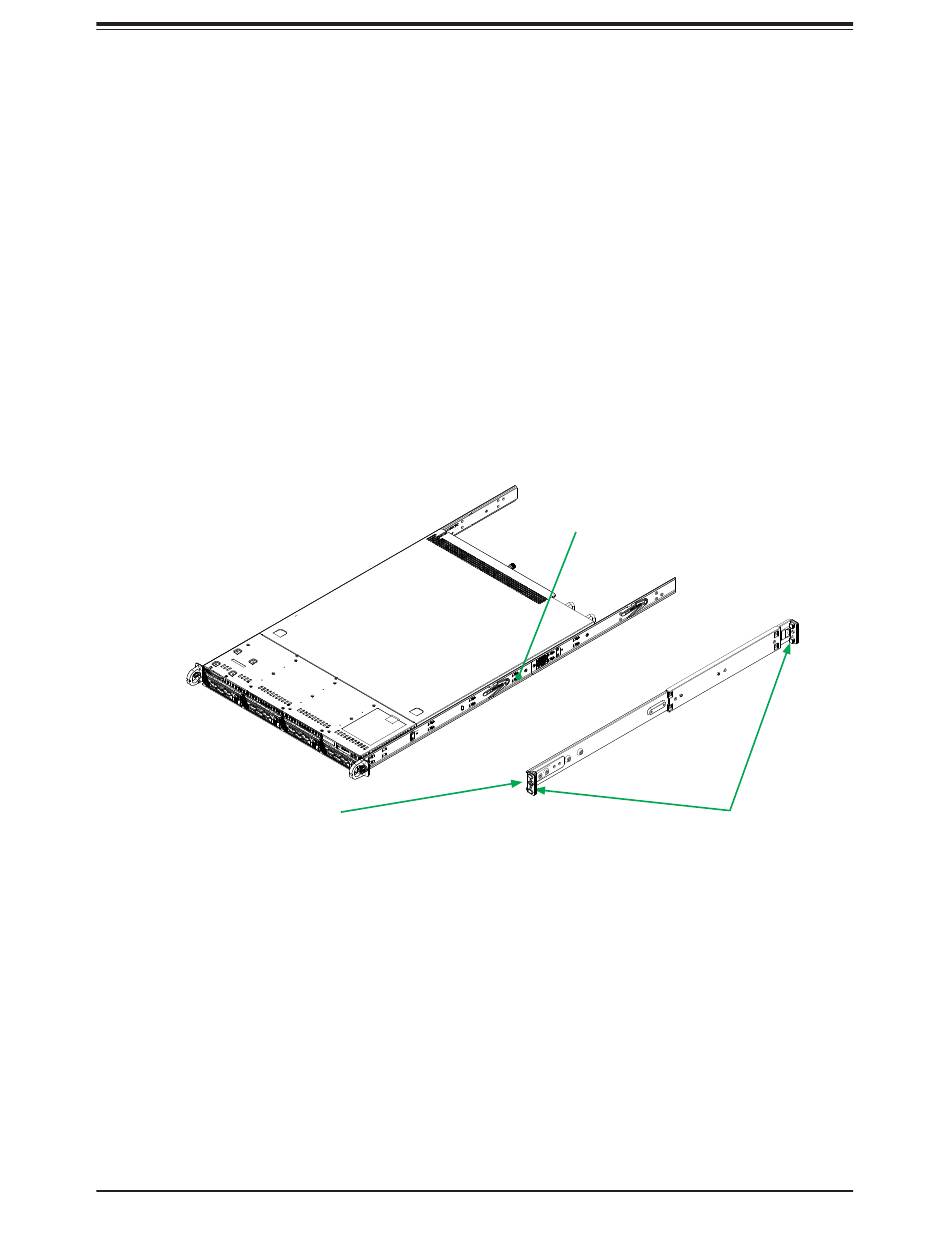

Figure 2-1. Identifying the Sections of the Rack Rails
Chapter 2: Server Installation
pre-attached
Inner rail--
pre-attached to
the chassis
22
to the chassis, an outer
Outer rail, front
and rear brackets
