- Page 1 HD P USER MANUAL P/N UM-8065 Rev. 01/2018...
- Page 2 4. How to Use Your CamView HD Pro ....... . .
- Page 3 You can also use it to check microphone/audio on the camera, or take advantage of the built-in flashlight. The CamView HD Pro supports HD cameras up to HD-TVI 3.0, HD-CVI 3.0, and AHD 2.0. This Tester is powerful, portable, and designed with the technician in mind. It will help you perform installation and maintenance jobs quickly and efficiently.
- Page 4 CamView HD Pro User Manual CamView HD Pro User Manual 2. DEVICE DIAGRAMS AND FUNCTIONS 1.2.4 DC Output The Tester will provide 12VDC output via the “12V 1A Output” jack on the left side of theTester to 2.1 Controls - Locations and Explanations power an analog camera.

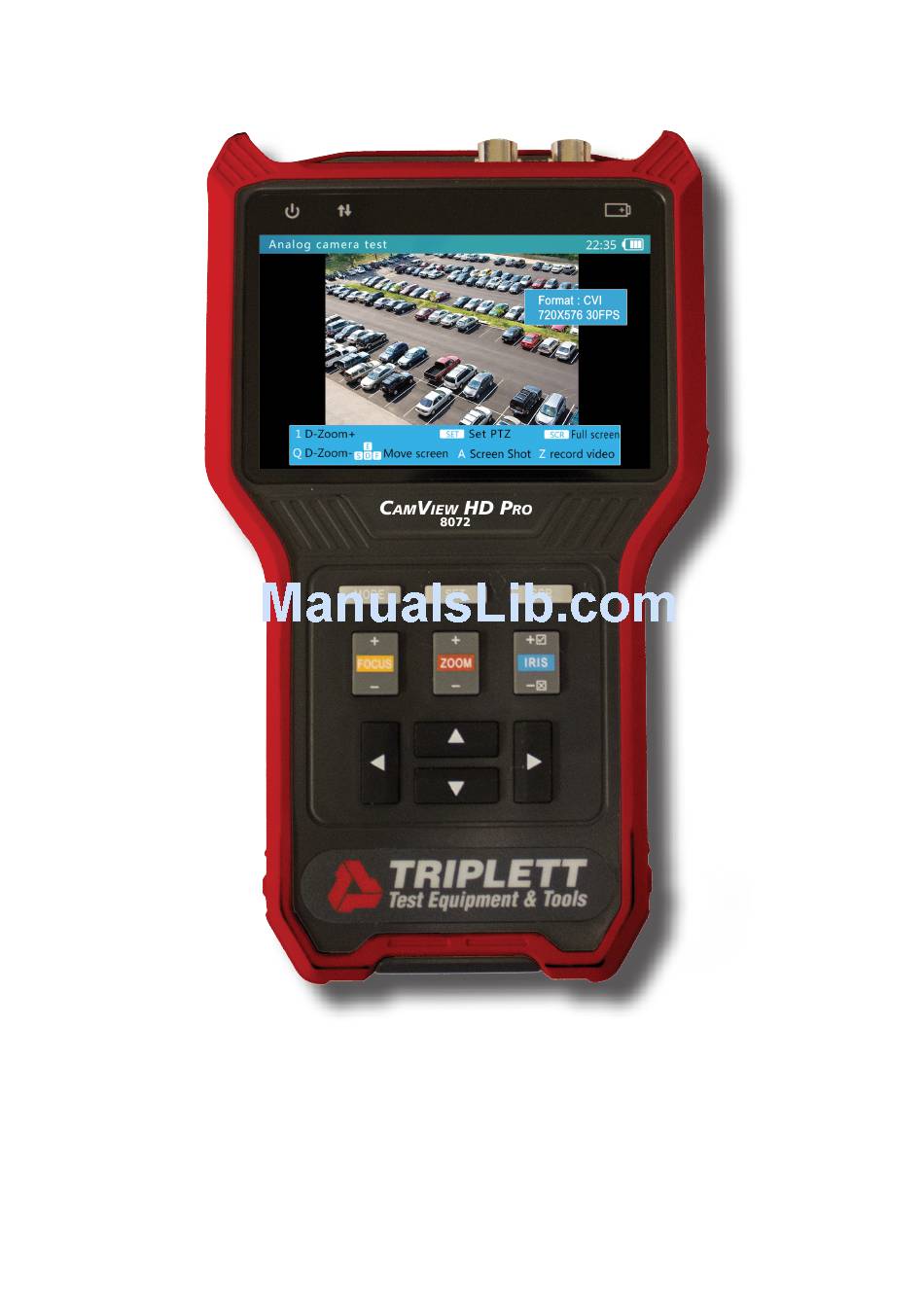

- Page 5 CamView HD Pro User Manual CamView HD Pro User Manual 2.1 Front of Tester Power Indicator — Lights up when powered on. Title Bar — Displays current function mode and system time. Display Area — Displays various user interface menus.
- Page 6 CamView HD Pro User Manual CamView HD Pro User Manual 2.2 Back of Tester Belt Clip Mount Built-in Speaker Battery Cover Latch — Press toward bottom of tester to open battery cover Battery Cover Power Output — 12V 1A output to power camera Power Input —...
-
Page 7: Basic Operation
You can choose to install the lanyard or belt clip. The CamView HD Pro uses a rechargeable lithium-ion polymer battery. To ensure safety when To install the lanyard, put one end of the lanyard through the hole at the top of the device, turn transporting, always disconnect the battery from the Tester. - Page 8 An example diagram is below. When the CamView HD Pro first boots up, you will see the following Main Screen. NOTE — The Tester’s output power is 12V/1A. When the current needed by the camera exceeds the limit, power output will automatically stop.
- Page 9 Analog Camera testing: STEP 1: Power Up the Tester Press the SCR Button on the front of your CamView HD Pro Tester to turn it on if it is not already powered on. STEP 2: Select Analog Camera Test On the Main Menu, highlight “Analog Camera Test”...
- Page 10 CamView HD Pro User Manual CamView HD Pro User Manual TESTING PTZ: 4.2.4 Analog Video Generator While in the INFO screen, press the Arrow Keys or Focus +/-, Zoom +/-, and Iris +/- On the Main Menu, highlight “Analog Video Generator” (press the MODE button to enter the Main Menu if you are not already on it;...
- Page 11 CamView HD Pro User Manual CamView HD Pro User Manual 4.3 Reviewing and Accessing Snapshots and Videos 4.2.5 Testing Remote Analog Monitors and Optical Transmitters/Receivers You can transmit generated video to the remote monitor or DVR using the BNC Out jack (see 4.3.1 Overview...
- Page 12 STEP 1: Download the Firmware to Your Windows Computer SYSTEM TIME: Go online to Triplett.com > Downloads and Updates. Find the Firmware Update in the list and When the field is highlighted, use Focus+/- to change the hours in 24-hour time, download it to your computer.
- Page 13 Do not run any other programs or make any changes on either the computer or the Tester during the firmware update as doing so can cause a catastophic failure on the Tester. If this happens, you may need to call Triplett Technical Support to walk you through a Manual Configuration of the Tester.
- Page 14 CamView HD Pro User Manual CamView HD Pro User Manual APPENDIX 1: TECHNICAL SPECIFICATIONS ANALOG & HD VIDEO TESTING SYSTEM Video Format auto recognizes NTSC/PAL, HD-CVI 3.0, HD-TVI 3.0, AHD 2.0 Screen 4.0 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, backlight with adjustable brightness...
- Page 15 Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
- Page 16 Triplett Test Equipment and Tools has been desiging specialized test equipment for over 100 years. Triplett was acquired by Jewell Instruments in 2007. Jewell Instruments is a world leader in the manufacturing and distribution of advanced sensors, controls, panel meters, and avionics. Jewell provides custom solutions for the aerospace, medical, industrial, marine, telecommunications, and railroad industries.
