Page 1: Power Amplifier

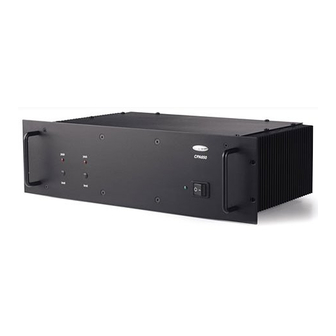

CPA 650 Power Amplifier Operation Manual Biamp Systems, 10074 S.W. Arctic Drive, Beaverton, Oregon 97005 USA (503) 641-7287 www.biamp.com an affiliate of Rauland-Borg Corp. - Page 2 blank print update June 17, 2002...
-
Page 3: Table Of Contents
♦ turn-on muting to prevent "thumping" ♦ recessed ground lift switch to eliminate ground loops ♦ recessed mono bridge switch ♦ passively cooled (no fan noise or maintenance) ♦ optional distribution autoformer (rear panel mounting) ♦ covered by Biamp Systems' five-year warranty ♦ UL listed... -
Page 4: Front Panel
FRONT PANEL CPA650 peak peak level level Channel Peak Indicators: These red LED indicators will light when their respective channel amplifiers have reached maximum output. To avoid clipping distortion, and to protect speakers from being damaged, reduce the input level until the Peak Indicator no longer lights. Channel Level Control Mounting Holes: These holes are provided for optional front panel mounting of the Channel Level Controls (see Channel Level Controls on page 3). -
Page 5: Rear Panel
Channel 1 is for connection to speaker positive, and the red (+) terminal of Channel 2 is for connection to speaker negative. The CPA650 will deliver up to 650 Watts mono-bridged into an 8 ohm minimum load. Autoformers are available from Biamp Systems, which allow the individual channels of the CPA650 to be used to drive 25V, 70V, or 100V distributed speaker systems. -
Page 6: V Mono-Bridge Output
70V line below 100Hz. The two 100uF / 100V non-polar capacitors (Biamp #245-0007-00) wired in parallel form a High Pass Filter at 100Hz. In addition, they provide DC protection in case of amplifier failure. In this configuration, the speaker protect fuses may need to be changed to 8A Normal Blow, if the total load on the line approaches the 650 Watt rated output of the CPA650. -
Page 7: Precautions
Also check for proper wiring at all input and output connections, and verify that the cables being used are undamaged and are in good condition. If the CPA650 should require service, please contact Biamp Systems Customer Service at 1-800-826-1457 or (503) 641-7287. -
Page 8: Specifications
SPECIFICATIONS Maximum Power Output @ 2kHz (120 VAC) both channels driven into 4 ohms 325 watts/channel both channels driven into 8 ohms 200 watts/channel mono bridge into 8 ohms 650 watts Signal-to-Noise Ratio (0-30kHz) rated power into 8 ohms 98dB Total Harmonic Distortion 20Hz-20kHz @ rated power <1.0%... - Page 9 WARRANTY BIAMP SYSTEMS IS PLEASED TO EXTEND THE FOLLOWING 5-YEAR LIMITED WARRANTY TO THE ORIGINAL PURCHASER OF THE PROFESSIONAL SOUND EQUIPMENT DESCRIBED IN THIS MANUAL. BIAMP Systems expressly warrants this product to be 4. BIAMP SYSTEMS SHALL NOT IN ANY EVENT BE...
