  • Page 1 Instruction Manual M3100E Series...
  • Page 3 Instruction Manual M3100E Series #LX400028; r.27370/27370; en-US...
  • Page 4 Thank you for purchasing this product. FLIR is committed to providing our customers with a high quality, reliable security solution. This manual refers to the following models: M3104E (4-channel) M3108E (8-channel) M3116E (16-channel) For the latest online manual, downloads and product updates, and to learn about our complete line of accessory products, please visit our website at: www.flirsecurity.com/pro...

  • Page 5: Table Of Contents

    General Precautions..............1 Installation................. 1 Service ..................3 Use..................3 M3100E Series Features...............4 Getting Started (M3100E Series) ............5 Front Panel (M3100E Series)..............6 Rear Panel (M3100E Series)..............7 Basic Setup (M3100E Series) ..............9 Step 1: Connect the BNC Cameras..........9 Step 2: Connect the Mouse............9 Step 3: Connect the Ethernet Cable ..........
  • Page 6 Table of contents 14.2 Backing up Video..............30 14.3 Using Video Clip Backup ............30 14.4 Viewing Backup Files..............31 14.4.1 Viewing Backup Files on PC ..........31 14.4.2 Viewing Backup Files on Mac ........... 34 Managing Passwords and User Accounts..........37 15.1 Changing Passwords..............
  • Page 7 Step 2 of 3: Obtain the system’s Device ID........71 17.4 Step 3 of 3: Connect to the System Over the Internet ......71 Using FLIR Cloud™ Client for PC or Mac ..........75 18.1 Home Page ................75 18.2 Live View ................
  • Page 8 20.2.3 Step 3 of 4: Enable DDNS on the System ......147 20.2.4 Step 4 of 4: Connect to the System’s DDNS Address ... 148 Connecting a PTZ Camera (M3100E Series)........152 21.1 Controlling a PTZ Camera (Local DVR)........152 21.2...
  • Page 9 Table of contents 21.2.3 Pattern............... 155 21.2.4 Auto Scan ..............155 M3100E Series Hard Drive Installation ..........157 22.1 Installing a Hard Drive.............. 157 22.2 Removing the Hard Drive............158 22.3 Formatting Hard Drives ............159 Troubleshooting ................161 M3100E Series System Specifications ..........163 Notices...................

  • Page 11: Important Safeguards

    Important Safeguards In addition to the careful attention devoted to quality standards in the manufacturing proc- ess of your product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to en- sure your enjoyment and proper use of the product and accessory equipment.
  • Page 12 Important Safeguards 5. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your location, consult your video dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

  • Page 13: Service

    Important Safeguards 17. Camera Installation - Cameras are not intended for submersion in water. Not all cam- eras can be installed outdoors. Check your camera environmental rating to confirm if they can be installed outdoors. When installing cameras outdoors, installation in a sheltered area is required.

  • Page 14: M3100E Series Features

    • Easy, Secure Cloud connection • Zero video latency • Cabling up to 2300ft/700m • Duplex transmission for camera control (PTZ, focus, alarm trigger) • FLIR DDNS service option • H.264 video compression • HDMI/VGA simultaneous video output • Audio In / Out •...

  • Page 15: Getting Started (M3100E Series)

    Getting Started (M3100E Series) The system comes with the following components: Remote control DVR (Digital Video Recorder) 12V DC power supply (may not be exactly as shown) USB mouse Ethernet cable Quick Start Guides Hard drive size, number of channels, and camera configuration may vary by model. Please refer to your package for specific details.

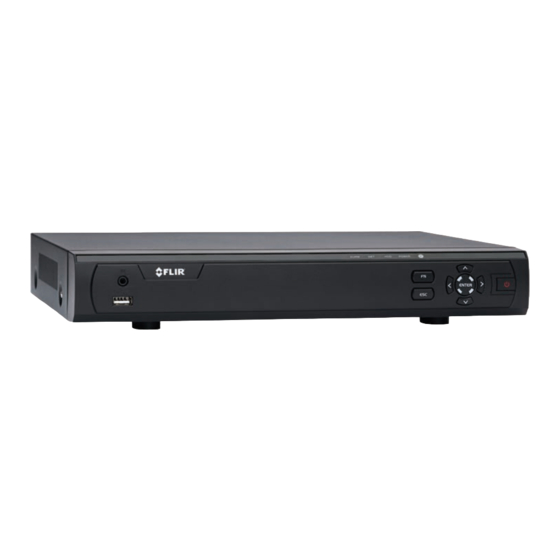

  • Page 16: Front Panel (M3100E Series)

    Front Panel (M3100E Series) 1. USB port: Connect a USB mouse (included) or connect a USB flash drive (not in- cluded) for data backup or firmware upgrades. 2. IR: Not supported. 3. IR receiver and LED indicators: IR receiver for the remote control. Keep the IR re- ceiver clear from obstructions.

  • Page 17: Rear Panel (M3100E Series)

    4. A/B: Connect RS485 cables. NOTE System is compatible with FLIR MPX PTZ cameras (not included) only. See 21 Connecting a PTZ Camera (M3100E Series), page 152 for details. 5. HDMI: Connect to an HDMI monitor or TV (not included) to view the system interface.
  • Page 18 2. A/B: Connect RS485 cables. NOTE System is compatible with FLIR MPX PTZ cameras (not included) only. See 21 Connecting a PTZ Camera (M3100E Series), page 152 for details. 3. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.

  • Page 19: Basic Setup (M3100E Series)

    Basic Setup (M3100E Series) 6.1 Step 1: Connect the BNC Cameras • Connect FLIR MPX cameras to the Video Input ports on the rear panel of the DVR. NOTE The system is compatible with FLIR MPX cameras only. Push and twist the BNC connector clockwise to secure it to the BNC port.

  • Page 20: Step 5: Connect The Power Adapter And Power On The Dvr

    Basic Setup (M3100E Series) 1. VGA Port 2. HDMI Port 6.5 Step 5: Connect the Power Adapter and Power on the DVR 1. Connect the included power adapter to the DC 12V port. Connect the end of the power adapter to a wall socket or a surge protector.

  • Page 21: Step 8: Set The Time

    • Port 35000 (Client port) 6.9.1 FLIR Cloud™ This system features the exclusive FLIR Cloud™. This is a cloud service that allows you to connect to your system over the Internet via a secure handshake with our servers. This means you can easily connect to your system without requiring any network configuration.
  • Page 22 Basic Setup (M3100E Series) NOTE The QR code shown in the System Info screen can be scanned during mobile setup to enter the sys- tem’s Device ID. #LX400028; r.27370/27370; en-US...

  • Page 23: About Mpx

    About MPX FLIR MPX™ is a revolutionary video surveillance format powered by HD-CVI technology. MPX delivers megapixel picture quality over coax, meaning you can upgrade your existing analog systems to HD resolution (1MP & 2.1MP) over a single coax cable (RG59 & RG6 compatible).

  • Page 24: Mouse Control

    Mouse Control The mouse is the primary control device for the system. To connect a USB mouse: • Connect a USB mouse to the USB port on the front or rear panel. 1. Left-button: • In live view, click to open the Navigation Bar. Right-click to close the navigation bar. •...

  • Page 25: Remote Control

    Remote Control 1. Power: Press and hold to power off the system. Press to power on. 2. Playback controls: • Pause/Play: In live view, press to enter playback mode. Press to play/pause playback. • Reverse: Press to reverse playback/pause playback. •...

  • Page 26: Setting The Remote Control Address

    Remote Control 9.1 Setting the Remote Control Address If you have more than one system, you can set up your remote control to pair with a specif- ic system. To set the remote control address: 1. Right-click and click Main Menu. Enter the system user name (default: admin) and password (default: 000000).

  • Page 27: Using The System

    Using the System Use the system’s graphical on-screen display to navigate menus and configure options and settings. 10.1 On-Screen Display The system shows the following for all display views: 1. Display area: • Double-click on a channel to view in full-screen; double-click again to return to split screen.

  • Page 28: Adjusting Color Settings

    Using the System The Quick Menu has the following options: • View: Select a camera in full-screen or select a multi-channel display. • Pan/Tilt/Zoom: Access controls for PTZ cameras (not included). • Camera Setting: Configure color settings for cameras. • Info: Opens the system information window. •...

  • Page 29: Using The Navigation Bar

    Using the System 2. Adjust the Saturation, Brightness, Contrast, Chroma, and Sharpness settings that the camera will use. 3. Click to adjust the EQ setting. Click to reset the EQ setting to its default value. 4. Click OK to save changes. 10.4 Using the Navigation Bar The Navigation Bar gives quick access to certain functions and menus.

  • Page 30: Using The Camera Toolbar

    Using the System 1. Main Menu 2. Collapse 3. Select display layout 4. Sequence: Click to start/stop sequence mode. 5. PTZ: Click to open PTZ controls. 6. Camera Setting: Click to open camera image settings. 7. Search: Search and playback recorded video. See 18.4 Playback, page 82. 8.

  • Page 31: Using Digital Zoom In Live Display

    Using the System To use Instant Playback: 1. Move your mouse to the top of the channel display and click NOTE By default, the system will begin playback from 5 minutes ago. You can increase this to up to 60 mi- nutes using the Instant Playback setting in Main Menu >...
  • Page 32 Using the System 1. Backspace. 2. Enter capital letters. 3. Confirm entry. #LX400028; r.27370/27370; en-US...

  • Page 33: Setting The Time

    Setting The Time CAUTION It is highly recommended to set the date and time when first setting up your system. Inaccurate time stamps may render your footage unusable for court evidence. To set the date and time: 1. In the main viewing mode, right-click and click Main Menu. 2.

  • Page 34: Recording

    Recording By default, the system is set to immediately record video from connected cameras contin- uously, 24 hours a day. You can customize the recording settings according to your needs. 12.1 Video Recording Types The system supports the following recording types. •...

  • Page 35: Configuring Hard Drive Overwrite

    Recording 2. Under Main Stream, select how the system will record the Main Stream for each channel. • Schedule: Main Stream Recording will follow the recording schedule. • Manual: The system will record the Main Stream continuously as long as this option is checked.

  • Page 36: Search (Playback)

    Search (Playback) Search mode is used to navigate and playback recorded video files on the system. 13.1 Playing Back Video from the Hard Drive 1. From live view, right-click and then click Search. 2. Log in using the system user name (default: admin) and password (default: 000000). 3.

  • Page 37: Playback Controls

    Search (Playback) 13.2 Playback Controls 1. Select playback device. 2. Calendar: Select the day to playback. 3. Channel select: Select channels to playback. 4. Video clip backup: Select video clip start and end times. 5. Backup video clip: Click to save selected clip. 6.
  • Page 38 Search (Playback) 4. Select REC and select From IO Device. Click Browse to open the USB drive and manually select the video file. 5. Select the video file you would like to open and click OK. #LX400028; r.27370/27370; en-US...

  • Page 39: Backup

    Backup Backup video files to external USB flash drive (not included) or self-powered USB external hard drive (not included). NOTE USB external hard drives must be formatted in the FAT32 file format to be used with the system. 14.1 Formatting the USB Thumb Drive It is recommended to format your USB thumb drive (not included) before using it with the system.

  • Page 40: Backing Up Video

    • File Format: Select DAV to save files to save files to .dav format. You can playback . dav files using the FLIR video player software from www.flirsecurity.com/pro. Or, se- lect ASF for .asf format. You can playback .asf files in VLC Media Player (free down- load from www.videolan.org) on PC or Mac.

  • Page 41: Viewing Backup Files

    Backup 2. Start playing back video using the steps in 13.1 Playing Back Video from the Hard Drive, page 26. 3. Click to mark the beginning of the video clip. Click to mark the end of the video clip. 4. Click to open the Backup menu.
  • Page 42 Backup 2. Click to open a back up video file. 3. Use the Player controls to control playback or select other files for playback. Video Player Controls 1. File List: Double-click to open a file. #LX400028; r.27370/27370; en-US...
  • Page 43 Backup 2. Display Area: Select the split-screen mode. Double-click a video file to expand. Click the controls inside the display area to do the following: • : View information about the video file. • : Start/stop a manual recording from the video file. •...

  • Page 44: Viewing Backup Files On Mac

    Backup 10. Config: Click to open the configuration menu for the player. From here you can control the default file formats and save locations for snapshots and video files saved from the player. 14.4.2 Viewing Backup Files on Mac A Video Player for Mac is available from www.flirsecurity.com/pro.
  • Page 45 Backup 4. Click to open a back up video file in another location. 5. Use the Player controls to control playback or select other files for playback. Video Player Controls 1. File List: Double-click to open a file. 2. Display Area: Select the split-screen mode. Double-click a video file to expand. Click the controls inside the display area to do the following: •...
  • Page 46 Backup 3. Hide/show file list. 4. Playback controls: • : When a video file ends, this button lets you select if you want the video player to repeat the same file or play the next file. • : Play/pause playback. •...

  • Page 47: Managing Passwords And User Accounts

    Managing Passwords and User Accounts By default, the system user name is admin and the password is 000000. Passwords are enabled by default and are required to access the Main Menu or connect to the system us- ing a computer or mobile device. You will be prompted to create a custom password after you connect for the first time.

  • Page 48: Adding Users

    Managing Passwords and User Accounts 15.2 Adding Users You can allow multiple users to log in to the system. When adding different users, you can assign what menus they have access to. For example, you may want your friend to monitor your system while you are away, while not giving full access to your system.

  • Page 49: Deleting Users

    Managing Passwords and User Accounts 15.4 Deleting Users 1. In the Account menu, click next to the user account you would like to delete. 2. Click OK to confirm. NOTE The admin and default user accounts cannot be deleted from the system. 15.5 Account Groups Account groups can be used to easily manage permissions for multiple user accounts.

  • Page 50: Modifying Groups

    Managing Passwords and User Accounts 6. Configure the following: • Under Group Name, enter a name for the group. • Under Memo, enter an optional comment for this group. • Under Authority, check the permissions that the group will have. User accounts as- signed to this group can not be given any permissions the group does not have.

  • Page 51: Using The Main Menu

    Using the Main Menu To open the Main Menu: • Using the Mouse: Right-click and click Main Menu. NOTE The system password may be required to access the Main Menu. By default the user name is admin and the password is 000000. 1.

  • Page 52: Configuring Recording Quality

    Using the Main Menu 16.1.2 Configuring Recording Quality The system employs two video recording streams, a Main Stream and a Sub Stream. The Main Stream records high quality video to your system’s hard drive. The Sub Stream re- cords lower resolution video for efficient streaming to devices over the Internet. You can customize the video quality settings for these streams according to your needs.

  • Page 53: Configuring Snapshot Recording Settings

    Using the Main Menu NOTE You must connect an RCA audio input device (such as a self-powered microphone; not included) to the system to use audio recording. It is recommended to install the microphone near the camera for channel To configure audio recording: 1.

  • Page 54: Creating Custom Channel Names

    Using the Main Menu 3. Configure the following settings for snapshots saved automatically from motion detec- tion or the snapshot schedule: • Channel: Select the channel you would like to configure. • Mode: Select Timing for the system to take snapshots according to the snapshot schedule (see 16.3.14 Configuring the Snapshot Schedule, page 61) Select Trig- ger for the system to take snapshots only when triggered by motion detection (snapshot must be enabled in the Motion Detect menu (see 16.3.7 Configuring Mo-...

  • Page 55: Selecting Cable Type

    Using the Main Menu 16.1.6 Selecting Cable Type The Cable Type menu is used only if you are using cabling with a resistance higher than 10Ω per 100m (330ft) and you are having picture quality issues. Select the UTP option for any channels having the issue.

  • Page 56: Info

    Using the Main Menu 16.2 Info Info contains menus that show you system information. 16.2.1 HDD Info The HDD Info sub-menu shows information related to the hard drives installed in the sys- tem, including capacity, status, and type. To access the HDD Info menu: •...

  • Page 57: Version

    Using the Main Menu The Record Info menu shows the start and end times of recordings saved on the hard drive. To access the Record Info menu: • From the Main Menu, click and then select Info>Record Info. 16.2.3 Version The Version sub-menu allows you to view information about the current firmware installed on the system.

  • Page 58: Online Users

    Using the Main Menu • Video Loss: Shows disconnected channels. • Motion: Shows channels with active motion alarms. To access the Alarm Status menu: • From the Main Menu, click and then select Alarm Status. 16.2.5 Online Users The Online Users menu shows a list of users connected to the system using computers or mobile devices.

  • Page 59: Test

    Using the Main Menu 16.2.7 Test The Test menu allows you to test if your system can connect to other devices over the LAN or Internet. You can enter the IP address of a device and click Test to determine if your system can connect to it.
  • Page 60 Using the Main Menu To search for system logs: 1. From the Main Menu, click and then select Log. 2. Under Type, select the log type to search for. 3. Under Start Time and End Time, select the start and end time for your search. 4.

  • Page 61: Setting

    Using the Main Menu 16.3 Setting The Setting menu allows you to configure general system, schedule, network, recording, display, and motion settings. It also allows you to restore the system to factory defaults. 16.3.1 Network The Network menu allows you to configure network parameters for your system. 16.3.2 Selecting DHCP or Static IP Address (TCP/IP) The TCP/IP menu allows you to configure IP address settings.

  • Page 62: Configuring System Ports (Connection)

    2. Configure the ports as needed and click OK to save changes. NOTE Up to 3 devices may connect to the system at the same time when using FLIR Cloud™. 16.3.4 Configuring DDNS Settings FLIR DDNS is available as an optional connectivity option. Please see 20 DDNS Setup (Advanced), page 142 for details.

  • Page 63: Configuring Email Alerts

    2. Check Enable to enable email notifications. If you want to use FLIR’s email server (recommended): 1. Under Mail Select, select FLIR Mail to use the FLIR email server to send out alarm notifications. This is the recommended setting. #LX400028; r.27370/27370; en-US...
  • Page 64 4. Click OK to save settings. NOTE Gmail and Yahoo Mail are not supported by FLIR. Gmail and Yahoo Mail SMTP information may change. Contact Google or Yahoo for support. If you want to use your own email server (advanced): 1.

  • Page 65: Event

    Using the Main Menu 2. Configure the following: • SMTP Server: Enter the SMTP server address. • Port: Enter the port used by the SMTP server. • Anonymous: Check if your server supports anonymous log ins. Otherwise, leave this unchecked. •...
  • Page 66 On-screen pop-up shows the channels an event occurred on and the type of event. • Alarm Upload: Check to enable the system to upload alerts to FLIR Cloud™ Client. • Send Email: Check to enable email alerts. You must configure email alerts before you will be able to receive them (see 16.3.5 Configuring Email Alerts, page 53).

  • Page 67: Configuring Video Loss Settings

    Using the Main Menu 16.3.8 Configuring Video Loss Settings Video Loss occurs if the system loses connection to one of the cameras. To configure Video Loss settings: 1. From the Main Menu, click and then click Event>Motion>Video Loss. 2. Under Channel, select the channel you would like to configure. 3.

  • Page 68: Configuring Network Warnings

    Using the Main Menu To configure hard drive warnings: 1. From the Main Menu, click and then click Event>Warning>HDD. 2. Under Event Type, select the hard drive event you would like to configure. • No Disk: No hard drive detected. •...

  • Page 69: Storage

    Using the Main Menu 2. Under Event Type, select the event type you would like to configure. • Net Disconnection: The system has lost connection to the network. • IP Conflict: More than one device on your network has the same IP address. •...

  • Page 70: Configuring Pre-Recording

    Using the Main Menu 3. Configure the schedule as needed: • Check Continuous or MD (motion detection) to select the recording type you would like to configure. • Click and drag on each day to customize the recording schedule. The schedule is set up as a grid, which each block representing one hour.

  • Page 71: Configuring The Snapshot Schedule

    Using the Main Menu 16.3.14 Configuring the Snapshot Schedule You can set a schedule for recording snapshots from the cameras. To set up the snapshot schedule: 1. From the Main Menu, click and then click Storage>Schedule>Snapshot. 2. Under Channel, select the channel you would like to configure or select All. 3.

  • Page 72: Formatting The Hard Drive

    Using the Main Menu To configure holidays: 1. From the Main Menu, click and then click Setting>General>Holiday. 2. Click Add New Holidays. 3. Configure the following: • Holiday Name: Enter a name for this holiday. • Repeat Mode: Select Once Only for the holiday to occur only this year or All-Year for the holiday to be repeated each year.

  • Page 73: Configuring Hard Drive Type

    Using the Main Menu 1. From the Main Menu, click and then click Storage>HDD Manager. 2. Select the hard dive you would like to format and then click Format. Click OK to confirm. 3. Click OK to save changes. The system will restart to complete the formatting process. 16.3.17 Configuring Hard Drive Type The system supports the following hard drive types: •...

  • Page 74: Setting The Monitor Resolution (Display)

    Using the Main Menu To configure general settings: 1. From the Main Menu, click and then click Setting>General>General. 2. Configure the following: • Device Type: Shows the model number of your system. • Device No.: Select the remote control address of the system. See 9.1 Setting the Remote Control Address, page 16.

  • Page 75: Saving Your System Configuration To A Usb Flash Drive

    Using the Main Menu To set the monitor resolution: 1. From the Main Menu, click and then click Setting>Display>Display. 2. Under Resolution, select the correct resolution for your monitor: 1920x1080, 1280x1024, 1280x720, or 1024x768. 3. Click OK to save changes. Click OK again to restart the system using the new resolution.

  • Page 76: Setting The System To Factory Defaults

    Using the Main Menu To save your system configuration to a USB flash drive: 1. Insert a USB flash drive (not included) into one of the USB ports. 2. From the Main Menu, click and then click Setting>Config Backup. 3. Under Device Name, select the USB device where you would like to save the configuration.

  • Page 77: Upgrading Firmware From Usb

    Using the Main Menu To reset the system to factory default settings: 1. From the Main Menu, click and then click Setting>Default. 2. Check the menus you would like to reset to default settings. 3. Click OK. 16.3.22 Upgrading Firmware from USB Firmware upgrades provide enhanced functionality.
  • Page 78 Using the Main Menu 6. Select the firmware file on the USB drive and click Start. WARNING DO NOT POWER OFF THE SYSTEM OR DISCONNECT THE POWER CABLE DURING FIRM- WARE INSTALLATION #LX400028; r.27370/27370; en-US...

  • Page 79: Shutdown

    Using the Main Menu 16.4 Shutdown Use the Shutdown menu to shutdown, restart, or log out of the system. To access the Shutdown menu: 1. From live view, right-click and select Main Menu. 2. Enter the system User Name (default: admin) and Password (default: 000000) and click OK.

  • Page 80: Connecting To Your System Over The Internet On Pc Or Mac

    Connecting to Your System Over the Internet on PC or Mac This system features connectivity using the exclusive FLIR Cloud™. This cloud-enabled service allows for Internet connectivity without requiring any network configuration. Up to 3 devices may connect to the system at the same time.

  • Page 81: Step 2 Of 3: Obtain The System's Device Id

    3. Reconnect the power adapter to power the system back on. 17.3 Step 2 of 3: Obtain the system’s Device ID The Device ID is a unique code that allows your system to handshake with FLIR Cloud™ servers for a secure connection over the Internet.
  • Page 82 Connecting to Your System Over the Internet on PC or Mac 3. Log into the Client Software using the Client Software user name (default: admin) and password (default: admin) and then click Login. 4. Click Add Device. 5. Enter the following: #LX400028;...
  • Page 83 Connecting to Your System Over the Internet on PC or Mac 5.1. Device Name: Choose a name for your system of your choice. 5.2. Device ID: Manually enter the Device ID printed on the label. 5.3. Client Port: Enter the Client Port (default: 35000). 5.4.
  • Page 84 Connecting to Your System Over the Internet on PC or Mac 9. Click and drag Default Group to the display window to open your cameras in live view. Congratulations! You can now connect over the Internet to view and playback video on your computer.

  • Page 85: Using Flir Cloud™ Client For Pc Or Mac

    Using FLIR Cloud™ Client for PC or Mac FLIR Cloud™ Client allows you to connect to multiple systems from a PC or Mac. 18.1 Home Page The Home Page allows you to access all the tabs within the software. Each tab allows you to access different features.

  • Page 86: Live View Controls

    Using FLIR Cloud™ Client for PC or Mac 18.2.1 Live View Controls 1. Live display: Double-click to expand the area. Right-click to access additional options. Hold the mouse over the display area to access the camera toolbar. Camera toolbar: 1.1.

  • Page 87: Opening Live View In Multiple Monitors

    Using FLIR Cloud™ Client for PC or Mac Full-screen: Click to open full-screen mode. Press ESC to exit full-screen mode. Save view: Click to save the current display layout and open cameras as a view. Then enter a name for the view.

  • Page 88: Controlling Ptz Cameras

    Using FLIR Cloud™ Client for PC or Mac 2. Click and drag the tab outside of the client window to create a new window. You can drag the window to one of the secondary monitors. Result 18.3 Controlling PTZ Cameras If you have PTZ cameras (not included), you can control them using the client.

  • Page 89: Ptz Presets

    Using FLIR Cloud™ Client for PC or Mac PTZ controls: 1. Open menu: Click to open camera OSD menu controls. This feature may not be sup- ported for all camera models. 2. Move camera: Click the arrows to move the camera.

  • Page 90: Ptz Tours

    Using FLIR Cloud™ Client for PC or Mac 3. Select the number of the preset you would like to add. 4. Move the camera to the desired position. 5. Click to save the current position as a preset. To go to a saved preset: 1.

  • Page 91: Ptz Pattern

    Using FLIR Cloud™ Client for PC or Mac 5. Use the chart to select which presets you would like to include in the tour and the order of presets. • Preset: Select the preset number. • Time(s): Enter the time in seconds the camera will remain on the selected preset.

  • Page 92: Ptz Scan

    Using FLIR Cloud™ Client for PC or Mac 18.3.4 PTZ Scan Scan automatically cycles between a left and right point. To set up scan mode: 1. Click to open the Advanced controls. Select Scan. 2. Move the camera to the desired left position and click 3.
  • Page 93 Using FLIR Cloud™ Client for PC or Mac To playback video: 1. Check the channels you would like to play back from in the Device List. 2. Under Type, check the file types you would like to search for. • All: All recordings.

  • Page 94: Playback Controls

    Using FLIR Cloud™ Client for PC or Mac 18.5 Playback Controls 1. Display area: Double-click to expand/return to split-screen mode. Hold the mouse over the display area to open the camera toolbar. • Snapshot: Click to save a snapshot. •...

  • Page 95: Downloading Video To Your Computer Hard Drive

    It is recommended to download video of important events as soon as possible to en- sure they are not overwritten by new recordings. NOTE PC Users: You may need to run FLIR Cloud™ Client as an administrator to download files to your hard drive. To download video files: 1.

  • Page 96: Alarm

    • Mac Users: Browse to the folders listed in General>File. To get to the default location, open Applica- tions in Finder, right click on FLIR Cloud Client and select Show Package Contents. Then, navigate to the desired folder. 18.7 Alarm The Alarm menu allows you to view a list of alarms received by the client software.

  • Page 97: Log

    Using FLIR Cloud™ Client for PC or Mac 4. Options: Check to enable the following: • Display Link Video: Open live video to monitor alarms on a continuous basis. • Display Overlay Window: Show the overlay controls. They allow you to enable/dis- able sound alerts and quickly jump back to the Alarm menu from another tab.

  • Page 98: E-Map

    Using FLIR Cloud™ Client for PC or Mac 1. Click Device Log to view logs from connected systems. 2. Configure the following: • Start Time/End Time: Select the start and end times to search for logs. • Log Type: Select the type of logs to search for.
  • Page 99 Using FLIR Cloud™ Client for PC or Mac 3. Configure the following: • Name: Enter a name for your e-map of your choice. • Picture: Click File and then select a .png, .bmp, or .jpg image on your computer to use as the e-map.

  • Page 100: Devices

    Using FLIR Cloud™ Client for PC or Mac 2. Double-click cameras on the map to open live video. 18.10 Devices The Devices menu is where you can manage systems connected to the client software. To access the Devices menu: • Click...

  • Page 101: Device Config

    Using FLIR Cloud™ Client for PC or Mac 11. Edit: Edit the connection details for the system. 18.11 Device Config The Device Config menu allows you to remotely configure settings for connected systems. To access the Device Config menu: • Click and then click •...
  • Page 102 Using FLIR Cloud™ Client for PC or Mac 3. In the Alarm sources menu, you set up the parameters that trigger the alarm. • Under Alarm Type, select the alarm type that will trigger an alarm. For example, you can select Motion Detect for the alarm to be triggered by motion.
  • Page 103 Using FLIR Cloud™ Client for PC or Mac 4. In the Alarm link menu, you set up the responses to alarms. Select the channels that will pop up or alarm out devices (not included; not all systems support alarm out devi- ces) that will be triggered by an alarm.

  • Page 104: Tour & Task

    Using FLIR Cloud™ Client for PC or Mac To manage alarms: 1. Export: Export current list of alarms as an xml file. 2. Import: Import list of alarms. 3. Delete: Delete selected alarm. 4. Add: Add new alarm. 5. Alarms.

  • Page 105: Account

    Using FLIR Cloud™ Client for PC or Mac 3. Under Name, enter a name for your view. 4. Under Stay Time, enter the number of seconds the view will be shown before the cli- ent switches to the next view.
  • Page 106 Using FLIR Cloud™ Client for PC or Mac To create a user account: 1. Click Add. 2. Configure the following settings for the user account: • User Name: Enter a user name for the account. • Role: Select the role for the user account. By default, the user account gains all the permissions of the role selected, but you can deactivate permissions as needed.

  • Page 107: Managing Roles

    Using FLIR Cloud™ Client for PC or Mac To delete a user account: 1. Click next to the user account you would like to delete. Click OK to confirm. 18.14.2 Managing Roles Roles make it easier to manage user accounts by determining the permissions an individu- al user account can have.

  • Page 108: General

    Using FLIR Cloud™ Client for PC or Mac To delete a user account: 1. Click next to the role you would like to delete. Click OK to confirm. 18.15 General The General menu is where you can configure application settings for the client software.

  • Page 109: Alarm Prompt

    Using FLIR Cloud™ Client for PC or Mac The File menu contains the following options: • Snapshot Path: Click Browse to select the default folder to save snapshots. • Record Path: Click Browse to select the default folder to save video recordings.

  • Page 110: Version

    Using FLIR Cloud™ Client for PC or Mac • Motion Detect: Select or preview the sound that will play for motion detection. • Video Loss: Select or preview the sound that will play for video loss alarms. • Disk Full: Select or preview the sound that will play for disk full alarms.

  • Page 111: Connecting To Your System Using Smartphone Or Tablet Apps

    19.1 iPhone FLIR Cloud™ is an iPhone app that allows you to remotely view your system. 19.1.1 Prerequisites • Connect your system to your router using an Ethernet cable (included).

  • Page 112: Live View Interface

    7. Enter a new 6 character password and tap OK. This password will be used to log on to your system from now on. 8. The app opens in Live View and streams video from your cameras. 19.1.3 Live View Interface You can use FLIR Cloud™ in portrait and landscape mode. #LX400028; r.27370/27370; en-US...

  • Page 113: Controlling Ptz Cameras

    Connecting to your System Using Smartphone or Tablet Apps Live View Overview 1. Menu: Tap to bring up the Menu. 2. Display Area: Double-tap to open a channel in full screen. Swipe left or right to select a different page of channels. 3.

  • Page 114: Viewing Snapshots And Videos With Local Files

    Connecting to your System Using Smartphone or Tablet Apps 2. Tap to open PTZ controls. PTZ Controls 1. Live Display: Swipe to move the camera. Pinch to zoom in/out. 2. Focus: Tap to show focus controls. 3. Zoom: Tap to show zoom controls. 4.

  • Page 115: Using Playback Mode On Iphone

    Connecting to your System Using Smartphone or Tablet Apps Local Files Overview 1. Menu: Return to Menu. 2. Files: Tap to open files. 3. File Type: Tap the options to select video files or snapshots. 4. Options: Tap to delete or export files to your device’s local storage. NOTE Exported snapshots and video files are saved to the Photos app.

  • Page 116: Enabling Push Notifications

    Connecting to your System Using Smartphone or Tablet Apps 3. Select the date then the start and end times to playback. 4. Use the on-screen controls to control playback. Playback Controls 4.1. Display Area: Double-tap to open in full-screen. 4.2. Play/pause.
  • Page 117 Connecting to your System Using Smartphone or Tablet Apps NOTE Your cameras must have motion detection activated to receive push notifications. To enable Push Notifications: 1. Tap to access the Menu, and then tap Push Config. 2. Tap the system you would like to configure. #LX400028;...

  • Page 118: Using The Event List

    Connecting to your System Using Smartphone or Tablet Apps 3. Tap Motion Detect and then check each channel you would like to receive push notifi- cations from. 4. Tap to save changes. You will now receive a notification when one of the selected cameras detect motion.

  • Page 119: Using Favorites

    Connecting to your System Using Smartphone or Tablet Apps Event List Overview 1. Events: Shows the details of each motion detection event. Tap the event to view the video or snapshot. 2. Delete All: Tap to delete all events in the Event List. NOTE To delete a single event, swipe it to the left and then tap Delete.

  • Page 120: Using The E-Map

    Connecting to your System Using Smartphone or Tablet Apps 4. Select the cameras you would like to add to the group. Tap to save changes. NOTE To delete cameras that have been added to the group, select the group in the group list. Then, swipe left and tap Delete.
  • Page 121 Connecting to your System Using Smartphone or Tablet Apps 2. Tap 3. Select a .jpg image on your mobile device. 4. Press and select a camera. Drag the camera on the screen to place it on the map. Repeat to add additional cameras. 5.

  • Page 122: Device Manager

    Connecting to your System Using Smartphone or Tablet Apps 2. Select the E-Map in the Device List. 3. Tap the camera or cameras to select and then tap Connect to open the cameras. 19.1.11 Device Manager You can use Device List to add, delete, or edit your systems. To access Device Manager: •...

  • Page 123: Adding Devices Using An Ip Or Ddns Address (Advanced)

    19.1.12 Adding Devices Using an IP or DDNS Address (Advanced) The app can connect directly to a device via the IP address or DDNS address as an op- tional advanced connectivity method or for systems that do not support FLIR Cloud™. Prerequisites: •...
  • Page 124 Connecting to your System Using Smartphone or Tablet Apps 3. Tap Connect. You will be prompted to change the system password. 4. Enter a new 6 character password and tap OK. This password will be used to log on to your system from now on.

  • Page 125: Ipad

    Connecting to your System Using Smartphone or Tablet Apps 19.2 iPad FLIR Cloud™ is an iPad app that allows you to remotely view your system. 19.2.1 Prerequisites • Connect your system to your router using an Ethernet cable (included). • Make sure to upgrade your system to the latest firmware version. You must have the latest firmware and mobile apps to connect to the system over the Internet.

  • Page 126: Live View Interface

    8. Enter a new 6 character password and tap OK. This password will be used to log on to your system from now on. 9. The app opens in Live View and streams video from all connected cameras. 19.2.3 Live View Interface You can use FLIR Cloud™ in landscape or portrait mode. #LX400028; r.27370/27370; en-US...

  • Page 127: Controlling Ptz Cameras

    Connecting to your System Using Smartphone or Tablet Apps Live View Overview 1. Display area: Double-tap to open camera in full screen. 2. Favorites: Slide to select favorites. 3. Disconnect: Disconnect from all open cameras. 4. Add to favorites: Add the current view to favorites. 5.

  • Page 128: Using Playback Mode On Ipad

    Connecting to your System Using Smartphone or Tablet Apps 2. Slide the middle controls to the right to access PTZ controls. PTZ Controls 1. Live display: Swipe to move the camera. Pinch to zoom in/out. 2. Direction buttons: Tap to move the camera. 3.
  • Page 129 Connecting to your System Using Smartphone or Tablet Apps NOTE You must enable Substream Recording to use playback mode on mobile devices. To use Playback Mode: 1. From Live View tap then 2. In Portrait Mode: Tap +, select the start time and end time for your search, and select the camera you would like to playback.

  • Page 130: Using Local File To View Manual Recordings

    Connecting to your System Using Smartphone or Tablet Apps Playback Controls 1. Display area: Double-tap to open camera in full screen. 2. Play/pause. 3. Previous file. 4. Disconnect: Disconnect from the currently selected camera. 5. Not supported. 6. Snapshot: Tap to take a snapshot from the currently selected camera. 7.

  • Page 131: Enabling Push Notifications

    Connecting to your System Using Smartphone or Tablet Apps 3. Tap a video file to open it. To delete videos: 1. Tap Edit. 2. Select the videos you would like to delete and tap 19.2.7 Enabling Push Notifications You can have the app send push notifications to the notifications area on your device when one of your cameras detects motion.
  • Page 132 Connecting to your System Using Smartphone or Tablet Apps NOTE Your cameras must have motion detection activated to receive push notifications. To enable Push Notifications: 1. From live view, tap then 2. Tap Push Config. 3. Tap the slider for the system you would like to configure. #LX400028;...

  • Page 133: Using The Event List

    Connecting to your System Using Smartphone or Tablet Apps 4. Tap Motion Detect then check each channel you would like to receive push notifica- tions from. 5. Under Type, select Playback to attach a video file with each push notification. Or, se- lect Picture to attach a still image of the camera that detected motion.

  • Page 134: Using Favorites

    Connecting to your System Using Smartphone or Tablet Apps 19.2.9 Using Favorites Favorites allows you to select a group of cameras as a favorite. You can then quickly bring up the group of cameras in Live View without having to individually select each camera. To create favorites: 1.

  • Page 135: Using The E-Map

    Connecting to your System Using Smartphone or Tablet Apps 19.2.10 Using the E-Map E-Map allows you to place cameras over a still image. For example, you can use the E- Map to create a virtual map of your cameras over a floor plan of your home or business. To add an E-Map: 1.
  • Page 136 Connecting to your System Using Smartphone or Tablet Apps 4.1. Select Image: Select a different image file to use for your E-Map. 4.2. Add Camera: Tap + to select cameras to add to your E-Map. Then drag the camera to place it on the E-Map. 4.3.

  • Page 137: Using The Device Manager

    19.2.12 Adding Devices Using an IP or DDNS Address (Advanced) The app can connect directly to a device via the IP address or DDNS address as an op- tional advanced connectivity method or for systems that do not support FLIR Cloud™. Prerequisites: •...
  • Page 138 • For more information on port forwarding and DDNS, visit www.flirsecurity.com/pro. To add a device using an IP or DDNS address: 1. Install FLIR Cloud™ for free from the App Store. 2. Tap on the FLIR Cloud™ icon ( ) to start the app.
  • Page 139 Connecting to your System Using Smartphone or Tablet Apps 6.7. Channel Amount: Enter the number of channels your system has. 7. Tap Start Live View. You will be prompted to change the system password. 8. Enter a new 6 character password and tap OK. This password will be used to log on to your system from now on.

  • Page 140: Android

    Connecting to your System Using Smartphone or Tablet Apps 19.3 Android FLIR Cloud™ allows you to remotely view your system on Android devices. 19.3.1 Prerequisites • Connect your system to your router using an Ethernet cable (included). • Make sure to upgrade your system to the latest firmware version. You must have the latest firmware and mobile apps to connect to the system over the Internet.

  • Page 141: Live View Interface

    8. The app opens in Live View and streams video from your cameras. 19.3.3 Live View Interface You can use FLIR Cloud™ in portrait and landscape mode. Live View Overview 1. Menu: Tap to bring up the Menu.

  • Page 142: Controlling Ptz Cameras

    Connecting to your System Using Smartphone or Tablet Apps 6.1. Quick Playback: Tap to start/stop quick playback. 6.2. PTZ Controls: Open/close PTZ controls. PTZ camera required (not included). 6.3. Streaming Quality: Open/close streaming quality panel. 6.4. Not supported. 6.5. Not supported. 6.6.

  • Page 143: Viewing Snapshots And Videos With Local Files

    Connecting to your System Using Smartphone or Tablet Apps 4. Iris: Tap to show iris controls. 5. Goto preset: Tap to access preset controls. Then use the sliders to select a preset and then tap the checkmark to goto the preset. NOTE You must set presets for the camera using the system’s local menus before you can use this feature.
  • Page 144 Connecting to your System Using Smartphone or Tablet Apps 2. Tap + and select a channel to playback. 3. Select the date then the start and end times to playback. 4. Use the on-screen controls to control playback. Playback Controls 4.1.

  • Page 145: Enabling Push Notifications

    Connecting to your System Using Smartphone or Tablet Apps 19.3.7 Enabling Push Notifications You can have the app send push notifications to the notifications area on your device when one of your cameras detects motion. Once you have received a push notification, you can select it to open live video or a snapshot attachment from the camera that detected motion.

  • Page 146: Using The Event List

    Connecting to your System Using Smartphone or Tablet Apps 3. Tap Motion Detect and then check each channel you would like to receive push notifi- cations from. 4. Under Push type, select Video to attach a video clip to each push notification. Or, se- lect Image to attach an image to each push notification.
  • Page 147 Connecting to your System Using Smartphone or Tablet Apps 1. Tap to access the Menu, and then tap Favorites. 2. Tap a group to configure an existing group. NOTE to create a new group and then enter a name for the new group. 3.

  • Page 148: Using The E-Map

    Connecting to your System Using Smartphone or Tablet Apps 19.3.10 Using the E-Map E-Map allows you to place cameras over a still image. For example, you can use the E- Map to create a virtual map of your cameras over a floor plan of your home or business. To add an E-Map: 1.

  • Page 149: Device Manager

    Connecting to your System Using Smartphone or Tablet Apps 2. Select the E-Map in the Device List. 3. Tap the camera or cameras to select and then tap Connect to open the cameras. 19.3.11 Device Manager You can use Device List to add, delete, or edit your systems. To access Device Manager: •...

  • Page 150: Adding Devices Using An Ip Or Ddns Address (Advanced)

    19.3.12 Adding Devices Using an IP or DDNS Address (Advanced) The app can connect directly to a device via the IP address or DDNS address as an op- tional advanced connectivity method or for systems that do not support FLIR Cloud™. Prerequisites: •...
  • Page 151 Connecting to your System Using Smartphone or Tablet Apps 3. Tap Connect. You will be prompted to change the system password. 4. Enter a new 6 character password and tap OK. This password will be used to log on to your system from now on.

  • Page 152: Ddns Setup (Advanced)

    DDNS Setup (Advanced) Free DDNS service is available as an optional connectivity method to connect to your sys- tem over the Internet. NOTE Except where noted, the instructions in this section are the same on PC or Mac. 20.1 Accessing your System within a Local Network (LAN) You can connect to your system through using the Client Software through the local area network (LAN).

  • Page 153: Step 2 Of 3: Obtain The System's Local Ip Address

    • Mac Users: Download and install the Client Software for Mac from www.flirsecurity.com/pro. Double click to extract the software. Drag the software to Applications. 2. Once installation is finished, double-click the FLIR Cloud™ Client icon ( ) from the desktop or Applications list.
  • Page 154 DDNS Setup (Advanced) 3. Log into the Client Software using the Client Software user name (default: admin) and password (default: admin) and then click Login. 4. The client scans your LAN for connected systems. Check your system (a) and click Add (b).

  • Page 155: Ddns Setup-Access Your System Remotely Over The Internet

    DDNS Setup (Advanced) 7. Enter a new 6 character password and click OK. This password will be used to con- nect to your system from now on. 8. Click then 9. Click and drag Default Group to the display window to open your cameras in live view. Result 20.2 DDNS Setup—Access your System Remotely over the Internet Setting up DDNS connectivity allows you to view your system from any computer or com-...

  • Page 156: Step 1 Of 4: Port Forwarding

    If the above ports are not forwarded on your router, you will not be able to access your system remotely. 20.2.2 Step 2 of 4: Create a DDNS Account To setup your free FLIR DDNS account: 1. In your browser, go to http://ddns.myddns-flir.com...

  • Page 157: Step 3 Of 4: Enable Ddns On The System

    3. Complete the System Information fields: • Product License: Select your product model from the Product License drop down menu (i.e. M3100E Series). • <Product Code> - <MAC Address>: Enter the MAC address of your system. • To find the MAC address, right-click to open the Quick Menu and click Info.

  • Page 158: Step 4 Of 4: Connect To The System's Ddns Address

    • Mac Users: Download and install the Client Software for Mac from www.flirsecurity.com/pro. Double click to extract the software. Drag the software to Applications. 2. Once installation is finished, double-click the FLIR Cloud™ Client icon ( ) from the desktop.
  • Page 159 DDNS Setup (Advanced) 3. Log into the Client Software using the Client Software user name (default: admin) and password (default: admin) and then click Login. 4. Click Add Device. 5. Enter the following: #LX400028; r.27370/27370; en-US...
  • Page 160 IP/DDNS Address: Enter the Domain Name/URL Request you received in the email when you registered for DDNS followed by .myddns-flir.com. NOTE For example, if your Domain Name/URL Request is tomsmith, enter tomsmith.myddns-flir. 5.4. Client Port: Enter the Client Port (default: 35000).
  • Page 161 DDNS Setup (Advanced) 7. Enter a new 6 character password and click OK. This password will be used to con- nect to your system from now on. 8. Click then 9. Click and drag Default Group to the display window to open your cameras in live view. Congratulations! You can now connect over the Internet to view and playback video on your computer.

  • Page 162: Connecting A Ptz Camera (M3100E Series)

    Connecting a PTZ Camera (M3100E Series) You can connect PTZ cameras (not included) to the system. You must use FLIR MPX PTZ cameras with the system. FLIR MPX PTZ cameras can accept PTZ commands directly through the video cable. There is no need to run special wiring to use PTZ cameras.

  • Page 163: Advanced Ptz Controls

    Connecting a PTZ Camera (M3100E Series) PTZ Controls 1. Direction keys: Click to pan and tilt the camera. Click SIT to stop the current action. 2. Mouse PTZ: Click to activate mouse PTZ mode. In mouse PTZ mode: • Click and drag to move the camera.

  • Page 164: Presets

    Connecting a PTZ Camera (M3100E Series) 5. Autopan: Click to start autopan. During autopan, the camera will continuously pan 360°. 6. Tour: Click to run the selected tour. 7. Flip: Click to flip the camera 180°. 8. Pattern: Click to run the selected pattern.

  • Page 165: Pattern

    Connecting a PTZ Camera (M3100E Series) 5. Click Add Preset. 6. Repeat steps 4 and 5 to add additional presets to the tour. NOTE Click Del Tour to clear all presets from a tour. To run a tour: • Under No., select the number of the tour you would like to go to and click 21.2.3 Pattern...
  • Page 166 Connecting a PTZ Camera (M3100E Series) 3. Move the camera into the desired left position and click Left. 4. Move the camera into the desired right position and click Right. To run an auto scan: • Click #LX400028; r.27370/27370; en-US...

  • Page 167: M3100E Series Hard Drive Installation

    M3100E Series Hard Drive Installation The system comes with a pre-installed 3.5" SATA hard drive. You can replace the hard drive with one up to a maximum size of 4TB. 22.1 Installing a Hard Drive CAUTION Make sure that the system is OFF and the power adapter is disconnected before removing/installing the hard drive.

  • Page 168: Removing The Hard Drive

    M3100E Series Hard Drive Installation 5. Connect the SATA power and data cable to the hard drive. 6. Turn the system over carefully. Tighten the hard drive screws (4x) to secure the hard drive. CAUTION Hold the hard drive in place when turning the system over to prevent damage to the system.

  • Page 169: Formatting Hard Drives

    M3100E Series Hard Drive Installation 3. Turn the system over and loosen the hard drive screws (4x), but do not remove them. 4. Disconnect the SATA power and data cable from the hard drive. 5. Carefully turn the system over. Slide the hard drive and then lift it out of the system.
  • Page 170 M3100E Series Hard Drive Installation 1. From the Main Menu, click and then click Storage>HDD Manager. 2. Select the hard dive you would like to format and then click Format. Click OK to confirm. 3. Click OK to save changes. The system will restart to complete the formatting process.

  • Page 171: Troubleshooting

    Troubleshooting When a malfunction occurs, it may not be serious and can be corrected easily. The follow- ing describes the most common problems and solutions. Please refer to the following be- fore calling FLIR Technical Support: Error Possible Causes Solutions •...
  • Page 172 Troubleshooting Error Possible Causes Solutions • Mouse not detected by • Mouse cable is not firmly • Firmly connect the mouse ca- system. connected to the system. ble to one of the USB ports. Mouse is not connected to the system. •...

  • Page 173: M3100E Series System Specifications

    M3100E Series System Specifications System Operating System Linux (embedded) Pentaplex Simultaneous view, record, playback, backup and remote monitoring Number of Channels 4/8/16 Channels Inputs/Ouputs Video IN 4/8/16 x 1Vp-p, BNC Video OUT Yes,1 VGA and 1 HDMI VGA OUT HDMI Audio IN 1 ch: in (RCA), G.711...
  • Page 174 M3100E Series System Specifications Recording Resolution Setting Per camera for different resolutions Recording Quality Control 6 levels Recording Schedule By hour, by day, by recording mode, by motion, by alarm, by channel Pre Recording Max. 30 Seconds Post Recording Max. 5 Minutes / Min. 10 Sec...
  • Page 175 30/25 30/25 15/12 As our products are subject to continuous improvement, FLIR Systems, Inc. and its sub- sidiaries reserve the right to modify product design, specifications, and prices without no- tice and without incurring any obligation. E&OE #LX400028; r.27370/27370; en-US...

  • Page 176: Notices

    Notices This product has been certified and found to comply with the limits regulated by FCC, EMC, and LVD. Therefore, it is designated to provide reasonable protection against inter- ference and will not cause interference with other appliance usage. However, it is impera- tive that the user follows the guidelines in this manual to avoid improper usage, which may result in damage to the product, electrical shock and fire hazard injury.
  • Page 178 © 2015, FLIR Systems, Inc. All rights reserved worldwide. Names and marks appearing herein are either registered trademarks or trademarks of FLIR Systems and/or its subsidiaries. All other trademarks, trade names or company names referenced herein are used for identification only and are the property of their respective owners.

This manual is also suitable for:

M3116e6M3104e6

Table of Contents

Save PDF
