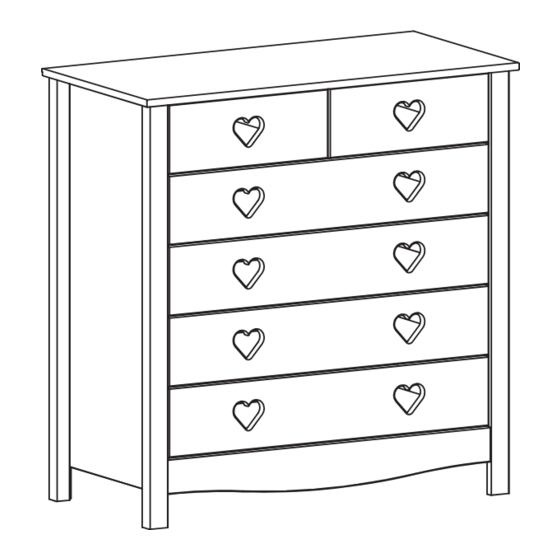

Mia Hearts / Stars 4+2 Drawer Chest

Assembly Instructions -

Hearts

Dimensions

Width

88.5 cm

Depth

43.3 cm

90.0 cm

Height

Assembly Instructions -

If you need help or have damaged or missing parts, call the Argos Customer Helpline: 03456 400 800

350272

Please keep for future reference

Stars

Hearts 2595386

Stars 4591151

Issue 3 - 23-09-2015

Need help?

Do you have a question about the Hearts 2595386 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Hearts 2595386

Page 1 Width 88.5 cm Depth 43.3 cm 90.0 cm Height Assembly Instructions - Please keep for future reference If you need help or have damaged or missing parts, call the Argos Customer Helpline: 03456 400 800 Issue 3 - 23-09-2015 350272...
Page 2 ! Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on components and tools listed on the product, this could cause pages 2 and 3. damage.
Page 3 Components - Panels If you have damaged or missing components, call the Argos Customer Helpline: 03456 400 800 Please check you have all the panels listed below (88,5 cm x 43,3 cm) (76,7 cm x 7 cm) Front rail (76,7 cm x 9,5 cm)
Page 4: Tools Required
Components - Fittings Please check you have all the panels listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. ø7.8 x 40mm Wooden dowel x ø6 x 30mm Wooden dowel x 24 ø3 x 35mm Screw x ø15 x 10.5mm Cam x 18...
Page 5 Assembly Instructions Step 1 Assembly of the chest. Step 1.1 Fix the posts onto the ø4 x 25mm Screw x sides using screws into the holes indicated. The top of the posts the sides must be flush. Step 1.2 Knock the dowels ø7.8 x 40mm Wooden dowel x ø5 x 8, cc34mm Bolt x 2 into the holes indicated...
Page 6 Assembly Instructions Step 1.3 Slide the top of the ø5.8 x 8mm Screw x 16 ø5.8 x 19mm Screw x drawer runners backwards. You can identify the front end of the drawer runner ø10 x 9mm Spacer x 245 x 17 x 10mm Drawer runner x the two M4 holes.
Page 7 Assembly Instructions Step 1.4 Slide the top of the draw- ø5.8 x 8mm Screw x 8 ø5.8 x 19mm Screw x er runners forwards. Place the Spacers shown, and fix the back ø10 x 9mm Spacer x end of the upper drawer runners to the sides using screws...
Page 8 Assembly Instructions Step 1.6 Fix the drawer runner ø3.5 x 14mm Screw x Support for drawer runner x 2 supports to the top using screws into the holes indicated. Step 1.7 Slide the top of the ø5.8 x 8mm Screw x 2 245 x 17 x 10mm Drawer runner x drawer runners...
Page 9 Assembly Instructions Step 1.9 Knock the dowels into ø7.8 x 40mm Wooden dowel x the holes indicated on the back rail using a small hammer. Step 1.10 Fix the angles using ø4,2 x 9,5mm Screw x 44 x 23 x 23mm Angle x screws into the holes...
Page 10 Assembly Instructions Step 1.12 Place the top onto the ø15 x 10.5mm Cam x 4 sides Push cams into the holes indicated on the sides Arrows pointing towards the top Turn the cams to the right to fix the top Step 1.13 Place the front rail ø4,2 x 9,5mm Screw x...
Page 11 Assembly Instructions Step 1.14 Distribute equally ! Distribute equally ! Place the backs into 1.2 x 15mm Nail x the rabbet on the top into the H-profile onto the posts Important! Make sure the angle between the and the posts 90°...
Page 12 Assembly Instructions Step 2 Assembly of the drawers. Step 2.1 Fix the drawer sides ø3 x 35mm Screw x to the drawer backs as shown, using screws Step 2.2 Knock the dowels ø6 x 30mm Wooden dowel x 24 into the holes indicated on the drawer sides using a smal hammer.
Page 13 Assembly Instructions Step 2.3 Slide the drawer bottoms into the drawer sides Step 2.4 Screw the bolts into ø5 x 8, cc34mm Bolt x 12 the holes indicated on the drawer fronts Step 2.5 Push the drawer fronts ø15 x 10.5mm Cam x 12 onto the drawer sides Place cams...
Page 14 Assembly Instructions Step 2.6 Important! Back fitting w. ø3.5 x 15mm Screw x Make sure the angle between the drawer fronts the drawer sides is 90° before the drawer bottoms 90° is fixed using as shown. To adjust the angle between the drawer sides and the fronts push the fitting sidewards.
Page 15 A Guide to Wall Mounting & Fixings IMPORTANT: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. HINTS: 1) General Rule Always use a larger screw and wall plug if you are not sure.
