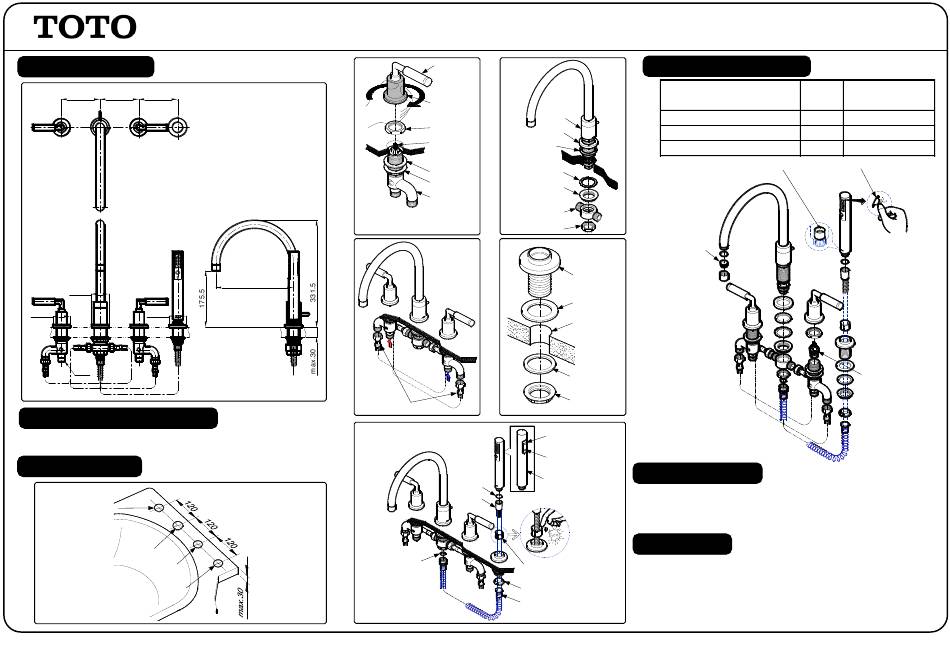

Toto EGO II TX447SELN Quick Start Manual

SPECIFICATIONS
120 120 120
Ø54
Ø54
Ø54
H C
G½
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc. )
INSTALLATION
1.
Ø35
Ø40
Ø35
Ø35
S06312N

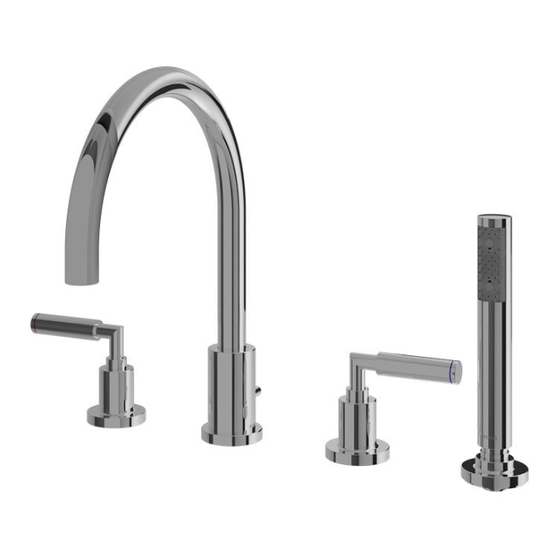

"EGO II" LEVER HANDLE 4 HOLES BATH & SHOWER SET TX447SELN
2.
* The red handle for left position and
the blue handle for right position.
**Tighten the handle base by hand
4.
240
Flexible
6.
3.
Handle *
Handle
Base * *
Spout
Lock Nut
Base
Ceramic
Packing
Head Work
Packing
Wavy Washer
Lock Nut
Lock Nut
Body
Joint
Nut
5.
Hot
Water
Supply
Cold
Water
Supply
Hose
Massage
Spray Button
Rain Spray
Button
Hand Shower
Packing
Hose
Packing
Shower Holder
Stopper
Hose Spring
TROUBLESHOOTING
PROBLEM
Unsatisfactory spray
Flow rate unsatisfactory
Water leaks around the handle
Flow Regulator Inside
(Don t remove)
1. AERATOR
Holder
Packing
Ø35 Hole
Packing
Lock Nut
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water. Wipe
entire surface completely dry with clean soft cloth. Many cleaners may
contain chemicals, such as ammonia, chlorine, toilet cleaner etc. which
could adversely affect the finish and are not recommended for cleaning
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and fittings.
2. Flow Regulator should not be remove because it could
damage the system
3. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the
basic installation principles are the same.
CHECK
SOLUTION
POINT
1 Clean
2 Remove and clean
3 Tighten
1. NOZZLES
2. CERAMIC
HEAD WORK
R16
