Toto MONO TX447SM Installation

SPECIFICATIONS
120 120 120
Ø105
Ø49
o 49
o 49
G½
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
Flow Regulator should not be remove because it could
2.
damage the system
3. As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm
water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as
ammonia, chlorine, toilet cleaner etc. which could adversely
affect the finish and are not recommended for cleaning
S06890R

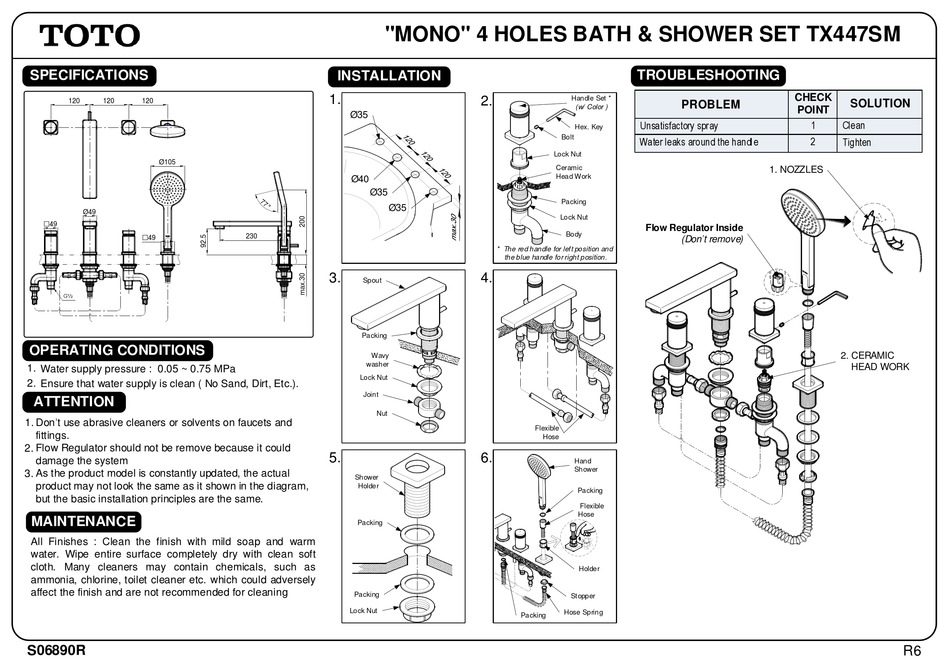

"MONO" 4 HOLES BATH & SHOWER SET TX447SM
INSTALLATION
1.
Ø35
Ø40
Ø35
Ø35
230
3.
Spout
Packing
Wavy
washer
Lock Nut
Joint
Nut
5.
Shower
Holder
Packing
Packing
Lock Nut
TROUBLESHOOTING
2. Handle Set *
(w/ Color )
Unsatisfactory spray
Hex. Key
Bolt
Water leaks around the handle
Lock Nut
Ceramic
Head Work
Packing
Lock Nut
Flow Regulator Inside
Body
* The red handle for lef t position and
the blue handle for right position.
4.
Flexible
Hose
6.
Hand
Shower
Packing
Flexible
Hose
Holder
Stopper
Hose Spring
Packing
CHECK
SOLUTION
PROBLEM
POINT
1 Clean
2
Tighten
1. NOZZLES
(Don t remove)
2. CERAMIC
HEAD WORK
R6
