Toto LE MUSE TX447SQBR Manual

SPECIFICATIONS
80
Ø38.5
42
42
G½
120 120 120
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc. )
MAINTENANCE
Always wipe chrome plated area with dry soft cloth,
and sometimes wipe it with cloth soaked in mild soap.
ATTENTION
1. Don t use abrasive cleaning material such as;
detergents containing hydrochloric acids, thinner,
polishing powder, and nylon brush.
2. Flow Regulator should not be remove because it
could damage the system
As the product model is constantly updated, the
3.
actual product may not look the same as it
shown in the diagram, but the basic installation
principles are the same.
S060055BR

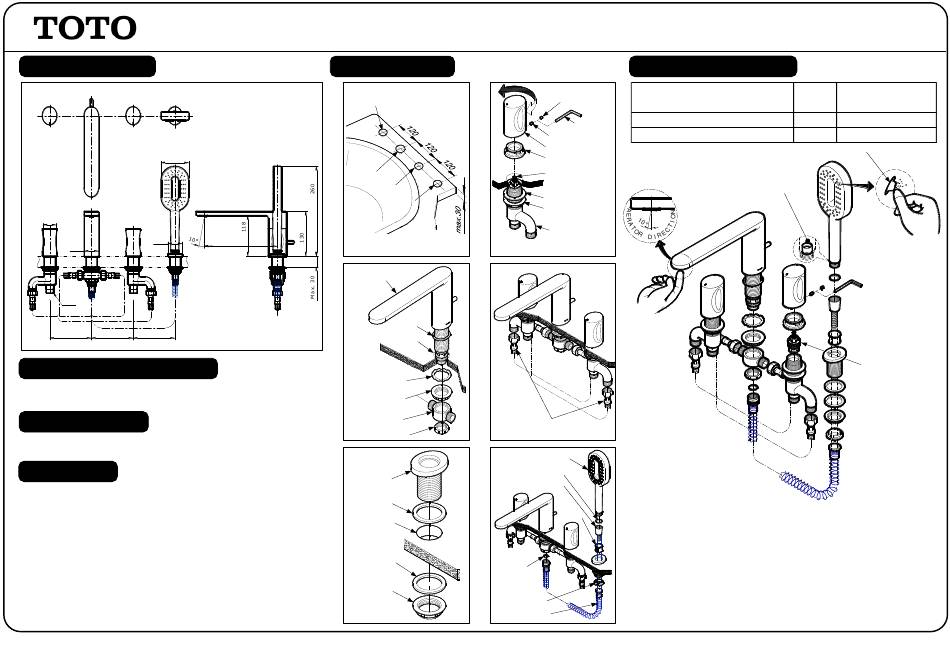

"LE MUSE" 4 HOLES BATH & SHOWER SET TX447SQBR
INSTALLATION
1.
Ø35
Ø35
Ø35
Ø35
210
3.
Spout
Packing
Ø35 Hole
Wavy
Washer
Lock Nut
Joint
Nut
5.
Shower
Holder
Packing
Ø35 Hole
Packing
Lock Nut
TROUBLESHOOTING
2.
Cap
Unsatisfactory spray
Hex. Key
Water leaks around the handle
Bolt
Handle Set
Lock Nut
Ceramic
Head Work
Packing
Lock Nut
Body
* Before install the bolt, Please turn the
handle left and right until find bolt hole.
4.
Flexible
Hose
6.
Hand Shower
Packing
Flexible Hose
Holder
Packing
Stopper
Hose Spring
CHECK
PROBLEM SOLUTION
POINT
1 Clean
2 Tighten
1. NOZZLES
Flow Regulator Inside
(Don t remove)
2. CERAMIC
HEAD WORK
R4
