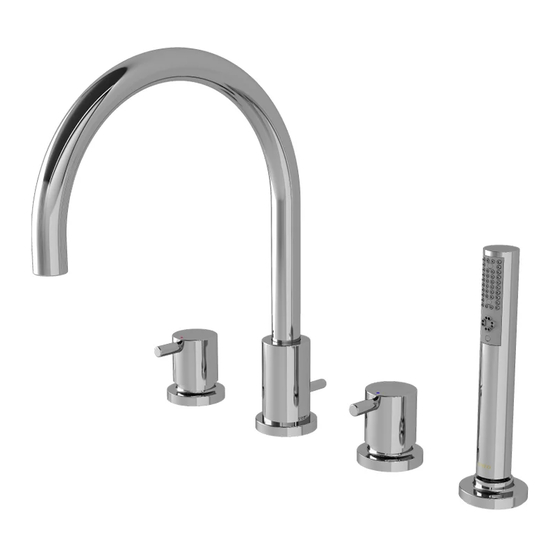

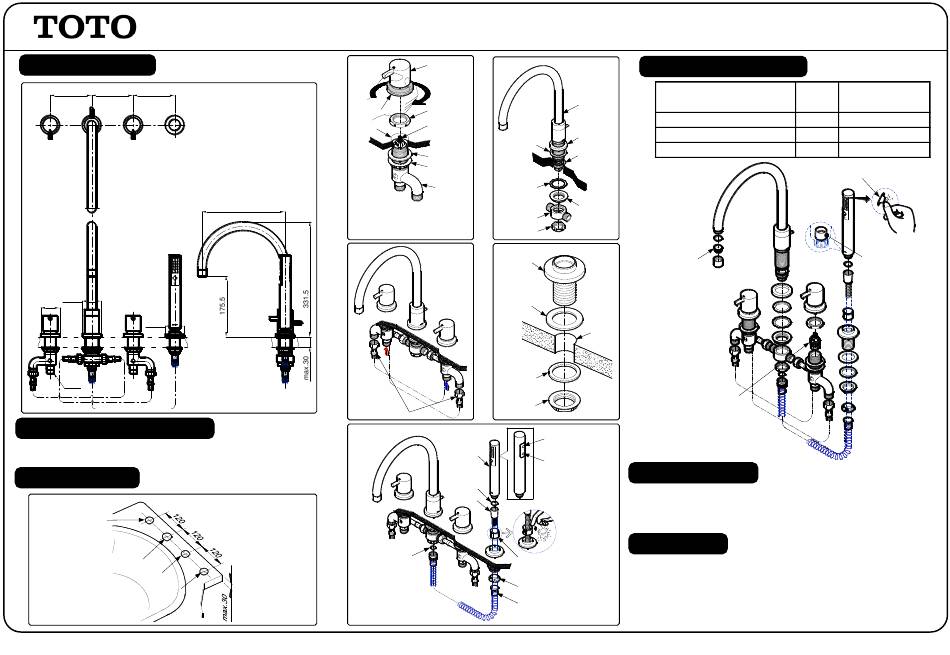

Toto EGO II TX447SES Manual

SPECIFICATIONS

120 120 120
Ø54
Ø54
Ø54
H C
G½

OPERATING CONDITIONS

1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc. )

INSTALLATION

1.
Ø35
Ø40
Ø35
Ø35
S06247R
"EGO II" 4 HOLES BATH & SHOWER SET TX447SES
2.
Handle
Base * *
Ø35
Hole
* The red handle for left position
240
and the blue handle for right
position.
**Tighten the handle base by hand
4.
Hot
Water
Supply
Flexible Hose
6.
Packing
3.
Handle *
Spout
Lock Nut
Ceramic
Head Work
Base
Packing
Ø40 Hole
Packing
Lock Nut
Wavy
Body
Washer
Lock Nut
Joint
Nut
5.
Holder
Packing
Ø35
Hole
Cold
Packing
Water
Supply
Lock Nut
Massage Spray
Button
Hand
Rain Spray
Shower
Button
Packing
Hose
Shower Holder
Stopper
Hose Spring

TROUBLESHOOTING

CHECK
PROBLEM
POINT
Unsatisfactory spray 1
Flow rate unsatisfactory 2
3
Water leaks around the handle

1. NOZZLES

2. AERATOR

3. CERAMIC
HEAD WORK

MAINTENANCE

All Finishes : Clean the finish with mild soap and warm water. Wipe
entire surface completely dry with clean soft cloth. Many cleaners may
contain chemicals, such as ammonia, chlorine, toilet cleaner etc. which
could adversely affect the finish and are not recommended for cleaning
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and fittings.
2. Flow Regulator should not be remove because it could
damage the system
3.
As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the
basic installation principles are the same.
SOLUTION
Clean
Remove and clean
Tighten
Flow Regulator
Inside
(Don t remove)
R6
