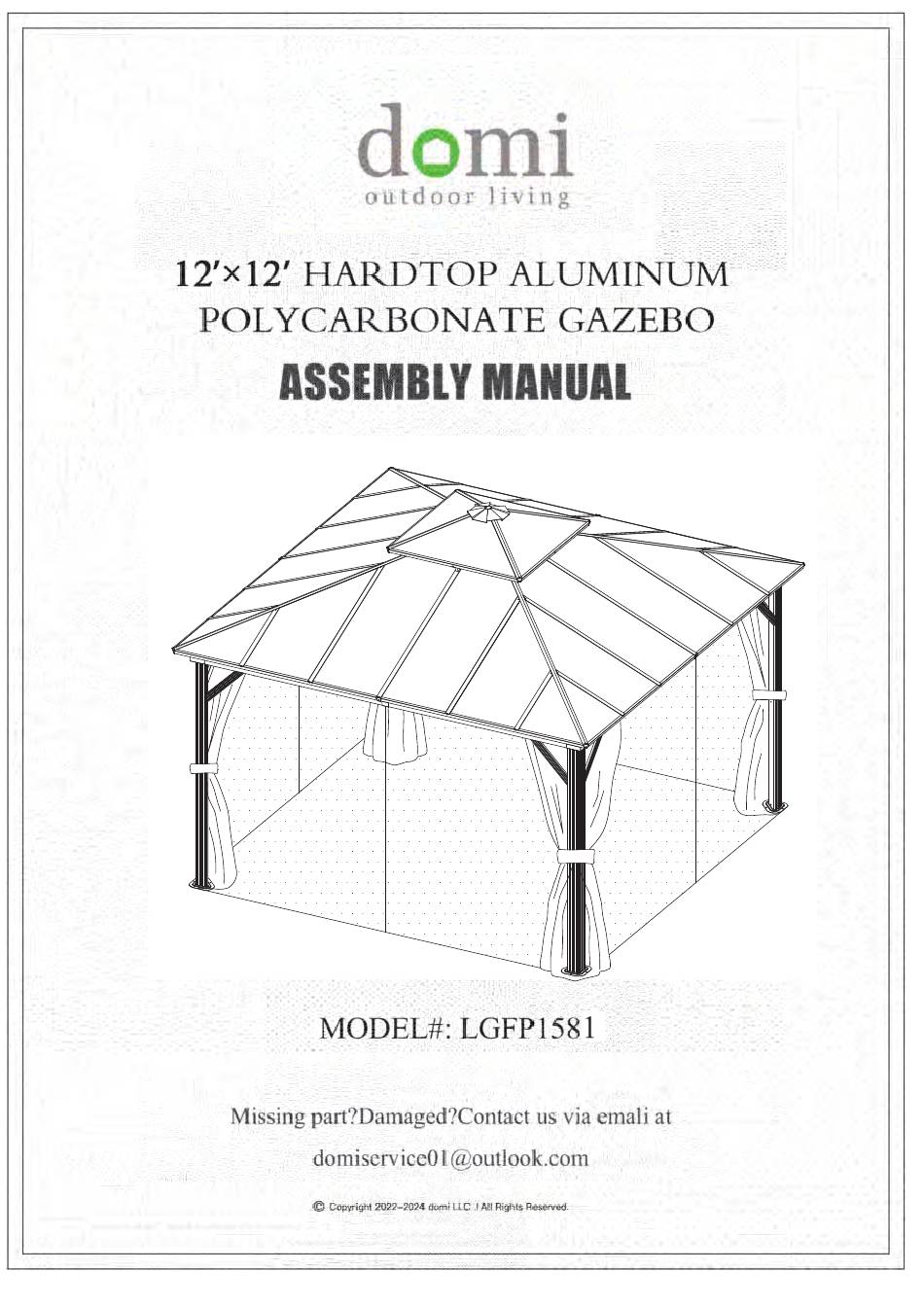

Summary of Contents for domi LGFP1581
- Page 2 U s e b o l t s t o s e c u r e t h e f r a me t o t h e g r o u n d t o a g a i n s t t h e s t r o n g w i n d . ！...
- Page 3 Pole Beam Beam Corner Roof Bar Roof Bar Corner Roof Bar Connector Corner Roof Solidifying Bar Corner Roof Solidifying Bar Corner Roof Solidifying Bar Corner Roof Solidifying Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar Solidfying Bar...
- Page 4 Solidfying Bar Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Plastic Bar Joint Cover Base Corner Corner Joint Cover Union Bar Solidifying Bar Solidifying Bar Inside Roof Outside Roof J-Hook Bracket Connector Connector Bracket Bracket Hook Bracket...
- Page 5 Bracket Bracket Joint Cover Joint Cover Finishing Finishing Corner Cover Spacer Mosquito Solid Sidewall Mesh Sidewall...
- Page 6 (1) Attach 2 Part #B1 to Part #A with 4 Bolts #8. (2) Attach 2 Part #B2 to Part #A with 4 Bolts #6. (3) Attach Part #B to Part #A with 3 Bolts #8. (4) Repeat the above procedures to assemble the other three Part #A.
- Page 7 (1) Insert Part #X into Part #C1. (3) Insert the other side of (2) Insert one side of Part #C2 into Part #C1 Part #C2 into Part #C and secure with 4 Bolts #8. and secure with 4 Bolts #8. (4) Secure Part #X with 2 Bolts #3.
- Page 8 (1) Connect Part #C and #C1 to Part #A with 4 Bolts #4 and 4 Bolts #5 (From Outside). (2) Repeat the above procedures to assemble the other three sides. Please don’t tighten all the bolts.
- Page 9 (1) Connect Part #C and #C1 to Part #A with 4 Bolts #8. (From Inside) (2) Repeat the above procedures to assemble the other three sides. Please don’t tighten all the bolts.
- Page 10 (1) Affix Part #R and #R1 to the frame with 8 Bolts #8. (2) Repeat the above procedures to assemble the other three sides. Please don’t tighten all the bolts.
- Page 11 (1) Cover the corner with Part #X1 and secure with 2 Bolts #2. (2) Put Part #X2 on the protruding place and secure with 2 Bolts #3. (3) Repeat the above procedures to assemble the other three sides. Tighten all the bolts.
- Page 12 Assemble the 4 Corner Roof Bars:...
- Page 13 (1) Please have a freestanding ladder ready at the center of the gazebo. (2) Place 4 Part #E1 on Part #S; secure with 8 Bolts #8 (from bottom to top). ATTENTION: You can also finish this step on the ground and then lift 4 Corner Roof Bar and Inside Roof Connector to the top together.
- Page 14 (1) Place Part #E2 on Part #S; secure with 2 Bolts #8( from bottom to top). (2) Connect Part #E2 and the Assembled Beam (C&C1) with Part #U1. Secure with 3 Bolts #8. (3) Repeat the above procedures to assemble the other three side.
- Page 15 (1)Attach Part #U2 to Part #F/F1/F2/F3 with Bolt #6. (2)Repeat the above procedures to assemble the other 3 pieces.
- Page 16 (1) Insert Part #F2 and Part #F3 into Corner Roof Bar Part #E; secure with 2 Bolts #6. (2) Insert Part #F and Part #F1 into Corner Roof Bar Part #E; secure with 2 Bolts #6. F/F2 F1/F3 F/F2 F1/F3 (3) Connect Part #F/F1/F2/F3 and the Assembled Beam with Part #U2;...
- Page 17 (1)Insert Part #W3 to Part #K1 and secure with Bolt #8. F2/F3 K/K1 (2) Attach Part #K and Part #K1 (3) Connect Part #K (K1) and with Part #W3 and 2 Bolts #8. Part #F2 (F3) with Bolt #9. (4) Repeat the above procedures to assemble the other three sides.
- Page 18 (1) Insert Part #W2 into Part #K1 and Part #K. (2) Secure them to Part #E with 3 Bolts #8. (3) Repeat the above procedures to assemble the other three sides.
- Page 19 Secure Part #T to Part #Z2, Part #S and Part #S1. ATTENTION: The holes of Part #Z2, Part #S and Part #S1 need to be aligned, on the same vertical line. Mesh (From bottom to top)
- Page 20 Insert Part #Q1 into the hole that around the edge of Part #Z2. Mesh...
- Page 21 (1) Place Part #J, Part #J1 and Part #Q1 into order on Part #E2; put on Part #Y and secure with Bolt #8. ATTENTION: The holes need to be aligned. (2) Repeat the above procedures to assemble the other three sides.
- Page 22 (1) Attach Part #Q1 on Part #J&J1 with 2 Bolts and Nuts #7. (2) Place Part #Y1 on Part #J/J1 and Part #E, securing with Bolt #8. (3) Repeat the above procedures to assemble the other three sides.
- Page 23 ASSAMBLE ROOF PANELS:...
- Page 24 (1) Insert Part #P2 (2) Place Part #H2 on Part #E2, into the top roof. securing with Bolt #8. (3) Repeat the above procedures to assemble the other three sides.
- Page 25 (1) Place Part #H2 on Part #E1; put on Part #Y1 and secure with Bolt #8. (2) Repeat the above procedures to assemble the other three sides.
- Page 26 (1) Insert Part #L, Part #L1 and Part #L2 into the frame. F/F2 (2) Attach Part #G to the frame, securing with 2 Bolts #6. (3) Repeat the above procedures to assemble the other three sides.
- Page 27 (1) Insert Part #N, Part #N1 and Part #N2 into the frame; (2) Attach Part #G1 to the frame, securing with 2 Bolts #6. (3) Repeat the above procedures to assemble the other three sides.
- Page 28 (1) Place Part #G and Part #G1 on Corner Roof Tube Part #E2; put on Part #Y and secure with Bolt #8. (2) Repeat the above procedures to assemble the other three sides.
- Page 29 (1) Place Part #G and Part #G1 on Part #E; put on Part #Y1 and secure with Bolt #8 (2) Repeat the above procedures to assemble the other three sides.
- Page 30 (1) Place 7 hooks on each slot of the Sidewall Track (C&C1). Double-Track (2) Install Part #W at the joint of Part #C&C1 with Bolt #8. (3) Repeat the above procedures to assemble the other three sides.
- Page 31 Hang up mosquito sidewalls to inside track.
- Page 32 Hang up solid sidewalls to outside track.
- Page 33 R E S O P T C O M F O R T I N Y O N R O W N B A C K Y A R D A t d o m i o u t d o o r l i v i n g , w e b e l i e v e i n o u r p r o d u c t s . T h a t ’...
