domi LGMF1618 Assembly Manual

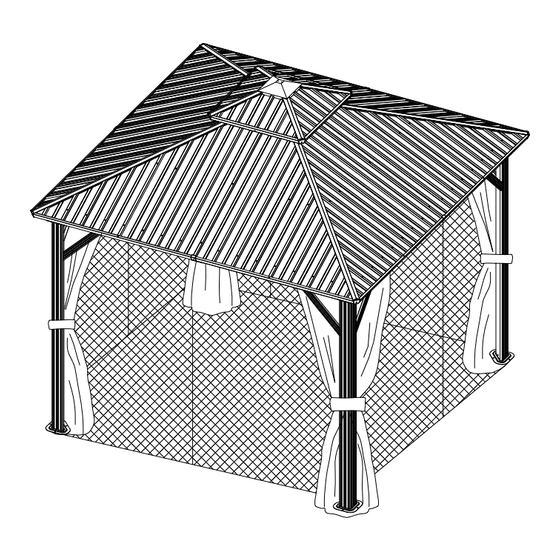

10' × 10' metal patio gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual
d mi
o u t d o o r l i v i n g

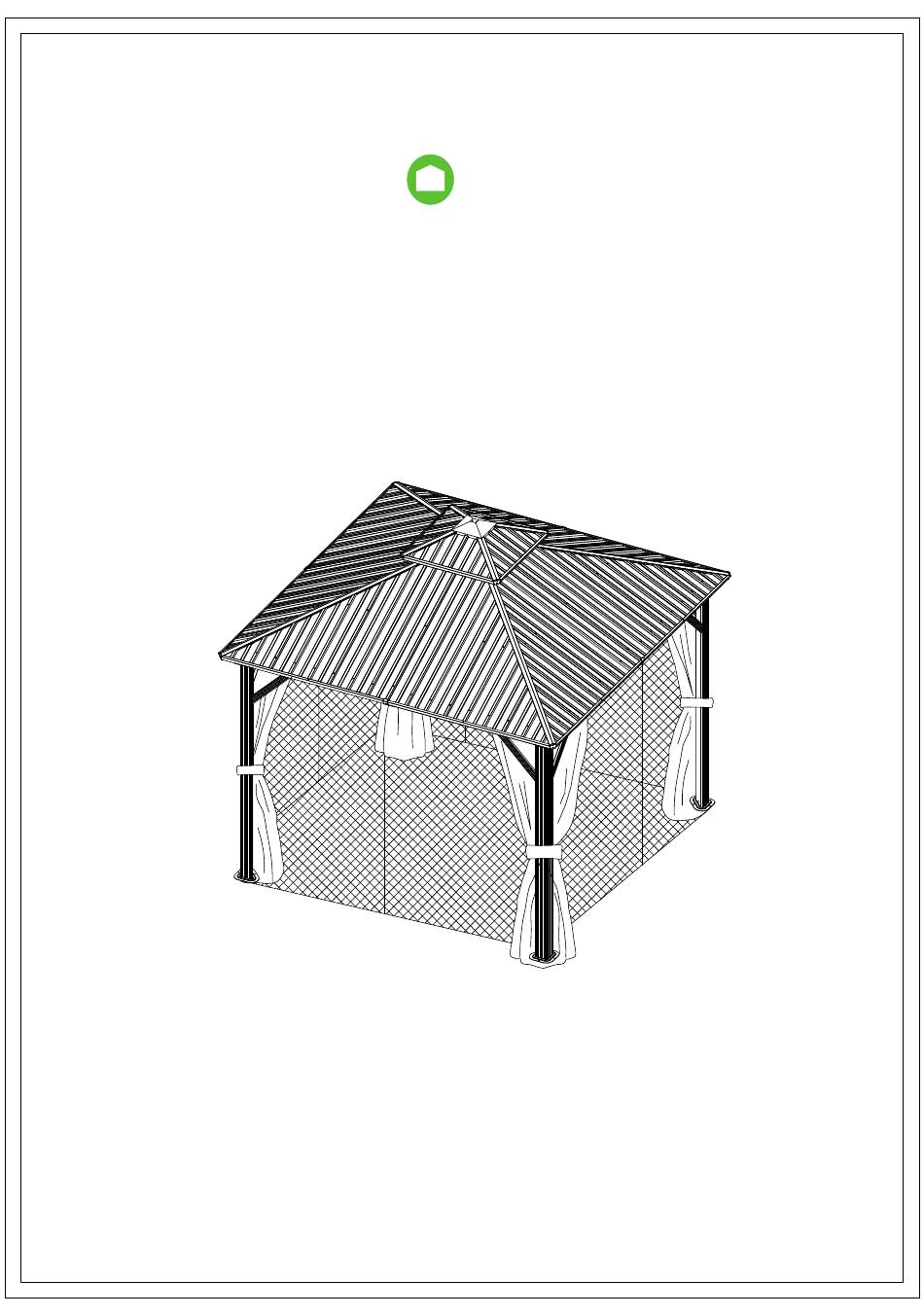

10' × 10' Metal Patio Gazebo
ASSEMBLY MANUAL
MODEL#: LGMF1618
Missing part? Damaged? Contact us via email at
service@domioutdoorliving.com
www.domioutdoorliving.com
©
Copyright 2022-2024 Domi Outdoor Living LLC. All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LGMF1618 and is the answer not in the manual?

Questions and answers

Related Manuals for domi LGMF1618

Summary of Contents for domi LGMF1618

  • Page 1 10' × 10' Metal Patio Gazebo ASSEMBLY MANUAL MODEL#: LGMF1618 Missing part? Damaged? Contact us via email at service@domioutdoorliving.com www.domioutdoorliving.com © Copyright 2022-2024 Domi Outdoor Living LLC. All Rights Reserved.
  • Page 5 Pole Beam Beam Corner Roof Bar Roof Bar Corner Roof Bar Connector Finishing Bar Solidfying Bar Finishing Bar Finishing Bar Roof Panel Finishing Bar Roof Panel Roof Panel Roof Panel Roof Panel...
  • Page 6 Roof Panel Roof Panel Roof Panel Net Frame Bracket Bracket Union Bar Base Corner Corner Inside Roof Outside Roof Solidifying Bar Solidifying Bar Connector Connector Bracket Bracket Bracket J-Hook Spacer Joint Cover Joint Cover Hook Bracket Corner Cover Finishing End Finishing End Mosquito Plastic...
  • Page 7 Plastic Plastic Plastic Bracket Bracket Bracket...
  • Page 8 (1) Attach 2 Part #B1 to Part #A with 4 Bolts #8. (2) Attach 2 Part #B2 to Part #A with 4 Bolts #6. (3) Attach Part #B to Part #A with 3 Bolts #8. (4) Repeat the above procedures to assemble the other 3 Part #A.
  • Page 9 (2) Insert the other side of (1) Insert Part #C2 into Part #C1 Part #C2 into Part #C and and secure with 3 Bolts #8. secure with 3 Bolts #8. (4) Insert Part #X into the beam. (3) Connect Part #C1 and Part #C through Part #C2.
  • Page 10 (1) Connect Part #C/C1 to Part #A with 8 Bolts #4.(From Outside) (2) Repeat the above procedures to assemble the other 3 corners. Please don't tighten all bolts.
  • Page 11 (1) Connect Part #C/C1 to Part #A with 4 Bolts #8.(From Inside) (2) Repeat the above procedures to assemble the other 3 corners. Please don't tighten all bolts.
  • Page 12 (1)Affix Part #R and Part #R1 to the frame with 8 Bolts #8. (2) Repeat the above procedures to assemble the other 3 corners. Tighten all the bolts.
  • Page 13 (1) Cover the corner with Part #X1. (2) Secure with 2 Self-tapping Screws #3. (from top to bottom) (3) Secure with 2 Self-tapping Screws #3. (from bottom to top) (4) Repeat the above procedures to assemble the other 3 corners.
  • Page 14 Assemble the 4 Corner Roof Bars: (1) Connect Part #E1 and Part #E with 2 Bolts #8 . (2) Attach Part #U to Part #E with Bolt #8 . (3) Repeat the above procedures to assemble the other 3 corner roof bars.
  • Page 15 Please have a freestanding ladder ready at the center of the gazebo. (1) Place 4 Part #E1 on the 4 corners of Part #S. Secure with 8 Bolts #8 (from bottom to top) ATTENTION: You can also finish this step on the ground and then lift 4 corner roof bars and inside roof connector to the top together.
  • Page 16 (1) Attach Part #U1 to Part #E2 with Bolt #7. (2) Repeat the above procedures to assemble the other 3 roof bars.
  • Page 17 Outside View (1) Place Part #E2 on part #S. Secure with Bolt #8 (from bottom to top). Inside View (2) Connect Part #E2 and the Assembled Beam(C&C1) with part #U1. Secure with 2 Bolts #8 . (3) Repeat the above procedures to assemble the other 3 sides.
  • Page 18 Secure Part #T to Part #S and Part #S1. Outside View ATTENTION: The holes of Part #S and Part #S1 need to be aligned, on the same vertical line.
  • Page 19 (1) Insert Part #U3 into 2 Part #F. (2) Attach Part #F to the Part #E2 with 1 Bolt #7 and 2 Blots #8. Inside View Outside View (3) Repeat the above procedures to assemble the other 3 sides.
  • Page 20 Inside View (1) Insert Part #U2 into 2 Part #F. (2) Secure with 2 Bolts #8. (3) Secure them to Part #E with Bolt #8. (4) Repeat the above procedures to assemble the other 3 sides.
  • Page 21 (1) Connect Part #J and Part #Q with 2 Bolts #7 and 2 Nuts #5. (2) Place the Assembled Part #J & #Q on Part #E2, securing with 1 Bolt #8. (3) Repeat the above procedures to assemble the other 3 sides.
  • Page 22 (1) Place 2 Part #J on Part #E, put on Part #X3 and secure with Self-tapping Screw #2. Inside View （2) Repeat the above procedures to assemble the other 3 corners.
  • Page 23 Cover Part #Z, #Z1 & #Z2 to Roof Panels. Section View...
  • Page 24 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #L1 and Part #L2 into the fame. (2) Attach Part #H to Part #E2, securing with Bolt #8. (3) Repeat the above procedures to assemble the other 3 sides.
  • Page 25 (1) Place 2 Part #H on Part #E1, put on Part #X3 and secure with Self-tapping Screw #2. Outside View (2) Repeat the above procedures to assemble the other 3 corners.
  • Page 26 Cover Part #Z, #Z3 & #Z4 to Roof Panels. Section View...
  • Page 27 Part #W should be inserted between roof panels and solidifying bar or beams, then secure with bolts and nuts.
  • Page 28 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M1 and (2) Insert Part #M5 and Part #M2 into the frame. Part #M6 into the frame. (3) Place 2 Part #W between roof panels and solidifying bars.
  • Page 29 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M3 (2) Insert Part #M4 into the frame. into the frame. (3) Place 2 Part #W between roof panels and solidifying bars. Then secure with 2 Bolts #12 and 2 Nuts #5.
  • Page 30 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M1 and (2) Insert Part #M5 and Part #M2 into the frame. Part #M6 into the frame. (3) Place 2 Part #W between roof panels and solidifying bars.
  • Page 31 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M3 (2) Insert Part #M4 into the frame. into the frame. (3) Place 2 Part #W between roof panels and solidifying bars. Then secure with 2 Bolts #12 and 2 Nuts #5.
  • Page 32 (1) Place Part #W between roof panels and Part #E2. Then secure with Bolt #9. (2) Repeat the above procedures to assemble the other 3 sides.
  • Page 33 (1) Place Part #K1 and Part #K2 on Part #E2; Put on Part #X2 and secure with Bolt #8. (2) Repeat the above procedures to assemble the other 3 sides.
  • Page 34 (1) Place Part #K1 and Part #K on Part #E; Put on Part #X3 and secure with Self-tapping Screw #2. (2) Repeat the above procedures to assemble the other 3 corners.
  • Page 35 (1) Attach roof panels to f inishing bars with 2 Self-tapping Screws #3. (2) Repeat the above procedures to assemble the other 3 sides.
  • Page 36 How to Put the 96 Hooks into the Double-track Double-track 6 Hooks × 2 Rows 6 Hooks × 2 Rows 6 Hooks × 2 Rows 6 Hooks × 2 Rows 6 Hooks × 2 Rows 6 Hooks × 2 Rows 6 Hooks ×...
  • Page 37 (1) Place 6 hooks on each slot of the Sidewall Track(C1&C). (2) Install Part #T1 at the joint of Part C&C1 with Bolt #8. Double-track (3) Repeat the above procedures to assemble other 3 sides.
  • Page 38 Hang up Mosquito Sidewalls to Inside Track...
  • Page 39 Hang up Solid Sidewalls to Outside Track...
  • Page 40 Thanks for your purchase. At domi outdoor living, we believe in our products. That’s why we provide a 12-month warranty and friendly, casy-to-reach after-sales service. So if you have any questions about our product and assembly- ,please feel free to contact us.
