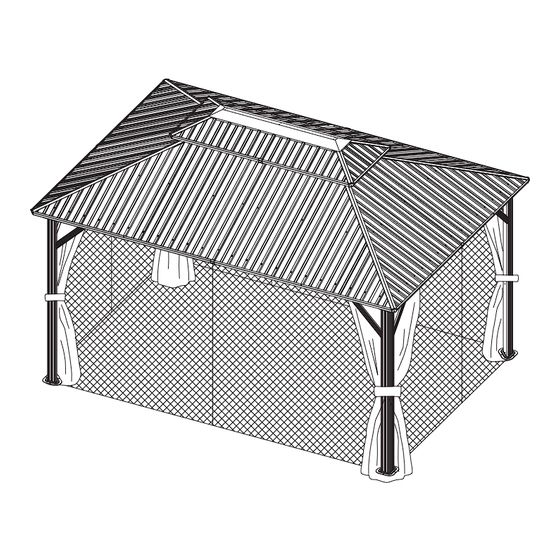

10x14 metal patio gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual
d mi
o u t d o o r l i v i n g
'×
' Metal Patio Gazebo
ASSEMBLY MANUAL
MODEL# : LGMF1597
Missing part? Damaged? Contact us via email at
domiservice01@outlook.com
©
Copyright 2022-2024 domi LLC. I All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LGMF1597 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for domi LGMF1597

Summary of Contents for domi LGMF1597

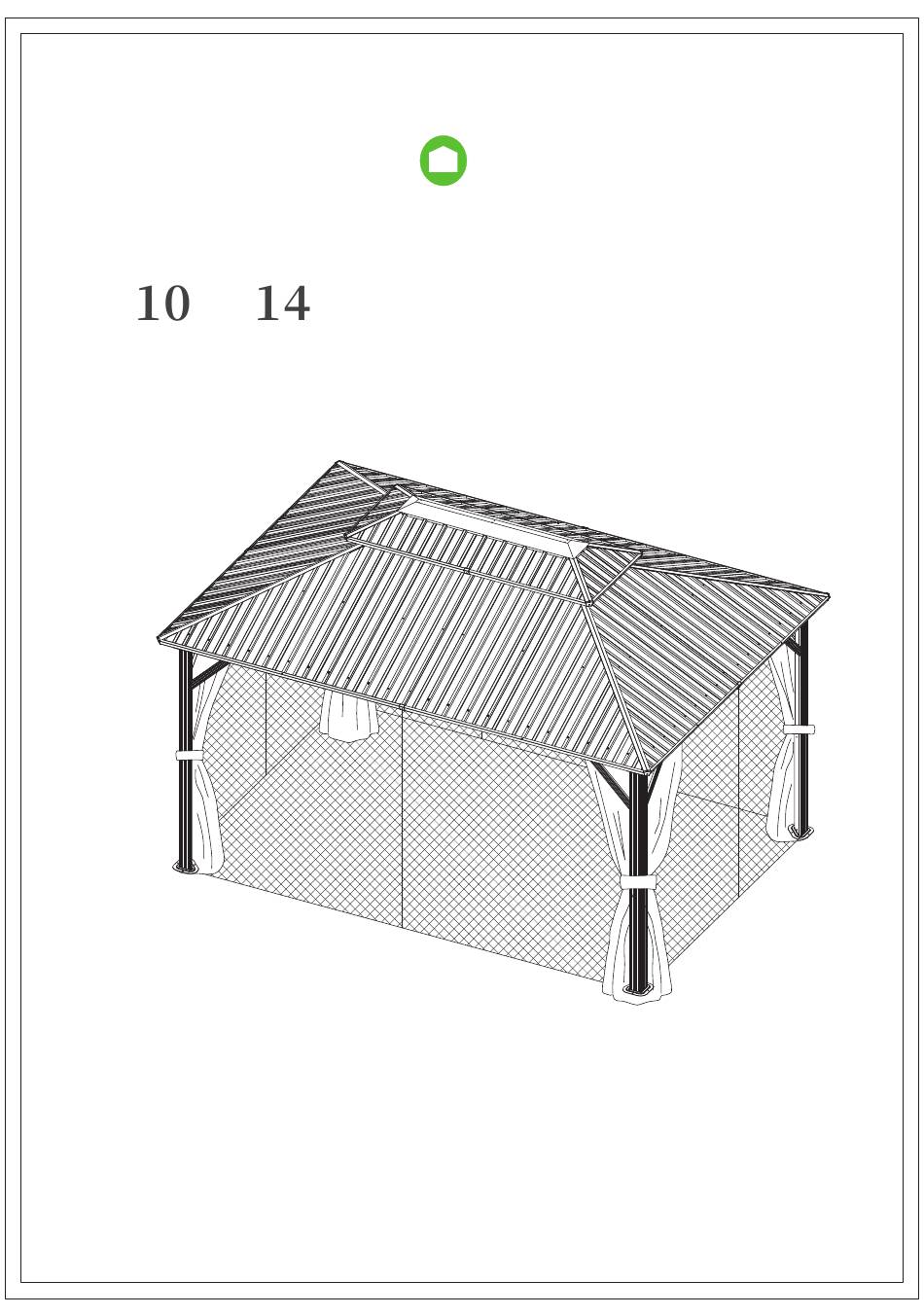

  • Page 1 '× ' Metal Patio Gazebo ASSEMBLY MANUAL MODEL# : LGMF1597 Missing part? Damaged? Contact us via email at domiservice01@outlook.com © Copyright 2022-2024 domi LLC. I All Rights Reserved.
  • Page 2 U s e b o l t s t o s e c u r e t h e f r a me t o t h e g r o u n d t o a g a i n s t t h e s t r o n g w i n d . ！...
  • Page 5 Pole Beam Beam Beam Beam Corner Roof Bar Roof Bar Corner Roof Bar Connector Solidfying Bar Solidfying Bar Solidfying Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar...
  • Page 6 Finishing Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel...
  • Page 7 Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Net Frame Net Frame Net Frame Base Joint Cover Corner Corner Joint Cover Union Bar Solidifying Bar Solidifying Bar Inside Roof Outside Roof J-Hook Bracket Connector Connector...
  • Page 8 Bracket Joint Cover Bracket Bracket Hook Spacer Bracket Corner Cover Mosquito Finishing End Finishing End Solid Sidewall Sidewall Plastic Bracket Plastic Bracket Plastic Bracket Plastic Bracket Plastic Bracket...
  • Page 9 (1) Attach 2 Part #B1 to Part #A with 4 Bolts #8. (2) Attach 2 Part #B2 to Part #A with 4 Bolts #6. (3) Attach Part #B to Part #A with 3 Bolts #8. (4) Repeat the above procedures to assemble the other 3 Part #A.
  • Page 10 (2) Insert the other side of (1) Insert Part #C2 into Part #C1 Part #C2 into Part #C and and secure with 3 Bolts #8. secure with 3 Bolts #8. (4) Insert Part #X into the beam. (3) Connect Part #C1 and Part #C through Part #C2.
  • Page 11 (2) Insert the other side of (1) Insert Part #C2 into Part #D, Part #C2 into Part #D1 and and secure with 3 Bolts #8. secure with 3 Bolts #8. (4) Insert Part #X into the beam (3) Connect Part #D and and secure with 1 Bolt #8.
  • Page 12 (1) Connect Part #C/C1 and #D/D1 to Part #A with 8 Bolts #4. (From Outside) (2) Repeat the above procedures to assemble the other 3 corners. Please don't tighten all bolts.
  • Page 13 (1) Connect Part #C/C1 and #D/D1 to Part #A with 4 Bolts #8. (From Inside) (2) Repeat the above procedures to assemble the other 3 corners. Please don't tighten all bolts.
  • Page 14 (1) Affix Part #R and Part #R1 to the frame with 8 Bolts #8. (2) Repeat the above procedures to assemble the other 3 corners. Please don't tighten all bolts.
  • Page 15 (1) Cover the corner with Part #X1. (2) Secure with 2 Self-tapping Screws #3. (from top to bottom) (3) Secure with 2 Self-tapping Screws #3. (from bottom to top) (4) Repeat the above procedures to assemble the other 3 corners. Tighten all bolts.
  • Page 16 Assemble the 4 Corner Roof Bars: (1) Connect Part #E1 and Part #E with 2 Bolts #8 . (2) Attach Part #U to Part #E with Bolt #8 . (3) Repeat the above procedures to assemble the other 3 Corner Roof Bars.
  • Page 17 Please have a freestanding ladder ready at the center of the gazebo. (1) Place 4 Part #E1 on the 4 corners of Part #S. Secure with 8 Bolts #8 (from bottom to top) ATTENTION: You can also finish this step on the ground and then lift 4 corner roof bar and inside roof connector to the top together.
  • Page 18 (1) Attach Part #U1 to Part #E2 with Bolt #7 . (2) Repeat the above procedures to assemble the other 3 roof bars.
  • Page 19 (1) Place Part #E2 on Part #S. Secure with Bolt #8 (from bottom to top). Outside View Inside View (2) Connect Part #E2 and the Assembled Beam(D&D1) with part #U1. Secure with 2 Bolts #8. (3) Repeat the above procedures to assemble the opposite side.
  • Page 20 (1) Place Part #E2 on part #S. Secure with Bolt #8 (from bottom to top). Outside View Inside View (2) Connect Part #E2 and the Assembled Beam(C&C1) with part #U1. Secure with 2 Bolts #8 . (3) Repeat the above procedures to assemble the opposite side.
  • Page 21 Secure Part #T to Part #S and Part #S1. (From Bottom to Top) ATTENTION: The holes of Part #S and Part #S1 need to be aligned, on the same vertical line.
  • Page 22 Inside View (1) Insert Part #U3 into Part #G and Part #G1. (2) Attach Part #G and Part #G1 to the Part #E2 with 1 Bolt #7 and 2 Blots #8. (3) Repeat the above procedures to assemble the opposite side. Outside View...
  • Page 23 Inside View (1) Insert Part #U3 into 2 Part #F. (2) Attach 2 Part #F to the Part #E2 with 1 Bolt #7 and 2 Blots #8. (3) Repeat the above procedures to assemble the opposite side. Outside View...
  • Page 24 (1) Insert Part #U2 into Part #F and Part #G1. (2) Secure with 2 Bolts #8. (3) Secure them to Part #E with Bolt #8. (4) Repeat the above procedures to assemble the other 3 sides.
  • Page 25 (1) Insert Part #U2 into Part #F and Part #G. (2) Secure with 2 Bolts #8. (3) Secure them to Part #E with Bolt #8. (4) Repeat the above procedures to assemble the other 3 sides.
  • Page 26 (1) Connect Part #J1 and Part #Q1 with 2 Bolts #7 and 2 Nuts #5. (2) Connect Part #J2 and Part #Q2 with 2 Bolts #7 and 2 Nuts #5.
  • Page 27 Inside View (1) Place the Assembled J1 & Q1 and J2 & Q2 on Part #E2, securing with 1 Bolt #8. (2) Repeat the above procedures to assemble the opposite side.
  • Page 28 (1) Connect Part #J and Part #Q with 2 Bolts #7 and 2 Nuts #5. (2) Place the Assembled Part #J & #Q on Part #E2, securing with 1 Bolt #8. （3) Repeat the above procedures to assemble the opposite side.

  • Page 29: Inside View

    (1) Place Part #J and Part #J1 on Part #E; put on Part #X3 and secure with Self-tapping Screw #2. Inside View Inside View (2) Repeat the above procedures to assemble the other 3 corners.
  • Page 30 Cover Part #Z, #Z1 & #Z2 to Roof Panels. Section View...
  • Page 31 Cover Part #Z to Roof Panels. Section View...
  • Page 32 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #N1 and (2) Insert Part #N3 and Part #N2 into the frame. Part #N2 into the frame. (3) Repeat the above procedures to assemble the opposite side.
  • Page 33 (1) Place Part #H1 and Part #H2 on Part #E2; put on Part #X2 and secure with Bolt #8. (2) Repeat the above procedures to assemble the opposite side.
  • Page 34 (1) Insert Part #L1 into the frame. (2) Insert Part #L2 into the frame. (3) Attach Part #H to Part #E2, securing with Bolt #8. (4) Repeat the above procedures to assemble the opposite side.
  • Page 35 (1) Place Part #H and Part #H2 on Part #E1; put on Part #X3 and secure with Self-tapping Screw #2 Outside View (2) Repeat the above procedures to assemble the other 3 corners.
  • Page 36 Cover Part #Z# , Z3 & #Z4 to Roof Panels Section View...
  • Page 37 Cover Part #Z & #Z1 to Roof Panels...
  • Page 38 Cover Part #Z & #Z2 to Roof Panels...
  • Page 39 Part #W should be inserted between roof panels and solidifying bar or beams, then secure with bolts and nuts.
  • Page 40 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #P1, Part #P2 and Part #P3 into the frame. (3) Place 1 Part #W between roof panels and solidifying bars. Then secure with 1 Bolt #12 and 1 Nut #5.
  • Page 41 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #P8, Part #P7 and Part #P6 into the frame. (3) Place 1 Part #W between roof panels and solidifying bars. Then secure with 1 Bolt #12 and 1 Nut #5.
  • Page 42 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #P4 and Part #P5 into the frame. (3) Place 4 Part #W between roof panels and solidifying bars. Then secure with 4 Bolts #12 and 4 Nuts #5. (2) Place 9 Part #W between roof panels and beams.
  • Page 43 (1) Place 2 Part #W between Part #P5 and Part #E2. Then secure with 2 Bolts #9 and 2 Nuts #5. (2) Repeat the above procedures to assemble the opposite side.
  • Page 44 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M1 and (2) Insert Part #M6 and Part #M2 into the frame. Part #M5 into the frame. (3) Place 8 Part #W between roof panels and beams. Then secure with 8 Bolts #10 and 8 Nuts #5.
  • Page 45 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M3 into the frame. (3) Place 2 Part #W between roof panels and solidifying bars. Then secure with 2 Bolts #12 and 2 Nuts #5. (2) Insert Part #M4 into the frame.
  • Page 46 (1) Place 2 Part #W between roof panels and Part #E2. Then secure with 2 Bolts #9 and 2 Nuts #5. (2) Repeat the above procedures to assemble the opposite side.
  • Page 47 (1) Place Part #K2 and Part #K3 on Part #E2; Put on Part #X2 and secure with Bolt #8. (2) Repeat the above procedures to assemble the opposite side.
  • Page 48 (1) Place Part #K and Part #K1 on Part #E2; Put on Part #X2 and secure with Bolt #8. (2) Repeat the above procedures to assemble the opposite side.
  • Page 49 (1) Place Part #K3 and Part #K on Part #E; Put on Part #X3 and secure with Self-tapping Screw #2. (2) Repeat the above procedures to assemble the other 3 corners.
  • Page 50 (1) Attach roof panels to finishing bars with 2 Self-tapping Screws #3. (2) Repeat the above procedures to assemble the other 3 sides.
  • Page 51 How to Put the 112 Hooks into the Double-track 8 Hooks × 2 Rows 6 Hooks × 2 Rows 6 Hooks × 2 Rows 8 Hooks × 2 Rows 8 Hooks × 2 Rows 6 Hooks × 2 Rows 8 Hooks × 2 Rows 6 Hooks ×...
  • Page 52 (1) Place 6 hooks on each slot of the Sidewall Track(C1&C). (2) Install Part #T1 at the joint of Part C&C1 with Bolt #8. Double-track (3) Repeat the above procedures to assemble the opposite side.
  • Page 53 (1) Place 8 hooks on each slot of the Sidewall Track(D&D1). (2) Install Part #T1 at the middle of Part D&D1 with Bolt #8. Double-track (3) Repeat the above procedures to assemble the opposite side.
  • Page 54 Hang up Mosquito Sidewalls to Inside Track...
  • Page 55 Hang up Solid Sidewalls to Outside Track...
  • Page 56 R E S O P T C O M F O R T I N Y O N R O W N B A C K Y A R D A t d o m i o u t d o o r l i v i n g , w e b e l i e v e i n o u r p r o d u c t s . T h a t ’...
