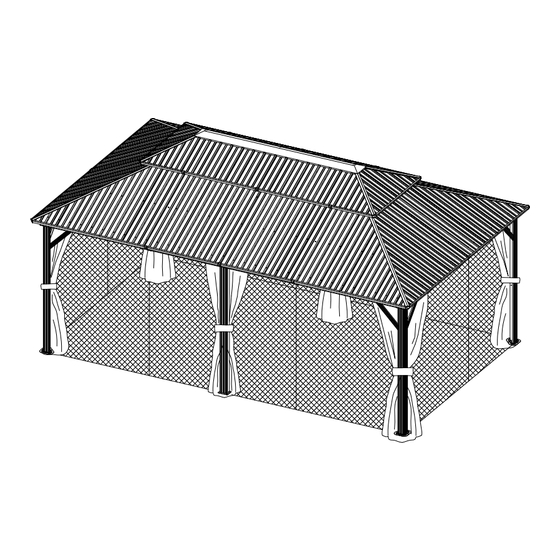

12'×18' metal patio gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual
d mi
o u t d o o r l i v i n g
12'×18' Metal Patio Gazebo
ASSEMBLY MANUAL
MODEL#: LGMF161
9
Missing part? Damaged? Contact us via email at
service@domioutdoorliving.com
©
Copyright 2022-2024 Domi Outdoor Living LLC. All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LGMF1619 and is the answer not in the manual?

Questions and answers

Related Manuals for domi LGMF1619

Summary of Contents for domi LGMF1619

  • Page 1 12'×18' Metal Patio Gazebo ASSEMBLY MANUAL MODEL#: LGMF161 Missing part? Damaged? Contact us via email at service@domioutdoorliving.com © Copyright 2022-2024 Domi Outdoor Living LLC. All Rights Reserved.
  • Page 4 Pole Pole Beam Beam Beam Beam Beam Corner Roof Bar Roof Bar Corner Roof Bar Connector Solidfying Bar Solidfying Bar Solidfying Bar Solidfying Bar Finishing Bar Finishing Bar...
  • Page 5 Finishing Bar Finishing Bar Finishing Finishing Finishing Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel...
  • Page 6 Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel...
  • Page 7 Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Net Frame Net Frame Net Frame Net Frame Net Frame Base Bracket Bracket Base Corner Corner Inside Roof Union Bar Solidifying Bar Solidifying Bar Connector Outside Roof J-Hook Bracket Bracket...
  • Page 8 Bracket Bracket Bracket Bracket Hook Spacer Joint Cover Corner Cover Mosquito Finishing End Finishing End Solid Sidewall Sidewall Mosquito Plastic Bracket Plastic Bracket Solid Sidewall Sidewall Plastic Bracket Plastic Bracket Plastic Bracket...
  • Page 9 (1) Attach 2 Part #B1 to Part #A with 4 Bolts #8. (2) Attach 2 Part #B2 to Part #A with 4 Bolts #6. (3) Attach Part #B to Part #A with 3 Bolts #8. (4) Repeat the above procedures to assemble the other 3 Part #A.
  • Page 10 (1) Attach 2 Part #B1 to Part #A1 with 4 Bolts #8. (2) Attach Part #B3 to Part #A1 with 4 Bolts #8. (3) Repeat the above procedures to assemble another Part #A1.
  • Page 11 (2) Insert the other side of (1) Insert Part #C2 into Part #C1 Part #C2 into Part #C and and secure with 3 Bolts #8. secure with 3 Bolts #8. (4) Insert Part #X into the beam (3) Connect Part #C1 and and secure with 1 Bolt #8.
  • Page 12 (1) Insert Part #C2 into Part #D, (2) Insert the other side of and secure with 3 Bolts #8. Part #C2 into Part #D2 and secure with 3 Bolts #8. (4) Insert Part #X into the beam and secure with 1 Bolt #8. (3) Connect Part #D and Part #D2 through Part #C2.
  • Page 13 (1) Insert Part #C2 into Part #D2, (2) Insert the other side of and secure with 3 Bolts #8. Part #C2 into Part #D1 and secure with 3 Bolts #8. (4) Insert Part #X into the beam and secure with 1 Bolt #8. (3) Connect Part #D2 and Part #D1 through Part #C2.
  • Page 14 (1) Connect Part #C and #D to Part #A with 8 Bolts #4. (From Outside) (2) Repeat the above procedures to assemble the other 3 corners. Please don't tighten all bolts.
  • Page 15 (1) Connect Part #C and #D to Part #A with 4 Bolts #8. (From Inside) Repeat the above procedures to assemble the other 3 corners. Please don't tighten all bolts.
  • Page 16 (1) Connect Part #A1 to the middle of Part #D2 with 5 Bolts #8. Repeat the above procedures to assemble the opposite side. Please don't tighten all bolts.
  • Page 17 (1) Affix Part #R and Part #R1 to the frame with 8 Bolts #8. Repeat the above procedures to assemble the other 3 corners. Please don't tighten all bolts.
  • Page 18 (1) Cover the corner with Part #X1. (2) Secure with 2 Self-tapping Screws #3. (from top to bottom) (3) Secure with 2 Self-tapping Screws #3. (from bottom to top) Repeat the above procedures to assemble the other 3 corners. Tighten all bolts.
  • Page 19 (1) Affix Part #R and Part #R1 to the frame with 8 Bolts #8. (2) Repeat the above procedures to assemble the other 3 corners. Tighten all bolts.
  • Page 20 (1) Cover the corner with Part #X1. (2) Secure with 2 Self-tapping Screws #3. (from top to bottom) (3) Secure with 2 Self-tapping Screws #3. (from bottom to top) (4) Repeat the above procedures to assemble the other 3 corners.
  • Page 21 Assemble the 4 Corner Roof Bars: (1) Connect Part #E1 and Part #E with 2 Bolts #8 . (2) Attach Part #U to Part #E with Bolt #8 . (3) Repeat the above procedures to assemble the other 3 corner roof bars.
  • Page 22 Please have a freestanding ladder ready at the center of the gazebo. (1) Place 4 Part #E1 on the 4 corners of Part #S. Secure with 8 Bolts #8. (from bottom to top) ATTENTION: You can also finish this step on the ground and then lift 4 corner roof bars Outside View and inside roof connector to the top together.
  • Page 23 (1) Attach Part #U1 to Part #E2 with Bolt #7 . (2) Repeat the above procedures to assemble the other 5 roof bars.
  • Page 24 (1) Attach Part #U4 to Part #E2 with Bolt #7 . (2) Repeat the above procedures to assemble another roof bar.
  • Page 25 (1) Place Part #E2 on part #S. Secure with Bolt #8 (from bottom to top). Outside View Inside View (2) Connect Part #E2 and Part A1 with part #U4. Secure with 2 Bolts #8. (3) Repeat the above procedures to assemble the opposite side.
  • Page 26 (1) Place Part #E2 on Part #S. Secure with Bolt #8 (from bottom to top). Outside View Inside View (2) Connect Part #E2 and the Assembled Beam (C&C1) with part #U1. Secure with 2 Bolts #8. (3) Repeat the above procedures to assemble the opposite side.
  • Page 27 (1) Place Part #E2 on Part #S. Secure with Bolts #8 (from bottom to top). Outside View Inside View (2) Connect Part #E2 and the Assembled Beam (D1&D2&D) with part #U1. Secure with 2 Bolts #8. (3) Repeat the above procedures to assemble the opposite side.
  • Page 28 Secure 3 Part #T to Part #S and Part #S1. (From bottom to top) ATTENTION: The holes of Part #S and Part #S1 need to be aligned, on the same vertical line.
  • Page 29 (1) Insert Part #U3 into Part #G1 (2) Insert 2 Part #U3 into Part #G2 and secure with Blot #8. and secure with 2 Blots #8. Inside View (3) Attach Part #G1 and Part #U3 to Part #E2 with Blot #7. (5) Attach Part #G2 and (4) Attach Part #G2 and Part #U3 to Part #E2...
  • Page 30 Inside View (1) Attach Part #G and Part #U3 to Part #E2 with Bolt #8 Outside View (2) Repeat the above procedures to assemble the opposite side.
  • Page 31 (2) Attach 2 Part #F and Part #U3 to Part #E2 with Blot #7 and Blot #8. Outside View...
  • Page 32 Outside View (1) Insert Part #U2 into Part #F and Part #G. (2) Secure with 2 Bolts #8. (3) Secure them to Part #E with Bolt #8. (4) Repeat the above procedures to assemble the other 3 sides.
  • Page 33 (1) Connect Part #J1 and Part #Q1 with 1 Bolt #7 and 1 Nut #5. (2) Connect Part #J3 and Part #Q3 with 1 Bolts #7 and 1 Nuts #5. (3) Connect Part #J3 and Part #Q4 with 1 Bolts #7 and 1 Nuts #5. (4) Connect Part #J2 and Part #Q2 with 1 Bolt #7 and 1 Nut #5.
  • Page 34 Inside View (1)Place the Assembled J1 & Q1, J3 & Q3, J3 & Q4 and J2 & Q2 on Part #E2, securing with 3 Bolts #8. (2) Repeat the above procedures to assemble the opposite side.
  • Page 35 (1) Connect Part #J and Part #Q with 2 Bolts #7 and 2 Nuts #5. (2) Place the Assembled Part #J & #Q on Part #E2, securing with 1 Bolt #8. Inside View (3) Repeat the above procedures to assemble the opposite side.
  • Page 36 (1) Place Part #J and Part #J1 on Part #E; put on Part #X3 and secure with Self-tapping Screw #2. Inside View (2) Repeat the above procedures to assemble the other 3 corners.
  • Page 37 Cover Part #Z, #Z1 & #Z2 to Roof Panels. Section View...
  • Page 38 Cover Part #Z, #Z3 & #Z4 to Roof Panels. Section View...
  • Page 39 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #N1 and Part #N2 (2) Insert Part #N5 and Part #N4 into the frame; attach Part #H1 into the frame; attach Part #H2 to Part #E2, securing with Bolt #8. to Part #E, securing with Bolt #8.
  • Page 40 (1) Insert 3 Part #N3 into the frame. When installing Part #H1, K4, K5, H2, you should unscrew the bolt that have not been tightened.
  • Page 41 (1) Place Part #H1 and Part #K4 on (2) Place Part #K4 & #K5 Part #E2; put on on Part #E2; put on Part Part #X2 and #X2 and secure with secure with Bolt #8. Bolt #8. (3) Place Part #K5 and Part #H2 on Part #E2;...
  • Page 42 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #L1 and (2) Insert Part #L4 and Part #L2 into the frame. Part #L3 into the frame. (3) Attach Part #H to Part #E2, securing with Bolt #8. (4) Repeat the above procedures to assemble the opposite side.
  • Page 43 (1) Place Part #H and Part #H2 on Part #E1; put on Part #X3 and secure with Self-tapping Screw #2. Outside View (2) Repeat the above procedures to assemble the other 3 corners.
  • Page 44 Cover Part #Z to Roof Panels Section View...
  • Page 45 Cover Part #Z, #Z3 and #Z4 to Roof Panels...
  • Page 46 Cover Part #Z, #Z3 and #Z4 to Roof Panels...
  • Page 47 Part #W should be inserted between roof panels and solidifying bar or beams, then secure with bolts and nuts.
  • Page 48 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #P1, Part #P2 (2) Insert Part #P12, Part #P11 and Part #P3 into the frame. and Part #P10 into the frame. (3) Place 2 Part #W between roof panels and solidifying bars.
  • Page 49 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #P4 and Part #P5 into the frame. (2) Insert Part #P9 and Part #P8 into the frame. (3)Place 8 Part #W between roof panels and solidifying bars.
  • Page 50 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #P6 into the frame. (3) Place 4 Part #W between roof panels and solidifying bars. Then secure with 4 Bolts #12 and 4 Nuts #5; Place 1 Part #W between roof panels and Part #E2.
  • Page 51 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M1 and (2) Insert Part #M8 and Part #M2 into the frame. Part #M7 into the frame. (3) Place 6 Part #W between roof panels and beams. Then secure with 6 Bolts #10 and 6 Nuts #5.
  • Page 52 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M3 into the frame. (2) Insert Part #M6 into the frame. (3) Place 4 Part #W between roof panels and solidifying bars. Then secure with 4 Bolts #12 and 4 Nuts #5.
  • Page 53 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M4 and Part #M5 into the frame. (2) Place 4 Part #W between roof panels and solidifying bars. Then secure with 4 Bolts #12 and 4 Nuts #5; Place 1 Part #W between roof panels and Part #E2.
  • Page 54 Place Part #W between roof panels and Part #E2. Then secure with Bolt #11 and Nut #5. Repeat the above procedures to assemble the other 3 sides.
  • Page 55 (1) Place Part #K4 and Part #K5 on Part #E2; Put on Part #X2 and secure with Bolt #8. (2) Place Part #K2 on Part #K4 (3) Place Part #K3 on Part #K5 and Part #E2; Put on Part #X2 and Part #E2;...
  • Page 56 (1) Attach Part #K and Part #K1 to the frame; Put on Part #X2 and secure with Bolt #8. (2) Repeat the above procedures to assemble the opposite side.
  • Page 57 (1) Place Part #K3 and Part #K on Part #E; Put on Part #X3 and secure with Self-tapping Screw #2. (2) Repeat the above procedures to assemble the other 3 corners.
  • Page 58 (1) Attach roof panels to finishing bars with 4 Self-tapping Screws #3. (2) Repeat the above procedures to assemble the opposite side.
  • Page 59 (1) Attach roof panels to finishing bars with 2 Self-tapping Screws #3. (2) Repeat the above procedures to assemble the opposite side.
  • Page 60 How to Put the 144 Hooks into the Double-track Double-track 7 Hooks × 2 Rows 7 Hooks × 2 Rows 8 Hooks × 2 Rows 7 Hooks × 2 Rows 8 Hooks × 2 Rows 7 Hooks × 2 Rows...
  • Page 61 (1) Place 7 hooks on each slot of the Sidewall Track(C1&C). (2) Install Part #T1 at the joint of Part C&C1 with Bolt #8. Double-track (3) Repeat the above procedures to assemble the opposite side.
  • Page 62 (1) Place 7 hooks on each slot of the Sidewall Track(D&D1). (2) Place 8 hooks on each slot of the Sidewall Track(D2). (3) Install Part #T1 at the middle of Part #D&D1&D2 with Bolt #8. Double-track (4) Repeat the above procedures to assemble the opposite side.
  • Page 63 Hang up Mosquito Sidewalls to Inside Track...
  • Page 64 Hang up Solid Sidewalls to Outside Track...
  • Page 65 Thanks for your purchase. At domi outdoor living, we believe in our products. That’s why we provide a 12-month warranty and friendly, casy-to-reach after-sales service. So if you have any questions about our product and assembly- ,please feel free to contact us.
