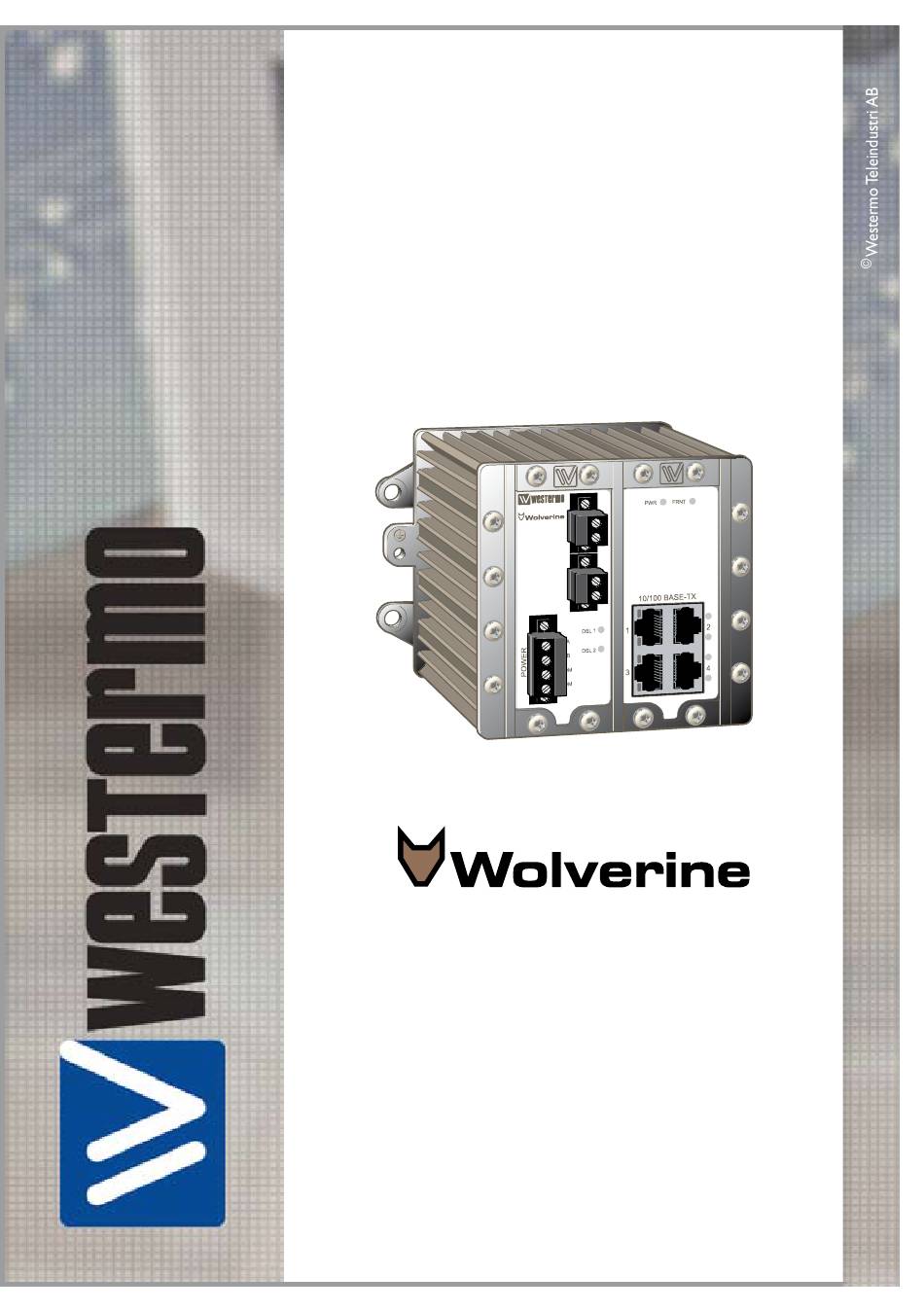

- Page 1 User Guide 6642-22101 DDW-221 W o l v e r i n e s e r i e s DD W- 221 Industrial Ethernet SHDSL extender www.westermo.com...
-
Page 2: Legal Information
Legal information The contents of this document are provided “as is”. Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy and reliability or contents of this document. Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. More information about Westermo can be found at the following Internet address: http://www.westermo.com 6642-22101... -
Page 3: Before Installation
Safety Before installation: Read this manual completely and gather all information on the unit. Make sure that you understand it fully. Check that your application does not exceed the safe oper- ating specifications for this unit. This unit should only be installed by qualified personnel. This unit should be built-in to an apparatus cabinet, or similar, where access is restricted to service personnel only. The power supply wiring must be sufficiently fused, and if necessary it must be possible to disconnect manually from the power supply. Ensure compliance to national installation regulations. This unit uses convection cooling. To avoid obstructing the airflow around the unit, follow the spacing recommendations (see Cooling section). Before mounting, using or removing this unit: Prevent access to hazardous voltage by disconnecting the unit from power supply. Warning! Do not open connected unit. Hazardous voltage may occur within this unit when connected to power supply. Care recommendations Follow the care recommendations below to maintain full operation of unit and to fulfil the warranty obligations. This unit must not be operating with removed covers or lids. Do not attempt to disassemble the unit. There are no user serviceable parts inside. Do not drop, knock or shake the unit, rough handling above the specification may cause damage to internal circuit boards. Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit. Do not paint the unit. Paint can clog the unit and prevent proper operation. Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not water- proof. Keep the unit within the specified humidity levels. Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo dis- tributor office or Westermo Tech support. A readily accessible disconnect device shall be incorporated external to the equipment. This unit may have hot surfaces when used in high ambient temperature. Maintenance No maintenance is required, as long as the unit is used as intended within the specified conditions. 6642-22101... -
Page 4: Agency Approvals And Standards Compliance
Agency approvals and standards compliance Approved Type Approval / Compliance Agency/ W-mo W-mo EN 61000-6-2, Immunity industrial environments W-mo EN 55024, Immunity IT equipment W-mo EN 61000-6-4, Emission industrial environments W-mo FCC part 15 Class A W-mo EN 50121-4, Railway signalling and telecommunications apparatus Safety W-mo EN 60950-1, IT equipment SHDSL NEMKO ITU-T G.991.2 FCC Part 15.105 Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic- ular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: … Reorient or relocate the receiving antenna … Increase the separation between the equipment and receiver … Connect the equipment into an outlet on a circuit different from that to which the receiver is connected … Consult the dealer or an experienced radio/TV technician for help. 6642-22101... -
Page 5: Declaration Of Conformity
Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Installation manual DIN-rail Wolverine series DDW-22x 3642-02xx 6642-22xxx is in conformity with the following EC directive(s). -
Page 6: Type Tests And Environmental Conditions
Type tests and environmental conditions Phenomena Test Description Test levels EN 61000-4-2 Enclosure contact ± 6 kV Enclosure air ± 8 kV RF field AM modulated IEC 61000-4-3 Enclosure 20 V/m 80% AM (1 kHz), 80 – 1000 MHz 10 V/m 80% AM (1 kHz), 1400 – 2100 MHz 5 V/m 80% AM (1 kHz), 2100 – 2500 MHz 1 V/m 80% AM (1 kHz), 2500 – 2700 MHz Fast transient EN 61000-4-4 Signal ports ± 2 kV Power ports ± 2 kV Surge EN 61000-4-5 Signal ports balanced ± 2 kV line to earth, ± 1 kV line to line Power ports ± 2 kV line to earth, ± 2 kV line to line RF conducted EN 61000-4-6 Signal ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power frequency magnetic EN 61000-4-8 Enclosure 300 A/m field ... - Page 7 Description The DDW-221 is an Industrial Ethernet SHDSL extender with support for redundancy. The redundant protocol can be used ether on the SHDSL interface or on the built-in Ethernet switch. Our unique FRNT (Fast Recovery of Network Topology) technology is the fastest pro- tocol on the market to re-configure a network in the event of any failure of a link or hardware. SHDSL represents the best of several symmetric DSL technologies. This unit provides the ability to reuse existing twisted copper pair with data rates from 192 kbit/s to 5.7 Mbit/s in both directions. The DDW-221 makes it possible to communicate over 10 km (6.2 miles) on twisted pair cable. The DDW-221 is a bridge not router and so is simple to install. All configuration is done using a web interface. The DIN rail mounted DDW-221 is designed for harsh environments and can be used in industrial and railway applications. It can be powered from two separate supplies and handle an operating voltage range of 16 – 60 VDC. … Redundant protocol (FRNT) on SHDSL or on the Ethernet switch … 192 kbit/s to 5.7 Mbit/s … Over 10 km (6.2 miles) on twisted pair … Daisy chain SHDSL applications … Wide temperature range (–40 to +70°C) (–40 to 158°F) … Total galvanic isolation & transient protection … Industrial and Rail EMC approvals … Redundant power and wide DC input range ...
-
Page 8: Interface Specifications
Interface specifications Power Rated voltage 20 to 48 VDC Operating voltage 16 to 60 VDC Rated current 300 mA @ 20 VDC 150 mA @ 48 VDC Rated frequency Inrush current, I 3.1 A Startup current* 400 mA Polarity Reverse polarity protected Redundant power input Isolation to Ethernet, SHDSL Connection Detachable screw terminal Connector size 0.2 – 2.5 mm (AWG 24 – 12) Shielded cable Not required * If external power supply is used it must meet specified inrush current. SHDSL Electrical specification ITU-T G.991.2 Annex B Data rate 192 kbit/s to 5696 kbit/s Protocol EFM according to IEEE 802.3-2004 Transmission range According to ITU-T G.991.2 depending on the line quality Protection Overcurrent / overvoltage protection circuit and varistor Isolation to Power, Ethernet Connection Detachable screw terminal... -
Page 9: Power Connection
Connections DSL screw connector 1 & 2 Position Direction Description In/Out 2-wire Receive/ Transmit SHDSL In/Out 2-wire Receive/ Transmit SHDSL LED indicators (for details see next page) Earth connect LED indicators, also integrated in RJ-45 connector. LED indicators (for details see next page) (for details see next page) Ethernet TX connection Power connection (RJ-45 connector) 1 – 4** Position Direction* Description Position Direction* Description In/Out + Voltage A In/Out TD– + Voltage B In/Out Common – Not Connected Common – Not Connected In/Out RD–... -
Page 10: Led Indicators
LED indicators Status Description No power ON (green) Booting ready, unit ready ON (red) Unit is booting FRNT FRNT disabled ON (green) FRNT enabled and unit is ring member, ring ok Flashing (green) FRNT enabled and unit is focal point, ring ok Flashing (red) FRNT error and unit is focal point, ring broken ON (red) FRNT error according to the following 1. If unit is ring member at least one trunk port is down 2. If unit is focal point ring is not intact 10/100BASE-TX No link Port 1 – 4 ON Link active Green LED Flashing Traffic on link 10/100BASE-TX No port alarm Port 1 – 4 Yellow LED Port alarm DSL ... - Page 11 Daisy chain SHDSL connection The default configuration of the units allow for an Ethernet extension to be made. Connect DSL 1 to DSL 2 on the following units to obtain a chain of linked units. DDW-2 21 DDW-2 21 DDW-2 21 Redundant SHDSL connection The DDW-221 are available with redundant ring technology. This eliminates network failure caused by communication failures on the ring ports. In a ring application one unit must be configured as focal point, all other units will be con- figured as members. Connect DSL 1 to DSL 2 on the following units to obtain a chain of linked units. DDW-2 21 DDW-2 21 DDW-2 21 DDW-2 21 6642-22101...
- Page 12 Configuration The unit can easily be configured via the onboard Web based configuration tool. Local IP addresses can also be configured by using the Westermo IP Config too. From the IP Config tool it is then possible to browse into the unit for further configuration. IP Address When delivered, the default IP address of the DDW-2XX is 192.168.2.200. The default gateway is 192.168.2.200 If the default address of the unit is valid in the connected network it is possible to access the unit directly from a web browser. Change local IP address The local address of DDW-2XX can be configured using the IP Configuration tool. The IP Configuration program is available on the CD or for download from the WESTERMO web page: http://www.westermo.com, (choose Downloads/Software/ Ethernet/Ethernet switches/) Name: setup.exe Install the software and start the application from a PC on the network connected to where the DDW-2XX is installed. Make sure that the Default IP of the configuration soft- ware (see figure below) is in the same subnet as your PC. Note! If you are not sure about the subnet – consult your network administrator. Note! IP Config version must be 9.8.5 or higher. IP configuration 192. 168. 2. 60 Mask: 255. 255. 255. Default IP: Help About Device list: Note! If you are not IP Adress...
- Page 13 By clicking the Scan for switches button the IP Configuration Software will detect the Westermo switches on the network. The software will list all Westermo managed switch- es or routers connected to the network. Information as in figure 1 will appear for each detected unit connected to the same network as your PC. If you only want to change the IP address and the subnet mask, this IP configuration Access switch via web? can be done within the IP config tool. Cancel 1. Click the listed DDW-2XX that you wish to re-configure. Figure 2 2. A pop-up screen will show with the message “Access switch via web”. Click Cancel, figure 2. 3. Enter the preferred IP address, Subnet mask and IP gateway address, figure 3. Click Set-button to confirm the settings in the unit, figure 3. Click the Scan for switches button again and the settings you configured will appear in the list. Now you can access the DDW-2XX via the browser for further configuration by clicking the unit with an IP address that fits your subnet. Figure 2 will appear and now you click the OK button and a web browser will be opened and redirected to the DDW- 2XX unit login page, figure 5. Click the Close button to get back to main view. Selected Device You will then be asked if you would like to quit. DDW-221 configuration Click the OK button, figure 4, and you will be back to the main view of the IP Configuration 2 200 IP adress: program (see figure 1).
- Page 14 Log in via Web Westermo - location - Provided by Westermo http://192.168.2.220/conf/p.cgi Google You will be prompted with a Login screen where File Edit View Favorites Tools Help the default settings for Username and Password are: Home Feeds (J) Print Page Tools Feeds (J) Westermo - location Username: admin Password: westermo L o g i n Username: Password: Figure 5 Login...
-
Page 15: Factory Default
Factory default It is possible to set the unit to factory default settings by using two Ethernet cables and connect to the unit. To set the unit to factory default do the following: 1. Connect Ethernet cable from port 1 to port 4. 2. Connect Ethernet cable from port 2 to port 3. 3. Power up the unit. 4. Wait for the unit to start up. Control that the PWR led is flashing green. The PWR flashing indicates that the unit will be set to factory default. 5. Remove the Ethernet cables, the unit will automatically start with factory default settings. Note! The Ethernet cables must be removed within 30 seconds from power up or the unit will do a normal start up. 6642-22101... - Page 16 Mounting This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet or similar. Snap on mounting, see figure. 35 mm DIN-rail shall be mounted with a maximum distance of 70 mm between the mounting points. This unit can also be wall-mounted, see figure. FRNT 10/100 BASE-TX DSL 1 DSL 2 Cooling 25 mm This unit uses convection cooling. To avoid obstructing the airflow around the unit, FRNT FRNT use the following spacing rules. Minimum spacing 25 mm (1.0 inch) above /below 10/100 BASE-TX 10/100 BASE-TX DSL 1 DSL 1 the unit. Spacing is recommended for the DSL 2 DSL 2 use of unit in full operating temperature range and service life. 25 mm Removal Press down the support at the back of the unit using ...
- Page 20 Westermo Data Communications GmbH Svalgången 1 Goethestraße 67, 68753 Waghäusel SE-724 81 Västerås Tel.: +49(0)7254-95400-0 • Fax.:+49(0)7254-95400-9 Phone: +46 (0)16 42 80 00 • Fax: +46 (0)21 35 18 50 E-Mail: info@westermo.de info.sverige@westermo.se Westermo Data Communications S.A.R.L. Westermo OnTime AS 9 Chemin de Chilly 91160 CHAMPLAN Gladsvei 20 0489 Oslo, Norway Tél : +33 1 69 10 21 00 • Fax : +33 1 69 10 21 01 Phone +47 22 09 03 03 • Fax +47 22 09 03 10 E-mail : infos@westermo.fr E-mail: contact@ontimenet.com Westermo Data Communications Pte Ltd Westermo Data Communications Ltd 2 Soon Wing Road #08-05 Talisman Business Centre • Duncan Road Soon Wing Industrial Building Park Gate, Southampton • SO31 7GA Singapore 347893 Phone: +44(0)1489 580-585 • Fax.:+44(0)1489 580586 Phone +65 6743 9801 • Fax +65 6745 0670 E-Mail: sales@westermo.co.uk E-mail: earnestphua@westermo.com.sg Westermo Teleindustri AB have distributors in several countries, contact us for further information.
