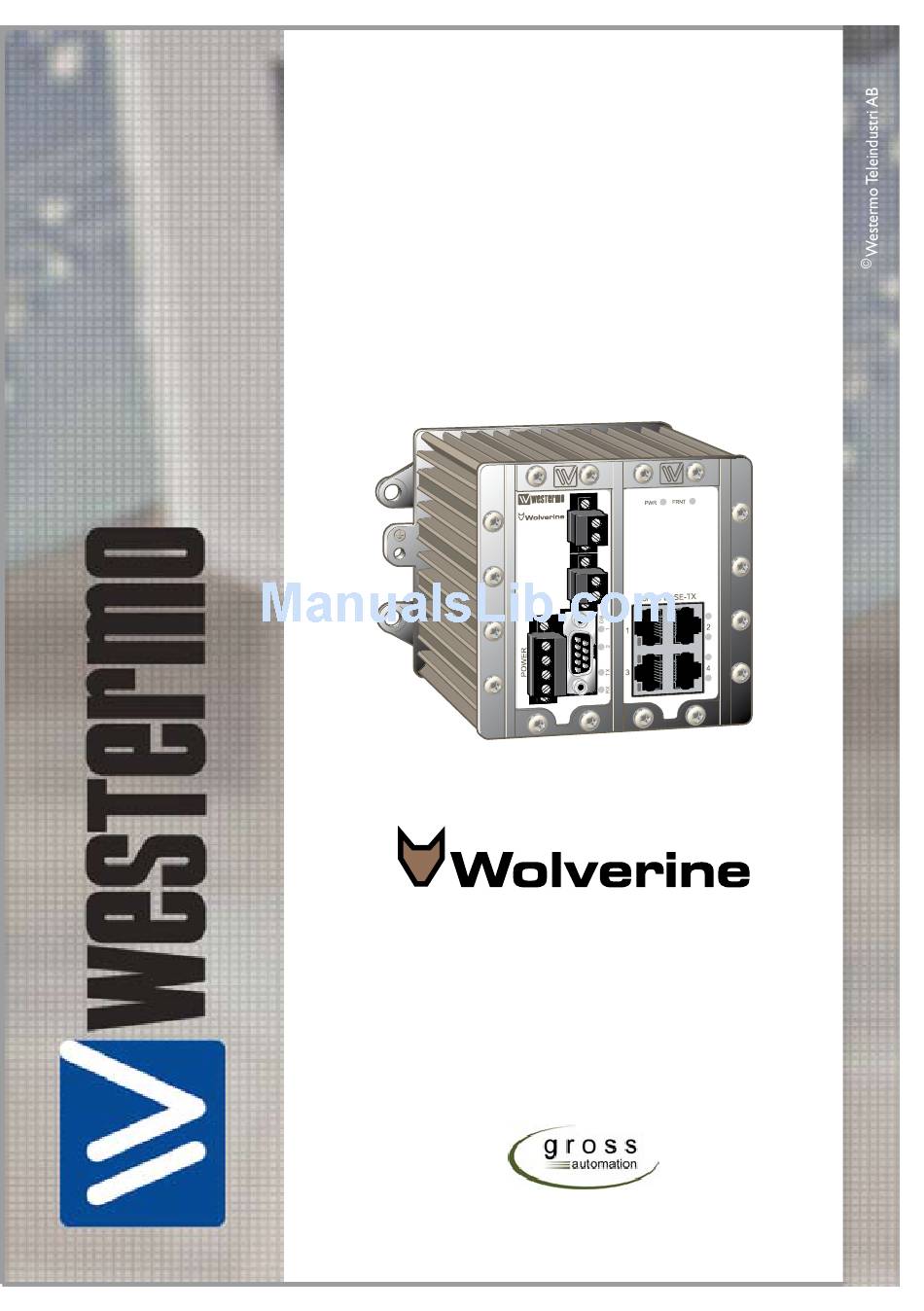

- Page 1 User Guide 6642-22201 DDW-222 W o l v e r i n e s e r i e s DD W- 222 Industrial Ethernet SHDSL extender www.westermosales.com...
-
Page 2: Legal Information
Legal information The contents of this document are provided “as is”. Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy and reliability or contents of this document. Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. More information about Westermo can be found at the following Internet address: http://www.westermo.com 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com... -
Page 3: Before Installation
This unit should be built-in to an apparatus cabinet, or similar, where access is restricted to service personnel only. The power supply wiring must be sufficiently fused, and if necessary it must be possible to disconnect manually from the power supply. Ensure compliance to national installation regulations. This unit uses convection cooling. To avoid obstructing the airflow around the unit, follow the spacing recommendations (see Cooling section). Before mounting, using or removing this unit: Prevent access to hazardous voltage by disconnecting the unit from power supply. Warning! Do not open connected unit. Hazardous voltage may occur within this unit when connected to power supply. Care recommendations Follow the care recommendations below to maintain full operation of unit and to fulfil the warranty obligations. This unit must not be operating with removed covers or lids. Do not attempt to disassemble the unit. There are no user serviceable parts inside. Do not drop, knock or shake the unit, rough handling above the specification may cause damage to internal circuit boards. Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit. Do not paint the unit. Paint can clog the unit and prevent proper operation. Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not water- proof. Keep the unit within the specified humidity levels. Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo dis- tributor office or Westermo Tech support. A readily accessible disconnect device shall be incorporated external to the equipment. This unit may have hot surfaces when used in high ambient temperature. Maintenance No maintenance is required, as long as the unit is used as intended within the specified conditions. 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com... -
Page 4: Agency Approvals And Standards Compliance
EN 55024, Immunity IT equipment W-mo EN 61000-6-4, Emission industrial environments W-mo FCC part 15 Class A W-mo EN 50121-4, Railway signalling and telecommunications apparatus Safety W-mo EN 60950-1, IT equipment SHDSL NEMKO ITU-T G.991.2 FCC Part 15.105 Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic- ular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: … Reorient or relocate the receiving antenna … Increase the separation between the equipment and receiver … Connect the equipment into an outlet on a circuit different from that to which the receiver is connected … Consult the dealer or an experienced radio/TV technician for help. 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com... -
Page 5: Declaration Of Conformity
Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Installation manual DIN-rail Wolverine series DDW-22x 3642-02xx 6642-22xxx is in conformity with the following EC directive(s). -
Page 6: Type Tests And Environmental Conditions
MIL-HDBK- 217F Operating 700 000 hours @ 77°F (MTBF) Service life Operating 10 year Vibration IEC 60068-2-6 Operating .3 in., 5 – 8 Hz 2 g, 8 – 500 Hz Shock IEC 60068-2-27 Operating 15 g, 11 ms Enclosure UL 94 Aluminium/Zink Flammability class V-0 Dimension W x H x D 5.3 x 4.1 x 4.8 in. Weight 1.5 kg Degree of protection IEC 529 Enclosure IP40 Cooling Convection Mounting Horizontal on 1.4 in. DIN-rail 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com... - Page 7 … Extensive line protection with over-current / voltage suppression Diagram showing speed versus distance DDW-222 @ 0.5 mm DDW-222 @ 0.4 mm Speed bit/s Distance metre / miles Distance metre / miles 192000 10000 / 6.21 6450 / 4.00 1024000 7650 / 4.75 4850 / 3.01 1280000 7050 / 4.38 4700 / 2.92 2304000 5950 / 3.69 4150 / 2.58 3328000 4900 / 3.04 3700 / 2.30 4544000 4250 / 2.64 3150 / 1.95 Distance is tested 5696000 3650 / 2.26 2800 / 1.73 without noise. 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com...
-
Page 8: Interface Specifications
Ethernet, SHDSL, RS-232 Connection Detachable screw terminal Connector size 0.2 – 2.5 mm (AWG 24 – 12) Shielded cable Not required * If external power supply is used it must meet specified inrush current. SHDSL Electrical specification ITU-T G.991.2 Annex B Data rate 192 kbit/s to 5696 kbit/s Protocol EFM according to IEEE 802.3-2004 Transmission range According to ITU-T G.991.2 depending on the line quality Protection Overcurrent / overvoltage protection circuit and varistor Isolation to Power, Ethernet, RS-232 Connection Detachable screw terminal Connector size 0.2 – 2.5 mm (AWG 24 – 12) Shielded cable Not required Number of ports 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com... - Page 9 Transparent, optimised by packing algorithm Transmission range 15 m / 49 ft Isolation to Power, SHDSL, Ethernet TX Connection 9-pin D-sub male (DTE) Shielded cable Not required Number of ports Ethernet TX Electrical specification IEEE std 802.3 2000 Edition Data rate 10 Mbit/s, 100 Mbit/s, manual or auto Duplex Full or half Transmission range 100 m / 328 ft Isolation to Power, SHDSL, RS-232 Connection RJ-45 Shielded cable Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails** Number of ports 4 ports marked as 1, 2, 3, 4 ** To minimise the risk of interference, a shielded cable is recommended when the cable is located inside 3 m boundary to the rails and connected to this port. 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com...
-
Page 10: Power Connection
Description – Not Connected Not connected (DCD) – Not Connected Received data (RD) In/Out RD– Transmitted data (TD) – Not Connected Data terminal ready (DTR) – Not Connected Signal ground (SG) CAT 5 cable is recommended. Data Set Ready (DSR) Unshielded (UTP) or shielded (STP) connectors Request To Send (RTS) can be used. Clear To Send (CTS) Not connected (RI) * Direction relative this unit ** To minimise the risk of interference, a shielded cable is recommended when the cable is located inside 3 m boundary to the rails and connected to this port. The cable shield should be properly connected (360°) to an earthing point within 1 m from this port. This earthing point should have a low impedance connection to the con- ductive enclosure of the apparatus cabinet, or similar, where the unit is built-in. This conductive enclosure should be connected to the earthing system of an installation and may be directly connected to the protective earth. 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com... -
Page 11: Led Indicators
ON Link active Green LED Flashing Traffic on link 10/100BASE-TX No port alarm Port 1 – 4 Yellow LED Port alarm No serial data transmitted Flashing (green) Serial data transmitted from the unit No serial data received Flashing (green) Serial data received to the unit DSL No link Port 1 – 2 ON (green) Link established ON (red) Unit is booting Flashing (green) Link negotiation Flashing (red)) Downloading firmware to DSL chip RS-232 cable The DDW-222 is supplied with a RS-232 cable which can be used to connect to external equipment. The supplied cable is straight and is used to extend the serial port and has the same pin out as described under RS-232 interface. 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com... - Page 12 Daisy chain SHDSL Connection The default configuration of the units allow for an Ethernet extension to be made. Connect DSL 1 to DSL 2 on the following units to obtain a chain of linked units. DDW-2 22 DDW-2 22 DDW-2 22 Redundant SHDSL connection The DDW-222 are available with redundant ring technology. This eliminates network failure caused by communication failures on the ring ports. In a ring application one unit must be configured as focal point, all other units will be configured as members. Connect DSL 1 to DSL 2 on the following units to obtain a chain of linked units. DDW-2 22 DDW-2 22 DDW-2 22 DDW-2 22 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com...
- Page 13 Mask: 255. 255. 255. Default IP: Help About Device list: Note! If you are not IP Adress Subnet Mask MAC Adress SW Ver Type Status 192.168.2.200 255.255.255.0 00-07-7C-80-4A-6C 9.74 DDW-222 sure about the settings - consult your network administrator. Scan for switches Close Figure 1 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com...
- Page 14 You have set new parameters on the switch. The switch must be restarted in order for the new parameters to take effect (except IP address change). Type cancel to return to selected dialog or OK if you still want to quit. Cancel Figure 4 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com...
-
Page 15: Simple Network Management Protocol (Snmp)
Log in via Web Westermo - location - Provided by Westermo http://192.168.2.220/conf/p.cgi Google You will be prompted with a Login screen where File Edit View Favorites Tools Help the default settings for Username and Password are: Home Feeds (J) Feeds (J) Print Page Tools Westermo - location Username: admin Password: westermo L o g i n Username: Password: Figure 5 Login... -
Page 16: Factory Default
Factory default It is possible to set the unit to factory default settings by using two Ethernet cables and connect to the unit. To set the unit to factory default do the following: 1. Connect Ethernet cable from port 1 to port 3. 2. Connect Ethernet cable from port 2 to port 4. 3. Power up the unit. 4. Wait for the unit to start up. Control that the PWR led is flashing green. The PWR flashing indicates that the unit will be set to factory default. 5. Remove the Ethernet cables, the unit will automatically start with factory default settings. Note! The Ethernet cables must be removed within 30 seconds from power up or the unit will do a normal start up. 6642-22201 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com... - Page 17 Mounting This unit should be mounted on 1.4 in. DIN-rail, which is horizontally mounted inside an apparatus cabinet or similar. Snap on mounting, see figure. 1.4 in. DIN- rail shall be mounted with a maximum distance of 2.8 in. between the mounting points. This unit can also be wall-mounted, see figure. FRNT 10/100 BASE-TX DSL 1 DSL 2 Cooling 25 mm This unit uses convection cooling. To avoid obstructing the airflow around the unit, FRNT FRNT use the following spacing rules. Minimum spacing 25 mm (1.0 inch) above /below 10/100 BASE-TX 10/100 BASE-TX DSL 1...
- Page 18 Gross Automation (877) 268-3700 · www.westermosales.com · sales@grossautomation.com...
