Summary of Contents for Westermo Wolverine DDW-142-485

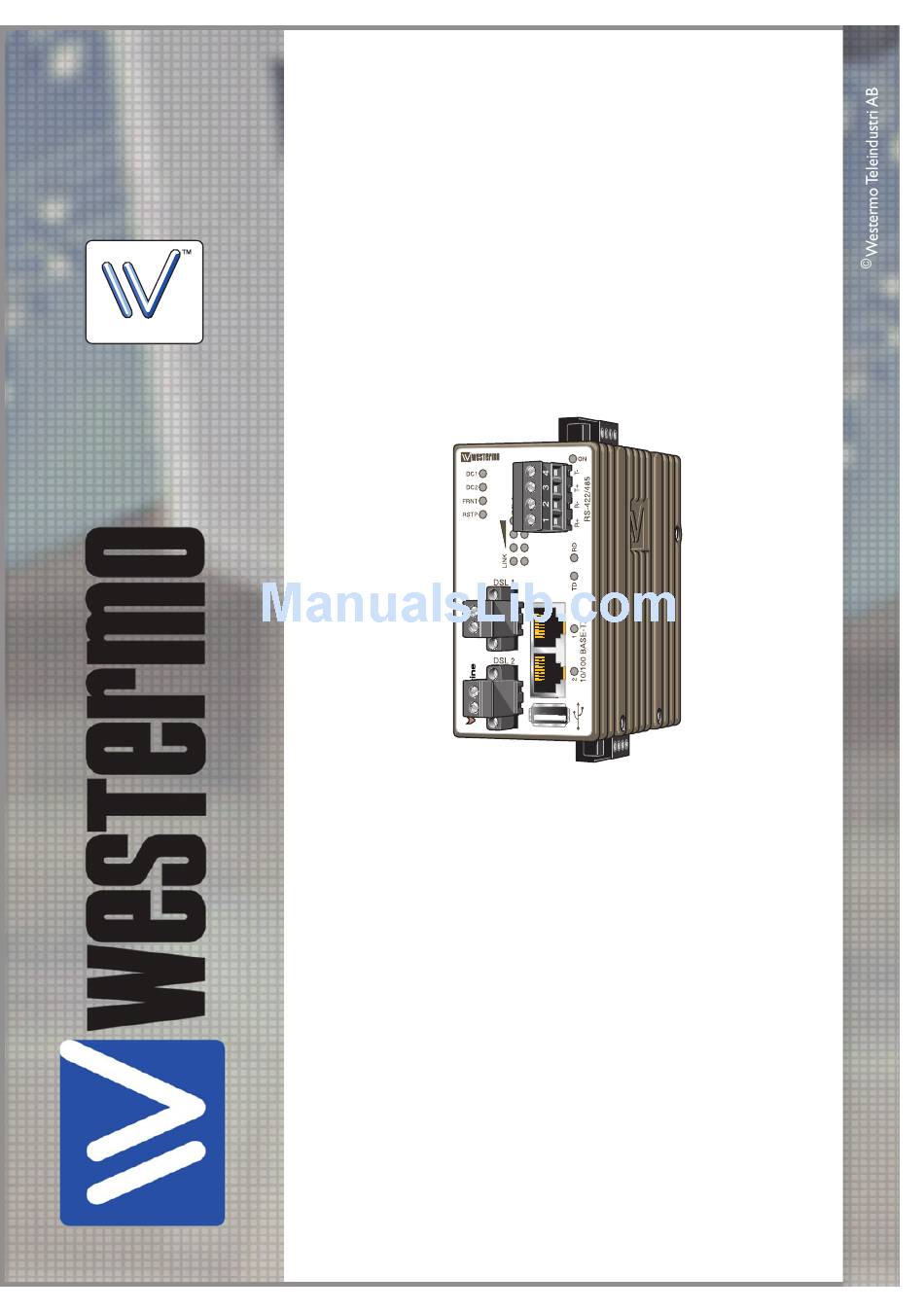

- Page 1 User Guide 6642-22511 Wolverine DDW-142-485 WeOS Industrial Ethernet Extender www.westermo.com...
-
Page 2: Software Tools
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 3: Before Installation
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. -
Page 4: Agency Approvals And Standards Compliance
Agency approvals and standards compliance Type Approval / Compliance EN 50121-4, Railway signalling and telecommunications apparatus EN 55022, Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement EN 55024, Electromagnetic compatibility – Immunity IT equipment EN 61000-6-1, Immunity residential environments EN 61000-6-2, Immunity industrial environments EN 61000-6-3, Emission residential, commercial and light-industrial environments EN 61000-6-4, Emission industrial environments... -
Page 5: Declaration Of Conformity
Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Industrial Ethernet Extender DDW-142-485 3642-0310 is in conformity with the following EC directive(s). -
Page 6: Type Tests And Environmental Conditions
Type tests and environmental conditions Electromagnetic Compatibility Environmental Basic Description Test levels phenomena standard Electrostatic discharge EN 61000-4-2 Enclosure Contact: ± 6 kV Air: ± 8 kV Fast transients EN 61000-4-4 Power port ± 2 kV Ethernet ports ± 2 kV SHDSL ports ±... - Page 7 Electromagnetic Compatibility Environmental Basic Description Test levels phenomena standard Dielectric strength EN 60950-1 Power port to other 2000 Vrms 50 Hz 1 min isolated ports Ethernet ports to all 1500 Vrms 50 Hz 1 min other isolated ports RS-422/485 port to all other isolated ports SHDSL ports to all other isolated ports...
-
Page 8: Functional Description
Description Functional description The Wolverine DDW-142-485 allows effec tive Ethernet networks to be created over long distances up to 15 km (9.3 mi) at data rates up to 15.3 Mbit/s on a single twisted pair cable. By using two pairs “bonded” this rate can be doubled up to 30.4 Mbit/s. The integral switch allows two Ethernet devices to be attached and an RS-422/485 port allows for a legacy piece of equipment to be incorporated into the IP network. -
Page 9: Interface Specifications
Interface specifications Power Rated voltage 24 to 48 VDC Operating voltage 19 to 60 VDC Rated current 245 mA (405 mA) @ 24 VDC (with 500 mA USB load) 124 mA (200 mA) @ 48 VDC (with 500 mA USB load) Rated frequency Inrush current, I²t 10.6 mA²s @ 24 VDC... - Page 10 Data format 8 data bits, none parity, 1 stop bit, no flow control Circuit type SELV Connection 2.5 mm jack, use Westermo cable 1211-2027 Electrical specification USB 2.0 host interface Data rate Up to 12 Mbit/s (full-speed mode) Circuit type...
- Page 11 I/O / Relay output Maximum voltage/current 60 VDC / 80 mA Max 30 Ω Connect resistance Isolation to All other Connection Detachable screw terminal Connector size 0.2 – 2.5 mm² (AWG 24 – 13) I/O / Digital in Maximum voltage / load current 60 VDC / 2 mA Voltage levels Logic one >12 V, Logic zero <1V...
-
Page 12: Power Connection
Location of interface ports and LED’s Power connection (for more details see also page 10) 4-position Product marking Direction Description No. 1 +DC1 Input Supply voltage input DC1 No. 2 +DC2 Input Supply voltage input DC2 No. 3 -COM Input Common No. -
Page 13: Connection To Console Port
The following steps needs to be taken Bottom view 1. Connect the serial diagnostic cable to the console port (use only Westermo cable 1211-2027). 2. Connect cable to your computer (USB port, if drivers are needed they can be downloaded from our Web page). - Page 14 RS-422/485 Signal Product Position Direction Description RS-422 RS-485 marking (4-wire) (2-wire) No. 1 – RS-422: Receive No. 2 R– – RS-422: Receive R– No. 3 T+/R+ Out/In RS-422: Transmit RS-485: Transmit/Receive No. 4 T– T–/R– Out/In RS-422: Transmit T– RS-485: Transmit/Receive SHDSL Position Direction*...
-
Page 15: Led Indicators
LED indicators Status Description Unit has no power. GREEN All OK, no alarm condition. Alarm condition, or until unit has started up. (Alarm conditions are configurable, see ''WeOS Management Guide''). FLASH Location indicator ("Here I am!"). Activated when connected to IPConfig Tool, or upon request from Web or CLI. - Page 16 Mounting This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet or similar. It is recommended that the DIN-rail is connected to ground. Snap on mounting, see figure. Mounting DDW-142-485 with integrated DIN-clip: Removal Removing DDW-142-485 with integrated DIN-clip: Press down the support at the back of the unit using...
-
Page 17: Getting Started
This product runs Westermo Operating System (WeOS) which provides several management tools that can be used for configuration of the unit. • IPConfig tool This is a custom Westermo tool used for discovery of attached Westermo units. • Web Configuration of the unit using the web browser. -
Page 18: Referring Documents
Referring documents Type Description Document number Management Guide Westermo OS management guide 6101-3201 Cable factory reset on DDW-142-485 It is possible to set the unit to factory default settings by using a standard Ethernet RJ-45 cable. 1. Power off the unit and disconnect all cables. - Page 19 Dimensions Measurements are stated in millimeters. 96 ±1 52 ±1 92 ±1 6642-22511...
-
Page 20: Sales Units
Other Offices infos@westermo.fr sales@westermo.com.sg www.westermo.fr www.westermo.com Germany Sweden info@westermo.de info.sverige@westermo.se www.westermo.de www.westermo.se For complete contact information, please visit our website at www.westermo.com/contact or scan the QR code REV. C 6642-22511 2015-03 Westermo Teleindustri AB, Sweden – A Beijer Electronics Group Company...
