Summary of Contents for Westermo DDW-220

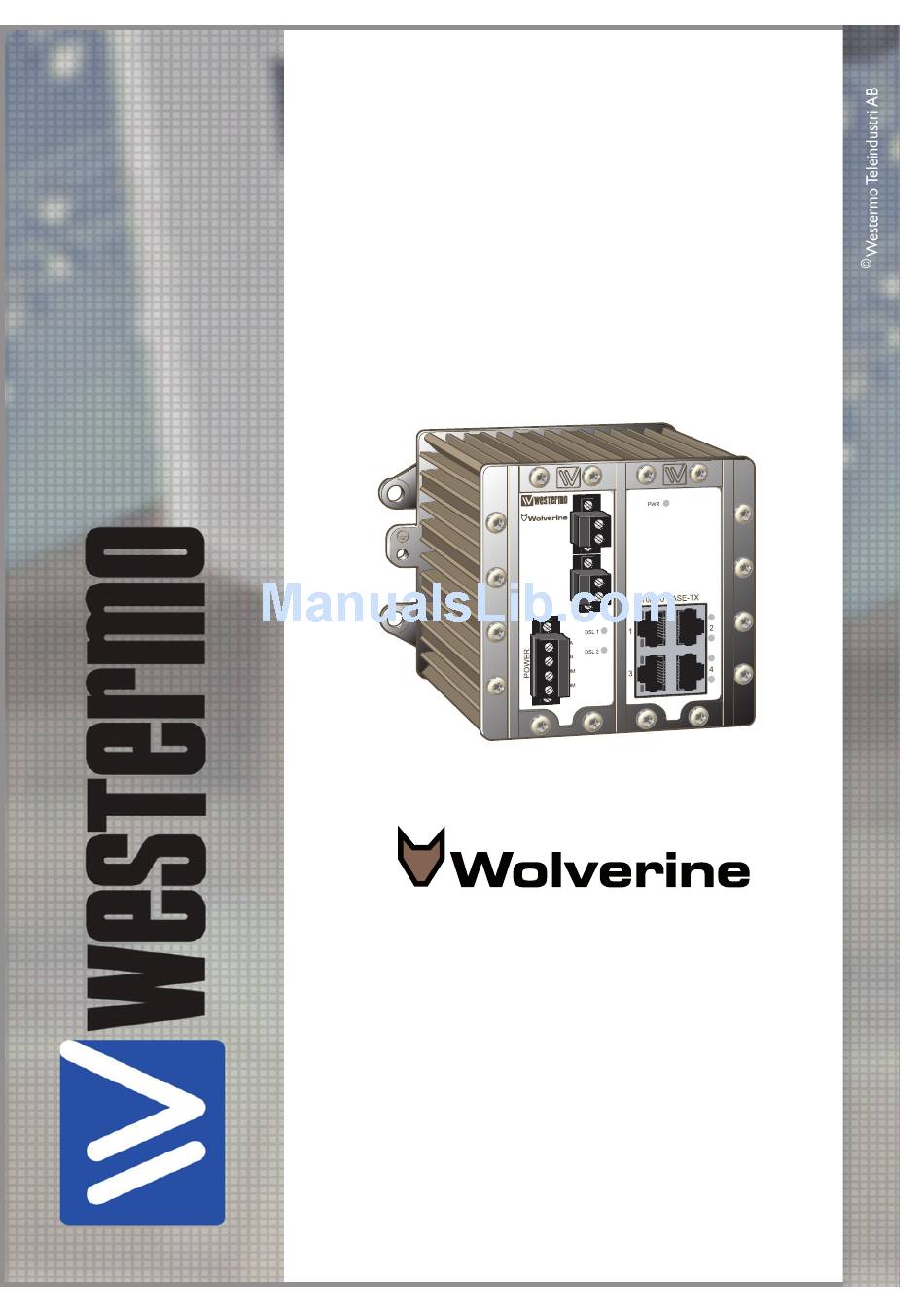

- Page 1 User Guide 6642-22005 DDW-220 W O L V E R I N E S E R I E S DD W- 220 Industrial Ethernet SHDSL extender www.westermo.com...
-
Page 2: Software Tools
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 3: Before Installation
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. - Page 4 Ratings Power (20 – 48) VDC; 300 mA –40ºC ≤ Ta ≤ +70ºC Ambient temperature Ingress protection (IP) IP40 Maximum surface temperature 135ºC (temperatur class T4) Safety Control Drawing Degree of protection IP40 Ambient temperature –40°C to +70°C Minimum 25 mm above / below Installation spacing Minimum 10 mm left / right Direction relative this unit!
- Page 5 Agency approvals and standards compliance Approved Type Approval / Compliance Agency/ W-mo W-mo EN 50121-4, Railway signalling and telecommunications apparatus W-mo EN 61000-6-1, Immunity residential, commercial and light- industrial environments W-mo EN 61000-6-2, Immunity industrial environments W-mo EN 61000-6-3, Emission residental environments W-mo EN 61000-6-4, Emission industrial environments Safety...
- Page 6 Declaration of Conformity Westermo Teleindustri AB Declaration of Conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Models Art no Industrial Ethernet SHDSL extender Wolverine DDW-220 3642-0200 Wolverine DDW-222 3642-0220 is in conformity with the following EU directive(s).
- Page 7 Type tests and environmental conditions Phenomena Test Description Test levels EN 61000-4-2 Enclosure contact ± 6 kV Enclosure air ± 8 kV RF field AM modulated IEC 61000-4-3 Enclosure 20 V/m 80% AM (1 kHz), 80 – 1000 MHz 10 V/m 80% AM (1 kHz), 1400 – 2100 MHz 5 V/m 80% AM (1 kHz), 2100 –...
- Page 8 5.7 Mbit/s in both directions. The DDW-220 makes it possible to communicate over 10 km (6.2 miles) on twisted pair cable. The DDW-220 is a bridge not router and so is simple to install. All configuration is done using a web interface.
- Page 9 Interface specifications Power Rated voltage 20 to 48 VDC Operating voltage 16 to 60 VDC Rated current 300 mA @ 20 VDC 150 mA @ 48 VDC Rated frequency Inrush current, I 3.1 A Startup current* 400 mA Polarity Reverse polarity protected Redundant power input Isolation to Ethernet, SHDSL...
-
Page 10: Power Connection
Connections DSL screw connector 1 & 2 Position Direction Description In/Out 2-wire Receive/ Transmit SHDSL In/Out 2-wire Receive/ Transmit SHDSL LED indicators (for details see next page) Earth connect LED indicators, also integrated in RJ-45 connector. LED indicators (for details see next page) (for details see next page) Ethernet TX connection (RJ-45 connector) 1 –... -
Page 11: Led Indicators
LED indicators Status Description No power ON (green) Booting ready, unit ready ON (red) Unit is booting 10/100BASE-TX No link Port 1 – 4 Link active Green LED Flashing Traffic on link 10/100BASE-TX No port alarm Port 1 – 4 Yellow LED Port alarm No link... - Page 12 The unit can easily be configured via the onboard Web based configuration tool. Local IP addresses can also be configured by using the Westermo IP Config tool. From the IP Config tool it is then possible to browse into the unit for further configuration.
- Page 13 By clicking the Scan for switches button the IP Configuration Software will detect the Westermo switches on the network. The software will list all Westermo managed switches or routers connected to the network. Information as in figure 1 will appear for each detected unit connected to the same network as your PC.
- Page 14 Log in via Web Westermo - location - Provided by Westermo http://192.168.2.220/conf/p.cgi Google You will be prompted with a Login screen where File Edit View Favorites Tools Help the default settings for Username and Password are: Home Feeds (J) Print...
-
Page 15: Factory Default
Factory default It is possible to set the unit to factory default settings by using two Ethernet cables and connect to the unit. To set the unit to factory default do the following: 1. Connect Ethernet cable from port 1 to port 4. 2. - Page 16 Mounting This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet or similar. Snap on mounting, see figure. 35 mm DIN-rail shall be mounted with a maximum distance of 70 mm between the mounting points. This unit can also be wall-mounted, see figure.
- Page 17 6642-22005...
- Page 18 6642-22005...
-
Page 20: North America
France Singapore Other Offices infos@westermo.fr sales@westermo.com.sg www.westermo.fr www.westermo.com Germany Sweden info@westermo.de info.sverige@westermo.se www.westermo.de www.westermo.se For complete contact information, please visit our website at www.westermo.com/contact or scan the QR code REV. C 6642-22205 2016-06 Westermo Teleindustri AB, Sweden...
