EWM T4.06-Tetrix AC/DC Smart 2.0 Operating Instructions Manual page 40

Functional characteristics

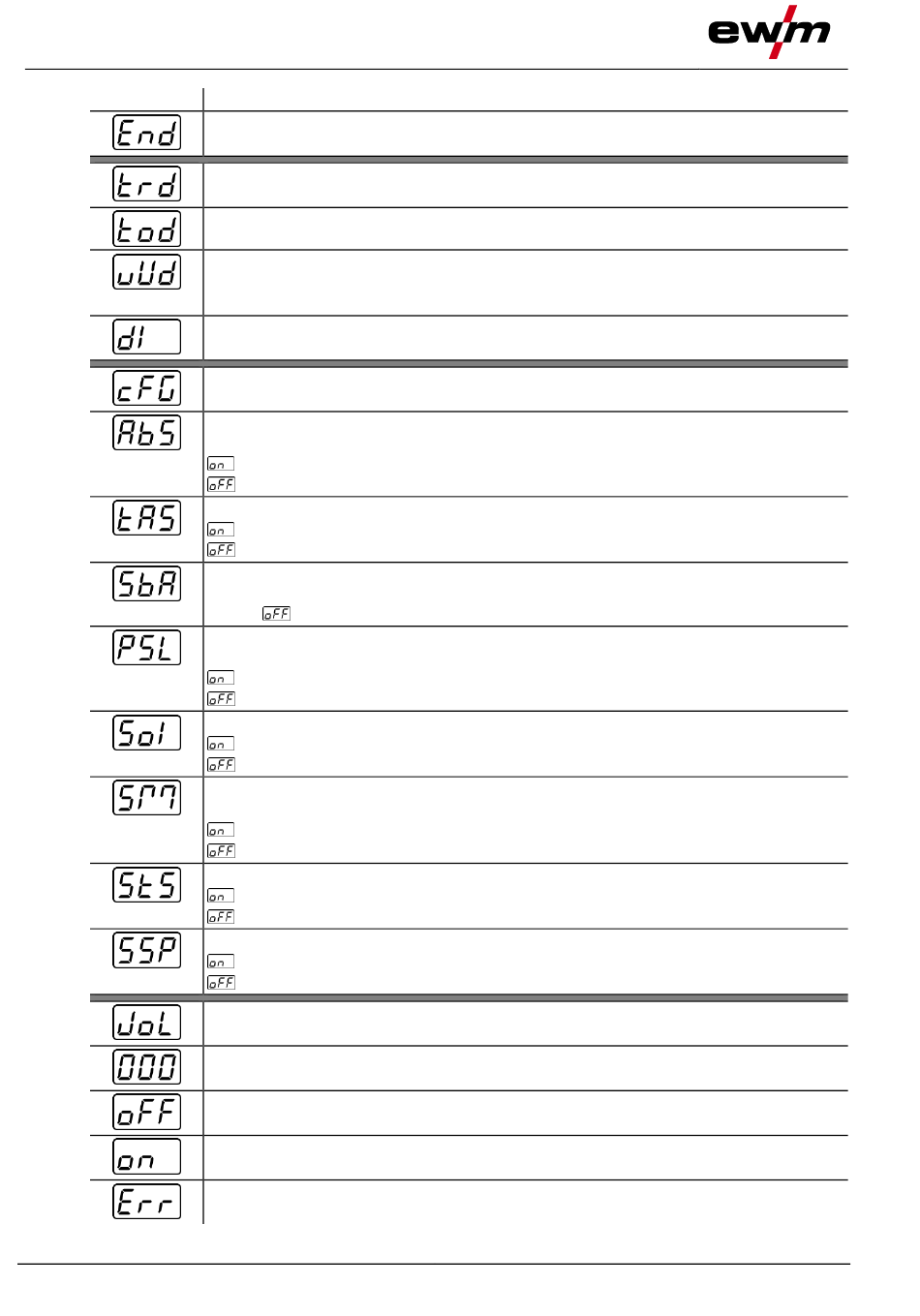

Machine configuration menu
Display
40
Setting/selection
Exit the menu
Exit
Torch configuration menu
Set welding torch functions
Torch mode (ex works 1) > see 5.1.8.2 chapter
Up/down speed > see 5.1.8.3 chapter
Increase value > rapid current change
Decrease value > slow current change
Current jump > see 5.1.8.4 chapter
Current jump setting in ampere
Machine configuration
Settings for machine functions and parameter display
Absolute value setting (ignition, secondary, end and hot start cur-
rent) > see 4.2.1 chapter
------- Welding current setting, absolute
------- Welding current setting, as a percentage of the main current (ex works)
TIG antistick > see 5.1.7 chapter
------- function active (factory setting).
------ function inactive.
Time-based power-saving mode > see 5.3 chapter
Time to activation of the power-saving mode in case of inactivity.
Setting = disabled or numerical value 5-60 min..
Pulsed TIG welding (thermic) in the upslope and downslope pha-
ses > see 5.1.5.7 chapter
------- Function enabled (ex works)
------ Function disabled
TIG HF start (soft/hard) switching
------- soft ignition (factory setting).
------ hard ignition.
spotmatic operating mode > see 5.1.5.5 chapter
Ignition by contact with the workpiece
------- Function enabled (ex works)
------ Function disabled
Spot time setting > see 5.1.5.5 chapter
------- Short spot time, setting range 5 ms to 999 ms, increments of 1 ms (ex works)
------- Long spot time, setting range 0.01 s to 20.0 s, increments of 10 ms (ex works)
Process activation setting > see 5.1.5.5 chapter
------- Separate process activation (ex works)
------ Permanent process activation
Access block menu
Protect welding parameters against unauthorised access.
Machine code
Querying the three-digit machine code (000 to 999), user input
Switch off
Switching off machine function
Switch on
Switching on machine function
Error
Error message after entering an incorrect machine code
099-00T406-EW501
14.07.2020
