Summary of Contents for Digitus DN-7074

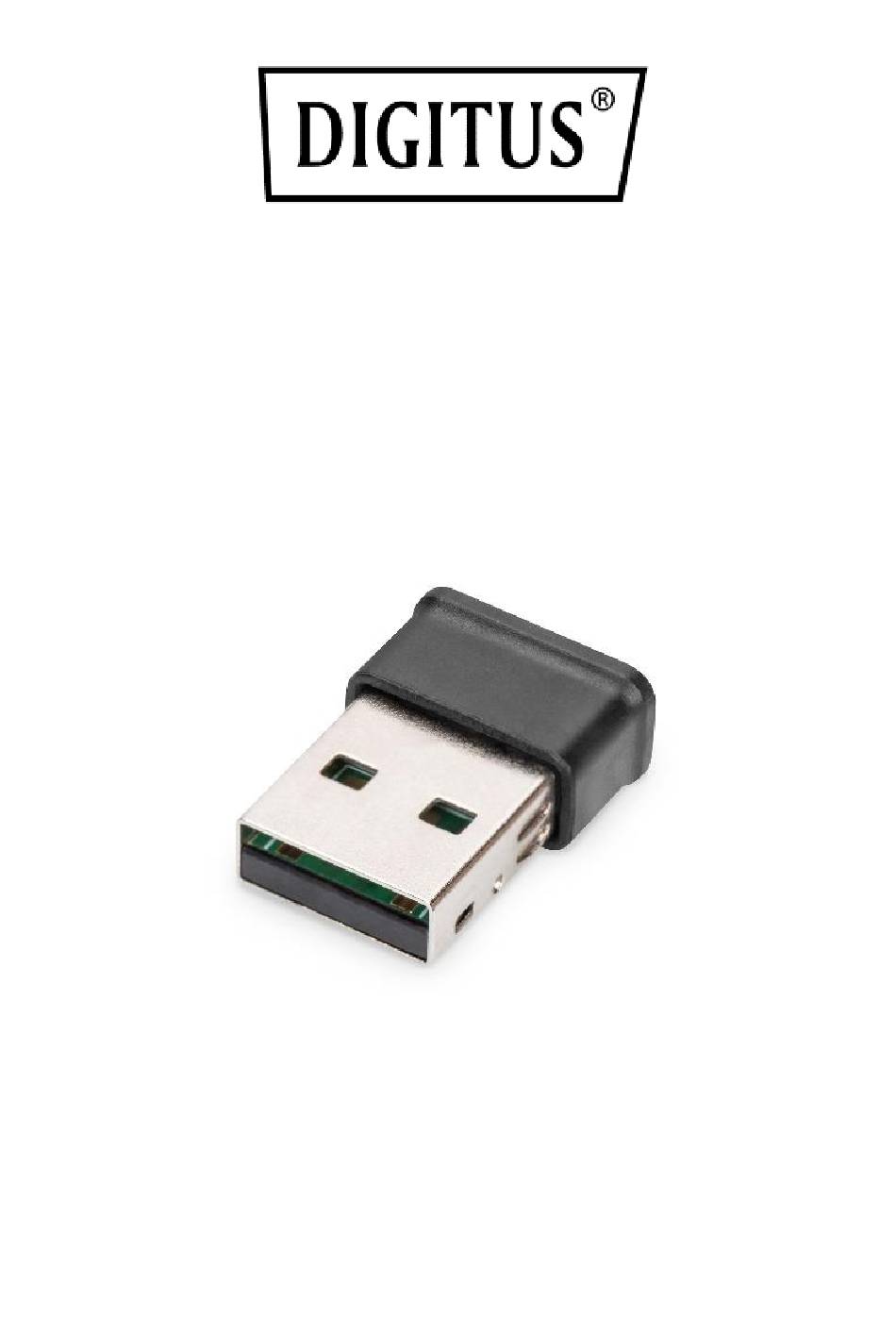

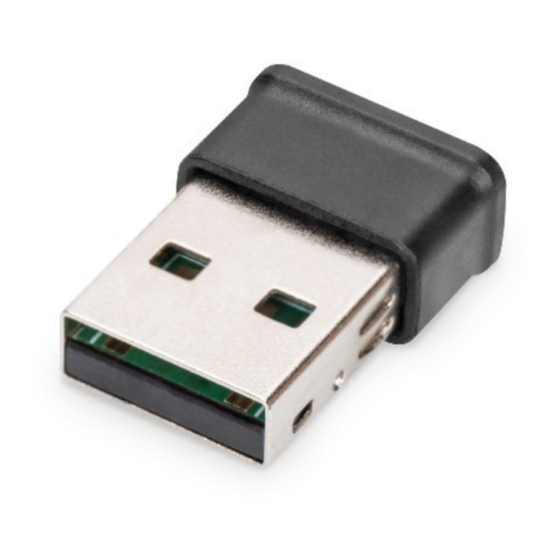

- Page 1 1300 Mbits Wireless Nano USB adapter Quick Installation Guide DN-7074...
-
Page 2: Table Of Contents
5. Connect to Wireless Access Point ..........6 6. Technical Features ..............12 1. Overview DN-7074 is a Wireless AC Dual Band USB Adapter which complies with the wireless standard-802.11ac and allows users to operate simultaneous over 5GHz and 2.4GHz band. -
Page 3: Driver Installation
4. Driver Installation Please follow the following instructions to install your new wireless USB Adapter: Step 1: Insert the USB wireless network card into an empty USB 3.0/ 2.0 port of your computer when computer is switched on. Never force to insert the card, if you feel it’s stuck, flip the card over and try again. - Page 4 Click ‘Install Driver’ to start the installation procedure Step 4: Installation descriptions shows. Click ‘Finish’ to finish the installation of driver files.
- Page 5 Step 5: A new icon will appear near the clock of system tray: HERE! Left-click the icon will launch wireless network configuration utility and you can right-click the icon to show the quick menu of configuration utility. This icon also uses different color to show the status of wireless connection: Wireless connection is established, good signal reception.
-
Page 6: Connect To Wireless Access Point
5. Connect to Wireless Access Point To use wireless network, you have to connect to a wireless access point first. You can either use Client utility (comes with network card driver), or Windows Zero Config utility (comes with Windows operating system). Step 1: Using Client Utility: Please follow the following instructions to use Client configuration utility to connect to wireless access point. - Page 7 Please wait for a while, and all wireless access points which can be reached by this wireless network card will be displayed here.
- Page 8 If the wireless access point you wish to connect does not appear here, you can click ‘Refresh’ button to scan for wireless access points again. If the wireless access point you’re looking for still not appears, try to move the computer closer. When the access point you’re looking for is on the list, left-click it and then double click it or click ‘Add to Profile’.
- Page 9 If a password (Network Key) is required to access the wireless access point, please input it in ‘Network key’ (and input it again in ‘Confirm network key’ for confirmation). Click ‘OK’ when password is properly inputted.
- Page 10 Network card will attempt to connect to access point now, this may require few seconds to minutes, please be patient. When the ‘Status’ become ‘Associated’, your computer is connected to the access point you selected. Click ‘Close’ to close configuration menu. NOTE: If you connected to an access point but the connection has been dropped soon, please check security settings and re-check password spelling.
- Page 11 Step 2: Using WPS Connect...
-
Page 12: Technical Features
Click “Push Button Config (PBC)” a message box will appear: Please activate Push-Button function on wireless access point now and wireless network card will establish secure connection with access point within one minute. Step 3: Connect to Wireless Access Point 6. - Page 13 2412MHz-2472MHz for IEEE Frequency Range 802.11 b, g, n/HT20, 2422MHz-2462MHz for IEEE 802.11 n/HT40 5180MHz-5240MHz for IEEE 802.11 ac/HT20 5190MHz-5230MHz for IEEE 802.11 ac/HT40 5210 MHz for IEEE 802.11 ac/HT80 5745MHz- 5825MHz for IEEE 802.11 5755MHz- 5795MHz for IEEE 802.11 5775MHz for IEEE 802.11 Wireless Transmit Power <...
- Page 14 Antenna Type Internal Antenna Antenna Gain 2dBi LDS antenna Dimensions 20.1*14.7*7.7mm Other Operating Temperature 0°C~40°C (32°F~104°F) -40°C~70°C (-40°F~158°F) Storage Temperature 10% ~ 85%, non condensing Relative Humidity 5%~95% non condensing Storage Humidity Disclaimer Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content.
