Pro-Form TRAINER 12.0 User Manual page 10

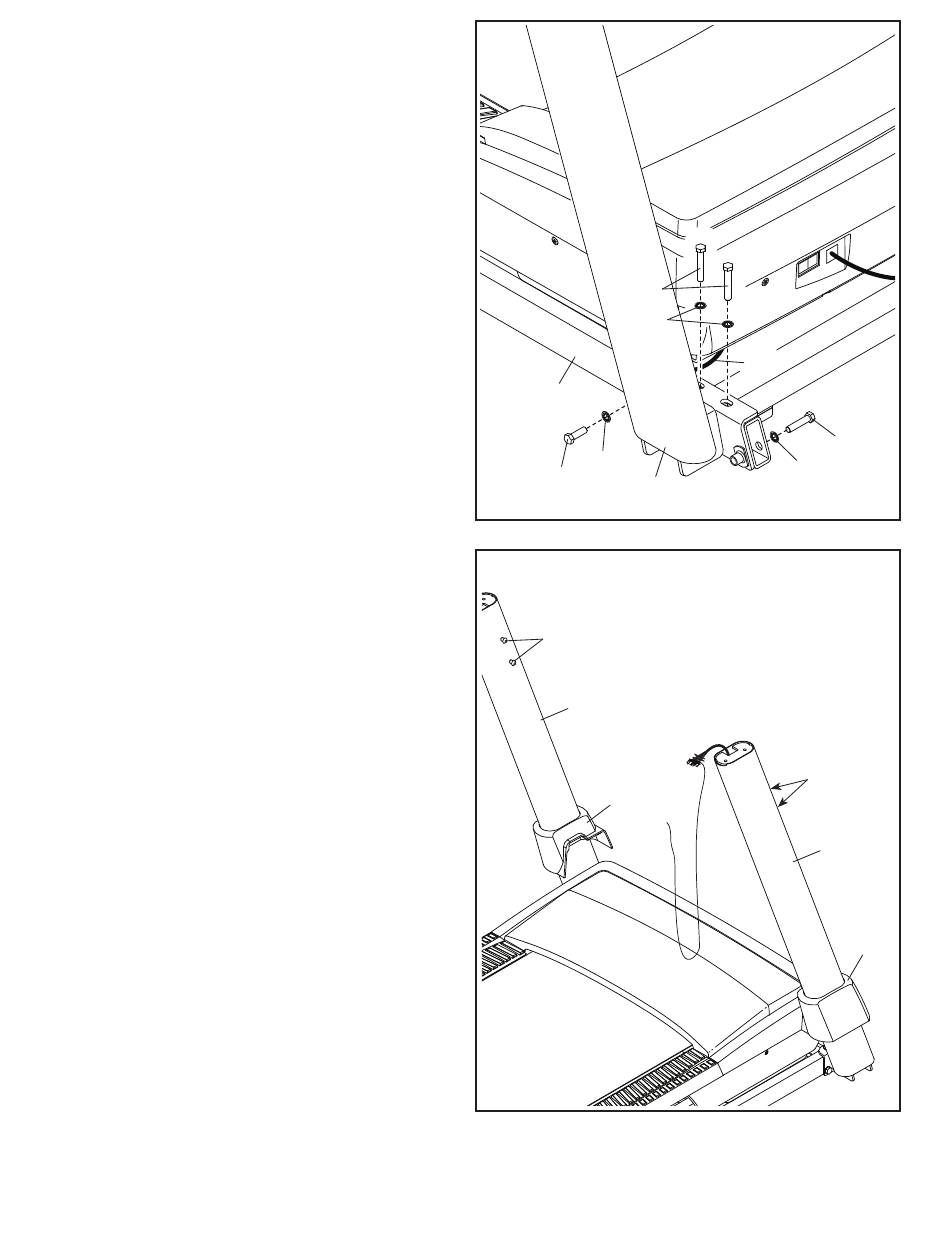

4. Hold the Right Upright (86) against the Base
(97). Make sure not to pinch the Upright
Wire (88).
Insert two 3/8" x 2 3/8" Screws (3) with two 3/8"
Star Washers (11) into the top of the bracket on
the Right Upright (86). Partially tighten the two
Screws into the Base (97); do not fully tighten
the Screws yet.
Next, partially tighten a 3/8" x 1 1/4" Screw
(1) and a 3/8" x 1 3/4" Screw (2) with 3/8"
Star Washers (11) into the bottom of the Right
Upright (86); do not fully tighten the Screws
yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
5. Remove and save the four 5/16" x 3/4"
Screws (8).
Identify the Left and Right Base Covers (93, 92).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (85, 86) as shown.
4
97
11
1
5
8
85
93
10
3
11
88
11
86
8
86
2
92
