WARNING: FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

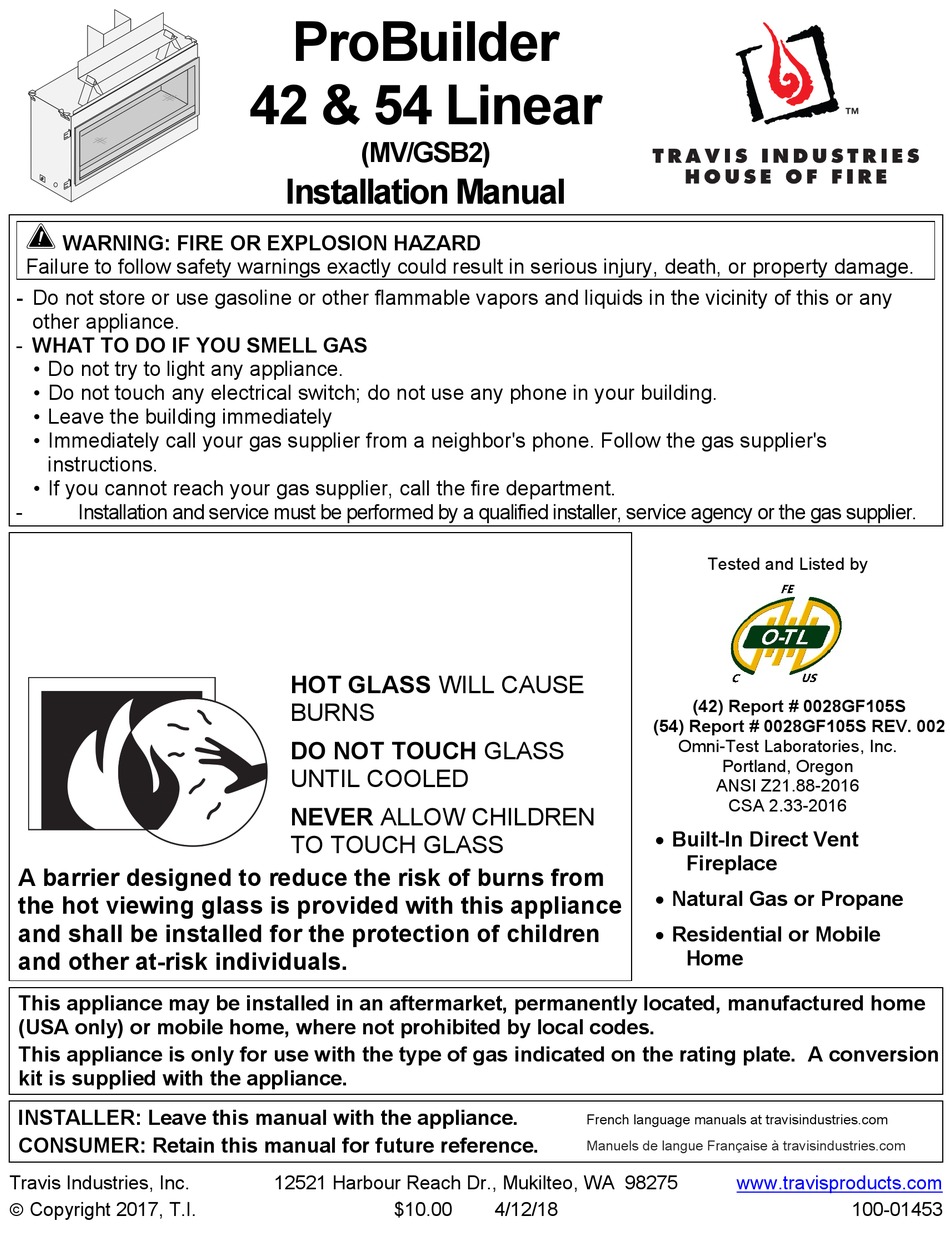

Travis Industries, Inc.
Copyright 2017, T.I.
ProBuilder
42 & 54 Linear
(MV/GSB2)
Installation Manual
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
12521 Harbour Reach Dr., Mukilteo, WA 98275
$10.00
(54) Report # 0028GF105S REV. 002
Built-In Direct Vent
Natural Gas or Propane
Residential or Mobile
French language manuals at travisindustries.com
Manuels de langue Française à travisindustries.com
4/12/18
Tested and Listed by
(42) Report # 0028GF105S
Omni-Test Laboratories, Inc.
Portland, Oregon
ANSI Z21.88-2016
CSA 2.33-2016
Fireplace
Home
www.travisproducts.com
100-01453
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Travis Industries ProBuilder 54 Linear
Summary of Contents for Travis Industries ProBuilder 54 Linear
- Page 1 INSTALLER: Leave this manual with the appliance. French language manuals at travisindustries.com CONSUMER: Retain this manual for future reference. Manuels de langue Française à travisindustries.com Travis Industries, Inc. 12521 Harbour Reach Dr., Mukilteo, WA 98275 www.travisproducts.com Copyright 2017, T.I.
-
Page 2: O Verview
A copy is shown on the next page. Massachusetts Approval This manual has been submitted to the Massachusetts Board of State Examiners of Plumbers and Gas Fitters. National Fireplace Institute © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 3: Table Of Contents
Approved Vent Configurations ....... 29 Exhaust Restrictor Position..........29 Diffuser ................30 Vent Configurations for 42 PB ONLY For 54 PB see page 34 ............... 31 Minimum Vent Configuration ...........31 © Travis Industries 4/12/18 - 1453 PB 42 MV/GSB2 Install... - Page 4 Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
- Page 5 Travis Industries, Inc. grants no warranty, implied or stated, for the installation or maintenance of your heater, and assumes no responsibility of any consequential damage(s).
-
Page 6: Installation Options
42 PB Linear 47-1/8" (1197mm)* 54 PB Linear 59-1/8" (1502mm)* 15-7/8" * 404mm * * Includes the required 1/2" clearance to each side and rear of the fireplace. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 7: Packing List
Install the drywall. Install the hearth (if applicable). Install the facing (if applicable). Install the mantel (if applicable). Finalize the installation (see page 44). © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 8: Massachusetts Requirements
See Gas Connection section for additional Commonwealth of Massachusetts requirements. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 9: Fireplace Placement Requirements
The top of the control door (firebox opening) is approximately 8-3/4” (223mm) above the base of the fireplace. For a typical raised fireplace of 36” (915mm), place the fireplace on a platform 27.25” (693mm) tall. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 10: Televisions Placed Above The Fireplace
The homeowner must understand that Travis Industries does not take responsibility for any negative impact to televisions placed near this fireplace. -
Page 11: Using A Buildout Above Fireplace And Television
The homeowner must understand that Travis Industries does not take responsibility for any negative impact to televisions placed near this fireplace. -
Page 12: Using A Buildout Below A Television
The homeowner must understand that Travis Industries does not take responsibility for any negative impact to televisions placed near this fireplace. -
Page 13: Minimum Framing Dimensions
42 PB Linear 47-1/8" (1197mm) 54 PB Linear 59-1/8" (1502mm) 15-7/8" 404mm The fireplace enclosure must be a minimum 45-1/4” (1150mm) tall. Do not build into the fireplace enclosure. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 14: Standoff Assembly
These standoffs, when properly constructed, provide a guide for the required 1/2" clearance. NOTE: The rear standoffs are bent around the rear corners of the fireplace as shown below to the right. Rear Standoffs © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 15: Nailing Brackets
(platform). Standard Position Extended Position (nailing brackets as shown below) (rotate nailing brackets as shown below) © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 16: Standard Vs. Extended Position
If the unit is being installed in the extended position, the standoff/heat shield assembly must be repositioned back ½” (see illustration below). NOTE: see pages 15 & 40.for additional details about standard vs. extended installations. Extended Position Standard Position © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 17: Header And Pipe Shield Installation
At each of the perforations, bend the sides of the pipe shield backwards 90° as shown below. NOTE: The bottom flanges should be facing outward Tabs face out. Bend at perforations © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... - Page 18 Remove the (4) screws, (2) from each side of the starter collar. Line up the holes on the pipe shield tabs with the holes from the screws you just removed. Use the screws to attach the pipe shield to the top of the fireplace. Remove screws © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
- Page 19 Bend the legs at the perforations as shown below and attach the foot of the standoff to the top of the fireplace using the screw removed earlier in this step. Remove screw © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
- Page 20 Bend tabs down 90° Align holes When finished the fireplace should be configured like the picture below. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
-
Page 21: Corner Installations
NOTE ON PIPE SHIELD: When venting in a corner application, one side of the pipe shield may be disconnected from the top of the fireplace and bent at a 45° angle. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 22: Outdoor Fireplace Installations
Installation (for qualified installers only) Outdoor fireplace installations Travis Industries Inc. gas-fired fireplaces are suitable for installation into outdoor areas protected from direct water impingement. In addition to maintaining listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of installed appliances (see the illustration to the right). -
Page 23: Removing The Front Panel
To remove the front cover 1/4" Nutdriver/Wrench (a) Remove the center wingnuts. (b) Loosen the two outer screws. (c) Rotate the front panel down. (d) Remove the front cover. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 24: Gas Line Requirements
The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure. MV Version GSB2 Version © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 25: Gas Line Location
Remove the knock-out in the desired location (you may wish to remove both knockouts if routing electrical through the base as well). Route the flex gas line (with shutoff valve) to the desired location. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 26: Electrical Connection
Attach the junction box to the baseplate (make sure all wiring is kept from contacting hot or moving components). Attach the cover plate to the left side. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 27: Optional Wall Switch Or Thermostat Installation
To wire the heater in series, follow the directions below: On / Off Switch On / Off Switch Thermostat (or External Switch) Wires Thermostat (or External Switch) Wires © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 28: Vent Requirements
(variations may occur depending upon installation parameters). Many factors may negatively influence the draft of the appliance. Travis Industries will not be responsible for improper draft due to factors such as trees, hills, buildings, obstructions, excessive wind, extreme hot or cold outdoor temperatures, restrictive vent terminations, or influence from mechanical systems. -
Page 29: Vent Installation
# 5. Tighten the screws to secure the restrictor. # 2... (open - stock position) # 1 # 6... # 11 Back of Firebox © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 30: Diffuser
Bend the round portion of the diffuser so it is flat (open). DIFFUSER SIDE VIEW Secure the flattened Before (Closed - Stock) diffuser plate with the screws removed earlier. After (Open) © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 31: Vent Configurations For 42 Pb Only For 54 Pb
The termination must fall within the shaded area shown in the chart. Use the indicated restrictor positions. One 45° elbow may be used on the horizontal run. HINT: Use minimum vent kit “H” (96200332) from Travis Industries (additional vent may be required). Exhaust Restrictor # 1 (stock) -
Page 32: Vent Configuration: Vertical Termination For 42 Pb Only
(Horizontal Length = H1 + H2). It may be a 90° or 45° elbow. This is considered a vertical elbow © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 33: Vent Configuration: Horizontal Termination With Vertical Rise For 42 Pb Only
(Horizontal Length = H1 + H2). It may be a 90° or 45° elbow. This is considered a vertical elbow © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 34: Vent Configurations For 54 Pb Only For 42 Pb
The termination must fall within the shaded area shown in the chart. Use the indicated restrictor positions. One 45° elbow may be used on the horizontal run. HINT: Use minimum vent kit “H” (96200332) from Travis Industries (additional vent may be required). Exhaust Restrictor # 1 (stock) Diffuser Closed (stock) 8"... -
Page 35: Vent Configuration: Vertical Termination For 54 Pb Only
(Horizontal Length = H1 + H2). It may be a 90° or 45° elbow. This is considered a vertical elbow © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 36: Vent Configuration: Horizontal Termination With Vertical Rise For 54 Pb Only
(Horizontal Length = H1 + H2). It may be a 90° or 45° elbow. This is considered a vertical elbow © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 37: Termination Requirements
Minimum 24” (610mm) horizontal clearance to any surface (such as an exterior wall) – for vertical terminations NOTE: Measure clearances to the nearest edge of the exhaust hood. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 38: Hearth Requirements
A non-combustible hearth may be constructed in front of the fireplace (see illustration below). A non-combustible hearth may be installed in front of the fireplace. The entire structure must be non- combustible. Do not build the hearth above the screen assembly. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 39: Facing Requirements
This allows the fireplace structure to expand without cracking the facing (see dimensions below). 1/8" (3mm) Minimum 10-3/8" Minimum Framing Header 264mm 35-1/2" 902mm 20-1/8" 512mm Base of Fireplace Minimum 42 Lin. = 47-1/8" 1197mm 54 Lin. = 59-1/8" 1502mm © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 40: Standard Vs. Extended Position
(or other non-combustible) (or other non-combustible) Extended Position - Top View (nailing brackets as shown to right) Nailing Bracket Nailing Bracket Framing Fireplace Drywall Non-Combustible Facing (marble, etc.) © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 41: Facing Thicker Than 1-1/2
1/8” (3.2mm) gap to the sides and below. UNIFORM GAP 3/4" (19mm) 7/8” (22.5mm) 5/8” (16mm) This provides 3/8” (9.6mm) gap around all sides of the screen assembly. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 42: Screen Assembly Mounts
Thin Facing (1/2") - Top View Framing Fireplace Drywall Screen Assembly Mount Max. 1/2" (12mm) Overlap Thick Facing (1") - Top View Framing Fireplace Drywall Screen Assembly Mount Max. 1/2" (12mm) Overlap © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 43: Do Not Drill Or Screw Zone
“DO NOT DRILL” shading. Make sure screws penetrate no more than ½” (13mm) into the fireplace. Do not drill or screw in the marked area © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 44: Mantel Requirements
Combustible mantel columns (legs) require a 0” (0mm) clearance to the side of the fireplace (they must be to the side of the fireplace). Non-combustible mantel columns do not have a minimum clearance. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 45: Mantel Clearances
(tile, marble, cement board, etc.) must and mantel legs. extend the full width of the mantel. Non Combustible Mantel and Legs © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 46: Finalizing The Installation
Pilot Hood Sensing Spark electrode Electrode 4. Replace the glass. 5. Start the main burner and verify the burner ignites correctly. 6. Leak test all gas joints. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 47: Air Shutter Adjustment
ACID WASH WARNING: Make sure any masonry that has been treated with acid wash has been properly neutralized (this is used primarily with brick faces). Acid wash (muriatic acid) is used to remove excess mortar. © Travis Industries 4/12/18 - 1453... -
Page 48: Location Of Controls
Rotate the Control Door Down to Access Controls Shutoff Valve (accessible with screen removed) Gas Control Knob Flame Adjust Knob Pilot Igniter On/Off Switch Optional Blower Dial Optional Remote Receiver © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 49: Mv Units Only - Starting The Pilot
With the pilot lit, the heater can be operated using the normal controls. Make sure to return the heater to the correct configuration before proceeding (replace logs, glass, barrier screen, if applicable). © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 50: Glass Frame Removal And Installation
Bottom Corner Top Corner Top hook engages Bottom hook this slot in bracket engages this slot in bracket Replacement Barrier Part # 42 ProBuilder 250-04494 54 ProBuilder 270-01993 © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... - Page 51 NOTE: Make sure the glass frame is all the way in place – It should be parallel with the front of the fireplace when installed. Replacement Glass Frame Part # 42 ProBuilder 250-04491 54 ProBuilder 270-01994 © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
- Page 52 Glass Frame Anchor Note how the washer on the latch fits behind the flange on the glass frame anchor. Once fully inserted, turn the latch until it is upright. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
-
Page 53: Crushed Glass Installation
2 layers thick on the media tray. Make sure no glass is in the pilot area indicated in the picture below. No glass in this area. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... - Page 54 Make sure the glass is only 1 layer deep on the burner. Only one layer thick on burner Remove the pilot shield to uncover the pilot once you are finished placing the glass. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
-
Page 55: Lp Conversion Instructions
The conversion kit contains the LP manual regulator and torx wrench, burner orifice, and pilot orifice. 1. Access the firebox. 2. Remove the burner skirt by lifting the front edge up and sliding the skirt forward. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... - Page 56 3. Remove the burner. It is held in place with 8 screws (1/4” nutdriver). 4. Remove the air shutter retainer as shown below. It is held in place with 2 screws (1/4” nutdriver). © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
- Page 57 PB 42 Lin. 1.45mm PB 54 Lin. 1.65mm 6. Reinstall the orifice gasket that was removed in step 6. The longer portion of the gasket should be at the bottom. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
- Page 58 Natural Gas Orifice = .020N .020N .018N LP (Propane) Orifce = .014LP .014LP 7/16" Wrench GSB2 Version Natural Gas Orifice = .020N .020N .018N LP (Propane) Orifce = .014LP .014LP 7/16" Wrench © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
- Page 59 Slotted Screwdriver (or T-20 Torx) NOTE: Make sure the regulator gasket is correctly aligned before installation. Place the LP label on the base near the gas control valve. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
-
Page 60: Wall Mount Remote Thermostat Installation (Optional)
There should be enough slack in the attached wires to lower the dashboard to the floor. Make sure not to damage any off the attached wires. Remove the two wires from the back of the on/off switch. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... - Page 61 Align the two holes on the bottom of the receiver assembly with the studs and secure the assembly to the bracket using the two wing nuts removed in the previous step. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
- Page 62 11 Install 3AAA batteries into the remote. 12 Sync the remote with the receiver (see syncing instructions included with remote). 13 Return the appliance to the correct configuration. © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
-
Page 63: Wiring Diagram - Mv Version
Thermocouple Thermopile Piezo Igniter On/Off Switch (on fireplace) Brown Copper Co-Axial Wire Orange Spark Electrode White Pilot Hood Optional Wall Switch, Thermostat, or Remote Control Optional Blower Wiring © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... -
Page 64: Wiring Diagram - Gsb2 Version
Ground 3.15A FUSE Base Pilot Sensor Integrated Flame Fireplace Detect Control Spark (IFC) Appliance Ground IPI/CPI Switch White Green ON / OFF AA Battery Tray Main Burner Switch © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install... - Page 65 Installation (for qualified installers only) © Travis Industries 4/12/18 - 1453 PB 42 & 54 MV/GSB2 Install...
