Introduction

See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
All route and navigation lines displayed on the chartplotter are
only intended to provide general route guidance or to identify
proper channels, and are not intended to be precisely followed.
Always defer to the navaids and conditions on the water when
navigating to avoid groundings or hazards that could result in
vessel damage, personal injury, or death.
NOTE: Not all features are available on all models.
The Garmin website at support.garmin.com
®
information about your product. The support pages will provide
answers to frequently asked support questions, and you can
download software and chart updates. There is also contact
information to Garmin support should you have any questions.

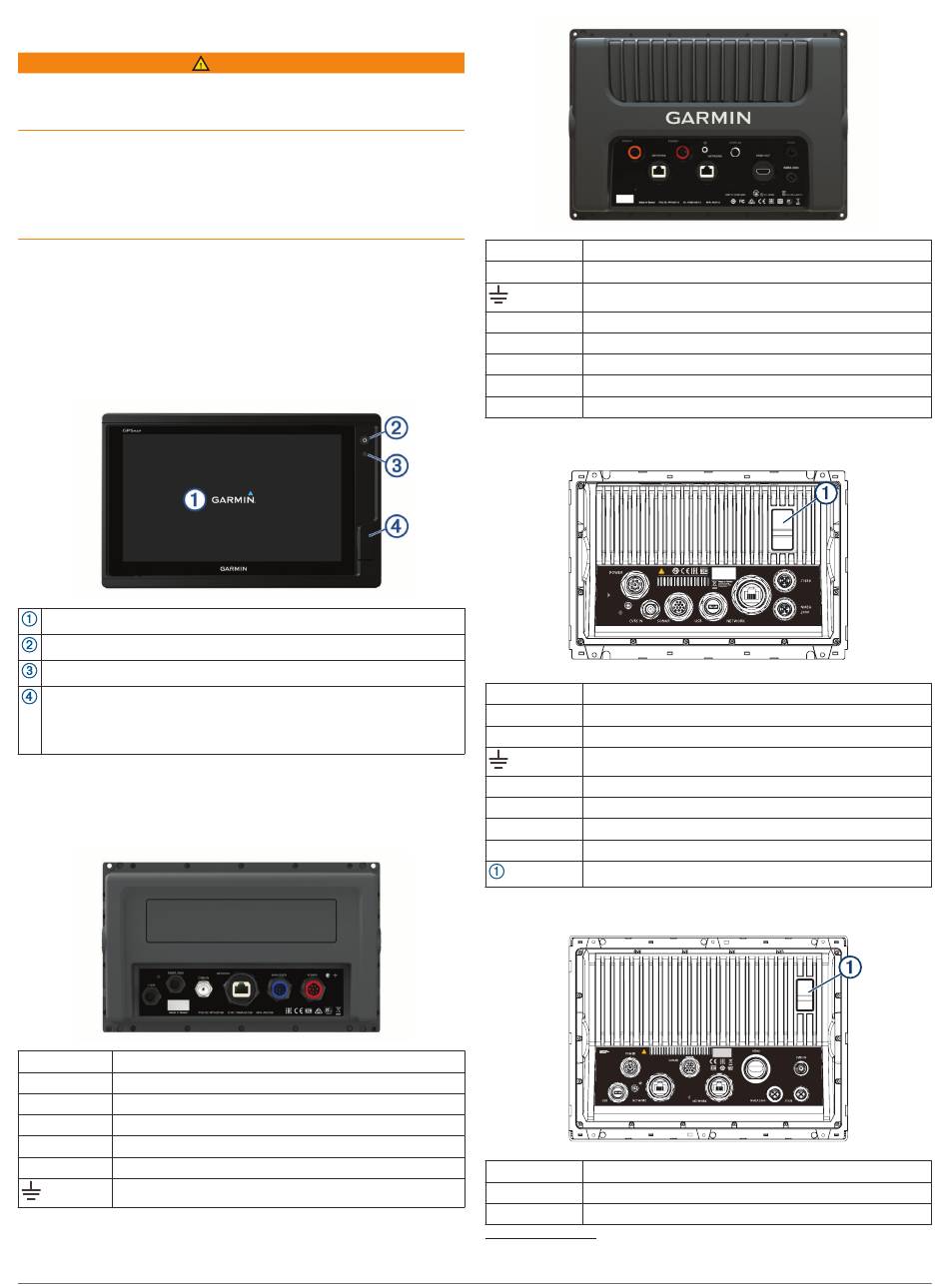

Device Overview

Touchscreen
Power key
Automatic backlight sensor
12x2/A12 models: 2 SD ®
microSD memory card slots. 7x3/9x3/12x3 models: 2 microSD
®
memory card slots are on the back of the device. All models: 32 GB
max. card size.
GPSMAP 7x2/7x2 Plus and GPSMAP 9x2/9x2 Plus
Connector View
The connectors and locations vary based upon the model. This
image and table represent a GPSMAP 922xs Plus model.
J1939 J1939 engine network (Not available on all models)
NMEA 2000 NMEA 2000 ®
CVBS IN Composite video in
ETHERNET Garmin Marine Network
8-PIN XDCR 8-pin transducer (Not available on all models)
POWER Power and NMEA
Ground screw

GPSMAP 12x2 Touch/A12/12x2 Plus Connector View

The connectors and locations vary based upon the model.
Introduction
WARNING
presents up-to-date
memory card slots. 7x2/9x2 models: 2
network
® 0183 network
SONAR 12-pin transducer (Not available on all models)
POWER Power and NMEA 0183 network
Ground screw
CVBS IN Composite video in
J1939 Engine or J1939 network
ETHERNET Garmin Marine Network
HDMI OUT HDMI video out
®
NMEA 2000 NMEA 2000 network

GPSMAP 7x3 and GPSMAP 9x3 Connector View

POWER Power and NMEA 0183 network
ETHERNET Garmin Marine Network
J1939 J1939 engine network
Ground screw
CVBS IN Composite video in
SONAR 12-pin transducer (Not available on all models)
USB Micro-USB for compatible Garmin card reader
NMEA 2000 NMEA 2000 network
2 microSD memory card slots, 32 GB max.

GPSMAP 12x3 Connector View

POWER Power and NMEA 0183 network
SONAR 12-pin transducer (Not available on all models)
HDMI OUT HDMI video out
1
Only compatible Garmin card readers recommended. Third-party card readers
are not guaranteed to be fully compatible.
1
1
