Backyard Creations 272-2086 Instruction Manual

INSTRUCTION MANUAL: SKU#272-2086
CAUTION: Read all instructions before assembly. Failure to do so may result in faulty assembly and potential injury.
SPECIAL WARNINGS: Assemble on a soft, non-abrasive surface, such as carpet or cardboard to avoid damaging the item.
Noted: Identify all parts packed in carton against the parts list. Remove all the protective material carefully and DO NOT use
a knife to prevent scratching the surfaces. USE ONLY ON LEVEL SURFACES. INSPECT VISUALLY BEFORE EACH USE AND
ENSURE ALL HARDWARE IS PROPERLY TIGHTENED.
CUSTOMER SERVICE: For questions, assistance or repair parts, please call toll free at: 1-800-505-8305 (M-F 9:00am-
5:00pm Eastern Time) or visit us on the web
For missing parts, please call toll free customer
service number 1-800-505-8305 (M-F 9:00am-
5:00pm Eastern Time) for further assistance.
www.americancustomerservice.com
REF.
A LEG
B SEAT
C BACKREST
M6*50mm
D
SHORT BOLT
M6*70mm
E
LONG BOLT
F M6 WASHER
G M6 NUT
H M6 NUT CAP
ALLEN WRENCH
I
65*25*5mm
WRENCH
J
90*24mm

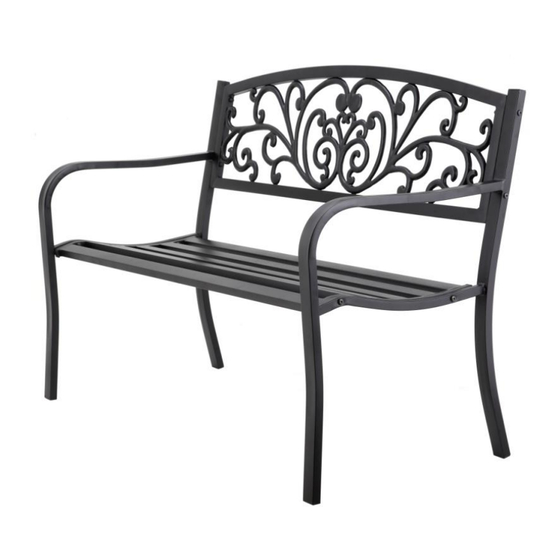

STEEL SCROLL DESIGN BENCH
24 hours a day.
PARTS LIST
PARTS IMAGE
NAME
QTY
2
1
1
4
4
16
8
8
1
1
