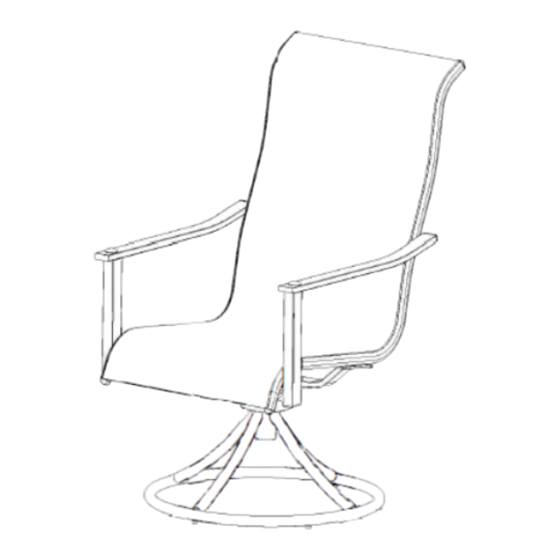

Rhae Chair 2PK
Assembly & Care Instructions
SKU #: 2722199
Model #: FRN-313620-C
IMPORTANT : RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
The schematics in this manual are for assembly and operation illustration only.
They may differ from the actual appearance.
For assistance with assembly, parts, or customer service, please contact:
ATLeisure, LLC
Toll Free: 1-855-880-7205 (English is offered)
8am - 5pm, Monday through Friday, Eastern Standard Time
Email: customerservice@atleisure.com or visit our website at www.atleisure.com
DO NOT RETURN TO STORE
2020 Distributed by Menard, Inc., Eau Claire, WI 54703
Made in China
Advertisement
Table of Contents
Related Manuals for Backyard Creations Rhae FRN-313620-C
Summary of Contents for Backyard Creations Rhae FRN-313620-C
- Page 1 Rhae Chair 2PK Assembly & Care Instructions SKU #: 2722199 Model #: FRN-313620-C IMPORTANT : RETAIN FOR FUTURE REFERENCE READ CAREFULLY The schematics in this manual are for assembly and operation illustration only. They may differ from the actual appearance. For assistance with assembly, parts, or customer service, please contact: ATLeisure, LLC Toll Free: 1-855-880-7205 (English is offered)
- Page 2 Contents Package Contents ......2 Preparation ....... . . 3 Hardware Contents .
- Page 3 Preparation CAUTION: Do not use sharp tools to remove the protective material, as it may damage the product. Before assembling make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
- Page 4 Assembly Step 1: Place the contents on a soft, flat surface. Align the left or right arm (D or E) to the seat and back as shown in the image above. Use the hex key (DD) to tighten the long bolts (BB), being careful not to overtighten. Step 2: Insert the short M6 bolts *15 (CC) through washers (AA) into the steel sheets on corner of seat.
- Page 5 Assembly (continued) Step 3: Attach the base on the seat and use the hex key (φ8) (GG) to tighten the M8 bolts(EE), you can tighten all the 4 bolts now. Step 4: Repeat the step 1 – step3 for the second chair. Double check that all bolts are tighten before sitting.
- Page 6 Warranty ONE YEAR WARRANTY This product is covered under a manufacturer’s one year warranty from date of purchase against defects in materials and workmanship. This warranty does not cover damage due to neglect, abuse or weather related damage. For full warranty disclosure, email us at customerservice@atleisure.com, call toll free at 1-855-880- 7205 or send mail to: 1040 Boulevard SE Ste.
- Page 7 Replacement Parts For replacement parts, call our customer service department at 1-855-880-7205, 8:00am-5:00pm., EST, Monday-Friday. Hardware Kit Part Description Quantity Part Number Left Arm FRN-313620C-D Right Arm FRN-313620C-E Base FRN-313620C-F Swivel Pole FRN-313620C-G Hardware Kit HDW-313620C-KIT...
- Page 8 ATLeisure, LLC 1040 Boulevard SE, Suite B Atlanta, Georgia 30312, USA Customer Service Toll Free 1-855-880-7205 8am - 5pm Eastern Time, Monday through Friday www.atleisure.com 2020 Distributed by Menard, Inc., Eau Claire, WI 54703 Made in China...
