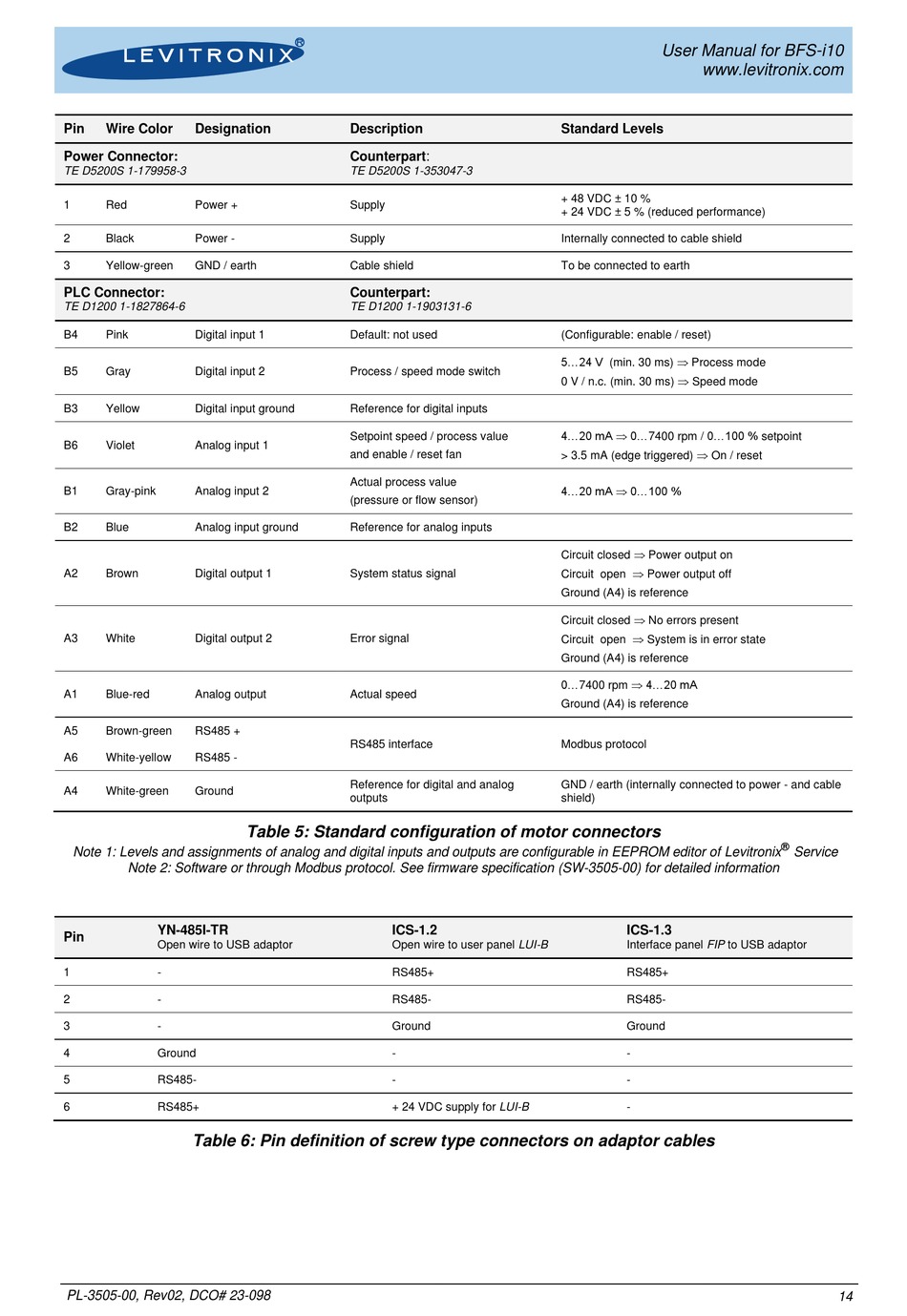

Pin
Wire Color
Designation
Power Connector:
TE D5200S 1-179958-3
1
Red
Power +
2
Black
Power -
3
Yellow-green
GND / earth
PLC Connector:
TE D1200 1-1827864-6
B4
Pink
Digital input 1
B5
Gray
Digital input 2
B3
Yellow
Digital input ground
B6
Violet
Analog input 1
B1
Gray-pink
Analog input 2
B2
Blue
Analog input ground
A2
Brown
Digital output 1
A3
White
Digital output 2
A1
Blue-red
Analog output
A5
Brown-green
RS485 +
A6
White-yellow
RS485 -
A4
White-green
Ground
Note 1: Levels and assignments of analog and digital inputs and outputs are configurable in EEPROM editor of Levitronix
Note 2: Software or through Modbus protocol. See firmware specification (SW-3505-00) for detailed information
YN-485I-TR
Pin
Open wire to USB adaptor
1
-
2
-
3
-
4
Ground
5
RS485-
6
RS485+
Table 6: Pin definition of screw type connectors on adaptor cables
PL-3505-00, Rev02, DCO# 23-098
Description
Counterpart:
TE D5200S 1-353047-3
Supply
Supply
Cable shield
Counterpart:
TE D1200 1-1903131-6
Default: not used
Process / speed mode switch
Reference for digital inputs
Setpoint speed / process value
and enable / reset fan
Actual process value
(pressure or flow sensor)
Reference for analog inputs
System status signal
Error signal
Actual speed
RS485 interface
Reference for digital and analog
outputs
Table 5: Standard configuration of motor connectors
ICS-1.2
Open wire to user panel LUI-B
RS485+
RS485-
Ground
-
-
+ 24 VDC supply for LUI-B
User Manual for BFS-i10
www.levitronix.com
Standard Levels
+ 48 VDC ± 10 %
+ 24 VDC ± 5 % (reduced performance)
Internally connected to cable shield
To be connected to earth
(Configurable: enable / reset)
5...24 V (min. 30 ms) Process mode
0 V / n.c. (min. 30 ms) Speed mode
4...20 mA 0...7400 rpm / 0...100 % setpoint
> 3.5 mA (edge triggered) On / reset
4...20 mA 0...100 %
Circuit closed Power output on
Circuit open Power output off
Ground (A4) is reference
Circuit closed No errors present
Circuit open System is in error state
Ground (A4) is reference
0...7400 rpm 4...20 mA
Ground (A4) is reference
Modbus protocol
GND / earth (internally connected to power - and cable
shield)
ICS-1.3
Interface panel FIP to USB adaptor
RS485+
RS485-
Ground
-
-
-
®
Service
14
