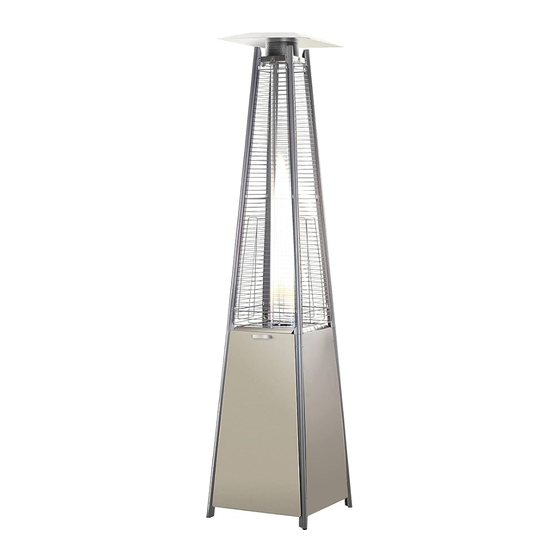

Outsunny 842-031 Assembly And Operation Instructions Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

ASSEMBLY AND OPERATION INSTRUCTIONS

842-031 EN

FOR OUTDOOR USE ONLY.

KEEP THE INSTRUCTIONS FOR FUTURE REFERENCE

C191115

WARNING

Read this instruction before using this appliance. The

appliance must be installed in accordance with the

instructions and local regulations. The use of this

appliance in enclosed areas can be dangerous and is

PROHIBITED.

• Do the leak test after each changing LPG cylinder.

• Never check for leaks with a match or open flame

• Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this appliance.

IF YOU SMELL GAS

• Close the valve of the gas cylinder or regulator.

• Extinguish all naked flames; do not operate any

electrical appliances

• Check for leaks as detailed in this instructions

• If odor persists, contact your dealer or gas supplier

immediately

Table of Contents

Need help?

Do you have a question about the 842-031 and is the answer not in the manual?

Questions and answers

Summary of Contents for Outsunny 842-031

Page 1 ASSEMBLY AND OPERATION INSTRUCTIONS 842-031 EN C191115 WARNING Read this instruction before using this appliance. The appliance must be installed in accordance with the instructions and local regulations. The use of this appliance in enclosed areas can be dangerous and is PROHIBITED.
Page 2: Table Of Contents
Contents Warning ..... 3 Leakage Test ....4 Appliance and Location .
Page 3: Warning
Warning Please carefully read all instructions provided before using this appliance . This heater must be installed in accordance with the instructions and local regulations . The use of this appliance in enclosed areas can be dangerous and is prohibited . •...
Page 4: Leakage Test
Leakage Test Gas connections on the appliance are leak tested prior to shipment . Possible mishandling of the appliance during shipment can damage the integrity of some parts . A complete gas leakage test must be performed again at the installation site . Please follow the procedure below for leakage test .
Page 5: Safety Precautions
Safety Precautions • Performance and safety service of this heater should be performed annually by a qualified gas engineer. • Do not use the heater in a combustable atmosphere . • Before using the unit check the hose for splits, twists which may cause gas to leak or prevent flow.
Page 6: Installation
Installation Important safety requirements: THIS APPLIANCE IS FOR OUTDOOR USE ONLY It is not recommended for this heater to be installed or used indoors, garages or any other enclosed area . DO NOT place articles on or against this appliance . DO NOT use or store flammable materials near this appliance.
Page 7: Parts List
Parts List Part Number Part Name Picture Quantity Remarks Bottom Plate Control Box Middle Plate Damper Upper Support Lower Support Glass Tube Reflector Lower Protection Guard Wheels Fixing Bracket Side Panel Front Panel Handle Chain AA Battery Rubber Ring Screw 3/16” Parts List...
Page 8: Assembly Instructions
Assembly Instructions Attach wheels (10) to bottom plate (1) . Connect and fix 4 x lower support (6) to the bottom plate (1) and middle plate (3) with screws (19) . Connect 4 upper supports (5) to the lower supports (6) with screw (18), then fix the upper plate (4) with screws (18) .
Page 9 Unscrew the red ignitor button on the Carefully put the glass tube (7) up through control box and insert the AA battery (16) the center of the hole in the upper plate (4) . with the POSITIVE end facing outwards . Make sure the rubber ring (17) is attached Then attach the control box (2) underneath on the lower end of the glass tube .
Page 10 Attach the protection guards (9) to the Fix the sides panels (12) with the screws upper frame by inserting the hooks at the (18) . Note: Do not cover the side where the top of the guards into the holes on the control knob is .
Page 11 10 . Connect gas hose to 20 . Ib . LPG cylinder (not included) . Attach regulator to cylinder . Tighten securely . Move cylinder to the plate of base assembly . Attach the cylinder to the base with 3pcs M8x12 bolts and tighten it in order to prevent the cylinder from moving on the base .
Page 12: Operation
Operation Preparation You will need to purchase a suitable size LPG cylinder that can be installed to the compartment. You must use a pressure regulator and flexible tube which complies with the outlet pressure of the appliance . Connect the hose to the hose connector on the control box .
Page 13 Ignition Instructions Check and ensure that an AA battery is inside the ignition chamber and has power . Ensure the anode (+) faces outwards . Ensure that the control knob is OFF . Slowly open the gas cylinder valve . Press and turn the control knob to LIGHT position, push the igniter to generate spark while keeping control knob in pressed position...
Page 14 Cleaning & maintenance To enjoy outstanding performance of your heater for years make sure you perform the following maintenance activities on a regular basis: • Keep exterior surfaces clean . • Use warm soapy water for cleaning. Never use flammable, corrosive or abrasive cleaners .
