Electric Patio Heater
Ceiling Type
Model: 842-115
Operating Instruction
Thank you for choosing our Electric Patio Heater. This owner's manual will
provide you with valuable information necessary for the proper care and
Maintenance of your new product. Please take a few moments to thoroughly
read the instructions and familiarize yourself with all the operational aspects of
your new heater.
WARNING:
This heater is not equipped with a device to control the room
temperature. Do not use this heater in small rooms when they are occupied by
persons not capable of leaving the room on their own, unless constant supervision is
provided.
CAUTION
— Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are
present.

IMPORTANT INSTRUCTIONS

When using this electric unit, basic safety precautions should be followed to reduce the risk
of fire, electric shock, and injury to persons, including the following:
1. Mount the heater outside or in a large open area and well away from
any obstructions such as branches or where the heater is near any
objects that can be affected by heat, such as furniture, curtains or other
inflammable objects (minimum distance 1 meter).
2. Do not position immediately above or below an electrical socket.
3. The unit must be placed with the clearance of 180cm to the floor and
50cm to the ceiling.
4. When the power supply cord is damaged, it must be replaced by
authorized agent or other professional people to avoid danger.
5. This appliance is not intended for use by persons (including children)
with reduced physical. Sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety.
6. Children should be supervised to ensure that they do not play with the
appliance.
7. Read ALL instructions before using this unit.
8. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the
heater yourself.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 842-115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Outsunny 842-115

  • Page 1 Electric Patio Heater provided. Ceiling Type CAUTION — Some parts of this product can become very hot and cause burns. Model: 842-115 Particular attention has to be given where children and vulnerable people are present. Operating Instruction IMPORTANT INSTRUCTIONS When using this electric unit, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1.
  • Page 2 9. This heater may get hot when in use. To avoid burns, DO NOT let bare heater is not in use. skin touch hot surfaces. If provided, use handles when moving this 23. Use only for intended household use as described in this manual. Any heater.

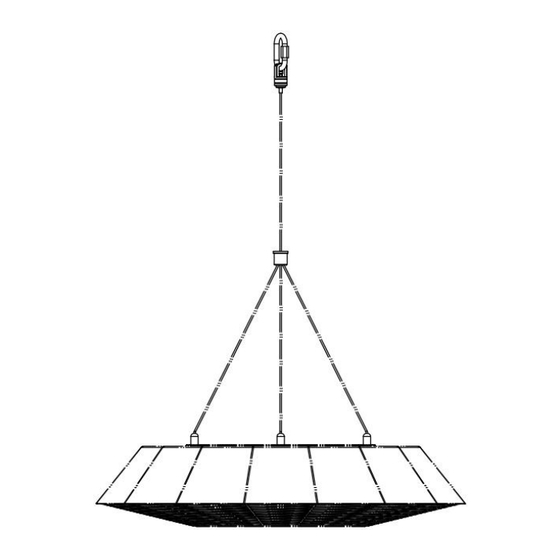

  • Page 3 PRODUCT DIAGRAM Follow the below steps to install the heater Step 1: Loose the nut in direction of arrow Step 2: Pull out the stainless steel wire to a appropriate position in direction of up arrow. INSTALLATION INSTRUCTIONS Heater must be installed by a qualified electrician. level ceiling surface;...
  • Page 4 Step 3: Tighten the nut in direction of rotation arrow. OPERATING INSTRUCTIONS WANRING: The heater must be properly installed before it is used This unit is equipped with one heat setting On I Off. Plug the Patio Heater into a grounded 110-120v 50-60Hz power outlet Only operate the heater when it is in the upright position.
  • Page 5 STORAGE If the heater will not be used for a long period of time, store it in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit. TROUBLE SHOOTING If the heater will not operate, please check the following before seeking repair of service: Check if the power cord is plugged into an electrical outlet, if not plug in.
