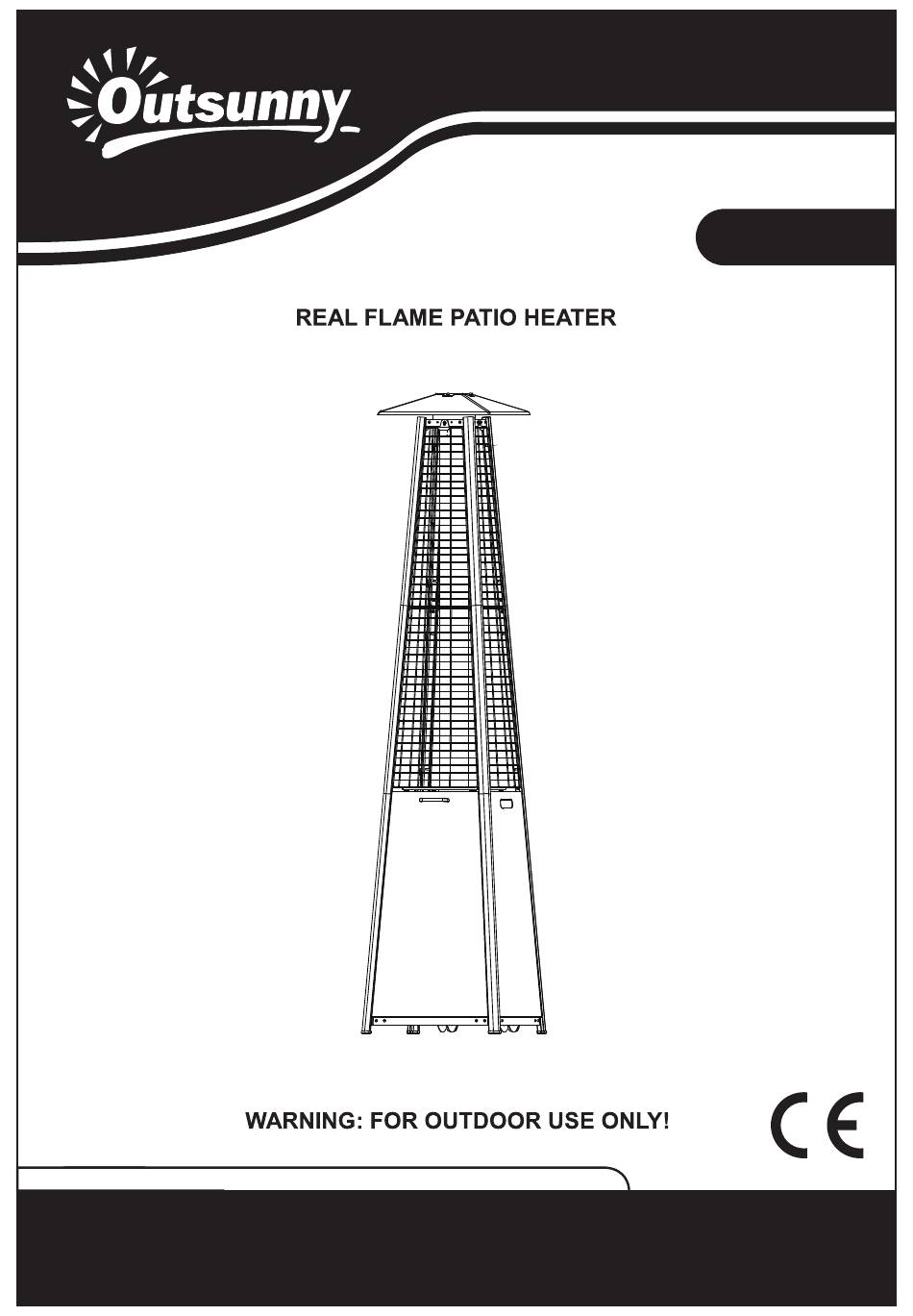

- Page 1 INbza012_UK 842-191 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY & INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Patio Heater Safety Warnings --------------------------------------------------------------1-2 Part List & Hardware ----------------------------------------------------------------------------3 Exploded View -----------------------------------------------------------------------------------4 Patio Heater Assembly ---------------------------------------------------------------------- 4-8 Operating Instructions ------------------------------------------------------------------------11 Leak Testing ------------------------------------------------------------------------------------12 Gas Requirement ------------------------------------------------------------------------------12 Connecting To a Gas Cylinder ---------------------------------------------------------------13 Important Safety Rules ----------------------------------------------------------------------- 13 Maintenance ------------------------------------------------------------------------------------14 Servicing ----------------------------------------------------------------------------------------14 Storage ------------------------------------------------------------------------------------------15... - Page 3 Checking the tubing or the flexible hose per month and each time the cylinder is changed. The tubing or the flexible hose must be changed within the prescribed intervals or within one year. The hose assembly must be replaced prior to the appliance being put into operation if there is evidence of excessive abrasion or wear, or if the hose is damaged, and that the replacement hose assembly shall be that specified by the manufacturer.
- Page 4 H1501A PATIO HEATER PART LIST PART # PART NAME PICTURE REFLECTOR FLAME SCREEN MESH GUARD - UPPER MESH GUARD - LOWER SUPPORT BAR - UPPER SUPPORT BAR - LOWER GLASS TUBE CONNECTOR Option 1: Glass Tube Connector (Option 1) (Option 2) Option 2: Stainless Steel Connector RUBBER RING BURNER ASSEMBLY...
-
Page 5: Exploded View
EXPLODED VIEW... -
Page 6: Patio Heater Assembly
PATIO HEATER ASSEMBLY ASSEMBLY INSTRUCTIONS List of Required Tools: Philip Screwdriver Leak Detection Solution one part detergent and three parts water Assemble all nuts and bolts loosely at first. Tighten all connections after completion of assembly. This eases your work and increase the stability of the appliance. - Page 9 firmly in place.
-
Page 12: Operating Instructions
OPERATING INSTRUCTIONS BEFORE FIRST USE AND AFTER EVERY GAS CYLINDER CHANGE, GAS DELIVERY SYSTEM MUST BE PURGED OF AIR BEFORE IGNITING! TO DO THIS, TURN THE CONTROL KNOB ANTI-CLOCKWISE TO THE PILOT SETTING. PRESS KNOB IN AND HOLD FOR 3 MINUTES BEFORE ATTEMPTING IGNITION. BATTERY REPLACMENT R e m o v e i m p u l s e i g n i t i o n c a p f r o m B u r n e r A s s e m b l y ( J ) b y t u r n i n g c a p counterclockwise. -
Page 13: Leak Testing
LEAK TESTING NEVER USE A NAKED FLAME TO CHECK FOR LEAKS. NEVER LEAK TEST WHILE SMOKING. The gas connections on this appliance are leak tested at the factory prior to shipment. This appliance needs to be periodically checked for leaks and an immediate check is required if the smell of gas is detected. -
Page 14: Important Safety Rules
IMPORTANT SAFETY RULESH1117&H1217 For use outdoors or in amply ventilated areas. An amply ventilated area must have a minimum of 25% of the surface area open. The surface area is the sum of the walls surface. The use of this appliance in enclosed areas can be dangerous and is PROHIBITED. -
Page 15: Servicing
SERVICING Please consult your local dealer for servicing this appliance and replacement of its parts. The servicing of the appliance shall be carried out only by authorised personnel. Caution: do not use unauthorized parts or components for this appliance, only use original equipment replacement parts and components. -
Page 16: Troubleshooting
TROUBLESHOOTING IF THE PROBLEM IS: AND THIS CONDITION EXISTS: THEN DO THIS: Cylinder valve is closed Open valve Blockage in orifice or pilot tube Clean or replace orifice or pilot tube Open gas line and bleed it (pressing Air in the gas line control knob in) for not more than 1- Pilot won’t light 2 minutes or until you smell gas... -
Page 17: Technical Data
TECHNICAL DATA SKU:842-191 Manufacturer’s model NO.: H1502A Heat input ? Qn(Hs)=11.2kW Consumption: 815g/h 0063 PIN: 0063 CO7365 BE-CY-CZ-DK-EE-FI- CZ-FR- CH-ES-FR-GB- AT-CH- Country Code GR-IT-LT-LV-MT-NL-NO- AT-CH-DE GB-GR-IE- GR- IE-IT-PT DE-NL SE-SI-SK-BG-RO-TR Gas Category 3+(28-30/37) 3B/P(30) 3B/P(50) 3B/P(37) 3P(37) 3P(50) Butane/ Butane/...
