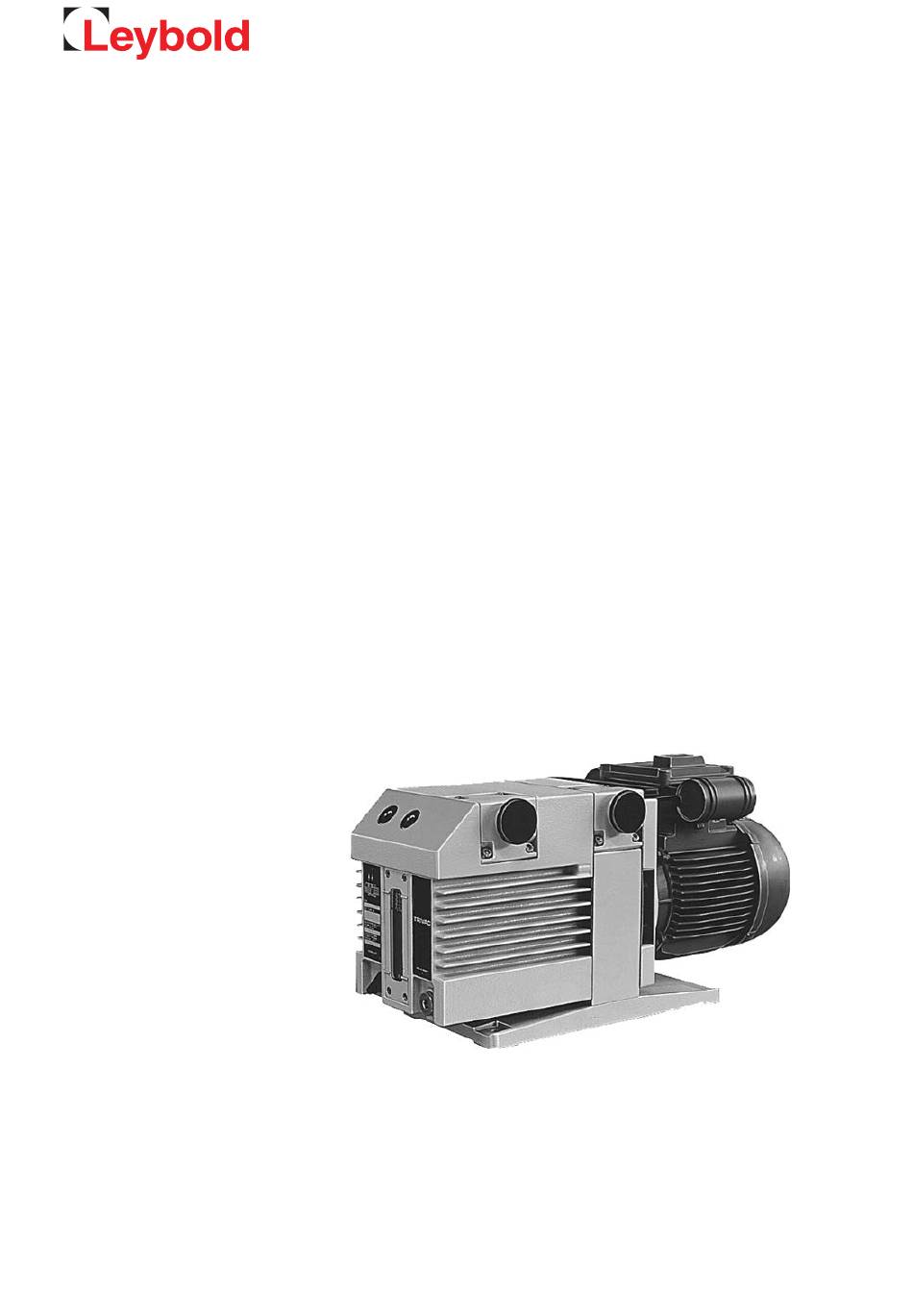

- Page 1 TRIVAC B-DOT ® B-DOT B-DOT B-DOT Operating Instructions GA01208_002_C1 Part Nos. 11406 11410 1127618 /J 1128612 11286J 11296J 11398J 91463-1...
-
Page 2: Table Of Contents
Electrical Connections Operation Media Compatibility Start-up Operation 4.3.1 Pumping of Non-Condensable Gases and Vapours 4.3.2 Pumping of Condensable Gases and Vapours 4.3.3 Operating Temperature Shutdown 4.4.1 Shutdown through Monitoring Components 4.4.2 Controller/Mains Power Failure GA01208_002_C1 - 07/2018 - © Leybold... - Page 3 Replacing the Shaft Seal Removing and Remounting the Pump Module 5.9.1 Removing the Pump Module 5.9.2 Remounting the Pump Module Troubleshooting Waste Disposal EC Declaration of Conformity Contamination Form Original installation and operating instructions. GA01208_002_C1 - 07/2018 - © Leybold...
- Page 4 Operating Instructions and follow the information so as to ensure optimum and safe working right from the start. The Leybold TRIVAC-B-DOT has been designed for safe and efficient operation when used properly and in accordance with these Operating Instructions. It is the responsibility of the user to carefully read and strictly observe all safety precautions described in this section and throughout the Operating Instructions.
-
Page 5: Important Safety Information
Provide an adequate ground connection for the pump so as to avoid any electrostatic charging. GA01208_002_C1 - 07/2018 - © Leybold... -
Page 6: Thermal Hazards
Regarding the suitability of the TRIVAC pumps for special applications in which such gases, respec- tively substances shall be pumped, Leybold should be consulted first. If the pump has previously handled hazardous gases, implement the proper precautionary measures before opening the intake or exhaust connection. -
Page 7: Danger Of Ignition
(LEL) published for the respective gases. CAUTION Hazard caused by noise The noise level produced by the pump less than 60 dB(A). Suitable hearing protection measures must be introduced. GA01208_002_C1 - 07/2018 - © Leybold... -
Page 8: Risk Of Damaging The Pump
Here, the exhaust line must slope down and away from the pump. In the case of custom pumps please note the information provided in the supplementary sheets. GA01208_002_C1 - 07/2018 - © Leybold... -
Page 9: Description
The pump module consists of assembly parts which are pin-fitted so as to allow easy disassembly and reassembly. The pump module can be easily removed without special tools. TRIVAC-B-DOT pumps are equipped with special seals capable of NOTICE resisting brake fluids. GA01208_002_C1 - 07/2018 - © Leybold... -
Page 10: Function
The gas ballast stops condensation of vapours in the pump chamber up to the limit of the water vapour tolerance as specified in the technical data for the pump. GA01208_002_C1 - 07/2018 - © Leybold... - Page 11 (4/6) against its seat.This effectively prevents backstreaming of oil or oil vapours. The anti-suckback valve (2/3) operates independently of the operating mode of the pump, i.e. also with gas ballast. GA01208_002_C1 - 07/2018 - © Leybold...
-
Page 12: Lubricants / Gaskets
These pumps must only be operated with brake fluids in accordance with DOT-3 and DOT-4 or alternative operating agents which have been approved by Leybold. TRIVAC-B-DOT pumps and accessories are equipped with special seals which are capable of resisting exposure to brake fluids. GA01208_002_C1 - 07/2018 - © Leybold... -
Page 13: Supplied Equipment
Connections, intake and exhaust side 25 KF 25 KF 40 KF To DIN 28 400 and subsequent numbers In the case of custom pumps please note the information provided in the NOTICE supplementary sheets. GA01208_002_C1 - 07/2018 - © Leybold... - Page 14 40 KF 254 234 206 166 355 336 308 191 190 D 40 B Fig. 6 Dimensional drawings for the TRIVAC-B-DOT (Dimensions a, l, b to b and h are approximate, dimensions in mm) GA01208_002_C1 - 07/2018 - © Leybold...
- Page 15 1000 m (NHN) Max. ambient temp. when operating 40 °C T-board / plug 9 pins Certificates of the motor RoHS RoHS Length of the pump 509 mm (D 16 B) 571 mm (D 25 B) GA01208_002_C1 - 07/2018 - © Leybold...
- Page 16 Under such operating conditions the motor protection switch may respond. In this case the motor may be started again. In the case of motor 6506961 the minimum permissible temperature is 15 °C at an undervoltage of 380 V -10% = 342 V and a mains frequency of 60 Hz. GA01208_002_C1 - 07/2018 - © Leybold...
-
Page 17: Accessories
200 39 838 FE 40-65 for AF 40-65 200 39 840 NOTICE Use only the kind of accessories specified by Leybold Transport and Storing CAUTION To lift the pumps only use the handle provided for this purpose, respectively use corresponding lifting facilities. When connecting or removing the pump, do not move under hoisted loads. -
Page 18: Installation
Maximum heat dissipation corresponds approximately to the installed motor power. When failing, capacitors may heat up excessively and generate smoke. Therefore the pump must be placed with a sufficient clearance from inflammable or combustible material. There exists the risk of fire! GA01208_002_C1 - 07/2018 - © Leybold... -
Page 19: Conforming Utilization
Corresponding protection devices need to be provided. The TRIVAC-B-DOT is not suited for pumping of: n combustible and explosive gases or vapours n Oxidant n pyrophorous substances. Our technical sales department is available for further advice in these matters. GA01208_002_C1 - 07/2018 - © Leybold... -
Page 20: Connection To The System
The intake line must be clean. Deposits in the intake line may outgas and adversely affect the vacuum. The connecting flanges must be clean and undamaged. The maximum throughput of the pump is equivalent to the pumping speed of the pump. GA01208_002_C1 - 07/2018 - © Leybold... - Page 21 In order to reduce the emission of oil vapours we recommend the installation of an additional exhaust fil- ter (Leybold accessory, see Section 1.5). Depending on the type of appli- cation or the kind of pumped media, the corresponding regulations and information sheets must be observed.
-
Page 22: Electrical Connections
To reverse running invert L1 and L2. Drehrichtung ändern: L1 und L2 vertauschen 200-240 V 50/60 Hz 380-400 V 50 Hz 416-480 V 60 Hz Fig. 8a Motor connection diagram (motor P/N: 6506961 and 6506939) GA01208_002_C1 - 07/2018 - © Leybold... - Page 23 To reverse running invert L1 and L2. Drehrichtung ändern: L1 und L2 vertauschen 200-220 V 50/60 Hz 346 V 50 Hz 380 V 60 Hz Fig. 8b Motor connection diagram (motor P/N: 6520730 and 6520731) GA01208_002_C1 - 07/2018 - © Leybold...
-
Page 24: Operation
Avoid exposing any part of the human body to the vacuum. There is the risk of suffering injury. Observe Safety Information 0.1. GA01208_002_C1 - 07/2018 - © Leybold... -
Page 25: Operation
(if possible via a valve). Once all vapours have been pumped off from a process (e.g. during drying), the gas ballast valve can be closed to improve the attainable ultimate pressure. GA01208_002_C1 - 07/2018 - © Leybold... -
Page 26: Operating Temperature
Observe Safety Information 0.3. If – due to the ambient conditions – this temperature range is exceeded at either end of the range, contact Leybold Sales. The motor may accelerate with a delay when simultaneously an undervoltage is present at the motor and the pump is at the minimum permissible and ambient temperature. -
Page 27: Shutdown Through Monitoring Components
In order to prevent the pump from running up unexpectedly after a mains power failure, the pump must be integrated in the control system in such a way that the pump can only be switched on again manually. This applies equally to emergency cut-out arrangements GA01208_002_C1 - 07/2018 - © Leybold... -
Page 28: Maintenance
Leybold offers practical courses on the maintenance, repair, and testing of TRIVAC-B-DOT pumps. Further details are available from Leybold on request. -
Page 29: Maintenance Plan
Maintenance before starting production n Exchange of all seals Daily maintenance n Functional check 6m = Six monthly maintenance This service should be run by the Leybold - Service. Annual maintenance n-a = Maintenance every n years GA01208_002_C1 - 07/2018 - © Leybold... -
Page 30: Leybold Service
Maintenance Leybold Service Whenever you send a pump to Leybold, indicate whether the pump is con- taminated or is free of substances which could pose a health hazard. If it is contaminated, specify exactly which substances are involved. You must use the form we have prepared for this purpose;... -
Page 31: Monitoring The Oil Level
Check and top up oil only after having shut down the pump first. Please note the safety information given in Section 0.3 und 0.4. Pumps which have not directly been delivered from Leybold, e.g. in sys tems, may have been filled with oils different from DOT-4. In this case a refill with DOT-4 may cause problems. -
Page 32: Oil Change
When disposing of waste oil, observe the applicable environment protection regulations! When changing the oil use the same type of oil which was previously in the pump. If you want to change the type of oil entirely please consult us first. GA01208_002_C1 - 07/2018 - © Leybold... - Page 33 When an exhaust filter with lubricant return has been installed on the pump please also exchange the oil there. We can only guarantee that the pump operates as specified by the NOTICE technical data if the lubricants recommended by us are used. GA01208_002_C1 - 07/2018 - © Leybold...
-
Page 34: Cleaning The Inlet Screen
Reassemble in the reverse order. The tightening torque for the screws has been specified at 12.5 Nm for the D 40 B and 10 Nm for the D 16/25 B. GA01208_002_C1 - 07/2018 - © Leybold... - Page 35 1 Screw with small washer, spring, large washer and O-ring 2 Holding frame for demister 3 Demister 4 Case for the operating agent 5 Gasket 6 Fixing screws Fig. 10 Removal and fitting of the internal demister GA01208_002_C1 - 07/2018 - © Leybold...
-
Page 36: Disassembly And Reassembly Of The Electric Motor
Disassembly and Reassembly of the Electric Motor Risk due to high voltages DANGER Death or severe injury caused by an electric shock! Before starting work, always disconnect the motor from the mains. Pull the mains plug. Observe Safety Information 0.2. GA01208_002_C1 - 07/2018 - © Leybold... -
Page 37: Replacing The Shaft Seal
(11/4) with the intermediate flange. Remove the gasket (11/1). Remove the coupling element (12/1). Unscrew the hexagon socket screw (12/2) and remove the spring washer (12/3). Pull off the coupling half (12/4). Remove the key (12/5). GA01208_002_C1 - 07/2018 - © Leybold... - Page 38 Using a suitable plastic or aluminium cylinder (shaft seal driver) and a plastic hammer, force the shaft seals (12/8) carefully and without bending them into the centering disk (for position of shaft seal, see Fig. 12). GA01208_002_C1 - 07/2018 - © Leybold...
- Page 39 Mount the pump-half of the coupling (12/4) on the shaft. Install the spring washer (12/3) and tighten the screw (12/2). Insert the coupling element (12/1) into the coupling and mount the motor (see Chapter 5.7). GA01208_002_C1 - 07/2018 - © Leybold...
-
Page 40: Removing And Remounting The Pump Module
When doing so, ensure that the individual pin-fitted parts are not NOTICE loosened. Further disassembly of the pump module should only be carried out by a trained service engineer. Remove the gasket (14/4). Remove the coupling element (14/5). GA01208_002_C1 - 07/2018 - © Leybold... -
Page 41: Remounting The Pump Module
Screw on the hex. nuts (14/1) and carefully cross-tighten them (17.5 Nm NOTICE for the D 40 B and 10 Nm for the D 16/25 B.) Mount the oil case together with the gasket (see Chapter 5.6). Fill in oil. GA01208_002_C1 - 07/2018 - © Leybold... -
Page 42: Troubleshooting
1) Bubble test: The warm pump with degassed oil is running without gas ballast and the intake is blanked off. The exhaust line is led into a vessel with water. If an evenly spaced line of bubbles appears then the pump has an external leak. GA01208_002_C1 - 07/2018 - © Leybold... - Page 43 Intake pressure is too high. Lower the intake pressure. Internal demister is clogged. Clean or replace demister. Service Coupling element is worn. Install new coupling element. Vanes or bearings are damaged. Repair pump. Service GA01208_002_C1 - 07/2018 - © Leybold...
-
Page 44: Waste Disposal
Waste oil from vacuum pumps must not be mixed with other substances or materials. Waste oil from vacuum pumps (Leybold oils which are based on mineral oils) which are subject to normal wear and which are contaminated due to the influence of oxygen in the air, high temperatures or mechanical wear must be disposed of through the locally available waste oil disposal system. -
Page 45: Ec Declaration Of Conformity
EC Declaration of Conformity GA01208_002_C1 - 07/2018 - © Leybold... - Page 46 GA01208_002_C1 - 07/2018 - © Leybold...
-
Page 47: Contamination Declaration
Many thanks for your understanding. 17200001_002_C0 © Leybold GA01208_002_C1 - 07/2018 - © Leybold... -
Page 48: Contamination Form
Person to contact: Calibration: Factory-calibr. Phone : Fax: Quality test certificate DIN 55350-18-4.2.1 End user: A. Description of the Leybold product: Failure description: Material description : Catalog number: Additional parts: Application-Tool: Serial number: Type of oil (ForeVacuum-Pumps) : Application- Process: B. - Page 49 Notes GA01208_002_C1 - 07/2018 - © Leybold...
-
Page 50: Sales And Service
Sales and Service Germany Great Britain America Leybold Japan Co., Ltd. Tsukuba Technical Service Center 1959, Kami-yokoba Leybold UK LTD. Leybold GmbH Tsukuba-shi, Ibaraki-shi 305-0854 Unit 9 Bonner Strasse 498 Japan Silverglade Business Park D-50968 Cologne Leybold USA Inc. Service:...
