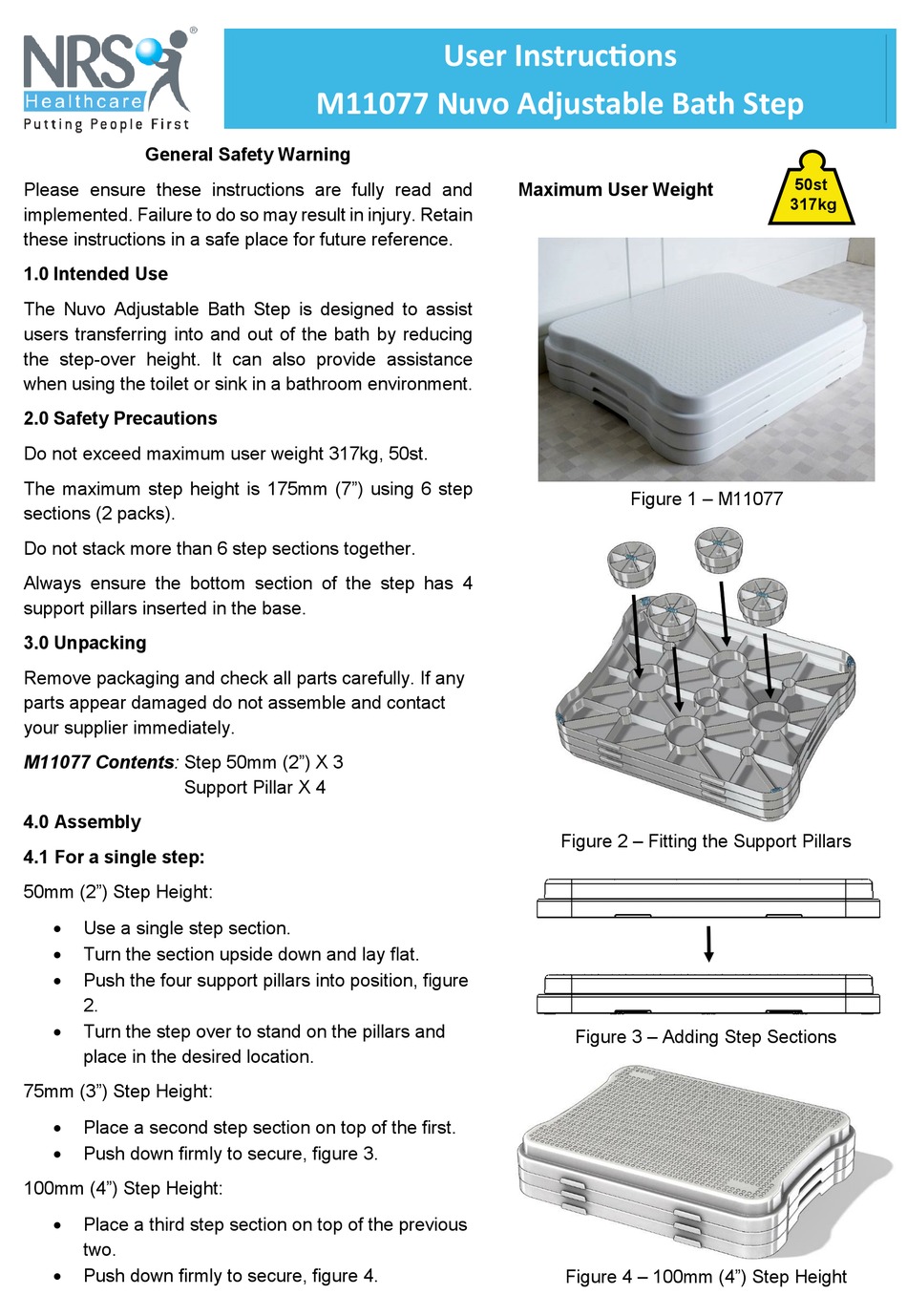

NRS Healthcare M11077 User Instructions

General Safety Warning
Please ensure these instructions are fully read and
implemented. Failure to do so may result in injury. Retain
these instructions in a safe place for future reference.
1.0 Intended Use
The Nuvo Adjustable Bath Step is designed to assist
users transferring into and out of the bath by reducing
the step-over height. It can also provide assistance
when using the toilet or sink in a bathroom environment.
2.0 Safety Precautions
Do not exceed maximum user weight 317kg, 50st.
The maximum step height is 175mm (7") using 6 step
sections (2 packs).
Do not stack more than 6 step sections together.
Always ensure the bottom section of the step has 4
support pillars inserted in the base.
3.0 Unpacking
Remove packaging and check all parts carefully. If any
parts appear damaged do not assemble and contact
your supplier immediately.
M11077 Contents: Step 50mm (2") X 3
Support Pillar X 4
4.0 Assembly
4.1 For a single step:
50mm (2") Step Height:

Use a single step section.

Turn the section upside down and lay flat.

Push the four support pillars into position, figure
2.

Turn the step over to stand on the pillars and
place in the desired location.
75mm (3") Step Height:

Place a second step section on top of the first.

Push down firmly to secure, figure 3.
100mm (4") Step Height:

Place a third step section on top of the previous
two.

Push down firmly to secure, figure 4.
User Instructions
M11077 Nuvo Adjustable Bath Step
Maximum User Weight
Figure 1 – M11077
Figure 2 – Fitting the Support Pillars
Figure 3 – Adding Step Sections
Figure 4 – 100mm (4") Step Height
50st
317kg
