Mars BD1896-1IG-TS Manual

Indirect gas fired heated

Hide thumbs

page of 30

/ 30
Bookmarks

Quick Links

Download this manual

BD18 Submittal Package

14716 S. BROADWAY, GARDENA, CA 90248 ● Ph: (310)532-1555 Fax: (310)-532-3030 ●

www.marsair.com

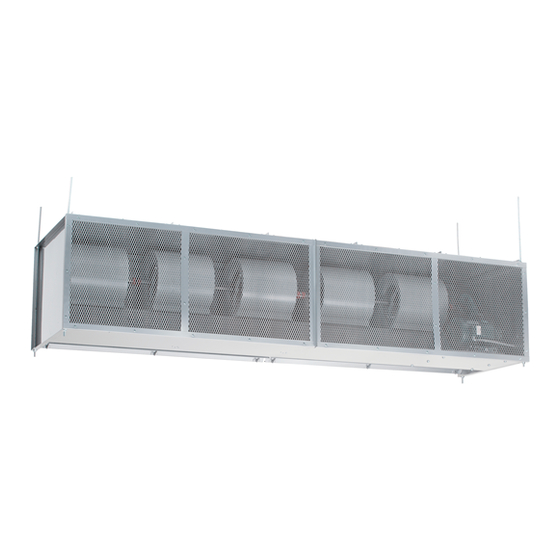

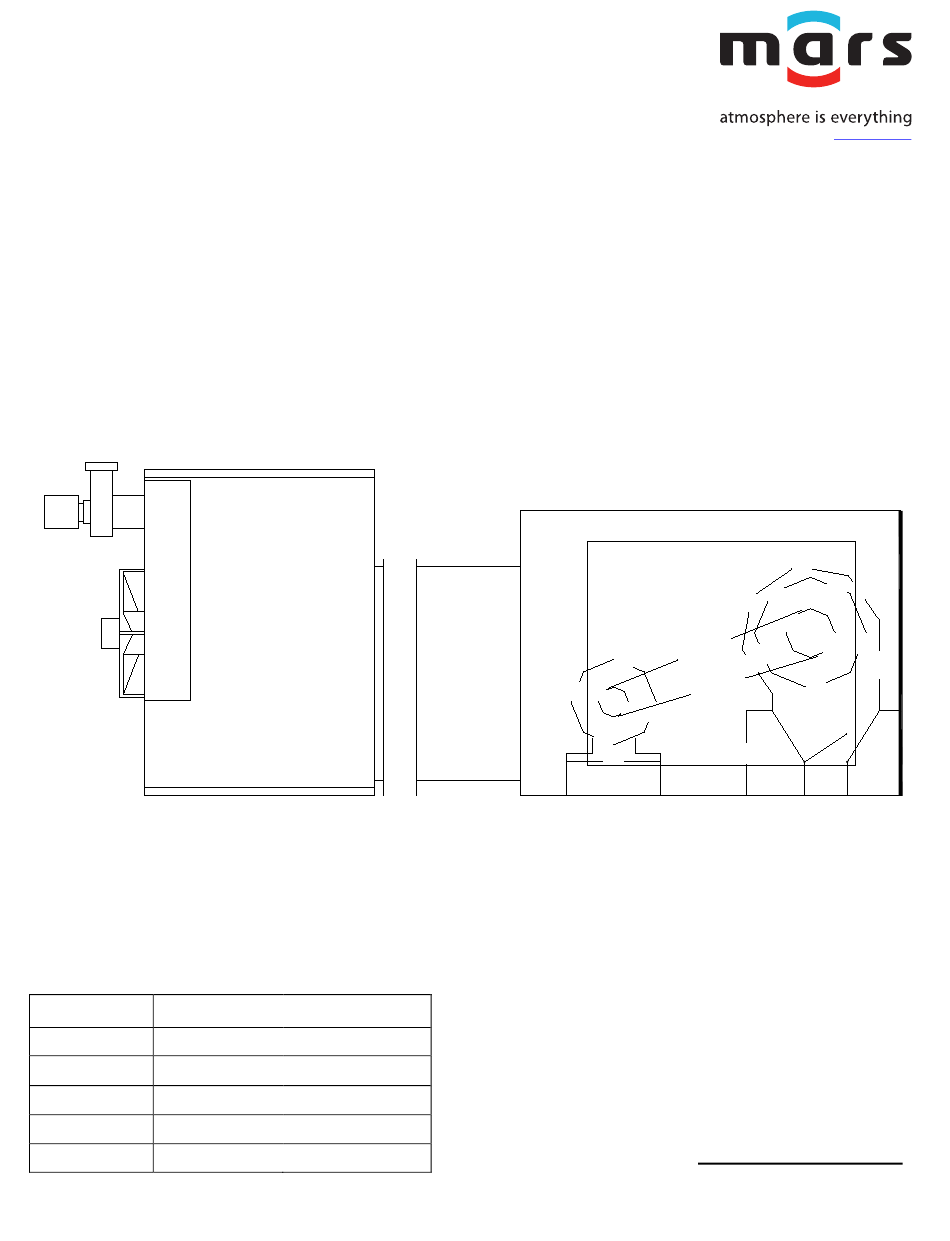

BD18 Indirect Gas Fired

Heated Series

Belt Drive 18

Industrial Air Curtain

Submittal Package

Submitted by:

Mars Air Systems, LLC

14716 S. Broadway

Gardena, CA 90248

P.O.#

S.Q.

Company

Print Name

Signature

Date

Company Seal or Stamp

(Electronic Signature Preferred)

NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements

for previously purchased equipment.

MARS AIR SYSTEMS, LLC

GARDENA, CA

USA

●

Need help?

Do you have a question about the BD1896-1IG-TS and is the answer not in the manual?

Questions and answers

Summary of Contents for Mars BD1896-1IG-TS

Page 1 Company Seal or Stamp (Electronic Signature Preferred) NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
Page 2 CSI Spec Reference Links NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment. MARS AIR SYSTEMS, LLC GARDENA, CA ●...
Page 4 7 ½ HP Motor Unit = 74 dBA, 10 HP Motor Unit = 75 dBA, 15 HP Motor Unit = 76 dBA Furnace Only NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
Page 7 99-277 – Thermostat, 24 Volt, Single Stage, R.W. 99-182 - Cover, Lockable, Clear NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
Page 8 3. All wiring must be per local and NEC (National Electric Code) codes. 1. Mars door limit and magnetic reed switches are 4. Panels or controllers may be required. Refer to wiring available with NEMA 1, 4X and 7 ratings. Contact the diagram inside the control panel box.
Page 9 Document No: ACC-IOM Date: 04/13/2013 Bracket Installation 1. Side Extension Plates: For doorways wider than the air curtain, use combination of Side Extension Plates and Adjustable Mounting Brackets. (FIG. 5) FIG. 7 (WMI/WMH Shown) FIG. 5 (LPV SHOWN) 2. Adjustable Mounting Brackets: For installation of air curtain over drum-style roll-up door, use Extended Wall Mounting Brackets.
Page 10 Retain these instructions for future reference. GENERAL SAFETY OVERVIEW INFORMATION Use this product only in Mars Air Curtains are the manner intended designed to cover door by the manufacturer. If openings, providing...
Page 11 If any items are missing, report shortages to Mars Air Systems directly to arrange for obtaining the missing items. Again, verify quantities received against those on the Bill of Lading only, as multiple shipments may be involved.
Page 12 D. Check all field wired components “if supplied” are wired correctly. E. Check that the inlet air supply and the discharge air supply are free of obstructions. F. Check that all air filter(s) and/or air intake grille(s) are in place and installed properly, as originally shipped. G.
Page 13 On average, under normal use conditions, the product should require a Mars reserves the right to change specifications and thorough cleaning once every six (6) months. product design without notice. Such revisions do not...
Page 14 TROUBLESHOOTING PROBLEM CAUSE SOLUTION NO AIR BLOWING - No power being supplied to the unit OUT OF DISCHARGE - Confirm power source / check if in on position from the electrical power source NOZZLE - Circuit breaker is tripped - Reset circuit breaker - Blown fuses on power supply - Replace fuses - Allow the motor to cool down;...
Page 15 TROUBLESHOOTING MOTOR To determine if the motor is in good operating condition, compare measured motor resistance at the motor terminals to the values shown below. MARS MOTOR RESTANCE READINGS Single Phase Motors MOTOR WIRES OR TERMINAL (T) OHM READINGS HIGH SPEED (1750) MEDIUM SPEED (1650) LOW SPEED (1450) Applicable Black Motor Wire &...
Page 16 Mars is not responsible. The warranty does not cover damages caused by mishandling during transportation. The warranty is voided by removal or alteration of Mars...
Page 17 XFC-1 XF/XC SERIES Commercial/Light Commercial Unit Heaters STANDARD FEATURES OPTIONAL FEATURES • Standard or separated combustion all-in-one units • Stainless steel heat exchanger, burners, and/or flue collector • 20-gauge aluminized steel tubular heat exchanger • Two stage and various electronic modulation gas controls •...
Page 18 XF/XC SERIES DESCRIPTION ADDITIONAL VENTING FLEXIBILITY The Sterling “XF/XC” Series Convertible Venting Type Tubular The Sterling “XF/XC” unit heater is ETL certified in accordance with Gas-Fired Unit Heater offers a highly efficient, extremely durable categories I and III venting requirements. This certification allows units alternative to the traditional clam shell design.
Page 19 Document No: HT-IOM Date: 04/09/2020 HEATED PRODUCTS SUPPLEMENT NOTE Before proceeding, refer to the units specific IOM Manual for safety, installation and start information. Verify proper voltage to the product per local and NEC codes. Ensure proper rotation for units with three phase motors.
Page 20 Steam and Hot Water Coil Heated Products The transition section(s) are shipped knocked down and are to be field assembled and installed per their Steam/Hot Water Coil (coil) heated products must supplemental instructions. (FIG. 6) (Exceptions are be mounted on the inside of the building. The coil(s) for WMI/H and BD series, fully assembled transitions are Low Profile, Standard, High Velocity, Extra Power and provided).
Page 21 Mars WindGuard BD18-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC SECTION 23 34 33 AIR CURTAINS Important Note: This specification contains hidden text appearing in red. To show or remove hidden text in MSWord, click the “File” tab or “Office” icon on the top-left corner, select “Options,” select “Display,”...
Page 22 Mars WindGuard BD18-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Section 23 22 13- Steam and Condensate Piping: Steam heating piping to units. Section 26 05 00 – Equipment Wiring: Connections to building power distribution. REFERENCES ASTM A240 / A240M -10 – Standard Specification for Chromium and Chromium.
Page 23 Mars WindGuard BD18-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Verification Samples: For each finish product specified, two samples, minimum size 6.25 inches (160 mm) square, representing actual product, color, and patterns. Manufacturer's Certificates: Certify products meet or exceed specified requirements.
Page 24 MARS AIR SYSTEMS, LLC PART 2 PRODUCTS MANUFACTURER Acceptable Manufacturer: Mars Air Systems, LLC; 14716 South Broadway St., Gardena, CA 90248. Tel: (310) 532-1555 or (800) 421-1266. Fax: (310) 324-3030. Email: info@marsair.com. Web: www.marsair.com. Delete one of the following two paragraphs: coordinate with requirements of Division 1 section on product options and substitutions.
Page 25 Mars WindGuard BD18-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Size: Unheated: 36 inches deep by 28 inches high by width of unit. Electric Heated: 42 inches deep by 28 inches high by width of unit. Hot Water/Steam Heated: Depth 42 inches single row and 44 inches double row by 28 inches high by width of unit plus 10 inches for manifolds.
Page 26 Mars WindGuard BD18-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Type: Filter Only as follows: Filter: Flat bank 2-inch, disposable. Filter: V-bank 2-inch disposable. Filter: V-bank 2-inch aluminum washable. Sound Pressure Level At 10 feet (3 m) From Nozzle: Single Motor/Fan, 7-1/2HP Units: 75 dBA.
Page 27 Mars WindGuard BD18-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Canadian Standards Association (CSA) labeled for US and Canadian application. ANSI Z223/NFPA 54 National Fuel Gas Code. CAN/CGA B149.1 Installation Codes for Natural Gas Burning Appliances and Equipment. Coils: Certified in accordance with AHRI 410.
Page 28 Mars WindGuard BD18-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Mounting: Factory mounted on right hand side of air curtain housing. Mounting: Factory mounted on left hand side of air curtain housing. Motor Control Panels are UL Listed and CSA Approved.
Page 29 Mars WindGuard BD18-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Coordinate with sheet metal flashing as specified in Section 07 62 00. Install joint sealants as specified in Section 07 92 00. Coordinate with electrical power as specified in Section 26 05 00.
Page 30 Belt Drive 18 Series CSI spec (Word doc) NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
