Summary of Contents for Rumble Tuff Mighty Jyke
- Page 1 Electric Breast Pump Duo Instructions & Assembly...
-
Page 2: Table Of Contents
..............13 9V AC/DC Power Adapter ..........13 Built-in Li-Ion Rechargeable Battery Getting Started ................. 14 ....14 How to Use Your Rumble Tuff Electric Breast Pump Duo © ..............15 LED Light Sign Guide ................16 Silent/Sound Mode Cleaning Instructions .............. - Page 3 Table of Contents Troubleshooting ................19 ............19 Interruption of Electrical Service ..............19 Radio Frequency Energy ................19 Decreased Suction ................. 20 Pump Doesn't Start ..................20 Low Battery ........20 Breastmilk Buildup In the Breastshield Body ............ 20 Where to get Replacement Parts Technical Data ..................
-
Page 4: Important Safeguards
Important Safeguards Important Safeguards The Rumble Tuff Electric Breast Pump is designed for a single user and should ® never be shared or resold; doing so will void the warranty. READ ALL INSTRUCTIONS BEFORE USING DANGER: To reduce the risk of electrocution: • Always unplug this product immediately after using. -
Page 5: Warning
• Wash the Expression Collection Combo Kit parts before each use. • Do not operate a motor vehicle while using the Rumble Tuff ® Electric Breast Pump Duo. -
Page 6: Accessories And Parts
Accessories and Parts Included Accessories Breast Pump Expression Main Unit Collection Combo Kits (2 Sets) Vacuum Tubing with Bottle Adaptor Kits AC/DC Adaptor Adaptor (2 Sets) * Included accessories may vary by country and may change without notice. Expression Collection Combo Kit Electric Diaphragm Diaphragm Kit... -
Page 7: About Your Mighty Tyke Duo

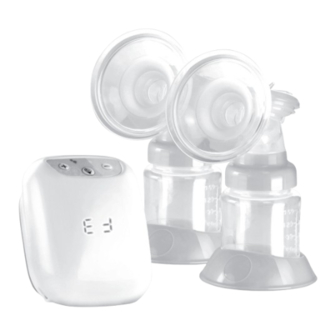

About Your Mighty Tyke Electric Breast Pump Main Unit Power & Mode Button On/Off (press and hold for 2 sec.) Expression Mode (press once) Vacuum Adjusting Buttons Press the Up Indicator Down buttons to adjust the suction. Expression Indicator Lights Vacuum Tubing Inlet Swift Expression... -
Page 8: Bottle Assembly
Bottle Assembly How to Assemble the Expression Collection Kit Hold the neck in one hand and make sure the bottle-thread side opening is facing up. Insert the One-Way Valve onto the bottom of the neck of the Breastshield Body. Verify that the membrane of the One-Way Valve is flat. - Page 9 Bottle Assembly How to Assemble the Expression Collection Kit Secure the lip of the Cushion around the edge of the horn. Ensure the lip of the Cushion is securely in place. Push the center of Silicone Cushion into the bottom again to release any extra air.
- Page 10 Bottle Assembly How to Assemble the Expression Collection Kit Press around the edges of the Diaphragm for a secure fit. Ensure that the Diaphragm is securely seated in place. This is crucial to achieving proper suction and preventing the backflow of milk. Place the Cap on the Cup and Diaphragm.
- Page 11 Bottle Assembly How to Assemble the Expression Collection Kit Twist the Bottle Adaptor onto the Breastshield Body. Twist on the Collection Bottle for a secure fit. Connect the tubing to the Tubing Connector located on the Cap. Note: Make sure that there is no moisture in the tubing.
- Page 12 Bottle Assembly How to Assemble the Expression Collection Kit Push together firmly for a tight seal. The Expression Collection Combo Kit is assembled. Make sure the Tubing Adaptor is properly inserted into the Tubing Adaptor Inlet on the Electric Pump Main Unit.
-
Page 13: Power Options
Power Options Your Electric Breast Pump may be operated under any of the following power supply modes: 9V AC/DC Power Adapter Electrical safety can only be achieved when using the AC/DC Adapter provided with the Pump. Use of any another adapter poses a risk to the safety of the product and/or the user and may void the warranty. -
Page 14: Getting Started
Getting Started How to Use Your Rumble Tuff Electric Breast Pump Duo © Check for correct fitting of the shield. Hold the Expression Collection Combo Kits to your breasts so that your nipples are centered in the Breastshield. 24~25mm Press and hold the Power/Mode Button until the pump starts. -
Page 15: Led Light Sign Guide
LED Light Sign Guide Swift Expression Natural Expression While Pump is On State Signal Indicator Swift Expression LED (White Light) Swift Expression LED (1 - 8) (White Light) (Blue Light) Pumping in White Light is On Swift Expression Natural Expression LED (F1 - F9) Natural Expression LED (Blue Light) Pumping in Blue Light is On... -
Page 16: Silent/Sound Mode
Silent/Sound Mode Silent/Sound Mode: The Silent/Sound Mode can only be changed while in the Off State. To change to Silent Mode, press at the same time for 3 seconds. Both the Swift Expression LED and the Indicator (with “SL” display) will flash three times. -
Page 17: Cleaning Instructions
Cleaning Instructions Sanitize Prior to First Use: Before you use your Rumble Tuff ® Electric Breast Pump Duo for the first time, disassemble and boil all parts of the Expression Collection Combo Kit in water for 10 minutes. • Be sure to use enough water to keep all parts afloat while boiling. -
Page 18: Tubing Cleaning Instructions
Note: Before each use, visually inspect each individual component for cracks, chips, tears, discoloration, or deterioration, as they may affect the efficiency of the Rumble Tuff Electric © Breast Pump Duo. In the event that damage to the device is observed, please discontinue... -
Page 19: Troubleshooting
• Inspect the One-Way Valve for any tears or pinholes. This component is critical to achieving proper suction. If damaged, replace the One-Way Valve with one of the spare valves that is provided with your Rumble Tuff® Electric Breast Pump. -
Page 20: Pump Doesn't Start
Where to get Replacement Parts If you are missing a part or if a part was damaged, please contact Rumble Tuff Customer Service by calling toll-free (855) 228-8388. You can purchase additional accessories for your Rumble Tuff ® Electric Breast Pump Duo by the following methods: • Email: sales@rumbletuff.com... -
Page 21: Technical Data
Technical Data Power Requirements: • AC/DC Adapter (included) North American Plug Configuration: Brand: Acute Ideas Model: MLF-A00120901300U0041, 100V~240V AC, 50/60 Hz, 0.4A, wall plug type AC/DC Adaptor with DC 9V/1.33A output. • Battery Non-replaceable Li-Ion battery; 7.4V 850mAh Brand: Acute Ideas Model: 18-0741000-RT00 • Position the device to ensure easy disconnection of the power cord from the supply mains. -
Page 22: Warranty
TO A PERIOD OF 120 DAYS FROM THE DATE OF PURCHASE BY THE ORIGINAL PURCHASER. In the event that this product is found by Rumble Tuff to not meet the above limited warranty standard, as the purchaser's sole and exclusive remedy, Rumble Tuff will repair, or, at the discretion of Rumble Ruff, replace this product without charge for such replacement parts or labor. - Page 24 ® Rumble Tuff is owned and operated by A Cute Baby, Inc. 865 N 1430 W Orem UT 84057-6402 Tel: (801) 609-8168 │Fax: (801) 796-2688 www.rumbletuff.com │www.acutebaby.com...
