Summary of Contents for Rumble Tuff Whisper Duo

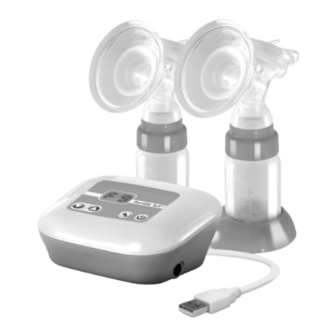

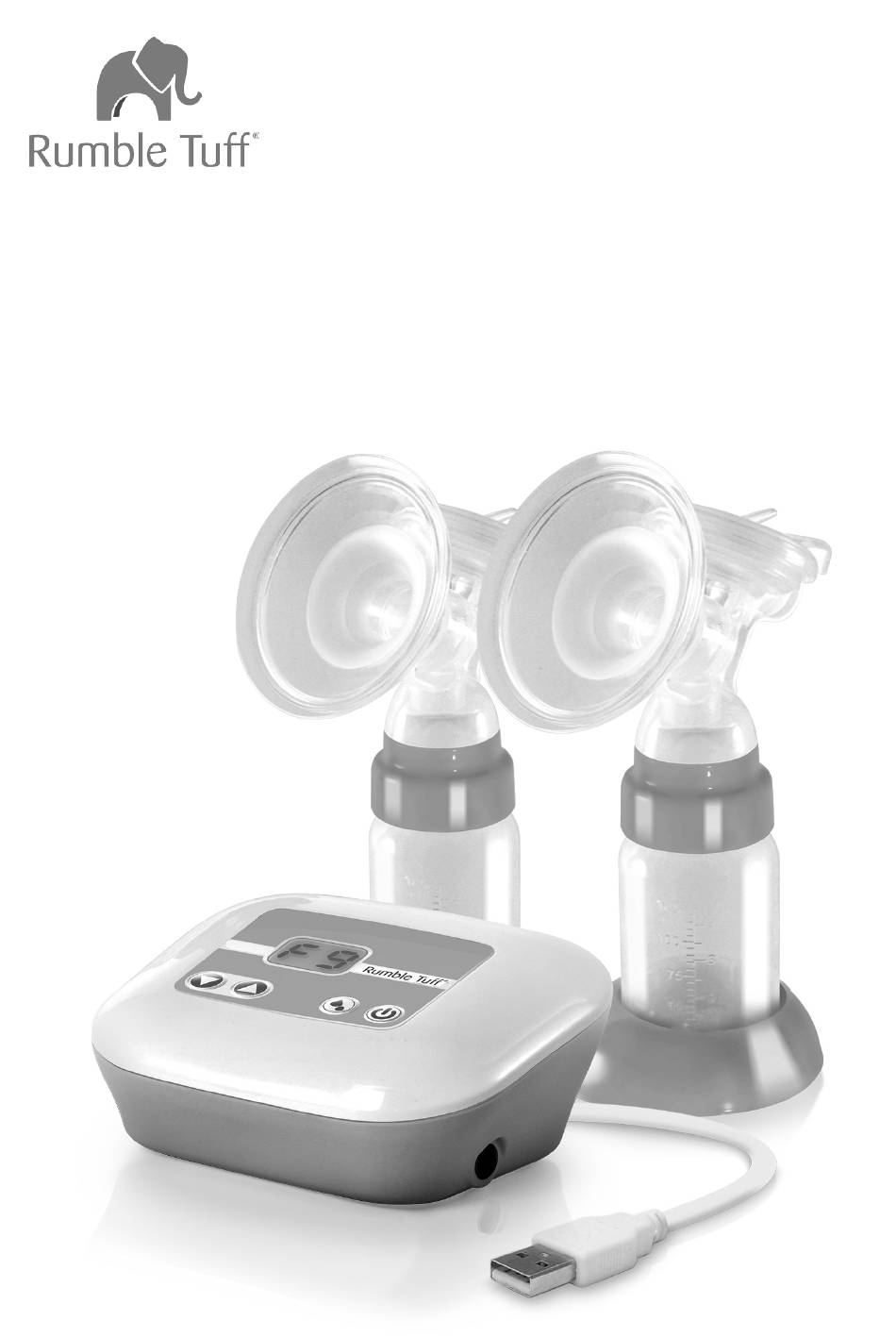

- Page 1 Whisper Duo USB Electric Breast Pump Instructions & Assembly Model: PA209-WIC...
-
Page 2: Congratulations
○ for example: to express unsuitable milk while you are undergoing medical treatment The Rumble Tuff ® Whisper Duo provides many of the features busy moms love. ● 3 cycles of expressions to mimic baby's nursing patterns. ○ Reflex Expression - Latch on & Rooting habit ○... -
Page 3: Table Of Contents
How to Assemble the Expression Collection Combo Kit Cleaning Instructions About Your Rumble Tuff Whisper Duo Electric Breast Pump Main Unit Expression Indicator Lights How to Use Your Rumble Tuff Whisper Duo LED Light Sign Guide Silent/Sound Mode Power Options Breastmilk Storage Guidelines... - Page 4 Table of Contents Rumble Tuff Manual Pump Assembly How to Assemble the Manual-Pump Diaphragm Kit Using your Rumble Tuff Manual Pump Troubleshooting Interruption of Electrical Service Radio Frequency Energy Decreased Suction Pump Doesn't Rung When Power is "On" Breast Milk Buildup in the Breastshield Body...
-
Page 5: Important Safeguards
Important Safeguards Important Safeguards The Rumble Tuff Whisper Duo Electric Breast Pump Duo is designed to express milk from the breasts of lactating women. It is intended for single user. Sharing the pump may create health hazard. READ ALL INSTRUCTIONS BEFORE USING... -
Page 6: Caution
• Do not over boil product materials; to prevent premature aging. • Do not use any accessories, parts, or attachments that are not recommended by Rumble Tuff. Doing so may void the warranty. • Do not connect the pump or any of its accessories to any equipment not recommended by Rumble Tuff. -
Page 7: Accessories And Parts
Accessories and Parts Included Parts and Accessories User Manual Assembly Guide Cleaning Welcome/Registration Instructions Card 12V AC/DC Power Removable Flanges (2) Expression Silicone Tubing Adapter (28 mm) & 2017 Collection Combo (Double) Breastshield Body Kits (2) Membrane Valves (2) Bottle Caps Mesh Drying Bag Manual Diaphragm &... -
Page 8: Bottle Assembly
Bottle Assembly Expression Collection Combo Kit (HF) Diaphragm Silicone Cushion Flange Breastshield Body Membrane Valve Bottle Adapter Collection Bottle Bottle Base... -
Page 9: How To Assemble The Expression Collection Combo Kit (Hf)
Bottle Assembly How to Assemble the Expression Collection Combo Kit (HF) Hold the Breastshield Body in one hand and make sure the bottle-thread side opening is facing up. Insert the Membrane Valve into the bottom of the Breastshield Body. Verify that the membrane of the Membrane Valve is flat. - Page 10 Bottle Assembly How to Assemble the Expression Collection Combo Kit (HF) If desired, place the Silicone Cushion into the Flange of the Breastshield. Note: Your Electric Breast Pump will work with or without the Silicone Cushion. Your comfort depends on your preference. Push the center of the Silicone Cushion into the Flange.
- Page 11 Bottle Assembly How to Assemble the Expression Collection Combo Kit (HF) Place the Diaphragm in the Cup of the Breastshield Body. Note: Do not reverse the order of steps 6 through 9. Doing so will result in suction loss when pumping. Press around the edges of the Diaphragm for a...
- Page 12 Bottle Assembly How to Assemble the Expression Collection Combo Kit (HF) Twist the Bottle Adapter onto the Breastshield Body. Twist on the Collection Bottle for a secure fit. Connect the Tubing to the Tubing Connector located on the Cap. Note: Make sure there is no moisture in the Tubing.
-
Page 13: Expression Collection Combo Kit
Bottle Assembly Expression Collection Combo Kit Diaphragm Silicone Cushion Flange Breastshield Body Membrane Valve Bottle Adapter Collection Bottle Bottle Base... -
Page 14: How To Assemble The Expression Collection Combo Kit
Bottle Assembly How to Assemble the Expression Collection Combo Kit Hold the horn of the Breastshield Body in one hand. Make sure the bottle-thread side opening is facing up. With the thumb and forefinger of the other hand, hold the tip of the One-Way Valve and place the flat circular bottom into the opening. - Page 15 Bottle Assembly Hinge Cover Place the Cap on the Cup and Diaphragm. (Be sure to align the hinge and hinge cover.) Press tightly to seal. Hinge With the O-ring side down, put the Electric Pump Diaphragm Kit onto the top of the Breastshield Body opening. Twist the Electric Pump Diaphragm Kit clockwise onto the Breastshield Body opening.
- Page 16 Note: Using the pump after converting from Single to Double or Double to Single may result in a temporary lack of suction or over-suction respectively. Please use caution and adjust the pump to your comfortable and effective level. To view the Assembly Guide video, please visit Rumble Tuff online at www.rumbletuff.com/troubleshooting or scan this QR Code with your...
-
Page 17: Cleaning Instructions
Before each use, visually inspect each individual component for cracks, chips, tears, ® discoloration, or deterioration, as they may affect the efficiency of the Rumble Tuff Electric Breast Pump. In the event that damage to the device is observed, please discontinue use until the parts have been replaced. - Page 18 Drying Bag: For your convenience, you can use the included Drying Bag to hang dry all washed and sanitized accessories. To view the cleaning instruction online, please visit Rumble Tuff online at www.rumbletuff.com/troubleshooting or scan this QR Code with your smartphone or tablet.
-
Page 19: About Your Rumble Tuff Whisper Duo
The Rumble Tuff Whisper Duo Electric Breast Pump Duo is designed to express milk from the breasts of lactating women. It is intended for single user. Sharing the pump may create health hazard. -
Page 20: How To Use Your Rumble Tuff Whisper Duo
About Your Rumble Tuff Whisper Duo How to Use Your Rumble Tuff Whisper Duo Check for correct fitting of the shield. Hold the Expression Collection Combo Kit to your breast so that your nipple is centered in the Flange. 24~25mm Press the Power Button begin pumping. - Page 21 Breastshield and the breast, similar to the way you break away from your baby's suction. If the Rumble Tuff® Electric Breast Pump Duo is left on, but unattended for more than 30 minutes, the Pump will automatically shut-off.
-
Page 22: Led Light Sign Guide
About Your Rumble Tuff Whisper Duo LED Light Sign Guide LED Indicator While Pump is On LED Display State Pumping in Swift Expression Swift Expression LED (1 - 8) Pumping in Natural Expression Natural Expression LED (F1 - F9) ( SL ) Sound is Muted Steady lit symbol "SL"... -
Page 23: Power Options
Power Options Your Electric Breast Pump may be operated under any of the following power supply modes: Using your AC/DC Adapter (included) Connect the USB cable with the Adapter. Plug the AC/DC Adapter into an electrical outlet. Note: Do not leave the AC/DC Adapter (with or without the USB cable) in the electrical outlet after use. - Page 24 Store the USB Cable in the storage compartment after use. Note: Keep the storage compartment lid closed while pumping to reduce noise. Caution: Contact your PC or laptop manufacturer before connection. Rumble Tuff is NOT responsible for PC or laptop connection problems.
-
Page 25: Breastmilk Storage Guidelines
Breastmilk Storage Guidelines Check with your healthcare provider or an International Board-Certified Lactation Consultant for specific storage instructions. This information is based on current research and applies to mothers who are storing their milk for home use with a healthy, full-term baby. Important Notes: • STORAGE CONTAINERS: The best option for storing human milk is glass or hard-sided plastic containers with well-fitting tops. - Page 26 Breastmilk Storage Guidelines Place Temperature How long Things to know 39°F or colder ● Up to 72 hours Store milk in the back of the Refrigerator is best. main body of the refrigerator. ● Up to 5-8 days is okay for very clean expressed milk.
-
Page 27: Rumble Tuff Manual Pump Assembly
Rumble Tuff Manual Pump Assembly How to Assemble the Manual Pump Diaphragm Kit Adjusting Valve Handle Valve Stem Manual Diaphragm For the installation of the Membrane Valve and Silicone Cushion, please refer to Bottle Assembly on pages 7-15. With the Cup in one hand, place the Manual Silicone Diaphragm in the Cup (matching the shape of the Cup). - Page 28 Rumble Tuff Manual Pump Assembly How to Assemble the Manual Pump Diaphragm Kit "U" shape slot Place the "U" shape slot of the Handle onto the recess of the Adjusting Valve Stem. Swift Expression Natural Expression There are 2 recesses on the Adjusting Valve Stem.
-
Page 29: Using Your Rumble Tuff Manual Pump
Using your Rumble Tuff Manual Pump How to Use the Manual Pump Note: There are two recesses for attaching the handle to the Manual Pump. You can toggle between these two settings by pushing the Adjusting Valve Stem away from the “U”... - Page 30 Using your Rumble Tuff Manual Pump How to Use the Manual Pump Hold the Manual Breast Pump to your breast so that your nipple is centered inside the Breastshield, then squeeze the handle toward the bottle to test the suction.
-
Page 31: Troubleshooting
Interruption of Electrical Service If you experience an interruption of electrical service, due to a power surge ® or other factors, during normal operation of your Rumble Tuff Electric Breast Pump, try the following: • Unplug the AC/DC Adapter from the electrical outlet and wait for 5 seconds. -
Page 32: Pump Doesn't Rung When Power Is "On
• If you do feel suction, the Electric Pump is operating properly. • If you do NOT feel suction or feel that suction has decreased to an unexpected strength, contact Rumble Tuff Customer Service. • Check the Vacuum Tubing closely for tears. -
Page 33: Pumping Tips
Troubleshooting Pumping Tips: If your breasts feel uncomfortable or in pain while using the Pump, try decreasing the suction level by pressing the Vacuum Adjusting Button down You may also try pumping with/without the Silicone Cushion. If these tips do not help, turn the pump off and remove the Collection Bottles from your breasts for a few minutes. -
Page 34: Warranty
TO A PERIOD OF 1 YEAR FROM THE DATE OF PURCHASE BY THE ORIGINAL PURCHASER. In the event that this product is found by Rumble Tuff ® to not meet the above limited warranty, as the purchaser's sole and exclusive remedy, Rumble Tuff ® will repair, or, at the discretion of Rumble Tuff ®, replace this product without charge for such replacement parts or labor. -
Page 35: Technical Data
Technical Data Power Requirements: • AC/DC Adapter (included) North American Plug Configuration: Brand: Acute Ideas Manufacturer: GangQi Electronic Co., Ltd. Model: GQ05-050100, 100V~240V AC, 50/60 Hz, 0.3A, Max plug type AC/DC Adapter with DC 5V/1.0A output. Technical Specifications: • VACUUM: Swift Expression: -9~-24kpa (-68~-180mmHg) Natural Expression: -13~-35kpa (-98~-263mmHg) • Ambient Temperature range: +10°C to 40°C (50°F to 104°F) - Page 36 865 N 1430 W Orem UT 84057-6402 Tel: (801) 609-8168 Fax: (801) 796-2688 www.rumbletuff.com...
