- Page 1 Rumble Tuff Electric Breast Pump Instructions & Assembly PA200...
-
Page 3: Indication For Use
Congratulations ® ® Congratulations on your new Rumble Tuff Electric Breast Pump! The Rumble Tuff Electric Breast Pump is perfect for many occasions. ● Collecting breast milk while you're away from your baby ○ for example: when you're at work ●... -
Page 4: Table Of Contents
Table of Contents Congratulations ........................Indication for Use ........................Important Safeguards ................................................● DANGER ..........................● WARNING Parts Guide ..........................● Electrical Pump Main Unit ..........................................● Expression Collection Combo Kit How to Assemble the Expression Collection Kit .............. - Page 5 Troubleshooting ............................................. ● Interruption of Electrical Service ......................● Radio Frequency Energy ........................● Decreased Suction ..................● Breastmilk Buildup in the Breastshield Body ..................... ● Where to get Replacement Parts ....................● Where to get Additional Accessories ..................●...
-
Page 6: Important Safeguards
● Plug the AC adapter into the electrical outlet first, then plug the power cord into your Rumble Tuff Electric Breast Pump. ● Rumble Tuff has provided an AC adapter with this device. Using any other AC adapter not approved by the manufacturer voids the warranty. -
Page 7: Parts Guide

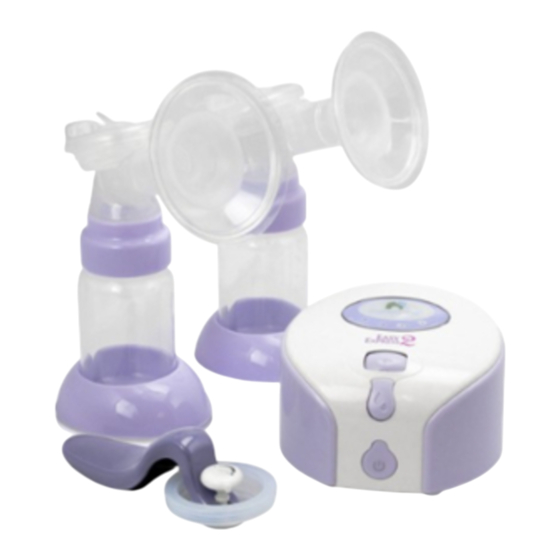

Parts Guide AC Adapter Vacuum Tube with Adapter Breast Pump Main Unit Bottle Adapter Kit Expression Collection Combo Kit English 4... -
Page 8: Electrical Pump Main Unit
Parts Guide ● Electrical Pump Main Unit TOP VIEW BOTTOM VIEW T3 T4 LED Screen Vacuum Adjusting Wheel Mode Button On/Off Button & Power LED Battery Cover Tubing Adapter Inlet AC Adapter Inlet English 5... -
Page 9: Expression Collection Combo Kit
Parts Guide ● Expression Collection Combo Kit Electric-pump Diaphragm Diaphragm Kit Cup with O-Ring Let-down Silicone Cushion Breastshield Body Expression One-Way Valve Collection Kit Bottle Adapter Collection Bottle Bottle Base English 6... -
Page 10: How To Assemble The Expression Collection Kit
How to Assemble the Expression Collection Kit ® Your Rumble Tuff Electric Breast Pump comes pre-assembled; however, you will need to re-assemble it after each cleaning. (For cleaning instructions, see page 20) Below is a step-by-step guide for assembling the Expression Collection Kit: 1. - Page 11 How to Assemble the Expression Collection Kit (Continued) 3. With your thumb and fore-finger, gently seal any openings on the tip of the One-Way Valve and shape into a straight line. Note: This is critical to the performance of the Pump. 4.
- Page 12 How to Assemble the Expression Collection Kit (Continued) 5. With the Bottle Adapter in one hand, twist the Collection Bottle for a secure fit. English 9...
-
Page 13: How To Assemble Electric-Pump Diaphragm Kit
How to Assemble Electric-pump Diaphragm Kit 1. With the Cup in one hand, place the Silicone Diaphragm in the Cup (matching the shape of the Cup). Press around the edges of the Diaphragm for a secure fit. Make sure the Diaphragm is evenly mounted on the Cup and there is no gap in between them. 2. -
Page 14: How To Assemble Expression Collection Combo Kit
How to Assemble the Expression Collection Combo Kit 1. Twist the Electric-Pump Diaphragm Kit clockwise into the Breastshield Body until it locks. Turn Clockwise 2. With the Breastshield Body in one hand, place the Silicone Cushion in the Breastshield Body (matching the shape of the horn). Secure the lip of the Cushion around the edges of the horn. - Page 15 How to Assemble the Expression Collection Combo Kit (Continued) 3. Take the open-end of Vacuum Tube (the end without the adapter) and connect to the Tubing Connector located on the Cap. Push together firmly for a tight seal. Note: Make sure there is no moisture in the tubing. Tubing Connector 4.
-
Page 16: Power Options
Power Options Your Electric Breast Pump may be operated under any of the following power supply modes: Using your AC Adapter (included): ● Electrical safety can only be achieved when using the AC Adapter which was provided with the Pump. Use of any another Adapters causes concern for the safety of the product and/or the user and voids the warranty. -
Page 17: Using 4 Aa Alkaline Batteries (Batteries Not Included)
(not included) ● Always replace all 4 batteries at the same time. ® ● Remove all batteries from the Electric Pump Base if the Rumble Tuff Electric Breast Pump is not going to be used for extended periods of time. -
Page 18: Install The Batteries(Aa Alkaline)
Install the Batteries(AA Alkaline): 1. Open the Battery Cover. 2. Remove the old batteries if you are replacing them. English 15... - Page 19 Install the Batteries AA Alkaline (Continued): 3. Insert 4 new AA Alkaline batteries. Note: Make sure the polarity is correct as indicated. 4. Close the Battery Cover, making sure it "snaps" into place. English 16...
-
Page 20: Pumping Instructions
Pumping Instructions 1. Hold the Expression Collection Kit to your breasts so that your nipples are centered inside the Breastshield. 2. Press the On/Off Button to begin pumping. English 17... - Page 21 Pumping Instructions (Continued) 3. Start pumping with T1 speed. T1 LED on Top panel lights up. 4. If you prefer a different pumping speed, just press the Mode Button to switch between 4 different speed modes. Suction speed gradually slows down from T1 to T4. Note: The Speed Mode is switched in following sequence: T1 ->...
- Page 22 Breastshield and the breasts, similar to the way you break away from your baby's suction. ® Note: If the Rumble Tuff Electric Breast Pump is left on, but unattended for more than 30 minutes, the Pump will automatically shut-off.
-
Page 23: Cleaning Instructions
First Use instruction above or the General Cleaning Instructions below. ● Ensure the tubing is free from any liquid. Do NOT operate your Rumble Tuff Electric Breast Pump if any liquid is visible in the tubing. (See Tubing Cleaning Instructions on page 21.) General Cleaning Instructions: ●... -
Page 24: Tubing Cleaning Instructions
Note: Before each use-visually inspect the individual components for cracks, chips, tears, discoloration or deterioration; ® as they may affect the efficiency of the Rumble Tuff Electric Breast Pump. In the event that damage to the device is observed, please discontinue use until the parts have been replaced. -
Page 25: Breastmilk Storage Guidelines
Breastmilk Storage Guidelines Check with your healthcare provider or an International Board Certified Lactation Consultant for specific storage instructions. This information is based on current research and applies to mothers who have healthy, full-term babies who are storing their milk for home use. Important Notes: ●... - Page 26 Breastmilk Storage Guidelines (Continued) Place Temperature How long Things to know 39°F or colder ● Up to 72 hours is best. Store milk in the back of the main body of Refrigerator ● Up to 5-8 days is okay for very the refrigerator.
-
Page 27: Tips
Tips Pumping Tips: The most important and successful part of pumping is the let-down reflex. The let-down reflex is when your milk begins to flow freely. ● Try relaxing with a warm, wet compress on your breasts. ● Sometimes a light circular massaging of the breasts prior to and/or during a pumping session will help your let-down reflex start/continue. -
Page 28: Battery Storage
Breastfeeding Tips: ® ● The Rumble Tuff Electric Breast Pump helps you maintain a supply of milk and can help you prepare for planned events such as "Date Night" or unexpected events such as power outages, medical treatment from tender nipples. -
Page 29: Troubleshooting
○ Inspect the One-Way Valve for any tears or pinholes. This component is critical to achieving proper suction. If ® damaged, replace the One-Way Valve with one of the spare valves that is provided with your Rumble Tuff Electric Breast Pump. -
Page 30: Breastmilk Buildup In The Breastshield Body
Electric Breast Pump to allow the milk to drain before gradually increasing. Where to get Replacement Parts: ® If you are missing a part or a part was damaged, please contact Rumble Tuff customer service by calling toll-free (855) 228-8388 Where to get Additional Accessories: ®... -
Page 31: Technical Data
Technical Data Power Requirements: ● AC Adapter (included) North American Plug configuration: Brand: Acute Ideas Model:AI-012W1201000, 100V ~ 240V AC, 50/60 Hz, 0.4A, wall plug type AC adapter with DC 12V/1A output. ● Batteries: 4 AA batteries; 1.5V Alkaline Technical Specifications: Ambient temperature range:+10 C to 40 C (50... -
Page 32: Warranty
® replacement parts or labor. The purchaser shall bear all expenses related to returning this product to Rumble Tuff This warranty does not apply to any part of the product that has been subject to misuse, abuse, or alteration. Only ®... - Page 33 ● Return Authorization Number (RA#) ● Detailed description of the problem You, the purchaser, are responsible for all shipping charges. ® To obtain an RA# and shipping address: Please contact Rumble Tuff Customer Service Department by; Toll-free (855) 228-8388, or E-mail to customerservice@rumbletuff.com, or...
- Page 34 ® Rumble Tuff is the trademark owned and operated by A Cute Baby, Inc. 865 N 1430 W Orem UT 84057-6402 Tel: (801) 609-8168 Fax: (801) 796-2688 www.rumbletuff.com www.acutebaby.com 75-PA20000-RT01...
