Rumble Tuff
Electric Breast Pump
Instructions & Assembly
Easy Express
C1說明書-(75-PA20000-RT01)-20130104-A.indd 1
2013/3/4 下午 03:38:52

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Easy Express and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rumble Tuff Easy Express

Summary of Contents for Rumble Tuff Easy Express

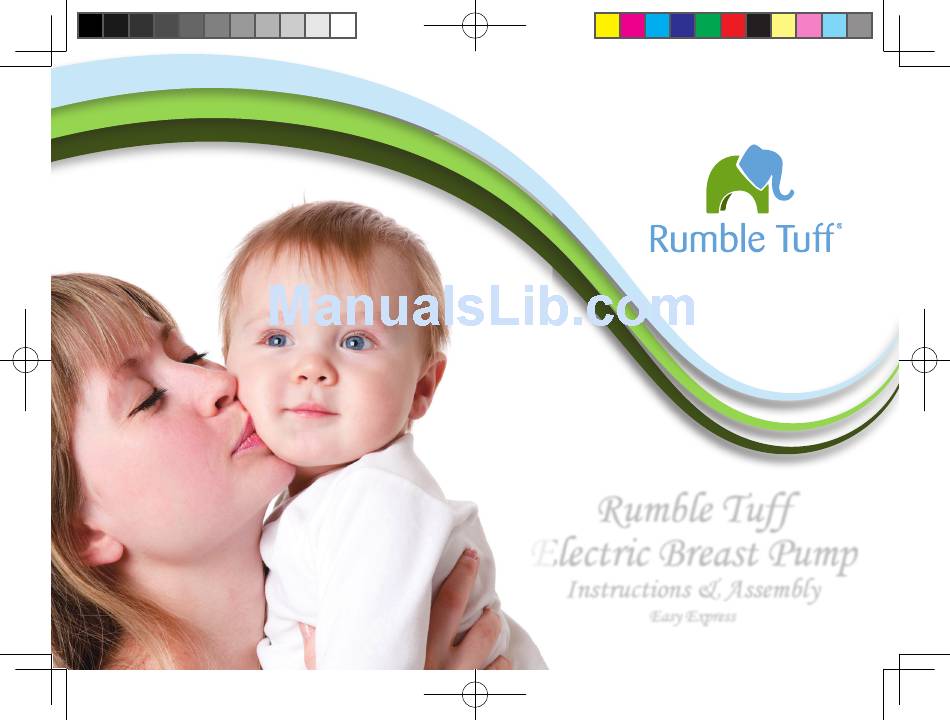

  • Page 1 Rumble Tuff Electric Breast Pump Instructions & Assembly Easy Express C1說明書-(75-PA20000-RT01)-20130104-A.indd 1 2013/3/4 下午 03:38:52...
  • Page 2 C1說明書-(75-PA20000-RT01)-20130104-A.indd 2 2013/3/4 下午 03:38:52...

  • Page 3: Indication For Use

    Congratulations Congratulations on your new Rumble Tuff Electric Breast Pump! The Rumble Tuff Electric Breast Pump is perfect for ® ® many occasions. ● Collecting breast milk while you're away from your baby ○ for example: when you're at work ●...

  • Page 4: Table Of Contents

    Table of Contents Congratulations ........................Indication for Use ........................Important Safeguards ................................................● DANGER ..........................● CAUTION ..........................● WARNING Parts Guide ................................................● Electrical Pump Main Unit ..................... ● Expression Collection Combo Kit How to Assemble the Expression Collection Kit ..............
  • Page 5 ........................● Breastfeeding Tips Troubleshooting ............................................. ● Interruption of Electrical Service ....................... ● Radio Frequency Energy ........................● Decreased Suction ..................● Breastmilk Buildup in the Breastshield Body ..................... ● Where to get Replacement Parts ....................● Where to get Additional Accessories ..................

  • Page 6: Important Safeguards

    Important Safeguards ® The Rumble Tuff Electric Breast Pump is designed for a single user and should never be shared or resold; doing so will void the warranty. READ ALL INSTRUCTIONS BEFORE USING DANGER: To reduce the risk of electrocution: ●...
  • Page 7 Electric Breast Pump. ● Rumble Tuff has provided an AC/DC Adapter and/or Li-Ion battery pack with this device. Using any other AC/DC Adapter or Li-Ion battery pack not approved by the manufacturer voids the warranty. ● If you are infected with Hepatitis A, Hepatitis B, or have HIV (Human Immunodeficiency Virus): pumping breast milk does not reduce or remove the risk of transmitting the virus to your baby through breast milk.

  • Page 8: Parts Guide

    Parts Guide AC/DC Adapter Vacuum Tubing with Adapter Breast Pump Main Unit Bottle Adapter Kit Expression Collection Combo Kit English 5 C1說明書-(75-PA20000-RT01)-20130104-A.indd 8 2013/3/4 下午 03:38:52...

  • Page 9: Electrical Pump Main Unit

    Parts Guide ● Electrical Pump Main Unit TOP VIEW BOTTOM VIEW T3 T4 LED Screen Vacuum Adjusting Wheel Expression Button Power Button Battery Cover Tubing Adapter Inlet AC/DC Adapter Inlet English 6 C1說明書-(75-PA20000-RT01)-20130104-A.indd 9 2013/3/4 下午 03:38:52...

  • Page 10: Expression Collection Combo Kit

    Parts Guide ● Expression Collection Combo Kit Electric-pump Diaphragm Diaphragm Kit Cup with O-Ring Breastshield Body Expression One-Way Valve Collection Kit Bottle Adapter Collection Bottle Bottle Base English 7 C1說明書-(75-PA20000-RT01)-20130104-A.indd 10 2013/3/4 下午 03:38:52...

  • Page 11: How To Assemble The Expression Collection Kit

    How to Assemble the Expression Collection Kit Your Rumble Tuff Electric Breast Pump comes pre-assembled; however, you will need to re-assemble it after each ® cleaning. (For cleaning instructions, see page 21) Below is a step-by-step guide for assembling the Expression Collection Kit: 1.
  • Page 12 How to Assemble the Expression Collection Kit (Continued) 3. With your thumb and forefinger, gently seal any openings on the tip of the One-Way Valve and shape into a straight line. Note: This is critical to the performance of the Pump. 4.
  • Page 13 How to Assemble the Expression Collection Kit (Continued) 5. With the Bottle Adapter in one hand, twist on the Collection Bottle for a secure fit. English 10 C1說明書-(75-PA20000-RT01)-20130104-A.indd 13 2013/3/4 下午 03:38:54...

  • Page 14: How To Assemble Electric-Pump Diaphragm Kit

    How to Assemble Electric-pump Diaphragm Kit 1. With the Cup in one hand, place the Diaphragm in the Cup (matching the shape of the Cup). Press around the edges of the Diaphragm for a secure fit. Make sure the Diaphragm is evenly mounted on the Cup and there is no gap in between them. 2.

  • Page 15: How To Assemble Expression Collection Combo Kit

    How to Assemble the Expression Collection Combo Kit 1. With the O-Ring side down, put the Electric Pump Diaphragm Kit into the top of the Breastshield Body opening. Twist the Electric- Pump Diaphragm Kit clockwise into the Breastshield Body until it locks into place. Turn Clockwise 2.
  • Page 16 How to Assemble the Expression Collection Combo Kit (Continued) 3. Make sure the Tubing Connector is properly inserted into the Tubing Adapter Inlet on the Electric Pump Main Unit. English 13 C1說明書-(75-PA20000-RT01)-20130104-A.indd 16 2013/3/4 下午 03:39:00...

  • Page 17: Power Options

    Power Options Your Electric Breast Pump may be operated under any of the following power supply modes: Using your AC/DC Adapter (included): ● Electrical safety can only be achieved when using the AC/DC Adapter which was provided with the Pump. Use of any another Adapters causes concern for the safety of the product and/or the user and voids the warranty.

  • Page 18: Using 4 Aa Alkaline Batteries (Batteries Not Included)

    Using 4 AA Alkaline Batteries (not included): 4 AA Batteries AA Battery Compartment (not included) ● Always replace all 4 AA Batteries at the same time. ● Remove all batteries from the Electric Pump Main Unit if the Pump is not going to be used for extended periods of time.

  • Page 19: Install The Batteries(Aa Alkaline)

    Install the Batteries(AA Alkaline): 1. Open the Battery Cover. 2. Remove the old batteries if you are replacing them. English 16 C1說明書-(75-PA20000-RT01)-20130104-A.indd 19 2013/3/4 下午 03:39:01...
  • Page 20 Install the Batteries AA Alkaline (Continued): 3. Insert 4 new AA Alkaline Batteries. Note: Make sure the polarity is correct as indicated. 4. Close the Battery Cover, making sure it "snaps" into place. English 17 C1說明書-(75-PA20000-RT01)-20130104-A.indd 20 2013/3/4 下午 03:39:02...

  • Page 21: Pumping Instructions

    Pumping Instructions 1. Hold the Expression Collection Kit to your breast so that your nipple is centered inside the Breastshield. Note: Please check for correct fitting of the shield. 2. Press the Power Button to begin pumping. English 18 C1說明書-(75-PA20000-RT01)-20130104-A.indd 21 2013/3/4 下午...
  • Page 22 Pumping Instructions (Continued) 3. Start pumping with T1 speed. T1 LED on Top panel lights up. 4. If you prefer a different pumping speed, just press the Expression Button to switch between 4 different speed modes. Suction speed gradually slows down from T1 to T4. Note: The Expression suction speed is switched in following sequence: T1 ->...
  • Page 23 Note: Make sure there is no suction on the nipples before removing the Breastshield. If necessary, break the suction by inserting a finger between the Breastshield and the breasts, similar to the way you break away from your baby's suction. Note: If the Rumble Tuff ®...

  • Page 24: Cleaning Instructions

    ● Make sure all parts are clean and dry. ● Ensure the Tubing is free from any liquid. Do NOT operate your Rumble Tuff Electric Breast Pump if any liquid is visible in the Tubing. (See Tubing Cleaning Instructions on page 22.) General Cleaning Instructions: Caution: Take care when cleaning the One-Way Valve.

  • Page 25: Tubing Cleaning Instructions

    USING. Do NOT insert any object into the Tubing. Note: Before each use-visually inspect the individual components for cracks, chips, tears, discoloration or deterioration; as they may affect the efficiency of the Rumble Tuff Electric Breast Pump. In the event that damage to the device ®...

  • Page 26: Breastmilk Storage Guidelines

    Breastmilk Storage Guidelines Check with your healthcare provider or an International Board Certified Lactation Consultant for specific storage instructions. This information is based on current research and applies to mothers who have healthy, full-term babies who are storing their milk for home use. Important Notes: ●...
  • Page 27 Breastmilk Storage Guidelines (Continued) Place Temperature How long Things to know 39°F or colder ● Up to 72 hours is best. Store milk in the back of the main body of Refrigerator ● Up to 5-8 days is okay for very the refrigerator.

  • Page 28: Tips

    Tips Pumping Tips: The most important and successful part of pumping is the let-down reflex. The let-down reflex is when your milk begins to flow freely. ● Try relaxing with a warm, wet compress on your breasts. ● Drink plenty of fluids. ●...

  • Page 29: Battery Storage

    ● When storing the battery for an extended period of time, store within the following temperature range: 32°F to 77°F (0°C to 25°C). Breastfeeding Tips: ● The Rumble Tuff Electric Breast Pump helps you maintain a supply of milk and can help you prepare for planned ®...

  • Page 30: Troubleshooting

    ○ If you do feel suction, the Electric Pump Base is operating properly. ○ If you do NOT feel suction or feel that the suction has decreased to an unexpected strength; contact Rumble Tuff Customer Service for warranty service (see Page 37).

  • Page 31: Breastmilk Buildup In The Breastshield Body

    If breastmilk doesn't appear to be draining fast enough into the Collection Bottle, reduce the suction setting on your Electric Breast Pump to allow the milk to drain before gradually increasing. Where to get Replacement Parts: If you are missing a part or a part was damaged, please contact Rumble Tuff ® customer service by calling toll-free (855)

  • Page 32: Technical Data

    Technical Data Power Requirements: ● AC/DC Adapter (included) North American Plug configuration: Brand: Acute Ideas Model:MLF-012W1201000, 100V ~ 240V AC, 50/60 Hz, 0.4A, wall plug type AC/DC Adapter with DC 12V/1A output. ● Batteries: 4 AA Batteries; 1.5V Alkaline Technical Specifications: VACUUM: T1 phase:-177mmHg(-23.6kpa) T2 phase:-216mmHg(-28.9kpa)

  • Page 33: Warranty

    , replace this product without charge for such ® ® replacement parts or labor. The purchaser shall bear all expenses related to returning this product to Rumble Tuff ® . This warranty does not apply to any part of the product that has been subject to misuse, abuse, or alteration. Only Rumble...
  • Page 34 ● Return Authorization Number (RA#) ● Detailed description of the problem You, the purchaser, are responsible for all shipping charges. To obtain an RA# and shipping address: Please contact Rumble Tuff Customer Service Department by; ® Toll-free (855) 228-8388, or E-mail to customerservice@rumbletuff.com, or...
  • Page 35 Rumble Tuff is owned and operated by ® A Cute Baby, Inc. 865 N 1430 W Orem UT 84057-6402 Tel: (801) 609-8168 Fax: (801) 796-2688 www.rumbletuff.com www.acutebaby.com 75-PA200S0-RT01 C1說明書-(75-PA20000-RT01)-20130104-A.indd 35 2013/3/4 下午 03:39:04...
