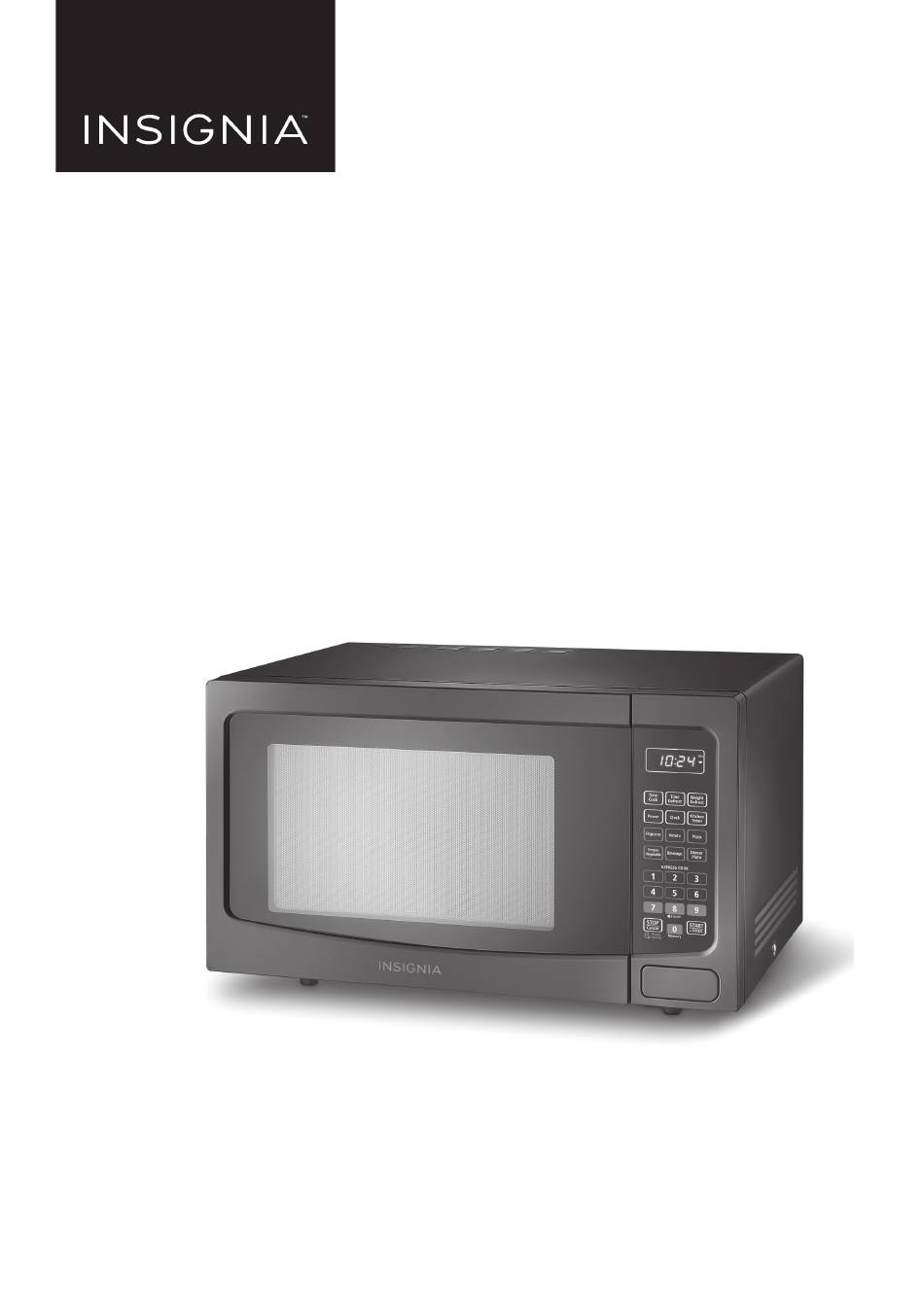

- Page 1 USER GUIDE 1.1 Cu. Ft. Microwave Oven NS-MW11BK0 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents Introduction ..................3 IMPORTANT SAFETY INSTRUCTIONS . -
Page 3: Introduction
NS-MW11BK0 Countertop Microwave Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-MW11BK0 represents the state of the art in microwave design and is designed for reliable and trouble-free performance. IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following: WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1 Read all instructions before using the appliance. -
Page 4: Cookware And Cooking Materials
Countertop Microwave Grounding instructions This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. -
Page 5: Materials You Can Use
NS-MW11BK0 Cookware and Materials Test: 1 Fill a microwave-safe container with 1 cup (250 ml) of cold water, along with the cookware or materials in question. 2 Cook on maximum power for one minute. Do not exceed one minute cooking time. -
Page 6: Features
Countertop Microwave Features • 1,000 W of power quickly heats food • Six presets easily cook your favorite foods • 12.4-inch (31.5 cm) turntable helps evenly heat food • Internal LED light shows your food • Eleven power levels heat food to perfection •... -
Page 7: Control Panel
NS-MW11BK0 Control panel ITEM DESCRIPTION In standby mode, displays the time. Display In cooking mode, displays cooking time, weight, and other information. Press to set the amount of time you want to heat your food, then press the number Time cook buttons to enter the time you want (up to 99 minutes and 99 seconds). -
Page 8: Setting Up Your Microwave Oven
Countertop Microwave Setting up your microwave oven 1 Remove all packing material, protective film, and accessories. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. 2 Check for any damage such as dents or a broken door. Do not use the microwave if it is damaged. 3 Select a level surface that provide enough open space for the vents: CAUTION: Do not install the microwave over a range cooktop or other heat-producing appliance. -
Page 9: Using The Kitchen Timer
NS-MW11BK0 Using the kitchen timer 1 Press Kitchen Timer. The display shows “00:00” and the first digit flashes. 2 Use the number pad to enter the time (up to 99 minutes and 99 seconds), then press START/+30SEC. When the time reaches 0, the buzzer rings. -
Page 10: Defrosting In Your Microwave
Countertop Microwave Dinner plate 1 Press Dinner Plate repeatedly until the weight of your food (9.0, 12.0, or 18.0 ounces) is shown on the display. 2 Press START/+30SEC to start. The buzzer sounds once, then heats your food. Pizza 1 Press Pizza repeatedly until the weight of your food (4.0, 8.0, or 14.0 ounces) is shown on the display. 2 Press START/+30SEC to start. -
Page 11: Cleaning And Maintaining Your Microwave
NS-MW11BK0 3 Press Power, then enter the power level that you want (1-10). The default power level is 100% (PL10). Level Power 100% 90% Display PL10 4 (Optional) If you want to add a second stage, repeat steps 2-3. You can only add two stages to a memorized procedure. -
Page 12: Troubleshooting
The “:” colon on the The colon blinks to count seconds when This is normal behavior. display is blinking the clock is set. Obtaining replacement parts Call Insignia Customer Service at 1-877-467-4289. Specifications NS-MW11BK0 Model Rated voltage 120 V / 60 Hz... -
Page 13: One-Year Limited Warranty
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 14 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2019 Best Buy. All rights reserved.
