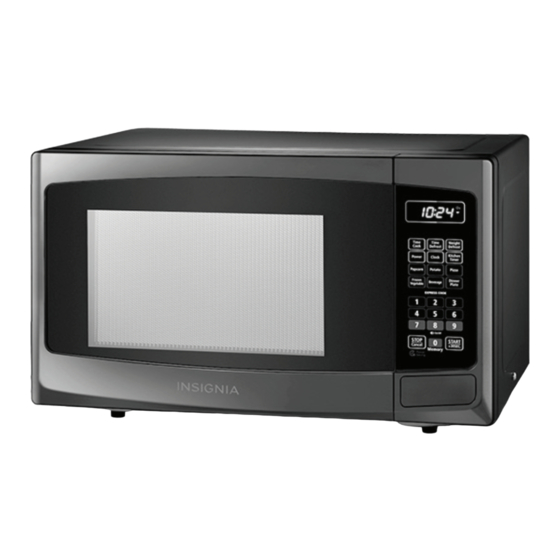

- Page 1 USER GUIDE .9 Cu. Ft. Microwave Oven NS-MW09BK0 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents SAFETY INFORMATION ............3 GROUNDING INSTRUCTIONS . -
Page 3: Safety Information
.9 Cu. Ft. Microwave Oven SAFETY INFORMATION PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY: Do not attempt to operate this oven with the door open because this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. - Page 4 NS-MW09BK0 Some products, such as whole eggs and sealed containers (for example closed glass jars), are able to explode and should not be heated in this oven. Use this oven only for its intended purpose, as described in this manual. Do not use corrosive chemicals or vapors in this oven.
-
Page 5: Grounding Instructions
.9 Cu. Ft. Microwave Oven GROUNDING INSTRUCTIONS WARNING: Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this oven. Improper grounding can result in electric shock. Do not plug into an outlet until the oven is properly installed and grounded. -
Page 6: Materials You Can Use
NS-MW09BK0 Cookware and Materials Test: Fill a microwave-safe container with 1 cup (250 ml) of cold water, along with the cookware or materials in question. Cook on maximum power for one minute. Do not exceed one minute cooking time. Carefully feel the cookware or material. If the empty cookware or material is warm, do not use it for microwave cooking. -
Page 7: Materials To Be Avoided
.9 Cu. Ft. Microwave Oven Materials to be avoided MATERIAL REMARKS Aluminum foil May cause an electric spark. Use a microwave-safe dish instead. Aluminum tray May cause an electric spark. Use a microwave-safe dish instead. Food carton with May cause an electric spark. Use a microwave-safe dish instead. metal handle Metal or metal Metal shields the food from microwave energy. -
Page 8: Components
NS-MW09BK0 Components ITEM DESCRIPTION Observation Use to view the item being cooked. window Safety interlock Prevents your microwave from operating when the door is open. system Door assembly Protects you from exposure to excessive microwave energy. Control panel Use to set cooking times and enter other information as needed. -
Page 9: Control Panel
.9 Cu. Ft. Microwave Oven Control panel ITEM DESCRIPTION Display In standby mode, displays the time. In cooking mode, displays cooking time, weight, and other information. Time Defrost Press this button, then enter the time you want for an item to defrost. Time Cook Press this button, then enter the time you want for an item to cook. -
Page 10: Setting Up Your Microwave
NS-MW09BK0 ITEM DESCRIPTION Clock Press to set the clock, then press the number buttons to enter the current time. Number buttons Press to enter cook time, defrost time, clock time, and other information. STOP/Cancel Press to stop the cooking process. Press again to cancel the cooking operation. -
Page 11: Installing The Turntable
.9 Cu. Ft. Microwave Oven Plug your microwave into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label. CAUTIONS: • Do not mount your microwave under a cabinet. •... -
Page 12: Using Your Microwave
NS-MW09BK0 Using your microwave Understanding and setting the power level The following table shows the 11 power levels available. LEVEL Power 100% 90% Display PL10 PL9 Press Power once. The display shows “PL10” (the default power is 100%). Press the number keys to adjust the power level. For example, press 5 to set the power level to 50%. -
Page 13: Cooking Quickly
.9 Cu. Ft. Microwave Oven Press START/+30SEC. to start cooking. Notes: • When setting your microwave, if the STOP/CANCEL button is pressed or if there is no operation within one minute, your microwave goes back to the former setting automatically. •... -
Page 14: Cooking Potatoes
NS-MW09BK0 Cooking potatoes Press Potato repeatedly until the number of potatoes you want to cook shows on the display. The display cycles through “1”>”2”>”3" medium potatoes. Press START/+30 SEC.. When the food is cooked, the buzzer sounds five times and your microwave returns to standby mode. -
Page 15: Using Multi-Stage Cooking
.9 Cu. Ft. Microwave Oven To use a memorized procedure: Put the item to be cooked into your microwave and close the door. Press 0/MEMORY repeatedly to cycle through memory 1, 2, or 3. The display shows “1”, “2, ” or “3. ” Stop when you get to the memorized procedure you want to use. Press START/+30 SEC. -
Page 16: Turning Off The Buzzer
NS-MW09BK0 Turning off the buzzer In standby mode, press and hold number 8 on the control panel for three seconds. A long beep sounds and the buzzer is turned off. To turn the buzzer back on, press and hold the number 8 button on the control panel for three seconds. -
Page 17: Maintaining Your Microwave
27.3 lbs. (12.4 kg) Legal notices Copyright INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2019 Best Buy. All rights reserved. -
Page 18: One-Year Limited Warranty
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. - Page 19 • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults”...
- Page 20 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2019 Best Buy. All rights reserved. V2 ENGLISH...
