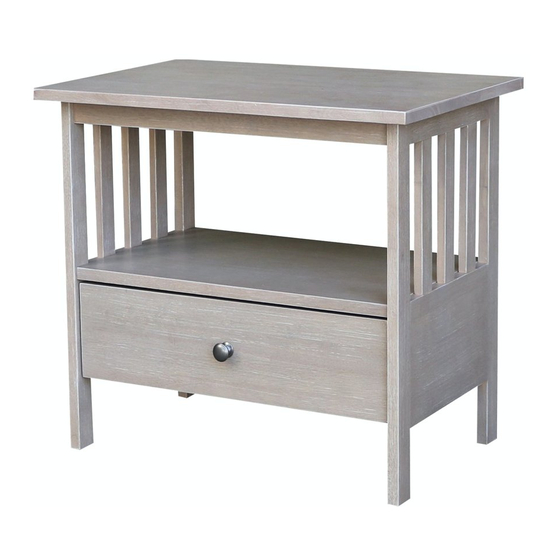

- Page 1 Serious or fatal injuries can occur from furniture tip over. Use tip over restraint (provided) to secure this product to the wall. Description : 28 IN MISSION TV STAND WITH DRAWER Item No. : TV-28 ITEM NO.: TV-28 Printed in Vietnam REVISED APR 03, 2020 - 1 -...
- Page 2 Protect the surface of the product with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: TV-28 Printed in Vietnam REVISED APR 03, 2020 - 2 -...
- Page 3 Description Sketch Description Sketch Drawer front Side frame Drawer side (L-R) (L-R) Shelf Drawer back Drawer Support Rail bottom Back panel NOTE: WARNING LABEL (INCLUDED) ITEM NO.: TV-28 Printed in Vietnam REVISED APR 03, 2020 - 3 -...
- Page 4 L-Bracket (M4 x 50mm) Short Screw Steel Tip Bracket (M3.5 x 15mm) Short Pan Head Screw Flat Nylon Tie (M3.5 x 15mm) Long Screw (M4 x 35mm) ITEM NO.: TV-28 Printed in Vietnam REVISED APR 03, 2020 - 4 -...
- Page 5 STEP 2 Slide back panel (E) into the grooves, then attach back panel (E) to the unit with screws (7) as shown below. Tighten with a screwdriver. ITEM NO.: TV-28 Printed in Vietnam REVISED APR 03, 2020 - 5 -...
- Page 6 STEP 4 Carefully put the drawer into the unit. Attach knob (10) to front of drawer with pan head screw (9) as shown below. Tighten with a screwdriver. ITEM NO.: TV-28 Printed in Vietnam REVISED APR 03, 2020 - 6 -...
- Page 7 Lace the end of flat nylon ties (14) through the larger holes in each mounting bracket. Bring both ends together and slide the flat ends through the locking ends and draw it through until all slack is removed. Confirm that the strap is securely laced and locked. ITEM NO.: TV-28 Printed in Vietnam REVISED APR 03, 2020...
