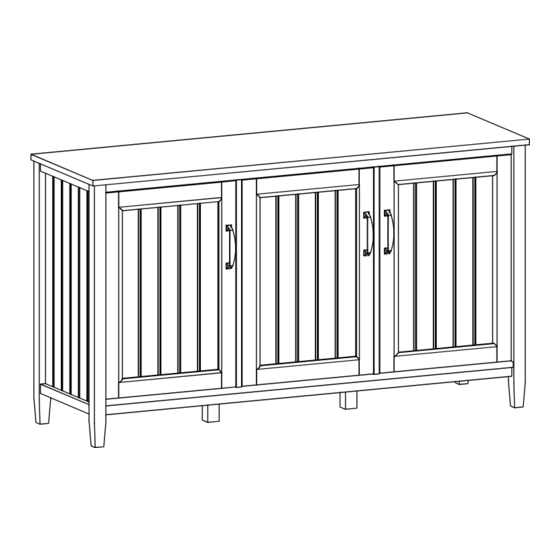

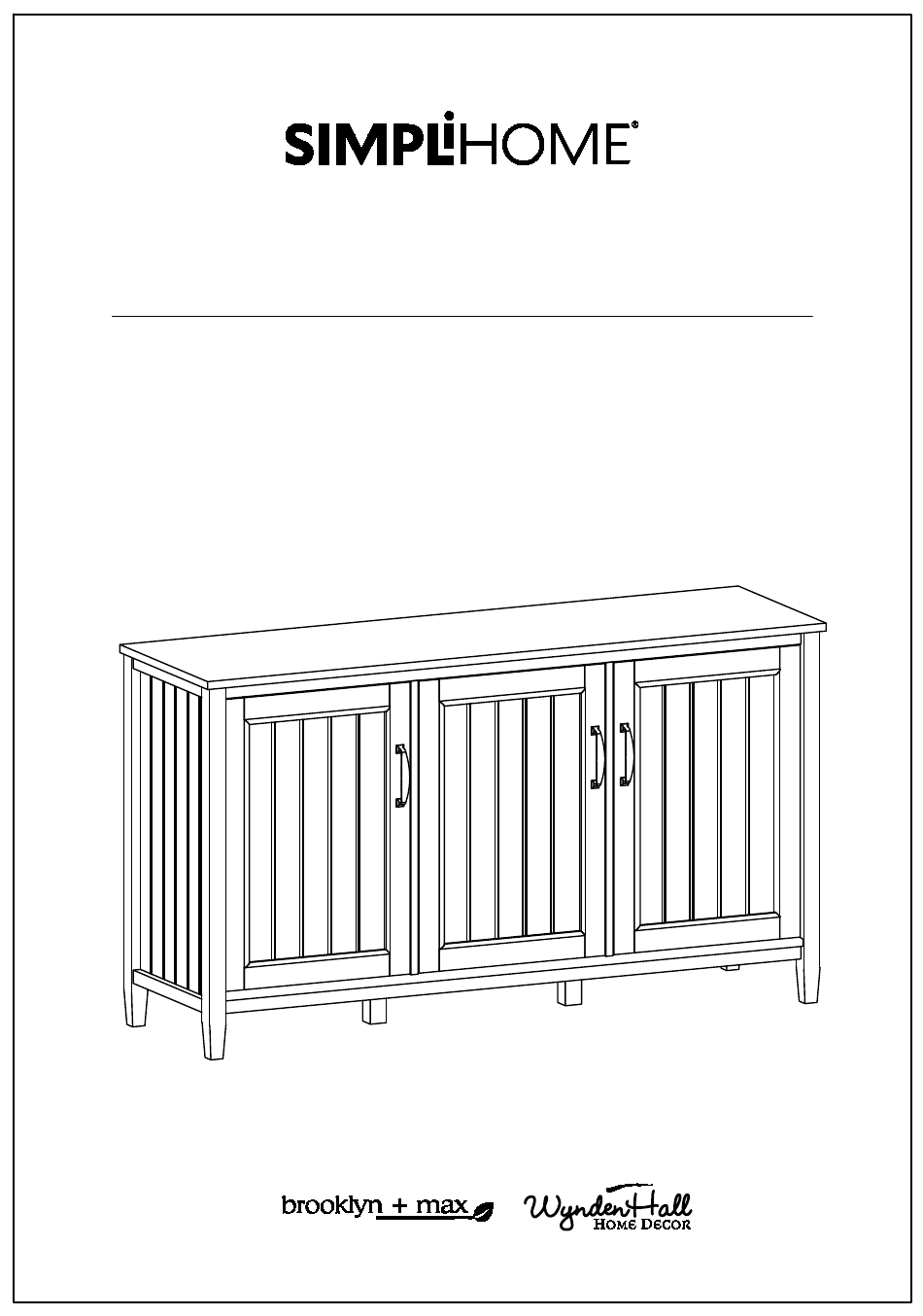

- Page 1 Lev / Rowan / Cadwyn Wide Storage Cabinet Model # AXCLEV39-SMB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # AXCLEV39-SMB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER BOTTOM FRAME QTY 1 QTY 1 QTY 1 SHELF RIGHT DOOR LEFT DOOR QTY 3 QTY 1 QTY 2 Warning Label LEFT BACK PANEL RIGHT BACK PANEL... - Page 8 Pre-Assembly Information Model # AXCLEV39-SMB Hardware Description CAM LOCK PIN HANDLE ALLEN KEY SCREW CAM LOCK M4 X 15mm ALLEN KEY M6 X 30mm QTY 3 SETS QTY 1 QTY 18 QTY 6 SETS PHILLIPS SCREW WOOD DOWEL ROUND HEAD MAGNET AND PLATE SHELF SUPPORT Ø8 X 30mm...
- Page 9 Components - Key Diagram Model # AXCLEV39-SMB...
- Page 10 Assembly Model # AXCLEV39-SMB Step 1 1. Insert Dowels 7 into guide holes on parts CL , CR , D . 2. Use rubber mallet to tap Dowels 7 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 11 Assembly Model # AXCLEV39-SMB Step 2 1. Align Wood Dowels with guide holes and attach parts CL , CR to part D . 2. Use six Allen Key Screws 1 to attach parts CL , CR through guide holes from part D to pre-drilled holes of each part CL , CR . 3.
- Page 12 Assembly Model # AXCLEV39-SMB Step 3 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each Side BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert two Dowels 7 into guide holes on each Side BL , BR . 4.
- Page 13 Assembly Model # AXCLEV39-SMB Step 4 6. Turn assembled pieces right side up.
- Page 14 Assembly Model # AXCLEV39-SMB Step 5 1. Align Wood Dowels with guide holes and attach Top A to Sides BL , BR . 2. Attach Top A to Sides BL , BR using six Allen Key Screws 1 ( Three Screws on each Side ). 3.
- Page 15 Assembly Model # AXCLEV39-SMB Step 6 Note: Warning Label 1. Attach parts GL , GR , G to back frame by using Phillips Screws Round Head 5 . 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten. Step 7 1.
- Page 16 Assembly Model # AXCLEV39-SMB Step 8 1. Attach Adjustable Hinges 10 on Doors FL , FR to Sides BL , BR using Phillips Screws 11 into guide holes on Sides BL , BR . 2. Use Phillips screwdriver to snugly tighten screws. Step 9 1.
-
Page 17: Important Note
Assembly Model # AXCLEV39-SMB Step 10 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 18 Assembly Model # AXCLEV39-SMB Step 11 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 6 for each Cabinet Shelf E in desired location. 2. Two Shelf Supports 6 may be used on back top of each Cabinet Shelf E as a tipping restraint.
- Page 19 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 12 NOTE: The screwdriver is not included in the hardware pack.
- Page 20 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
