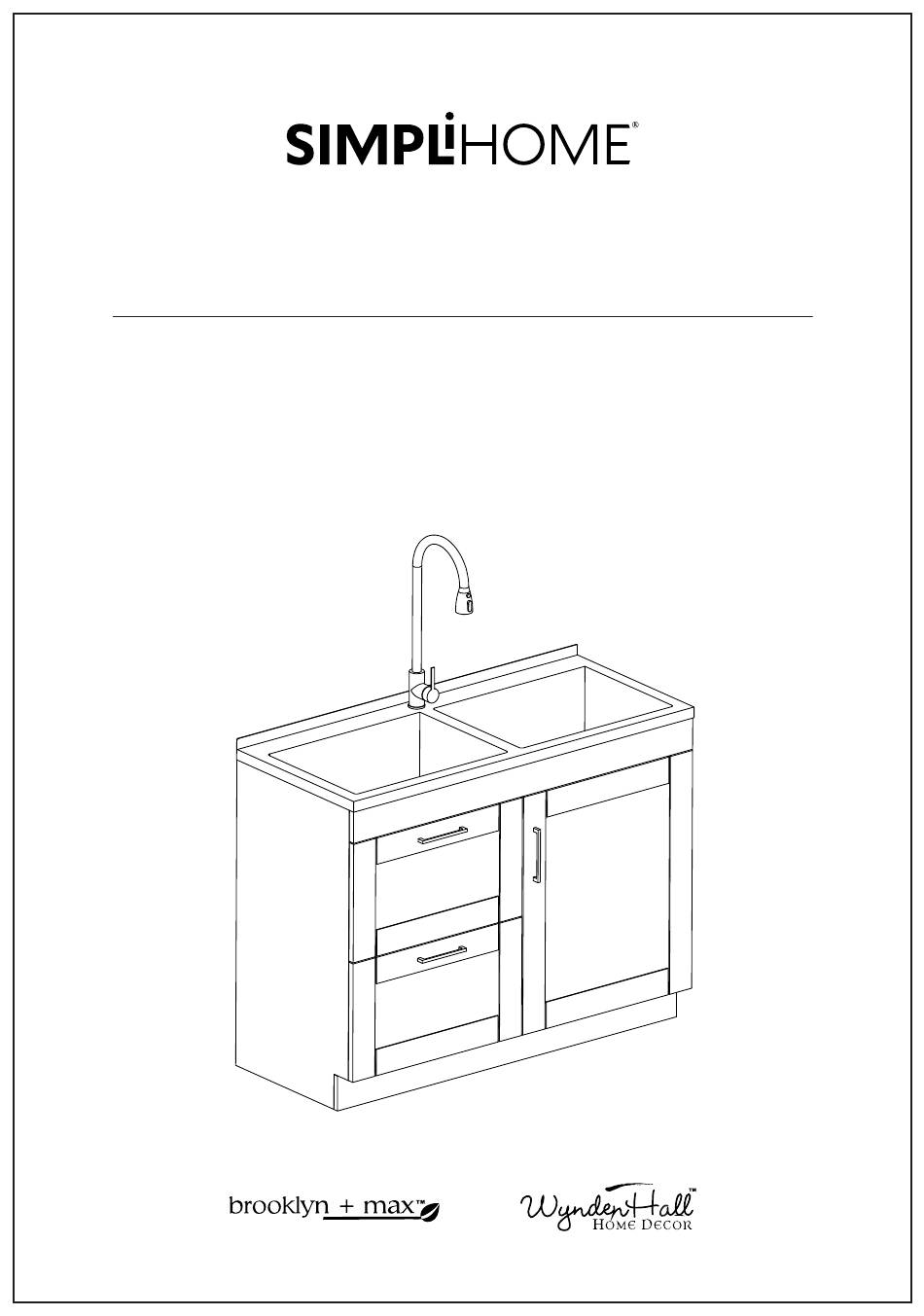

- Page 1 Modern / Marina / Tudor 46 inch Wide Shaker Laundry Cabinet with Faucet and Dual SS Sink Model # AXCLDYDRA46-SS...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information This furniture is designed for indoor use. Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. - Page 6 Pre-Assembly Information Model # AXCLDYDRA46-SS Cabinet Parts BOTTOM PANEL RIGHT SIDE PANEL BACK BOTTOM PANEL QTY 1 QTY 1 QTY 1 BACK TOP PANEL BACK MIDDLE PANEL LEFT SIDE PANEL QTY 1 QTY 1 QTY 1 FRONT BOTTOM PANEL FRONT TOP PANEL FRONT TOP PANEL QTY 1 QTY 1...
- Page 7 Pre-Assembly Information Model # AXCLDYDRA46-SS Cabinet Parts DRAWER PANEL DRAWER FRONT DRAWER BACK QTY 2 QTY 1 QTY 1 DRAWER RIGHT AND LEFT DRAWER BOTTOM SINK QTY 2 QTY 1 QTY 1 FRONT TOP PANEL QTY 1...
- Page 8 Pre-Assembly Information Model # AXCLDYDRA46-SS Drain Parts DRAIN PLUG ASSEMBLY DRAIN BOWL ASSEMBLY DRAIN WASHER BLACK QTY 1 QTY 1 QTY 1 THREAD WASHER PIPE WASHER COUPLING BLACK QTY 1 QTY 1 QTY 1 STRAIGHT DRAIN PIPE BLACK COUPLING BLACK PIPE WASHER WHITE QTY 1 QTY 2...
- Page 9 Pre-Assembly Information Model # AXCLDYDRA46-SS Faucet Parts FAUCET BODY FAUCET WASHER RUBBER FAUCET WASHER STEEL QTY 1 QTY 2 QTY 1 BRASS NUT ASSEMBLY FAUCET SEALING RING WEIGHT BLOCK QTY 1 QTY 1 QTY 1...
-
Page 10: Self-Tapping Screw
Pre-Assembly Information Model # AXCLDYDRA46-SS Hardware Parts CAM LOCK CAM PIN WOOD DOWEL QTY 37 QTY 37 QTY 20 SELF-TAPPING SCREW PHILLIPS SCREW HANDLE M4 x 14 M4 x 25 M4 x 40 M4 x 23 QTY 21 QTY 17 QTY 9 QTY 3 QTY 6... - Page 11 Components - Key Diagram Model # AXCLDYDRA46-SS...
- Page 12 Assembly Model # AXCLDYDRA46-SS Step 1 Screw Cam Pins (II) into the pre-drilled small holes on Left Panel (F) and Right Panel (B). Insert Self-Tapping Screw (IV) M4 x 14 through the hole of Slide Rail (VII), then screw into the small hole of Left Side Panel (F).
- Page 13 Assembly Model # AXCLDYDRA46-SS Step 2 Screw Cam Pins (II) into the pre-drilled small holes on Middle Panel (J). Insert Self-Tapping Screw (IV) M4 x 14 through the hole of Slide Rail (VII), then screw into the small hole of Middle Panel (J).
- Page 14 Assembly Model # AXCLDYDRA46-SS Step 3 Screw Cam Pins (II) into the pre-drilled small holes on Bottom Panel (A) and Back Middle Panel (E).
- Page 15 Assembly Model # AXCLDYDRA46-SS Step 4 Insert Wood Dowels (III) into the pre-drilled holes of Middle Panel (J). Attach Middle Panel (J) to Back Middle Panel (E) and Bottom Panel (A). Insert Cam Locks (I) into pre-drilled holes on Middle Panel (J). Tighten with the Screwdriver.
- Page 16 Assembly Model # AXCLDYDRA46-SS Step 5 Insert Wood Dowels (III) into the pre-drilled holes of Front Top Panels (I), (H) and (S). Attach Middle Panel (J) to Front Top Panels (I), (H) and (S). Insert Cam Locks (I) into the pre-drilled holes of Front Top Panels (I), (H) and (S). Tighten with the Screwdriver.
- Page 17 Assembly Model # AXCLDYDRA46-SS Step 6 Insert Wood Dowels (III) into the pre-drilled holes of Bottom Panel (A), Front Top Panels (H), (I) and (S) and Back Bottom Panel (C), Back Middle Panel (E) and Back Top Panel (D). Attach Bottom Panel (A), Front Top Panels (H), (I) and (S), Back Bottom Panel (C), Back Middle Panel (E),Back Top Panel (D) to Right Side Panel (B) and Left Side Panel (F).
- Page 18 Assembly Model # AXCLDYDRA46-SS Step 7 Screw Cam Pins (II) into the pre-drilled small holes on Kick Plate Panel (G). Insert Cam Pins (II) into the pre-drilled holes on both Side Panels. Insert Cam Locks (I) into pre-drilled holes on both Side Panels. Tighten with the Screwdriver.
- Page 19 Assembly Model # AXCLDYDRA46-SS Step 8 Insert Self-Tapping Screws M4 x 25 though the holes of Front Top Panels and screw into the Top Panel (K).
- Page 20 Assembly Model # AXCLDYDRA46-SS Step 9 Use the Screwdriver to attach the door hinges with Self-Tapping Screws (IV) M4 x 14.
- Page 21 Assembly Model # AXCLDYDRA46-SS Step 10 Insert Self-Tapping Screws M4 x 25 though the holes of Front Top Panels and screw into the Drawer Panel (M).
- Page 22 Assembly Model # AXCLDYDRA46-SS Step 11 Insert Dowels into the holes of Drawer Front( N) and Drawer Back (O). Attach Drawer Left (P ) to Drawer Front (N) and Drawer Back (O). Use the Screwdriver to attach the Drawer Left (P) with Self-Tapping Screws (IV) M4 x 40.
- Page 23 Assembly Model # AXCLDYDRA46-SS Step 12 M4X40 Place the Drawer Bottom (Q) into the slot of the Drawer Front (M), Drawer Back (O) and Drawer Left (P). Attach Drawer Right (P) to Drawer Front (M) and Drawer Back (O). Use the Screwdriver to attach the Drawer Right (P) with Self-Tapping Screw (IV) M4 x 40.
- Page 24 Assembly Model # AXCLDYDRA46-SS Step 13 VIII M4X14 VIII Use the Screwdriver to attach the Slide Rails (VIII) with Self-Tapping Screws (IV) M4 x 40 and screw Self-Tapping Screw (IV) M4 x 14 into the small holes of Drawer Left (P) and Drawer Right (P).
- Page 25 Assembly Model # AXCLDYDRA46-SS Step 14 Place the Drawer into the cabinet.
- Page 26 Assembly Model # AXCLDYDRA46-SS Step 15 Insert Self-Tapping Screws M4 x 25 though the holes of Drawer Front and screw into the Drawer Panel (M).
- Page 27 Assembly Model # AXCLDYDRA46-SS Step 16 M4X23 Use the Screwdriver to attach the Handle (VI) with Philips Screws (V) M4 x 23.
- Page 28 Assembly Model # AXCLDYDRA46-SS Step 17 Wall Anchors Screw Pierce holes in the wall and insert Wall Anchors (IX) into the holes. Insert the Screw (IX) through Panel (D) and then insert it into the Wall Anchor to lock in place.
- Page 29 Assembly Model # AXCLDYDRA46-SS Step 18 Place a Rubber Washer (BB) onto the end of the Faucet (AA) and insert the faucet through the top of the Sink (R). From underneath the Sink (R), secure the Faucet (AA) to the Sink (R)using a RubberWasher (BB), Steel Washer (CC) and Brass Nut Assembly (DD).
- Page 30 Assembly Model # AXCLDYDRA46-SS Step 19 Attach the Weight Block (FF) to the faucet hose and screw in place to secure.
- Page 31 Assembly Model # AXCLDYDRA46-SS Step 20 Place the Sink (R) with the attached Faucet (AA) on top of the cabinet.
- Page 32 Assembly Model # AXCLDYDRA46-SS Step 21 Put the Drain Washer (3) on the top of the drain opening in the Sink (R). Put the Drain Bowl (2) on the Drain Washer (3) through the drain opening. From underneath the sink fasten the Threaded Washer (4) onto the Drain Bowl (2) and tighten. Insert the Drain Plug (1) into the Drain Bowl (2).
- Page 33 Assembly Model # AXCLDYDRA46-SS Step 22 Fasten the nuts of the hoses (not included in package) to the nut ends of the faucet body. Fasten the nuts of the hoses (not included in package) to the water outlet: o Red striped hose to Hot water supply o Blue striped hose to Cold water supply Ensure to only tighten the nut and not twist the supply hose.
- Page 34 Assembly Model # AXCLDYDRA46-SS Step 23 Put a Pipe Washer (5) onto the Straight Drain Pipe (7). Connect the Straight Drain Pipe (7) to the drain and fasten the Coupling (6). Put the Coupling (8) into the Straight Drain Pipe (7) and put a Pipe Washer (9) into the Straight Drain Pipe (7).
- Page 35 Assembly Model # AXCLDYDRA46-SS Step 24 Use the Screwdriver to re-align or adjust the hinges that attach the doors to the cabinet.
