SIMPLIHOME brooklyn + max WyndenHall AXCLEV13-SMB Manual

Lev / rowan / cadwyn entryway storage bench
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

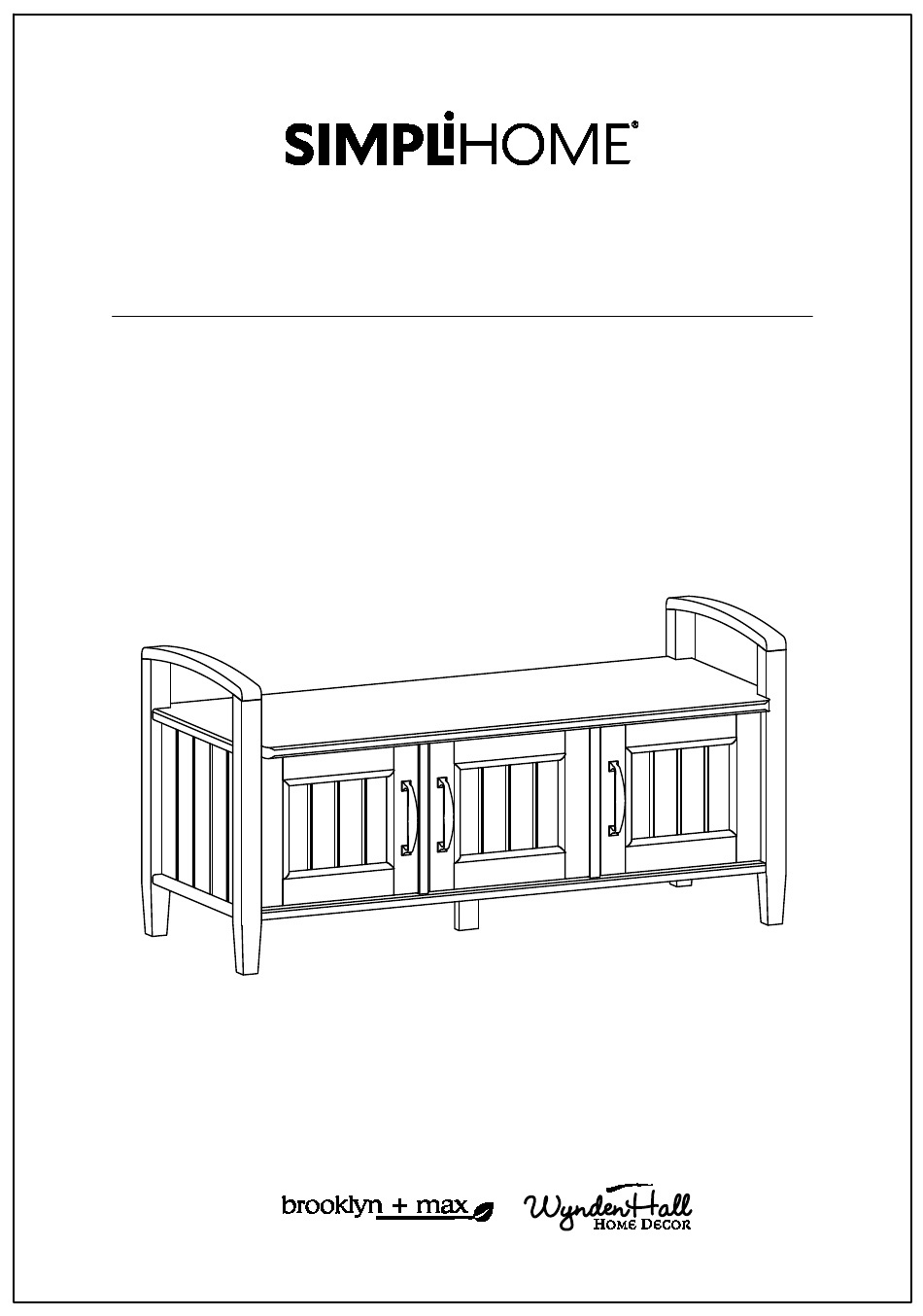

Lev / Rowan / Cadwyn
Entryway Storage Bench
Model # AXCLEV13-SMB
TM
TM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCLEV13-SMB and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCLEV13-SMB

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCLEV13-SMB

  • Page 1 Lev / Rowan / Cadwyn Entryway Storage Bench Model # AXCLEV13-SMB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.

  • Page 7: Pre-Assembly Information

    Pre-Assembly Information Model # AXCLEV13-SMB Part Description LEFT SIDE RIGHT SIDE SEAT QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 Warning Label BACK DOOR (L&R Same) SHELF QTY 3 QTY 1 QTY 3 BOTTOM SUPPORT LEG QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCLEV13-SMB Hardware Description CAM LOCK PIN HANDLE ALLEN KEY SCREW M4 X 15mm CAM LOCK M6 X 30mm QTY 4 SETS QTY 3 SETS QTY 20 PHILLIPS SCREW ALLEN KEY M4 X 30mm SHELF SUPPORT QTY 1 QTY 4 QTY 18 WOOD DOWEL...
  • Page 9 Components - Key Diagram Model # AXCLEV13-SMB...
  • Page 10 Assembly Model # AXCLEV13-SMB Step 1 1. Attach two Cam Lock Pins 2 into pre-drilled holes on each Side AL , AR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 1. Insert four Wood Dowels 7 into guide holes on Back F . 2.
  • Page 11 Assembly Model # AXCLEV13-SMB Step 2 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Back F to Left Side AL . 2. Use three Allen Key Screws 1 to attach Seat B through guide holes from Seat B to pre-drilled holes of Left Side AL . 3.
  • Page 12 Assembly Model # AXCLEV13-SMB Step 3 1. To attach Right Side AR to Seat B and Back F , repeat step 2.
  • Page 13 Assembly Model # AXCLEV13-SMB Step 4 1. Attach Dividers DL , DR to Seat B using six Allen Key Screws 1 . 2. Use Allen Key 4 to tighten screws. Do not over-tighten. Step 5 1. Use ten Allen Key Screws 1 to attach Bottom Shelf C through guide holes from Bottom Shelf B to pre-drilled holes of Sides AL , AR and Dividers DL , DR.
  • Page 14 Assembly Model # AXCLEV13-SMB Step 6 1. Attach Bottom Support Leg H into guide holes of Bottom Shelf C using four Phillips Screws 5 . 2. Use Phillips screwdriver to tighten Screws. Do not over-tighten. Step 7 1. Attach Adjustable Hinges 10 to Doors E using Phillips Screws 11 into pre-drilled holes on Doors F .
  • Page 15 Assembly Model # AXCLEV13-SMB Step 8 1. Attach Adjustable Hinges 10 on Doors E to Sides AL , AR and Divider DR using Phillips Screws 11 into guide holes on Sides AL , AR and Divider DR . 2. Use Phillips screwdriver to snugly tighten screws.

  • Page 16: Important Note

    Assembly Model # AXCLEV13-SMB Step 9 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1.
  • Page 17 Assembly Model # AXCLEV13-SMB Step 10 1. Attach Magnets 8 to Bottom Shelf C using Phillips Screws 9 into pre-drilled holes on Bottom Shelf C . 2. Attach Magnet Plates 8 using Phillips Screws 9 into pre-drilled holes on Doors E . 3.
  • Page 18 Assembly Model # AXCLEV13-SMB Step 11 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 6 for each Cabinet Shelf G in desired location. 2. Two Shelf Supports 6 may be used on back top of each Cabinet Shelf G as a tipping restraint.
