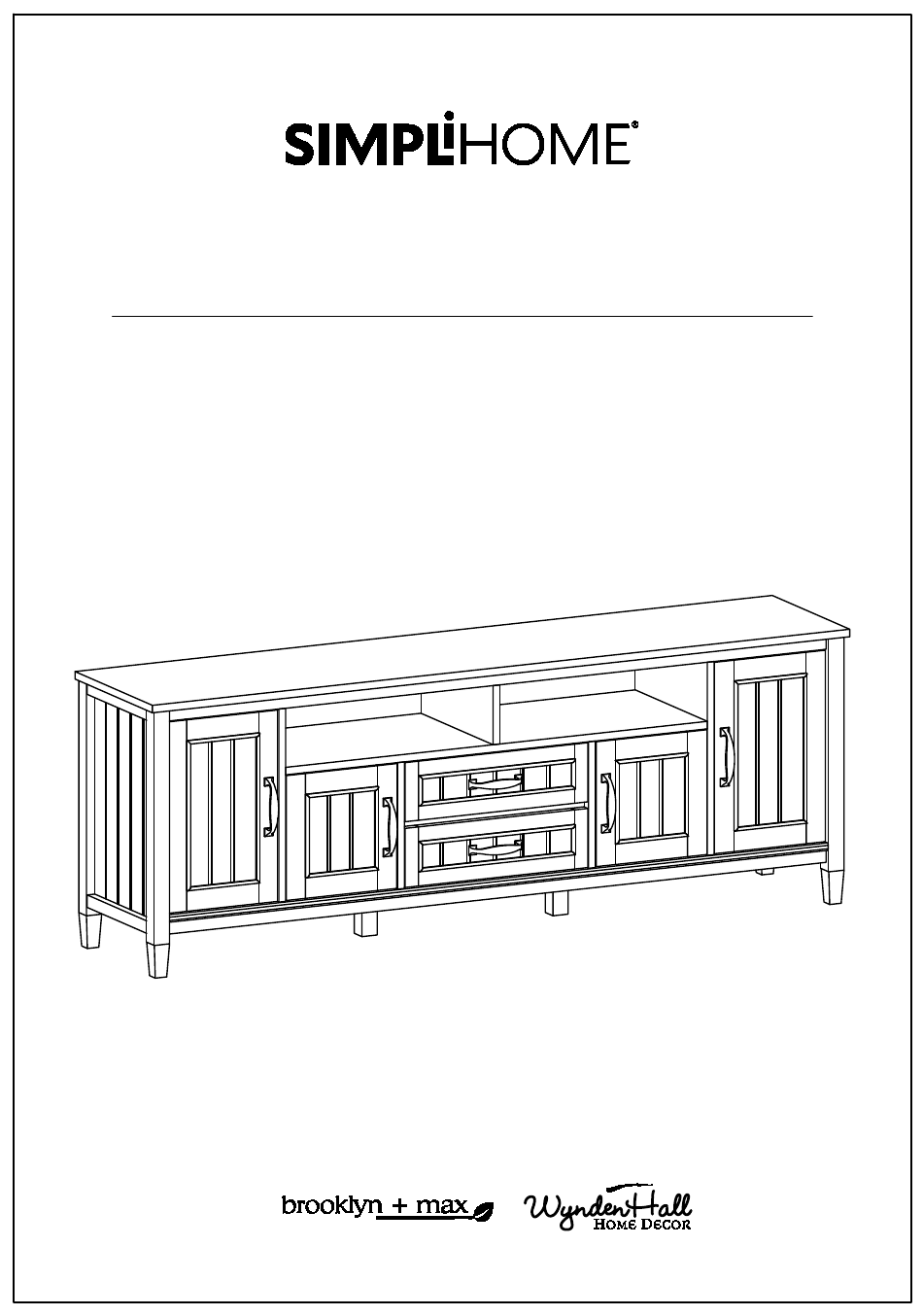

- Page 1 Lev / Rowan / Cadwyn 72 Inch TV Media Stand Model # AXCLEV16-SMB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 130 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. -
Page 8: Bottom Frame
Pre-Assembly Information Model # AXCLEV16-SMB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 TOP SHELF CENTRE SHELF BOTTOM FRAME QTY 1 QTY 1 QTY 1 TOP DIVIDER MIDDLE LEFT DIVIDER MIDDLE RIGHT DIVIDER QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER... - Page 9 Pre-Assembly Information Model # AXCLEV16-SMB Part Description LARGE DOOR SMALL DOOR LEFT BACK PANEL QTY 2 QTY 2 QTY 1 Warning Label TOP BACK PANEL RIGHT BACK PANEL BOTTOM BACK PANEL QTY 1 QTY 1 QTY 1 BOTTOM SUPPORT LEG FLIP DOWN DOOR DRAWER FRONT QTY 2...
- Page 10 Pre-Assembly Information Model # AXCLEV16-SMB Hardware Description WOOD DOWEL CAM LOCK PIN ALLEN KEY SCREW ALLEN KEY Ø8 X 30mm CAM LOCK M6 X 30mm QTY 1 QTY 28 QTY 34 QTY 22 SETS PHILLIPS SCREW HANDLE PHILLIPS SCREW ROUND HEAD M4 X 15mm - QTY 8 MAGNET AND PLATE M4 X 25mm...
- Page 11 Components - Key Diagram Model # AXCLEV16-SMB...
- Page 12 Assembly Model # AXCLEV16-SMB Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front Q . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides RL , RR . 2.
- Page 13 Assembly Model # AXCLEV16-SMB Step 3 1. Slide Drawer Bottom T firmly into slots on Drawer Sides RL , RR and Drawer Front Q . 2. Align Drawer Back S with Drawer Bottom T and press firmly into slot. 3. Attach Drawer Back using two Allen Key Screws 1 through guide holes on each Drawer Side RL , RR .
- Page 14 Assembly Model # AXCLEV16-SMB Step 4 M4 X 10mm 1. Use Phillips screwdriver to attach Handle 3 to Drawer Front Q .
- Page 15 Assembly Model # AXCLEV16-SMB Step 5 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each Side BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert two Wood Dowels 3 into guide holes on each Side BL , BR . 4.
- Page 16 Assembly Model # AXCLEV16-SMB Step 6 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each Divider HL , HR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Wood Dowels 3 into guide holes on parts F , GL , GR . 4.
- Page 17 Assembly Model # AXCLEV16-SMB Step 7 1. Attach six Cam Lock Pins 2 into pre-drilled holes on Shelf D . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Wood Dowels 3 into guide holes on parts C , E . 4.
- Page 18 Assembly Model # AXCLEV16-SMB Step 8 1. Align Wood Dowels with guide holes and attach Dividers GL , GR to Flip Down Door E . 2. Align Cam Lock Pins with guide holes and attach Dividers GL ,GR to Shelf D . 3.
- Page 19 Assembly Model # AXCLEV16-SMB Step 9 1. Align Wood Dowels with guide holes and attach Divider F to Shelf D . 2. Use three Allen Key Screws 1 to attach Divider F through guide holes. 3. Align Cam Lock Pins and Wood Dowels with guide holes and attach Dividers HL , HR to Shelf D .
- Page 20 Assembly Model # AXCLEV16-SMB Step 10 1. Align Wood Dowels with guide holes and attach Bottom Frame C to Dividers GL , GR , HL , HR . 2. Use Allen Key Screws 1 to attach Bottom Frame C through guide holes from Bottom Frame C to pre-drilled holes of Dividers GL , GR , HL , HR .
- Page 21 Assembly Model # AXCLEV16-SMB Step 11 1. Attach Bottom Support Legs O into guide holes of Bottom Frame C using four Phillips Screws 6 . 2. Use Phillips screwdriver to tighten Screws. Do not over-tighten. 3. Align Cam Lock Pins and Wood Dowels with guide holes and attach Sides BL , BR to Bottom Frame C .
- Page 22 Assembly Model # AXCLEV16-SMB Step 12...
- Page 23 Assembly Model # AXCLEV16-SMB Step 13 Warning Label Note: The back of the TV frame does not have pre-drilled holes to attach the back panels. 1. Attach parts M , N , LL , LR to back frame by using Phillips Screws Round Head 7 . 2.
- Page 24 Assembly Model # AXCLEV16-SMB Step 15 1. Attach Adjustable Hinges 10 on Doors J , K to parts BL ,BR , HL , HR using Phillips Screws 11 into guide holes on Sides BL ,BR . 2. Attach Hinges 12 to Middle Shelf E using Phillips Screws 13 into pre-drilled holes . 3.
- Page 25 Assembly Model # AXCLEV16-SMB Step 16 M4 X 15mm...
-
Page 26: Important Note
Assembly Model # AXCLEV16-SMB Step 17 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 27 Assembly Model # AXCLEV16-SMB Step 18 M4 X 10mm...
- Page 28 Assembly Model # AXCLEV16-SMB Step 19 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 16 for each Cabinet Shelf I in desired location. 2. Two Shelf Supports 16 may be used on back top of each Cabinet Shelf I as a tipping restraint.
- Page 29 Assembly Model # AXCLEV16-SMB Step 20 1. Insert assembled drawer into glides on assembled TV.
- Page 30 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 21 NOTE: The screwdriver is not included in the hardware pack.
- Page 31 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
