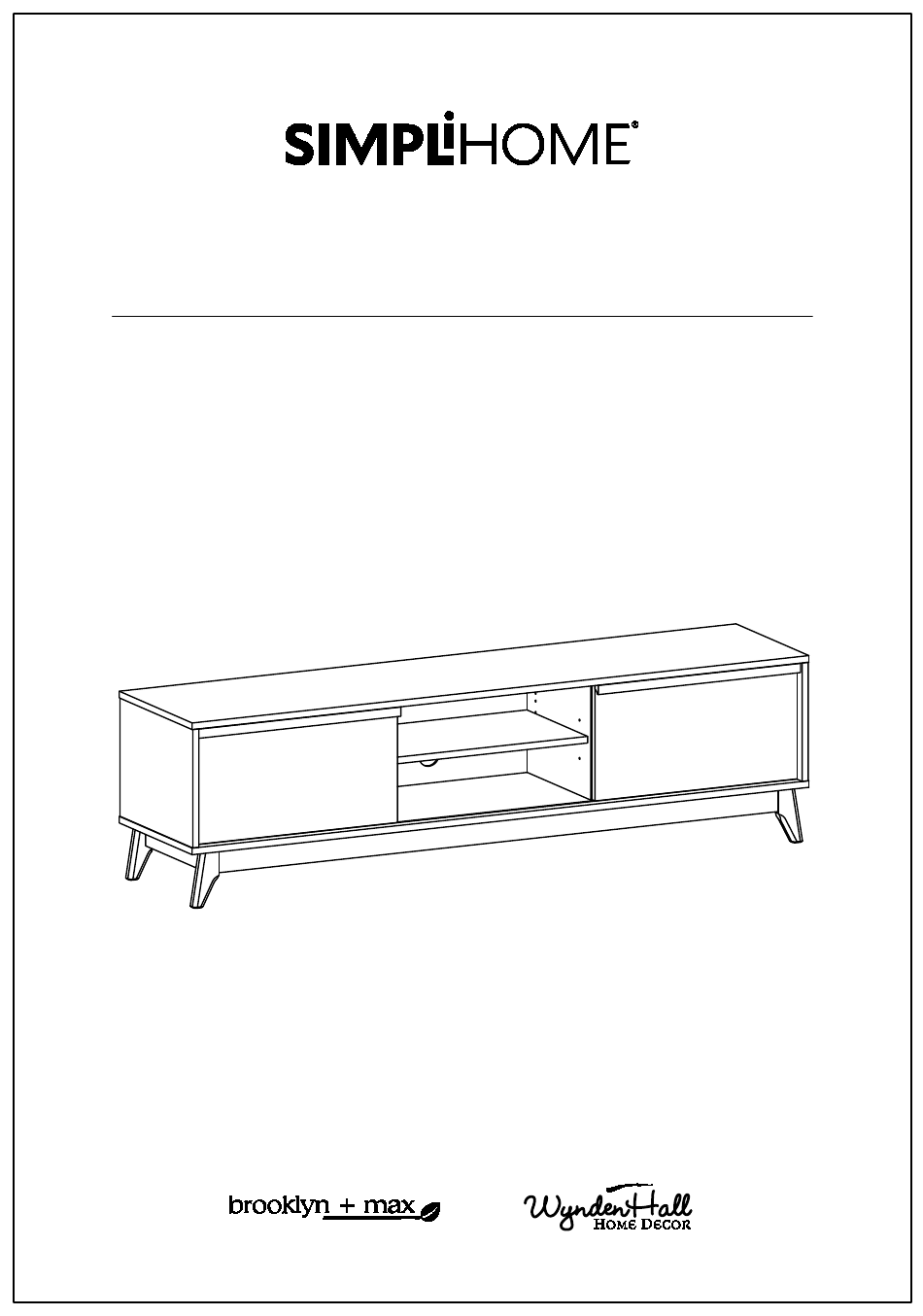

- Page 1 Lennon / Noelle / Jubilee 72 inch Low TV Stand Model # AXCLENLOW-72-WAL...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
- Page 6 Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
- Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 130 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
-
Page 8: Maximum Load 25 Lbs
WARNING For use with televisions weighing 130 lbs or less. Use with heavier televisions may result in instability causing tip over resulting in death or serious injury. If a customer wants to use this unit as a TV stand, you must install the TV at position 4 inches from the front edge of console to prevent it from tipping over. -
Page 9: Bottom Shelf
Pre-Assembly Information Model # AXCLENLOW-72-WAL Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 RIGHT DIVIDER LEFT DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 LEG (L&R Same) LEG (L&R Same) LEFT DOOR QTY 2 QTY 2 QTY 1 Warning Label SHELF... - Page 10 Pre-Assembly Information Model # AXCLENLOW-72-WAL Hardware Description ALLEN KEY SCREW M6 X 30mm ALLEN KEY QTY 24 QTY 1 PHILLIPS SCREW ROUND HEAD WOOD DOWEL SHELF SUPPORT M4 X 15mm Ø8 X 30 mm QTY 6 QTY 22 QTY 12 M4 X 25mm - QTY 2 ( 1 is extra ) M4 X 15mm - QTY 1...
- Page 11 Components - Key Diagram Model # AXCLENLOW-72-WAL...
- Page 12 Assembly Model # AXCLENLOW-72-WAL Step 1 1. Insert Wood Dowels 6 into guide holes on Sides BL , BR and Dividers DL , DR . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/3 length of Dowels should be exposed.
- Page 13 Assembly Model # AXCLENLOW-72-WAL Step 2 1. Align Wood Dowels with guide holes and attach Dividers DL , DR to Bottom Shelf C . 2. Use six Allen Key Screws 1 to attach Bottom Shelf C through guide holes. 3. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 14 Assembly Model # AXCLENLOW-72-WAL Step 3 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Bottom Shelf C . 2. Use six Allen Key Screws 1 to attach Bottom Shelf C through guide holes. 3. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 15 Assembly Model # AXCLENLOW-72-WAL Step 4 1. Attach Legs E1 , E2 to Bottom Shelf C using eight sets Allen Key Bolts, Lock washers and Washers 2 through guide holes (two sets on each Leg). 2. Use Allen Key 3 to tighten Bolts. Do not over-tighten.
- Page 16 Assembly Model # AXCLENLOW-72-WAL Step 5 1. Align Wood Dowels with guide holes and attach Top A to Sides BL , BR . 2. Use three Allen Key Screws 1 to attach each Side BL , BR through guide holes. 3.
- Page 17 Assembly Model # AXCLENLOW-72-WAL Step 6 1. Slide the wheels on bottom of each door to the slots on Bottom Shelf C . 2. Pull down the pins on top of each door then place the door to be parallel with the TV side post.
- Page 18 Assembly Model # AXCLENLOW-72-WAL Step 7 Warning Label Note: 1. Attach the Back Panel H to back frame using Phillips Screws Round Head 5 through guide holes from Back Panel. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 19 Assembly Model # AXCLENLOW-72-WAL Step 8 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 4 for Cabinet Shelf I in desired location. 2. Two Shelf Supports 4 may be used on back top of Cabinet Shelf I as a tipping restraint.
- Page 20 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 9 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
