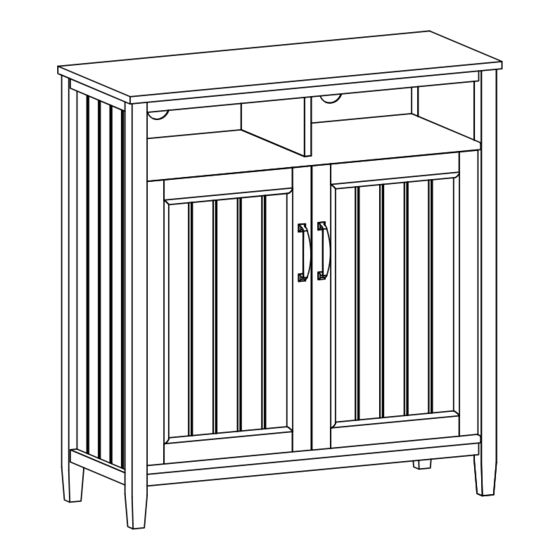

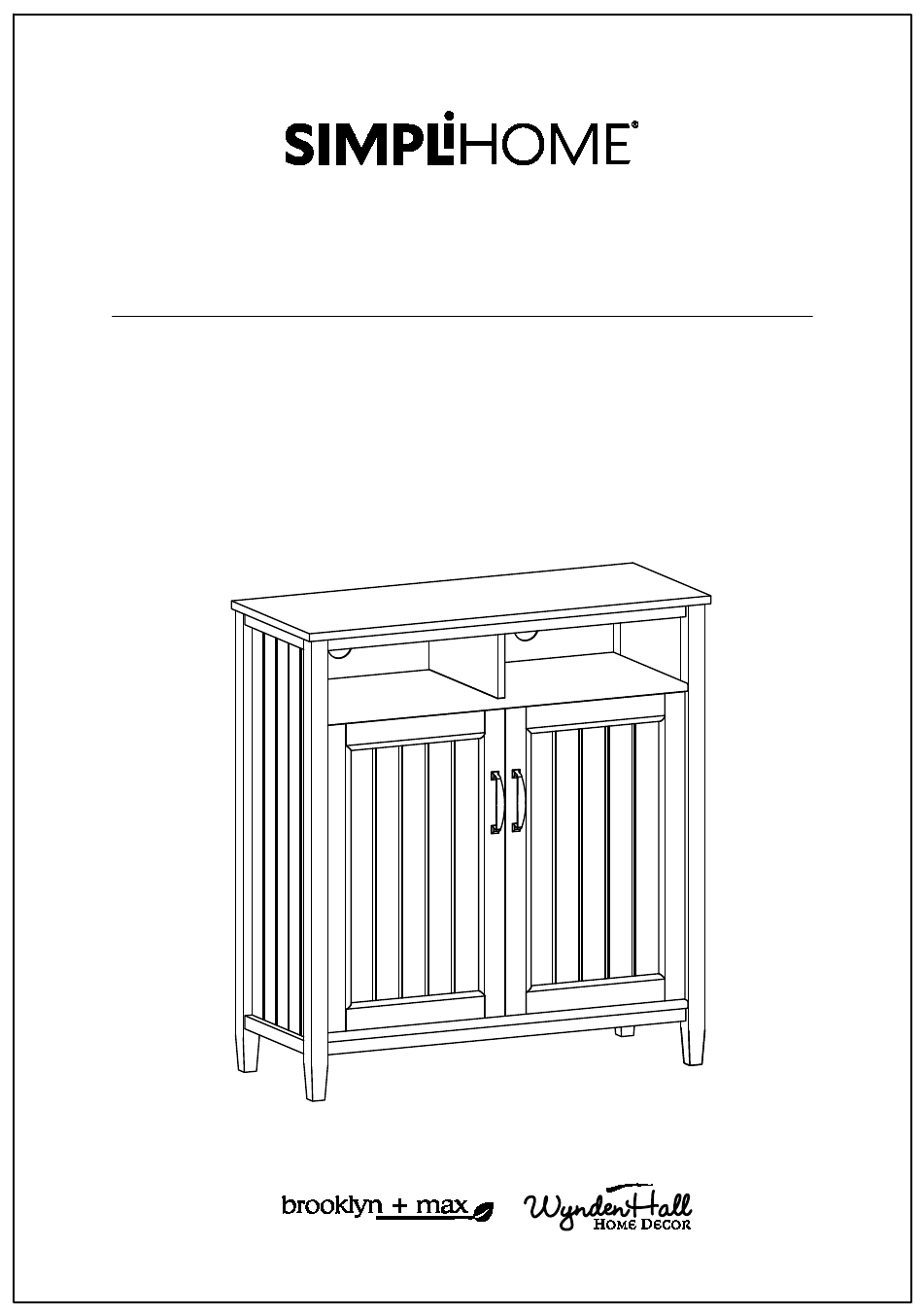

- Page 1 Lev / Rowan / Cadwyn Medium Storage Cabinet Model # AXCLEV15-SMB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCLEV15-SMB Part Description TOP SHELF BOTTOM SHELF QTY 1 QTY 1 QTY 1 LEFT SIDE BOTTOM DIVIDER TOP DIVIDER QTY 1 QTY 1 QTY 1 Warning Label RIGHT SIDE LEFT BACK PANEL RIGHT BACK PANEL QTY 1 QTY 1 QTY 1 RIGHT DOOR...
- Page 8 Pre-Assembly Information Model # AXCLEV15-SMB Hardware Description CAM LOCK PIN HANDLE ALLEN KEY SCREW CAM LOCK M4 X 15mm ALLEN KEY M6 X 30mm QTY 2 SETS QTY 1 QTY 15 QTY 15 SETS PHILLIPS SCREW WOOD DOWEL ROUND HEAD MAGNET AND PLATE SHELF SUPPORT Ø8 X 30mm...
- Page 9 Components - Key Diagram Model # AXCLEV15-SMB...
- Page 10 Assembly Model # AXCLEV15-SMB Step 1 1. Insert Dowels 7 into guide holes on parts B , C , D , E . 2. Use rubber mallet to tap Dowels 7 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 11 Assembly Model # AXCLEV15-SMB Step 2 1. Align Wood Dowels with guide holes and attach Top Divider D to Top Shelf B . 2. Use three Allen Key Screws 1 to attach Top Shelf D through guide holes from Top Shelf B to pre-drilled holes of Top Divider D . 3.
- Page 12 Assembly Model # AXCLEV15-SMB Step 3 1. Attach three Cam Lock Pins 2 into pre-drilled holes on Top Shelf B . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 4 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Bottom Divider E to Top Shelf B .
- Page 13 Assembly Model # AXCLEV15-SMB Step 5 1. Align Wood Dowels with guide holes and attach Bottom Shelf C to Top Divider E . 2. Use three Allen Key Screws 1 to attach Bottom Shelf C through guide holes from Bottom Shelf C to pre-drilled holes of Bottom Divider E . 3.
- Page 14 Assembly Model # AXCLEV15-SMB Step 6 1. Attach six Cam Lock Pins 2 into pre-drilled holes on each Side FL , FR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert two Dowels 7 into guide holes on each Side FL , FR . 4.
- Page 15 Assembly Model # AXCLEV15-SMB Step 7 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Sides FL , FR to parts B , C . 2. Insert six Cam Locks 2 into guided holes on each part B , C . 3.
- Page 16 Assembly Model # AXCLEV15-SMB Step 8 1. Align Wood Dowels with guide holes and attach Top A to Sides FL , FR . 2. Attach Top A to Sides FL , FR using six Allen Key Screws 1 ( Three Screws on each Side ). 3.
- Page 17 Assembly Model # AXCLEV15-SMB Step 9 Note: Warning Label 1. Attach parts GL , GR to back frame by using Phillips Screws Round Head 5 . 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten. Step 10 1. Attach Adjustable Hinges 10 to Doors HL , HR using Phillips Screws 11 into pre-drilled holes on Doors HL , HR .
- Page 18 Assembly Model # AXCLEV15-SMB Step 11 1. Attach Adjustable Hinges 10 on Doors HL , HR to Sides FL , FR using Phillips Screws 11 into guide holes on Sides FL , FR . 2. Use Phillips screwdriver to snugly tighten screws. Step 12 1.
-
Page 19: Important Note
Assembly Model # AXCLEV15-SMB Step 13 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 20 Assembly Model # AXCLEV15-SMB Step 14 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 6 for each Cabinet Shelf I in desired location. 2. Two Shelf Supports 6 may be used on back top of each Cabinet Shelf I as a tipping restraint.
- Page 21 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 15 NOTE: The screwdriver is not included in the hardware pack.
- Page 22 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
