Summary of Contents for SIMPLIHOME WyndenHall brooklyn+max AXCLEV09-SMB

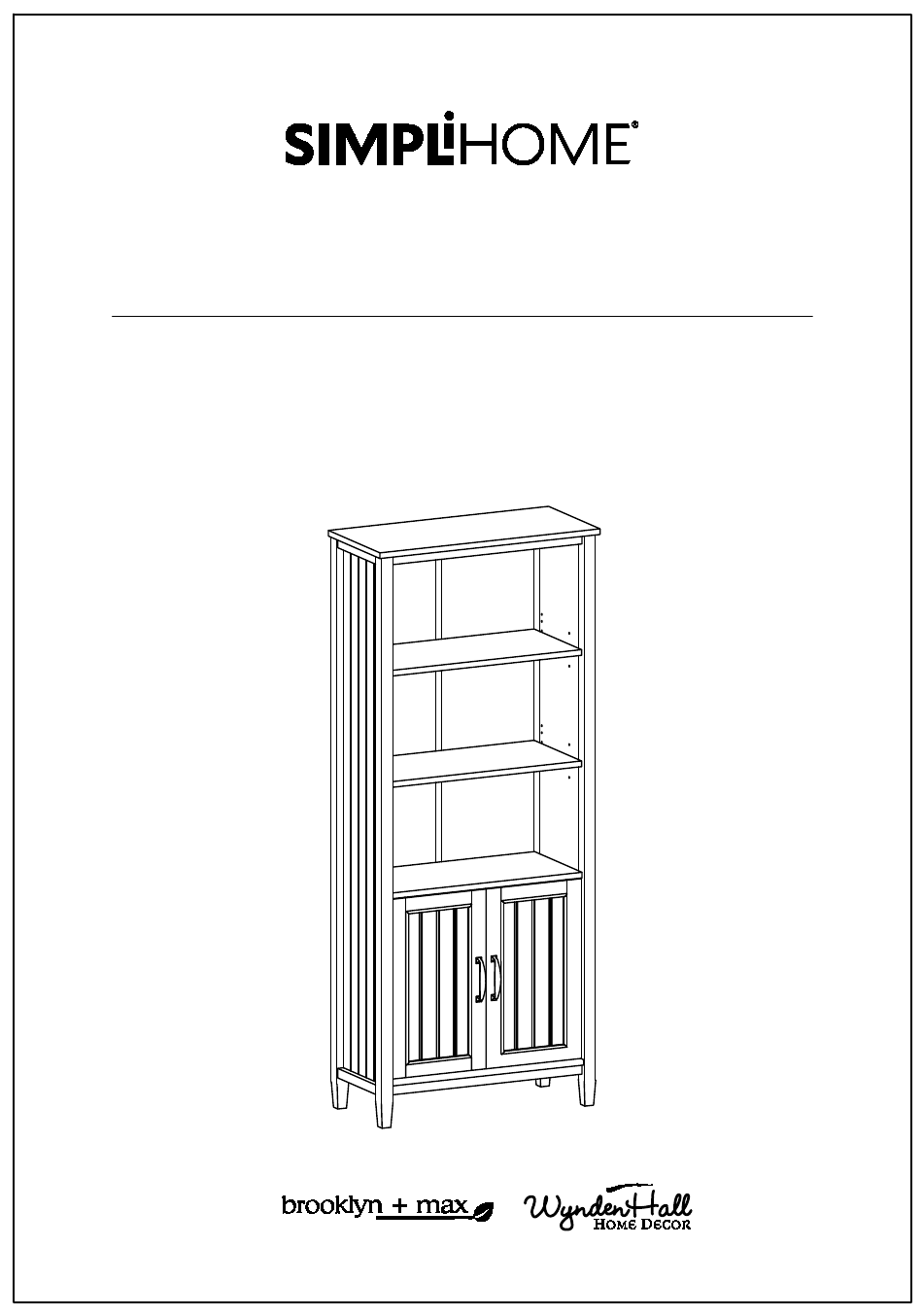

- Page 1 Lev / Rowan / Cadwyn Bookcase Model # AXCLEV09-SMB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # AXCLEV09-SMB Part Description BOTTOM SHELF MIDDLE SFELF QTY 1 QTY 1 QTY 1 DIVIDER RIGHT SIDE LEFT SIDE QTY 1 QTY 1 QTY 1 Warning Label LEFT BACK PANEL JOINING STRIP RIGHT BACK PANEL QTY 1 QTY 1 QTY 1 DOOR... - Page 8 Pre-Assembly Information Model # AXCLEV09-SMB Hardware Description CAM LOCK PIN HANDLE ALLEN KEY SCREW CAM LOCK M4 X 15mm ALLEN KEY M6 X 30mm QTY 2 SETS QTY 1 QTY 7 QTY 14 SETS PHILLIPS SCREW WOOD DOWEL ROUND HEAD MAGNET AND PLATE SHELF SUPPORT Ø8 X 30mm...
- Page 9 Components - Key Diagram Model # AXCLEV09-SMB...
- Page 10 Assembly Model # AXCLEV09-SMB Step 1 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each Side EL , ER . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert two Dowels 7 into guide holes on each Side EL , ER . 4.
- Page 11 Assembly Model # AXCLEV09-SMB Step 2 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each Side EL , ER . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert two Dowels 7 into guide holes on each Side EL , ER . 4.
- Page 12 Assembly Model # AXCLEV09-SMB Step 3 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Divider D to Middle Shelf C . 2. Insert two Cam Locks 2 into guided holes on Middle Shelf C . 3.
- Page 13 Assembly Model # AXCLEV09-SMB Step 4 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Sides BL , BR to parts C , D . 2. Insert six Cam Locks 2 into guided holes on each part C , D . 3.
- Page 14 Assembly Model # AXCLEV09-SMB Step 5 1. Align Wood Dowels with guide holes and attach Top A to Sides EL , ER . 2. Attach Top A to Sides EL , ER using four Allen Key Screws 1 ( Two Screws on each Side ). 3.
- Page 15 Assembly Model # AXCLEV09-SMB Step 6 Note: Warning Label 1. Attach Left back Panel FL to back frame by using eleven Phillips Screws 5 . 2. Insert Right Back Panel FR into the slot of Plastic Joining Strip G . 3.
- Page 16 Assembly Model # AXCLEV09-SMB Step 7 1. Attach Adjustable Hinges 10 to Doors H using Phillips Screws 11 into pre-drilled holes on Doors H . Step 8 1. Attach Adjustable Hinges 10 on Doors H to Sides EL , ER using Phillips Screws 11 into guide holes on Sides EL , ER .
- Page 17 Assembly Model # AXCLEV09-SMB Step 9 1. Attach Magnets 8 to Bottom Shelf B using Phillips Screws 9 into pre-drilled holes on Bottom Shelf B . 2. Attach Magnet Plates 8 using Phillips Screws 9 into pre-drilled holes on Doors H . 3.
-
Page 18: Important Note
Assembly Model # AXCLEV09-SMB Step 9 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 19 Assembly Model # AXCLEV09-SMB Step 10 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 6 for each Cabinet Shelf I , J in desired location. 2. Two Shelf Supports 6 may be used on back top of each Cabinet Shelf I , J as a tipping restraint.
- Page 20 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 11 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
