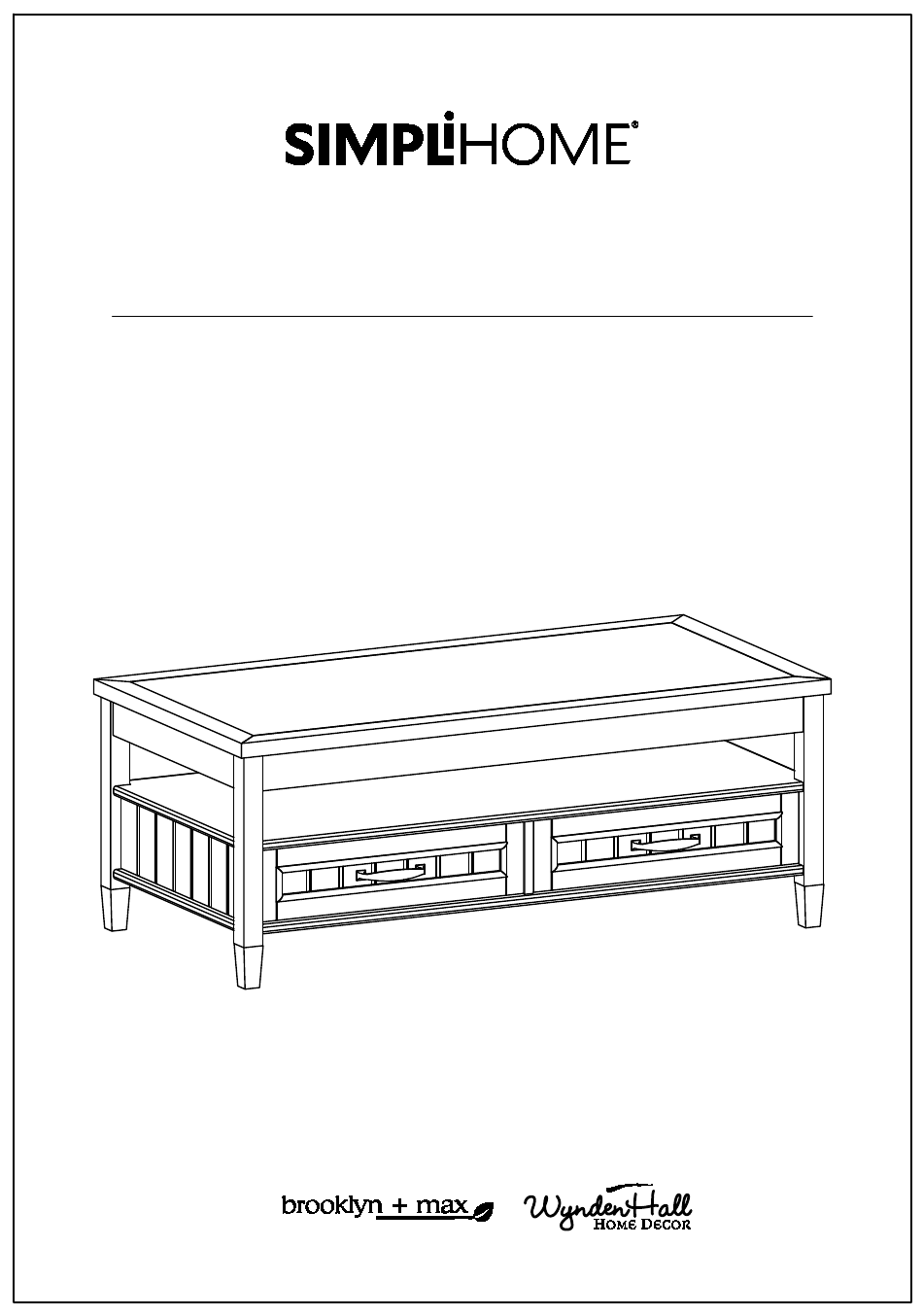

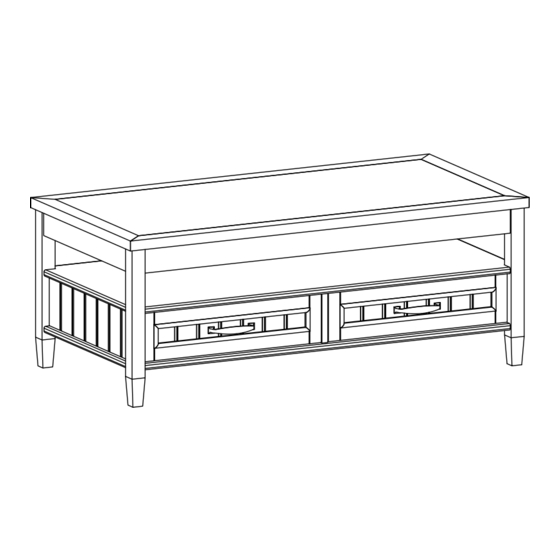

- Page 1 Lev / Rowan / Cadwyn Lift Top Coffee Table Model # AXCLEV61-SMB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # AXCLEV61-SMB Part Description MIDDLE SHELF BOTTOM FRAME QTY 1 QTY 1 QTY 1 LEFT SIDE RIGHT SIDE BACK PANEL QTY 1 QTY 1 QTY 1 DIVIDER DRAWER FRONT LEFT DRAWER SIDE QTY 1 QTY 2 QTY 2 RIGHT DRAWER SIDE DRAWER BACK DRAWER BOTTOM... - Page 8 Pre-Assembly Information Model # AXCLEV61-SMB Hardware Description ALLEN KEY SCREW CAM LOCK PIN HANDLE M6 X 30mm CAM LOCK M4 X 10mm QTY 32 QTY 8 SETS QTY 4 SETS WOOD DOWEL ALLEN KEY Ø8 X 30mm QTY 1 QTY 6 Required - Flathead screwdriver Phillips screwdriver...
- Page 9 Components - Key Diagram Model # AXCLEV61-SMB...
- Page 10 Assembly Model # AXCLEV61-SMB Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front G . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides HL , HR . 2.
- Page 11 Assembly Model # AXCLEV61-SMB Step 3 1. Slide Drawer Bottom J firmly into slots on Drawer Sides HL , HR and Drawer Front G . 2. Align Drawer Back I with Drawer Bottom J and press firmly into slot. 3. Attach Drawer Back using two Allen Key Screws 1 through guide holes on each Drawer Side HL , HR .
- Page 12 Assembly Model # AXCLEV61-SMB Step 4 1. Use Phillips screwdriver to attach Handle 3 to Drawer Front G . Repeat Step 1-4 for the second drawer.
- Page 13 Assembly Model # AXCLEV61-SMB Step 5 1. Insert Wood Dowels 5 into guide holes on parts A , E , F . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
- Page 14 Assembly Model # AXCLEV61-SMB Step 6 1. Align Wood Dowels with guide holes and attach Left Side DL to Top A . 2. Use three Allen Key Screws 1 to attach Top A through guide holes to pre-drilled holes of Left Side DL . 3.
- Page 15 Assembly Model # AXCLEV61-SMB Step 7 1. Use three Allen Key Screws 1 to attach Middle Shelf B through guide holes to pre-drilled holes of Left Side DL . 2. Use Allen Key 4 to tighten Bolts. Do not over-tighten. 3.
- Page 16 Assembly Model # AXCLEV61-SMB Step 8 1. Repeat Steps 6, 7 for Right Side DR .
- Page 17 Assembly Model # AXCLEV61-SMB Step 9 1. Use three Allen Key Screws 1 to attach Divider B through guide holes to pre-drilled holes of Middle Shelf B . 2. Use Allen Key 4 to tighten Bolts. Do not over-tighten.
- Page 18 Assembly Model # AXCLEV61-SMB Step 10 1. Align Wood Dowels with guide holes and attach Bottom Frame C to Divider F . 2. Use nine Allen Key Screws 1 to attach Bottom Frame C through guide holes to pre-drilled holes of parts F , DL , DR . 3.
- Page 19 Assembly Model # AXCLEV61-SMB Step 11 1. Insert assembled drawers into glides on assembled table.
