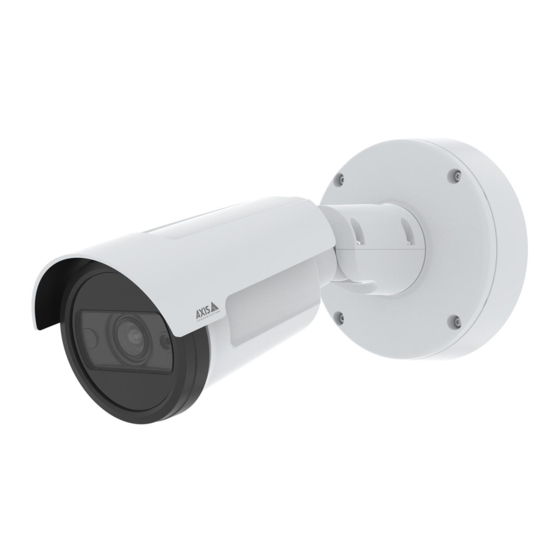

AXIS P1465-LE-3 License Plate Verifier Kit
User manual

Advertisement

Table of Contents
loading

Related Manuals for Axis P1465-LE-3

Summary of Contents for Axis P1465-LE-3

  • Page 1 AXIS P1465-LE-3 License Plate Verifier Kit User manual...
  • Page 2 Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 3: Webpage Overview

    Verify that no one has tampered with the firmware To make sure that the device has its original Axis firmware, or to take full control of the device after a security attack: 1. Reset to factory default settings. See Reset to factory default settings on page 70.
  • Page 4 The mounting height for camera in a Free flow (slow traffic license plate recognition) scenario should be less than half of the distance of that between the vehicle and the camera. Access control capture distance: 2–7 m (6.6–23 ft). This example is based on the AXIS P3265–LVE-3 License Plate Verifier kit. Capture distance: (x) Mounting height (y) 2.0 m (6.6 ft)
  • Page 5 AXIS P1465-LE-3 License Plate Verifier Kit Basic setup Capture distance (x) Mounting height (y) 7.0 m (23 ft) 3.0 m (9.8 ft) 10.0 m (33 ft) 4.0 m (13 ft) 15.0 m (49 ft) 6.0 m (19.5 ft) 20.0 m (65 ft) 10.0 m (33 ft)
  • Page 6 AXIS P1465-LE-3 License Plate Verifier Kit Basic setup Horizontal tilt. Step-by-step guide When you first run the application, set up Free flow or Access control using the step-by-step guide. If you want to make changes later on, it can be found in the Settings tab under Configuration wizard.

  • Page 7: Access Control

    AXIS P1465-LE-3 License Plate Verifier Kit Basic setup 10. In the Server URL field, type the server address and port in the following format: 127.0.0.1:8080 11. In the Device ID field, type the name of the device or leave as is.
  • Page 8 AXIS P1465-LE-3 License Plate Verifier Kit Basic setup Note For detailed settings see: Push event information to third-party software on page 31. 1. In the Protocol drop-down list, select one of the following protocols: HTTP POST 2. In the Server URL field, type the server address and port in the following format: 127.0.0.1:8080.

  • Page 9: Select Region

    AXIS P1465-LE-3 License Plate Verifier Kit Basic setup Example with one area of interest. Note For performance reasons, keep the area of interest as small as possible. Select region 1. Go to Settings > Image. 2. In the Region drop-down list, select your region.
  • Page 10 SD card as the default storage. AXIS License Plate Verifier uses the cameras internal memory to save up to 1,000 events, using license plate crops as the frame. If you use larger frames, it will vary the amount of events you can save.

  • Page 11: Preview Mode

    AXIS P1465-LE-3 License Plate Verifier Kit Installation Installation To watch this video, go to the web version of this document. help.axis.com/?&piaId=89968&section=get-started Installation video for the product. Preview mode Preview mode is ideal for installers when fine tuning the camera view during the installation. No login is required to access the camera view in preview mode.

  • Page 12: Adjust The Image

    Set up AXIS License Plate Verifier When a device is configured with AXIS License Plate Verifier, it is considered as an external data source in AXIS Camera Station. You can connect a view to the data source, search for the license plates that are captured by the device, and view the related image.
  • Page 13 AXIS P1465-LE-3 License Plate Verifier Kit Configure your device 1. Go to Video > Image > and click 2. Click to show the level grid. 3. Adjust the camera mechanically until the position of the reference area or the object is aligned with the level grid.
  • Page 14 AXIS P1465-LE-3 License Plate Verifier Kit Configure your device ABC 123 1. Go to Video > Image. 2. Click 3. Click for Pixel counter. 4. In the camera’s live view, adjust the size and position of the rectangle around the area of interest, for example where you expect license plates to appear.
  • Page 15 AXIS P1465-LE-3 License Plate Verifier Kit Configure your device Note The Zipstream settings are used for both H.264 and H.265. Turn on Dynamic FPS. Turn on Dynamic GOP and set a high Upper limit GOP length value. Note Most web browsers don’t support H.265 decoding and because of this the device doesn’t support it in its web interface.

  • Page 16: Trigger An Action

    AXIS P1465-LE-3 License Plate Verifier Kit Configure your device 2. Use AXIS Camera Station (5.46 or later) or another compatible video management software to record video. For instructions, see the AXIS Camera Station user manual. 3. Export the recorded video.

  • Page 17: Send An Email Automatically If Someone Spray Paints The Lens

    AXIS P1465-LE-3 License Plate Verifier Kit Configure your device 2. Type a name for the rule. 3. In the list of conditions, under Application, select ALPV.PlateInView. 4. In the list of actions, under Recordings, select Record video while the rule is active.
  • Page 18 AXIS P1465-LE-3 License Plate Verifier Kit Manage lists Manage lists Add detected license plate to list A license plate can be added directly to a list after being detected by the application. 1. Click the Event log tab. 2. Go to Latest Event.
  • Page 19 AXIS P1465-LE-3 License Plate Verifier Kit Manage lists 3. Browse to select a .csv file on the computer. 4. Click OK. 5. Check that the imported license plate numbers appear in the Allowlist. Share license plate lists with other cameras You can share the license plate lists with other cameras on the network.
  • Page 20 AXIS P1465-LE-3 License Plate Verifier Kit Additional settings Additional settings Configure text overlay A text overlay shows the following event information in the live view: weekday, month, time, year, license plate number. 1. Go to Settings > Image. 2. Activate Text overlay.
  • Page 21 AXIS P1465-LE-3 License Plate Verifier Kit Additional settings 1. Go to Settings > Detection parameters. 2. Under Allowed character deviation, select the number of characters that are allowed to be different. 3. Check that the application matches the license plates as expected.
  • Page 22 Virtual ports can be used together with access control to trigger any kind of action. This example explains how to set up AXIS License Plate Verifier together with the camera’s I/O port to display a text overlay using a virtual port.
  • Page 23 Open a barrier for known vehicles using a relay module This example use case explains how to set up AXIS License Plate Verifier together with a relay module to open a barrier for a known vehicle driving through a specific region of interest (ROI) into, let’s say a parking area.
  • Page 24 Open a barrier for known vehicles using the camera's I/O This example explains how to set up AXIS License Plate Verifier together with the camera’s I/O port to open a barrier for a known vehicle entering, for example, a parking area.
  • Page 25 AXIS P1465-LE-3 License Plate Verifier Kit Vehicle entry and exit scenario To watch this video, go to the web version of this document. help.axis.com/?&piaId=89968&section=open-a-barrier-for-known-vehicles-using-the-cameras-io Open a barrier for known vehicles using the camera's I/O 1. Go to the application’s webpage and select the Event log tab and add detected license plates to a list. See Add detected license plate to list on page 18 2.
  • Page 26 Vehicle access control scenario In the scenario for vehicle access control, the application can be connected to an Axis network door controller to configure access rules, create schedules for access times, and handle vehicle access not only for employees, but also, for example, visitors and suppliers.
  • Page 27 How to get the application up and running with AXIS A1001 Door Controller. Hardware configuration in AXIS Entry Manager 1. Go to AXIS Entry Manager and start a new hardware configuration under Setup. 2. In the hardware configuration, rename the network door controller to “Gate controller”.
  • Page 28 11. To limit the access time, drag and drop a Schedule to the user group. Overview of AXIS Entry Manager user interface. Users Doors Schedules User groups Connect to AXIS Secure Entry This example describes connecting an Axis door controller in AXIS Camera Station and AXIS Secure Entry with AXIS Licence Plate Verifier.
  • Page 29 3. Select Secure Entry, and click Next. In AXIS Camera Station: 4. Type the IP address of the door controller, available in the device list in AXIS Camera Station > Configuration > Other Devices. 5. To add a Authentication key, go to AXIS Camera Station > Configuration > Encrypted communication.
  • Page 30 AXIS P1465-LE-3 License Plate Verifier Kit Search for specific events Search for specific events Use the search feature to search for events using a number of criteria. 1. Go to the application’s webpage and select the Event log tab. 2. Select the date in the Start time and End time calendar menus.
  • Page 31 The camera must be physically installed and connected to the network. • AXIS License Plate Verifier must up and running on the camera. 1. Go to Integration > Push events. 2. In the Protocol drop-down list, select one of the following protocols: HTTP POST Type the user name and password.
  • Page 32 • The camera must be physically installed and connected to the network. • AXIS License Plate Verifier must up and running on the camera. 1. Go to Integration > Push events. 2. In the Protocol drop-down list, select FTP. 3. In the Server URL field, type the server address in the following format: ftp://10.21.65.77/LPR.
  • Page 33 AXIS P1465-LE-3 License Plate Verifier Kit Integration 3. Select Enable account. 4. Select Camera access. 5. Select License plate recognition. 6. Copy the IP address. In the AXIS License Plate Verifier app: 1. Go to Integration > Direct integration. 2. Add the IP address or URL to the 2N device.
  • Page 34 AXIS P1465-LE-3 License Plate Verifier Kit Integration 14. In WebSDK host, type: localhost. 15. In WebSDK port, select 443. 16. Check Allow self signed certificates. Under Security Center events data source: 17. Check Enabled. 18. In Name, type Security Center Lpr Events.
  • Page 35 AXIS P1465-LE-3 License Plate Verifier Kit Integration 7. Under Security > HTTPS. 8. Select Self-signed, or CA-signed depending on the settings in Genetec Security Center. In Genetec Security Center: 1. Go to Genetec Security desk. 2. Under Investigation, click Reads.
  • Page 36 AXIS P1465-LE-3 License Plate Verifier Kit The device interface The device interface To reach the device interface, type the device’s IP address in a web browser. Note Support for the features and settings described in this section varies between devices.
  • Page 37 AXIS P1465-LE-3 License Plate Verifier Kit The device interface Connected clients The list shows all clients that are connected to the device. Update: Click to refresh the list. Video Click to play the live video stream. Click to freeze the live video stream.
  • Page 38 AXIS P1465-LE-3 License Plate Verifier Kit The device interface • Level grid: Click to show the level grid. The grid helps you decide if the image is horizontally aligned. Click to hide it. • Pixel counter: Click to show the pixel counter. Drag and resize the box to contain your area of interest. You can also define the pixel size of the box in the Width and Height fields.
  • Page 39 AXIS P1465-LE-3 License Plate Verifier Kit The device interface Remove distortion : Use the slider to adjust the correction level. Pucker means that the image width is kept at the expense of image height and resolution. Bloat means that image height and resolution are kept at the expense of image width.
  • Page 40 AXIS P1465-LE-3 License Plate Verifier Kit The device interface Scene profile : Select a scene profile that suits your surveillance scenario. A scene profile optimizes image settings, including color level, brightness, sharpness, contrast, and local contrast, for a specific environment or purpose.
  • Page 41 AXIS P1465-LE-3 License Plate Verifier Kit The device interface : Turn on to make both bright and dark areas of the image visible. Local contrast : Use the slider to adjust the contrast of the image. A higher value makes the contrast higher between dark and light areas.
  • Page 42 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you have connected a supporting Axis accessory.
  • Page 43 AXIS P1465-LE-3 License Plate Verifier Kit The device interface • Flicker-free 60 Hz : The camera adjusts the aperture and gain automatically, and uses the shutter speed 1/60 s. • Flicker-reduced : This is the same as flicker-free, but the camera might use shutter speeds faster than 1/100 s (50 Hz) and 1/120 s (60 Hz) for brighter scenes.
  • Page 44 AXIS P1465-LE-3 License Plate Verifier Kit The device interface Lock aperture : Turn on to keep the aperture size set by the Aperture slider. Turn off to allow the camera to automatically adjust the aperture size. You can, for example, lock the aperture for scenes with permanent light conditions.
  • Page 45 Zipstream: A bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example in scenes with moving objects.

  • Page 46: View Areas

    AXIS P1465-LE-3 License Plate Verifier Kit The device interface Include: Turn on to use audio in the video stream. Source : Select what audio source to use. Stereo : Turn on to include built-in audio as well as audio from an external microphone.
  • Page 47 Locate device: Click to play a sound that helps you identify the speaker. For some products, a LED will flash on the device. Calibrate : Click to calibrate the speaker. Launch AXIS Audio Manager Edge: Click to launch the application. Device settings Input: Turn on or off audio input. Shows the type of input.
  • Page 48 AXIS P1465-LE-3 License Plate Verifier Kit The device interface Stream Encoding: Select the encoding to use for the input source streaming. You can only choose encoding if audio input is turned on. If audio input is turned off, click Enable audio input to turn it on.

  • Page 49: Date And Time

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.
  • Page 50 AXIS P1465-LE-3 License Plate Verifier Kit The device interface Note The system uses the date and time settings in all recordings, logs and system settings. Network IPv4 Assign IPv4 automatically: Select to let the network router assign an IP address to the device automatically. We recommend automatic IP (DHCP) for most networks.
  • Page 51 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: The default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 52 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 53 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 54 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 55 AXIS P1465-LE-3 License Plate Verifier Kit The device interface Wait between actions: Enter the minimum time (hh:mm:ss) that must pass between rule activations. It is useful if the rule is activated by for example day-night mode conditions, to avoid that small light changes during sunrise and sunset activate the rule repeatedly.
  • Page 56 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 57 AXIS P1465-LE-3 License Plate Verifier Kit The device interface From SIP account: Select from the list. To SIP address: Enter the SIP address. Test: Click to test that your call settings works. • Email Send email to: Enter the email address to send emails to. To enter multiple addresses, use commas to separate them.
  • Page 58 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 59 AXIS P1465-LE-3 License Plate Verifier Kit The device interface Last Will and Testament message The Last Will Testament (LWT) lets a client provide a testament along with its credentials when connecting to the broker. If the client disconnects ungracefully at some point later (maybe because his power source died), it can let the broker deliver a message to other clients.
  • Page 60 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share, since each device gets its own folder.

  • Page 61: Stream Profiles

    When you create an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. Add user: Click to add a new ONVIF user.
  • Page 62 AXIS P1465-LE-3 License Plate Verifier Kit The device interface An ONVIF media profile consists of a set of configurations that you can use to change media stream settings. Add media profile: Click to add a new ONVIF media profile. profile_x: Click a profile to edit.
  • Page 63 The device interface Network speaker pairing allows you to use a compatible Axis network speaker as if it is connected directly to the camera. Once paired, the speaker acts as an audio out device where you can play audio clips and transmit sound through the camera.

  • Page 64: Plain Config

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page.

  • Page 65: Maintenance

    Note All Axis device firmware is digitally signed to ensure that you only install verified firmware on your device. This further increases the overall minimum cybersecurity level of Axis devices. For more information, see the white paper “Signed firmware, secure boot, and security of private keys” at axis.com.

  • Page 66: Product Overview

    AXIS P1465-LE-3 License Plate Verifier Kit Specifications Specifications Product overview Audio connector I/O connector microSD card slot Network connector DC power input Status LED indicator Part number (P/N) & serial number (S/N) Control button LED indicators Status LED Indication Unlit Connection and normal operation.

  • Page 67: Control Button

    AXIS P1465-LE-3 License Plate Verifier Kit Specifications CAUTION Risk of injury. Hot surface. Do not touch the product when in operation. Disconnect from power supply and allow the surfaces to cool before performing maintenance on the product. NOTICE TICE TICE •...
  • Page 68 AXIS P1465-LE-3 License Plate Verifier Kit Specifications I/O connector Use the I/O connector with external devices in combination with, for example, motion detection, event triggering, and alarm notifications. In addition to the 0 V DC reference point and power (12 V DC output), the I/O connector provides the interface to: Digital input - For connecting devices that can toggle between an open and closed circuit, for example PIR sensors, door/window contacts, and glass break detectors.

  • Page 69: Power Connector

    AXIS P1465-LE-3 License Plate Verifier Kit Specifications Power connector 2-pin terminal block for DC power input. Use a Safety Extra Low Voltage (SELV) compliant limited power source (LPS) with either a rated output power limited to ≤100 W or a rated output current limited to ≤5 A.

  • Page 70: Reset To Factory Default Settings

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 71: Upgrade The Firmware

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.
  • Page 72 IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 73: Performance Considerations

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.
  • Page 74 User manual Ver. M1.7 AXIS P1465-LE-3 License Plate Verifier Kit Date: April 2023 © Axis Communications AB, 2023 Part no. T10191704...
